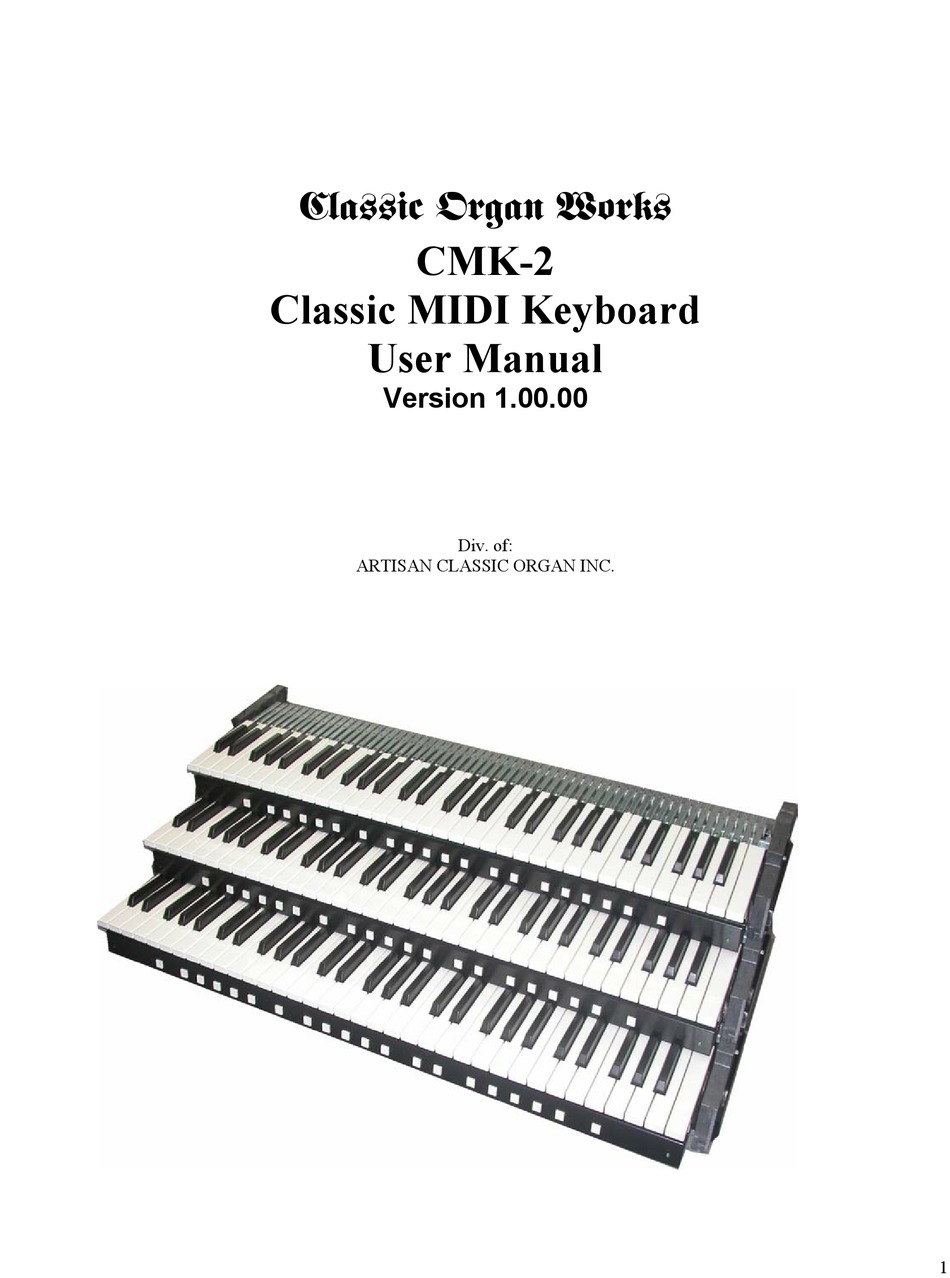

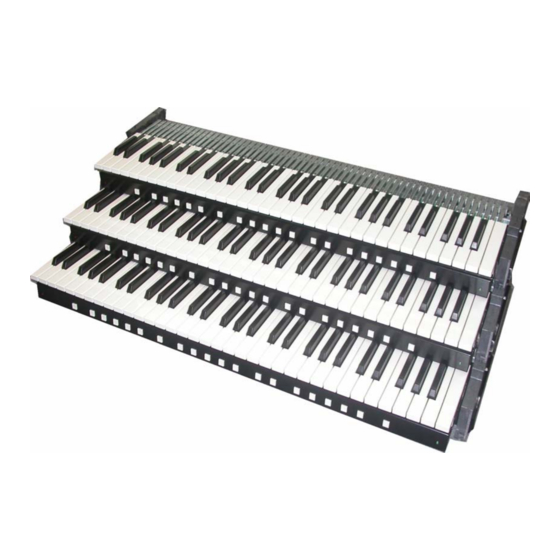

- Page 1 Dmbttjd!Pshbo!Xpslt! CMK-2 Classic MIDI Keyboard User Manual Version 1.00.00 Div. of: ARTISAN CLASSIC ORGAN INC.
-
Page 2: Table Of Contents
INTRODUCTION ......................9 Description............................9 Package Contents.........................10 Table 1: Package Contents ............................. 10 Figure 1: CMK-2 components (from L-R, Top to Bottom): ..................10 Figure 2: CMK-2 connections ..........................11 INSTALLATION ....................... 12 Physical Installation ........................12 Figure 3a: Bracket Installation ..........................12 Figure 3b: Bracket Goes Over Top of the Keyboard Mount .................. - Page 3 Figure 9 Upon clicking on the ‘CMK-2_Setup.exe’ file, the above window will appear........... 27 Figure 10 Allows the user to select a directory to install the CMK-2 program file ........... 27 Figure 11 Setup adds an icon to the start menu for convenient access..............28 Figure 12 Setup provides the option of creating an icon on the Windows desktop..........
- Page 4 Figure 26: Save Program Data to File Window ....................... 36 Figure 27: Confirm replacing of file window......................36 Figure 28: Software attempting to make a connection with the CMK-2 ..............36 Figure 29: Software unable to make a connection with the CMK-2 ................ 37 Figure 30: Software detecting number of keyboards....................
- Page 5 Figure 39: CMK-2A- SS Classic MIDI Keyboard Circuit board Silk Screen ............55 Figure 40: CMK-2A Classic MIDI Keyboard Circuit Board Schematic ..............56 Figure 41: CMK-2 PR-S-SSC v.1 Classic Midi Keyboard Piston Rail Silk Screen..........57 Figure 42: CMK-2 PR-S-S v.1 Classic MIDI Keyboard Piston Rail Schematic ............58 APPENDIX D: ......................
-
Page 7: Limited Warranty
CMK-2 LIMITED WARRANTY Classic Organ Works warrants the Classic MIDI Keyboard (CMK-2) to be free from defects in materials and workmanship under normal use for a period of ONE YEAR from the delivery date. This warranty applies only if the product is owned by the original purchaser who has the bill of sale. -
Page 9: Introduction
Inputs for expression shoes • Velocity sensitive (optional) With the CMK-2, MIDI software and sound modules may be controlled as if they were part of the organ. The CMK-2 is designed to work with all of your favorite hardware and software, including: •... -
Page 10: Package Contents
2 Manual 2 x B + 2 x C 3 Manual 2 x B + 4 x C Figure 1: CMK-2 components (from L-R, Top to Bottom): A) Keyboard B) Fatar small mounting bracket C) Fatar large mounting bracket D) 12V DC wall adaptor E) 6-Ft. -
Page 11: Figure 2: Cmk-2 Connections
Figure 2: CMK-2 connections... -
Page 12: Installation
Physical Installation The CMK-2 can be mounted into a traditional organ console or set on a table. The American Guild of Organists’ standard dimensions state that the top of the lower manual’s keys must be 29.5” from the top of the pedals. If the standard Classic MIDI Pedalboard is used, the table must be 32.5”... -
Page 13: Connections (Rear View)
Figure 3b: Bracket Goes Over Top of the Keyboard Mount First, sit the plastic supports on the end of each keyboard (figure 3b) and fasten them in place with the #8 screws from underneath (figure 3c). Then stack the keyboards by sliding the slots on the upper supports over the pins on the lower supports. -
Page 14: Power Connections
Figure 5: Power Terminal Block Connections Additional Information: • If the CMK-2 is to be mounted in an existing organ, it can be connected to the organ power supply. See schematic in appendix for details. • The CMK-2 has a bridge-rectifier, and can accept power supply positive or negative center power supplies •... -
Page 15: Midi Connections
MIDI Connections Connected to PC MIDI IN MIDI OUT MIDI IN MIDI OUT MIDI Adapter Classic MIDI Pedalboard (rear view) MIDI IN MIDI OUT MIDI OUT MIDI OUT MIDI OUT Manual 1 MIDI IN MIDI OUT MIDI OUT MIDI OUT MIDI OUT Manual 2 MIDI IN... -
Page 16: Figure 7 Wiring Schematic For Analog Input
CMK Config software on a personal computer Figure 7 Wiring Schematic for Analog input The CMK-2 has provision for up to four extra input functions on the circuit board. These inputs are reserved for future use. -
Page 17: Software Installation (Windows Users Only)
Software installation instructions are described in the ‘CMK Configuration Software’ section of the manual. Note: To use the software, the CMK-2 must be connected to a computer via MIDI. If a MIDI port is not available on your computer, a commercial MIDI adapter for the game port, USB port, or parallel port may be used. -
Page 18: Midi Specification
CLASSIC MIDI KEYBOARD CMK-2-1 MIDI SPECIFICATION MIDI (Music Instrument Digital Interface) is a communication system between computer-controlled music instruments and describes all the actions of a musical performance. It was originally developed for music synthesizers but, a few years ago, organ-builders began adding MIDI capabilities to pipe organs. However, as MIDI was not designed for a complex musical instrument such as the organ, its standards are subject to organ-builders preferences. -
Page 19: Table 5: 201 Module
Division A Division B Pedal Description Description Description Cello 8’ Open Diapason 8’ Contre Violone 32’ Cello Celeste 8’ Flauto Mirabilis 8’ Contre Gambe 16’ Cornet des Bombardes IV Concert Flute 4’ Contre Bassoon 32’ Cornopean 16’ Quint Flute 2 2/3’ Ophicleide 16’... -
Page 20: Hauptwerk Tm
The CMK-2 provides an interface for volume controls, expression controls, and pistons. MIDI messages will then be sent through the MIDI out port to the personal computer where Hauptwerk software will translate the MIDI message commands into actions on the organ. -
Page 21: Scpop Tm
SCPOP (not supported on the current version of the CMK-2) Sound Canvas Pipe Organ Project (SCPOP) is a computer program that emulates organ features like stop changes, keyboard coupling, tremolo, assignable memories, temperament changes, and the ability to choose different reverb settings. -
Page 22: Figure 8 Schematic Of 5-Pin Din Connector
Figure 8 Schematic of 5-pin DIN connector MIDI Hardware NOTES: 1. Opto-isolator shown is Sharp PC-900. HP 6N138 or other types can be used with changes. 2. Gates "A" are Integrated Circuit or transistor; Resistors are 5%. 3. Maximum cable length is fifty feet (15 meters), terminated at each end by a 5-pin 180º DIN male plug (e.g. SWITCHCRAFT 05GM5M). -
Page 23: Cmk-2 Hardware Configuration
Analog Input Pins There are three analog inputs on the CMK-2 Keyboard. Only two are useable at this time. (see Fig 13) Input 1 is for a standard swell-shoe and input 2 is for an ahlborn archive crescendo pedal. Analog devices must be connected to the analog input pin, a positive voltage (+5V) on pin ‘1’, and ground potential (0V) on pin ‘3’. -
Page 24: Programming
Programming The following chart lists different functions achievable using the piston pushbuttons and keyboard key-switches. Table 8: Piston programming functions Name Steps Function SOFT Press the 1 piston Performs a soft reboot. This will restart the keyboard REBOOT from the left (SET) and reload configuration data from the on-board and 1 piston from... - Page 25 SENSING black key from the To conform to traditional organ consoles which are not ON/OFF left (G#1) to turn off velocity sensitive, the CMK-2 permits users to disable velocity sensing. velocity sensing in the keyboard. Hold 1 piston (SET) and 5...
-
Page 26: Cmk-2 Software Configuration
CMK-2 must be connected to a personal computer running Windows operating system software (Windows 98, 2000, XP). The CMK-2 must be connected to a computer using MIDI. If a MIDI port is not available on your computer, commercial MIDI adapters for the game port, USB port, and parallel port may be used. -
Page 27: Figure 9 Upon Clicking On The 'Cmk-2_Setup.exe' File, The Above Window Will Appear
Figure 9 Upon clicking on the ‘CMK-2_Setup.exe’ file, the above window will appear. Figure 10 Allows the user to select a directory to install the CMK-2 program file... -
Page 28: Figure 11 Setup Adds An Icon To The Start Menu For Convenient Access
Figure 11 Setup adds an icon to the start menu for convenient access Figure 12 Setup provides the option of creating an icon on the Windows desktop... -
Page 29: Figure 13 Confirmation Window
Figure 13 Confirmation window Figure 14 Setup progress window... -
Page 30: Figure 15 Confirms Installation Was Successful
Figure 15 Confirms installation was successful... -
Page 31: Software Startup
1. Configure a Classic MIDI Keyboard from scratch: This mode allows you to create a new file for storing on the CMK-2 memory or for generating a file on your PC. 2. Load a previously saved CMK-2 configuration: This mode allows you to edit a file stored on your PC. -
Page 32: Configure A Cmk-2 From Scratch
Configure a CMK-2 from scratch This editing mode allows the user to create a new configuration for the CMK-2. The user can then choose to save the new settings on a computer or transfer the file to the CMK-2 memory as a new configuration. When a user selects the ‘Configure a Classic CMK-2 from scratch’... -
Page 33: Load A Previously Saved Cmk-2 Configuration
The user can then choose to save the new settings on a computer or transfer the file to the CMK-2 memory as a new configuration. When a user selects the ‘Load a previously saved CMK-2 configuration’... -
Page 34: Functions Of The Toolbars
Figure 22: Configuration File selection window. After selecting the appropriate file, click on the ‘Open’ button. A window should appear like the one shown below: Figure 23: Program window At this point, the user may customize each of the drop-down menus to their specifications. Functions of the Toolbars The software has toolbars which contain four main functions:... -
Page 35: File Menu
Figure 24: Toolbars in CMK-2Config software 1. File Menu • Open Program Data File – Loads a configuration file (with a ‘.CMK-2’ extension) from the PC to the CMK-2Config software. The user may then edit the file to their specifications. Icon: Keyboard shortcut: Ctrl+O To begin loading a configuration go to File →... -
Page 36: Figure 26: Save Program Data To File Window
Icon: Keyboard shortcut: Ctrl+L To load a configuration from the CMK-2 memory chip, the user must ensure that the CMK-2 is connected to power and to a computer using a MIDI cable (please see software installation for details on connecting MIDI devices to computers). Then go to File → Load Program Data From CMK-2, or use the keyboard shortcut or icon as shown above. -
Page 37: Figure 29: Software Unable To Make A Connection With The Cmk-2
If a connection is not available, a window will appear as a reminder to make connections to the CMK-2: Figure 29: Software unable to make a connection with the CMK-2 If a connection is made, a window will appear to confirm the communication. -
Page 38: Figure 32: Software Attempting To Communicate With Cmk-2
To save a configuration to the CMK-2, go to File → Write Program Data to CMK-2 or, use the keyboard shortcut or icon as shown above. The Software attempts to make a connection to the CMK-2. Figure 32: Software attempting to communicate with CMK-2 A window should appear to confirm that the contents were written. -
Page 39: Keyboard Functions
Figure 35: Help Menu Keyboard Functions The keyboard is a physical representation of the items that a user needs to specify when configuring the CMK-2. The user must specify functions for two categories: ‘MIDI channel output’ and ‘Piston function’. •... -
Page 40: Figure 36: Clicking On The Keys Of The Keyboard Invokes A Midi Channel Select Menu
Figure 36: Clicking on the keys of the keyboard invokes a MIDI Channel select menu. • Piston Function – Each piston can be configured for a particular function. To select these functions from a menu, click on any one of the twenty piston buttons and navigate through the resulting drop- down menus. -
Page 41: Table 9: Customizable Functions For Each Piston
Table 9: Customizable Functions for each piston Ahlborn Coupler: Allows a keyboard to play stops from another division A to Pedal B to Pedal B to A A to B A to Aux B to Aux Ahlborn Tremulant Swell Tremulant Great Tremulant Choir Tremulant Ahlborn Cancel... -
Page 42: Configuring Multiple Keyboards
Figure 38: Clicking on the “Configure Shoe” button invokes the Expression Shoe Setup menu. Configuring Multiple Keyboards The software supports the two-manual and three-manual CMK-2 setups. For multi-manual setups, the software screen will show multiple keyboards rather than a single keyboard. In the single keyboard setup, the keyboard is labeled ‘Manual #1’... -
Page 43: References
Filippo Tigli, “Frequently Asked Questions” [Online Document], 2002 October, [cited 2003 January 7], Available HTTP: http://www.chsinet.via.t-online.de/faq.htm R. Sung, System Exclusive Message layouts, Classic Organ Works, Markham, Canada: 2002 H. Wemekamp, Classic MIDI Keyboard Interface System Software, Classic Organ Works, Markham, Canada: 2002... -
Page 44: System Exclusive Message Layouts
The message formats are: F0 00 20 1C dd 04 01 03 aa aa aa ss ss F7 Request Config Memory data. This message should be sent by an external sequencer or by the CMK-2 config application. dd: identifies the device which is responding. - Page 45 F0 00 20 1C dd 04 01 04 bb bb ss <data, 8-for-7 format> F7 Transfer Config Memory data. This message should be sent from the CMK-2 in response to a request message. identifies the device which is responding. bb bb: block-count within the sequence of saved data blocks' memory data, low-order 7 bits first. The first message in a restore sequence must have a block-count of 00 00.
-
Page 47: Ahlborn Messages
CLASSIC MIDI KEYBOARD CMK-2 APPENDIX B: AHLBORN MESSAGES Table 10: Note On/Off MIDI functions to control Ahlborn Archive sound modules Data sent: Data sent: Slot Pins: Description: Note: Off ----> On On ----> Off Key On/Off Data 1-61 90 kk 40... - Page 48 Data sent Data sent Group Description Note Off ----> On On ----> Off Controller 73 Controller 74 Ahlborn ROMANTIC stops Bn 49 00 Bn 4A 00 Contre Gamba Bn 49 01 Bn 4A 01 Ophicleide Bn 49 02 Bn 4A 02 Contre Violone Bn 49 03 Bn 4A 03...
-
Page 49: Table 12: Ahlborn Archive 'Classic' Sound Module Commands For Stops And Couplers On
Table 12: Ahlborn Archive ‘CLASSIC’ sound module commands for stops and couplers on Data sent: Data sent: Group Description Note Off ----> On On ----> Off Controller 73 Controller 74 Ahlborn CLASSIC stops Bn 49 1A Bn 4A 1A Contre Gambe Bn 49 1B Bn 4A 1B Bombarde... -
Page 50: Table 13: Ahlborn Archive '202' Sound Module Commands For Stops And Couplers
Table 13: Ahlborn Archive ‘202’ sound module commands for stops and couplers Data sent: Data sent: Group Description Note Off ----> On On ----> Off Controller 73 Controller 74 Ahlborn 202 stops: Bn 49 2E Bn 4A 2E Soubasse Bn 49 2F Bn 4A 2F Violone Bn 49 30... -
Page 51: Table 14: Ahlborn Archive '201' Sound Module Commands For Stops And Couplers
Table 14: Ahlborn Archive ‘201’ sound module commands for stops and couplers Data sent: Data sent: Group Description Note Off ----> On On ----> Off Controller 73 Controller 74 Ahlborn 201 stops: Bn 49 42 Bn 4A 42 Subbass Bn 49 43 Bn 4A 43 Octave Bn 49 44... -
Page 52: Table 15: Ahlborn Archive Sound Module Piston And Crescendo Input Functions For All Four Units
Table 15: Ahlborn Archive sound module Piston and Crescendo input functions for all four units Data sent: Data sent: Group Description Note Off ----> On On ----> Off CF 20 Ahlborn - General Cancel CF 01 Ahlborn - Mem. A Gen. #1 CF 02 Ahlborn - Mem. -
Page 53: Table 16: Ahlborn Archive Sound Module Additional Piston Input Commands
Table 16: Ahlborn Archive sound module additional Piston input commands Data sent: Data sent: Group Description Note Off ----> On On ----> Off Cn 40 Ahlborn – Division Cancel BF 47 46 BF 47 06 SET piston BF 47 42 BF 47 02 SFZ control NOTES:... -
Page 55: Circuit Board Schematics
APPENDIX C: CIRCUIT BOARD SCHEMATICS Figure 39: CMK-2A- SS Classic MIDI Keyboard Circuit board Silk Screen... -
Page 56: Figure 40: Cmk-2A Classic Midi Keyboard Circuit Board Schematic
Figure 40: CMK-2A Classic MIDI Keyboard Circuit Board Schematic... -
Page 57: Figure 41: Cmk-2 Pr-S-Ssc V.1 Classic Midi Keyboard Piston Rail Silk Screen
Figure 41: CMK-2 PR-S-SSC v.1 Classic Midi Keyboard Piston Rail Silk Screen... -
Page 58: Figure 42: Cmk-2 Pr-S-S V.1 Classic Midi Keyboard Piston Rail Schematic
Figure 42: CMK-2 PR-S-S v.1 Classic MIDI Keyboard Piston Rail Schematic... -
Page 59: Appendix D
CLASSIC MIDI KEYBOARD CMK-2 APPENDIX D: MECHANICAL DRAWINGS... -
Page 60: Figure 43: Cmk-2 Piston Rail Front Panel Mechanical Drawing
Figure 43: CMK-2 Piston Rail Front Panel Mechanical Drawing... -
Page 61: Appendix E
CLASSIC MIDI KEYBOARD CMK-2-1 APPENDIX E: MIDI and SCPOP RESOURCES • For information on MIDI Protocol Specifications, General MIDI, Sound Set Groups or Program Numbers please go to www.midi.org • For information on SCPOP Messages, please go to www.scpop.de... -
Page 62: Appendix F
CLASSIC MIDI KEYBOARD CMK-2-1 APPENDIX F: ASSEMBLY PICTURES Mating the Brackets Your Manuals have come to you pre-assembled. These pictures are here to show you how the brackets connect in case you wish to alter the setup or do maintenance on the manuals themselves. -
Page 63: Figure 46: Mating The Small And Large Brackets
Figure 46: Mating the Small and large Brackets Figure 47: Connecting Two Brackets... -
Page 64: Figure 48: Brackets Mated And Closed
Figure 48: Brackets mated and closed Figure 49: A Four Manual Stack Open... -
Page 65: Figure 50: A Four Manual Stack Closed
Figure 50: A Four Manual Stack Closed Figure 51: A Completed Four Manual Stack... -
Page 66: Disclaimer
ARTISAN CLASSIC ORGAN INC. Information contained in this manual does not constitute any legal contract. Although thoroughly edited for correctness, neither Classic Organ Works nor any of their employees makes any warranty, express or implied, or assumes any legal responsibility for the accuracy, completeness, or usefulness of any information.
