Installing a Pen Carriage (Optional)
Many new users will benefit from practice "cutting" with the optional pen carriage until they are comfortable with
normal operations of the cutter and cutting software.

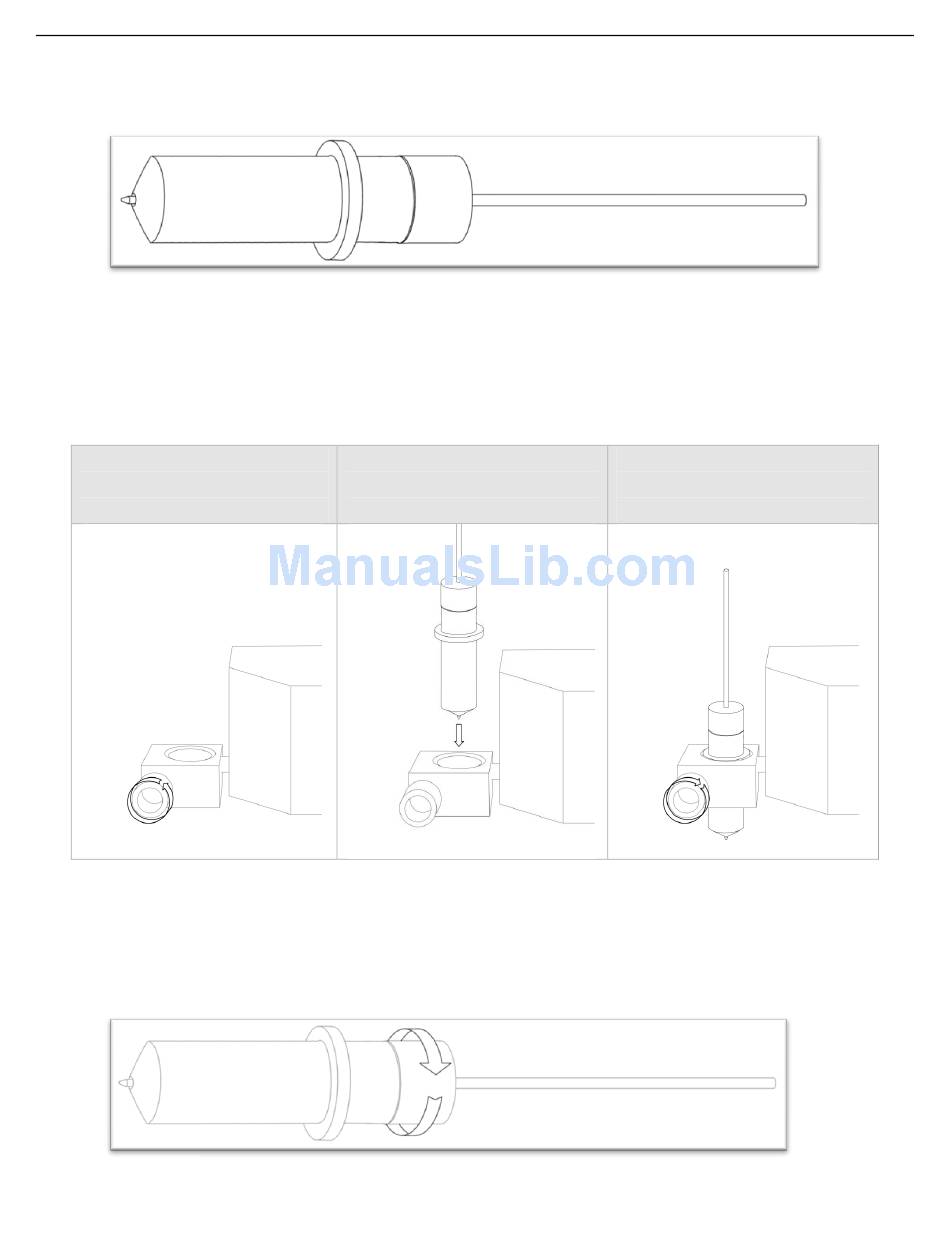

Your Pen Carriage should come assembled and appear as it does in this image. If it does not, please refer to the pen
replacement section below for assembly instructions.
To install the pen carriage:
Loosen the locking knob on
the carriage arm.
To Replace the pen or spring inside of the Pen Carriage:
Unscrew the top cap from the Pen carriage.
Drop the pen attachment into
place in the front slot of the
carriage arm.
Tighten the locking knob on
the carriage arm.
- 18 -
