Jog Screen

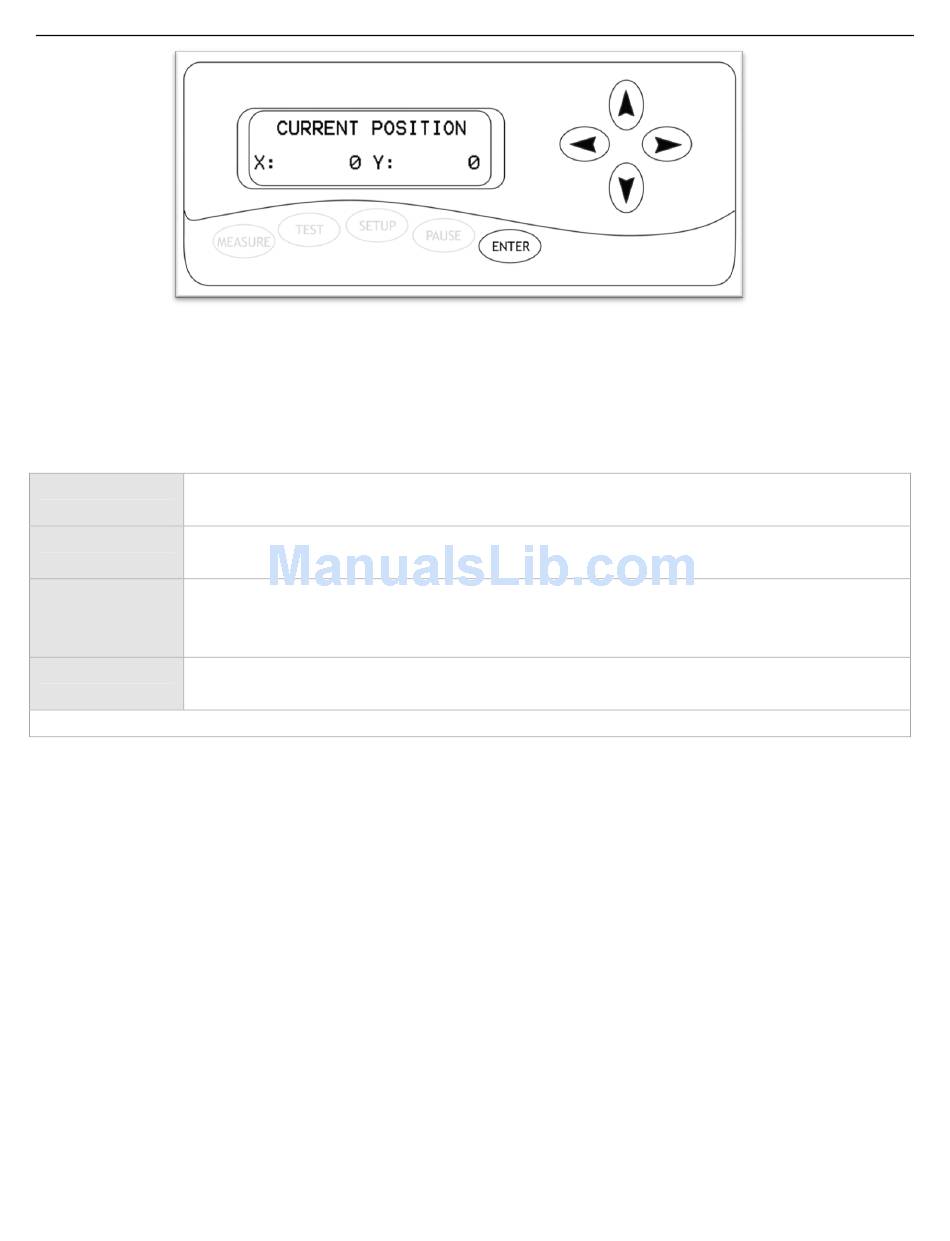

The Jog Screen is where the cutter, and the material loaded in the cutter, can be moved to create a new
starting location for the next cut to take place from. The X and Y values on this screen will show the
amount of movement that has taken place in relation to the initial origin of the cutter. You will only be able
to move the cutter within the cuttable area that has been determined when the material was measured by the cutter.
Left/Right Moves the Carriage Arm from side to side.
Arrow Buttons
Up/Down Moves the material forwards and backwards.
Arrow Buttons
Enter Button Pressing the Enter Button will return to the Function Select Screen but will not reset
(pressed) the origin of the cutter or material. To reset the origin you must hold the Enter Button for 2
seconds (below).
Enter Button Holding the Enter Button for 2 seconds will reset the origin of the cutter. The next
(held down) cut that takes place will be made from this new origin location.
All other buttons have no function on this screen.
