US Cutter Copam User Manual page 23

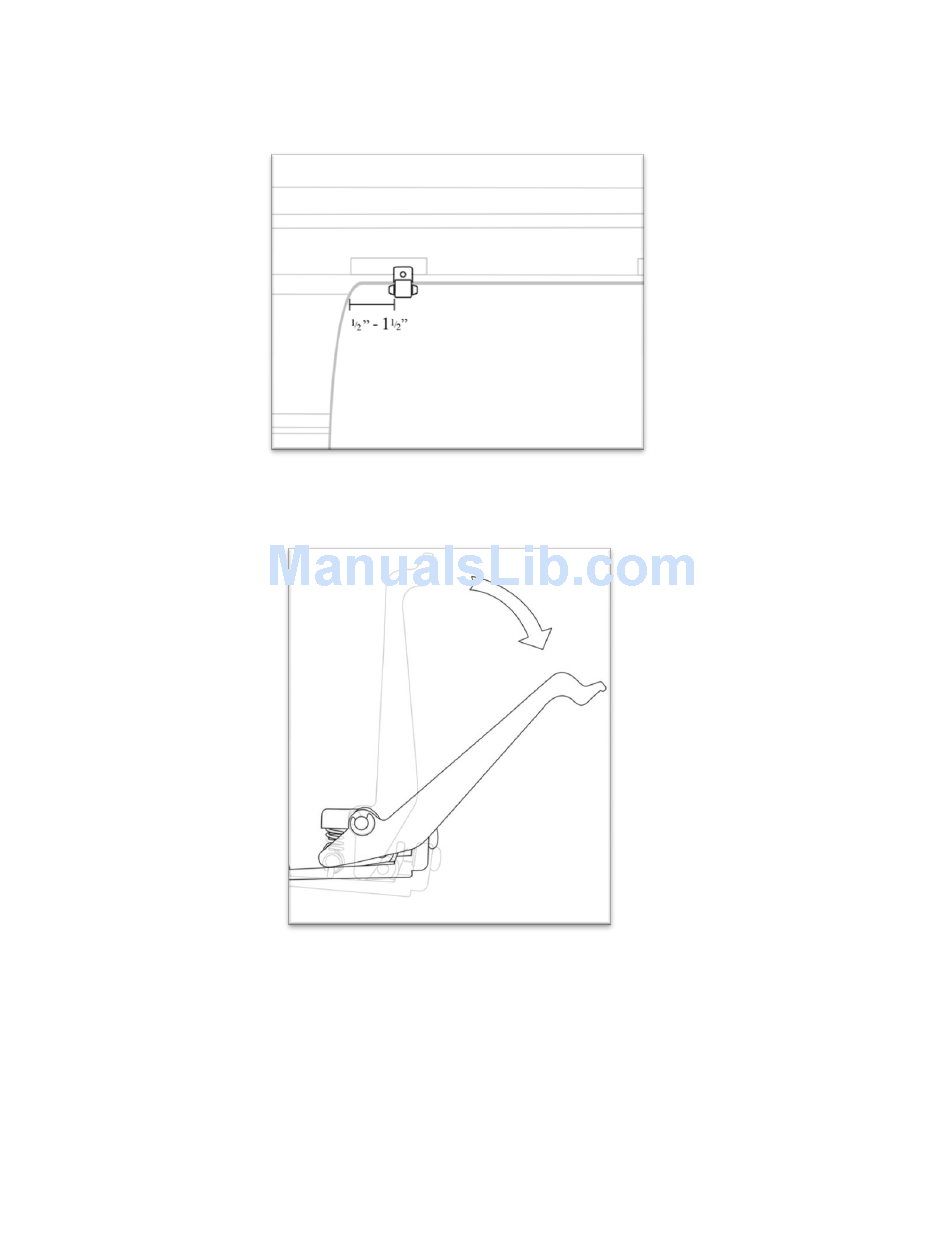

Leave a gap of between ½"-1 ½" from the edge of the roller and the edge of the material on both sides.
Make sure that the pinch rollers are only lowered where there is a Feed Roller below. The front of the
pinch roller should always be placed along a Feed Roller Guide to made sure that there is a Feed Roller
below.
Engage the Pinch Rollers by pushing down on the Pinch Roller Release Levers.
If the cutter is not already on, turn it on and select your media type („Scroll‟ or „Sheet‟) from the Measure Screen to find
the cuttable area of your material.
If the cutter is already on go to the Measure Screen and select your media type („Scroll‟ or „Sheet‟) from the Measure
Screen to find the cuttable area of your material.
- 22 -
