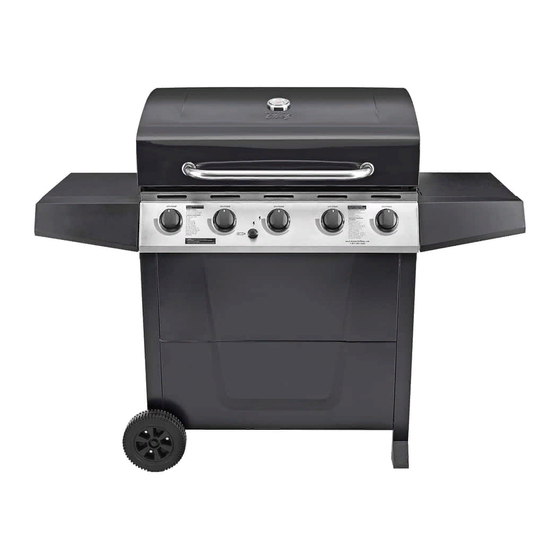

Master Chef S550 Assembly Manual

199-9556-2 (g55103) propane 199-9557-0 (g55104) natural gas
Hide thumbs Also See for S550:

Advertisement

Quick Links

Download this manual See also: Assembly Manual
TM
MC
S550 Barbecue
Assembly Manual
199-9556-2 (G55103) Propane
199-9557-0 (G55104) Natural Gas
1 YeAr liMited WArrAntY
reAd And sAve MAnuAl for future reference.
Assemble your grill immediately.
Missing or damaged parts claims must be submitted within 30 days of purchase date.
for product inquiries, parts, warranty and troubleshooting support,
please call 1-855-453-2150.
Manual Revision #: 07302014 AT
ANS Z21.58b-2012-CSA 1.6b-2012
ANS Z21.58b-2012-CSA 1.6b-2012
ANS Z21.58b-2012-CSA 1.6b-2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the S550 and is the answer not in the manual?

Questions and answers

Related Manuals for Master Chef S550

Summary of Contents for Master Chef S550

  • Page 1 S550 Barbecue Assembly Manual 199-9556-2 (G55103) Propane 199-9557-0 (G55104) Natural Gas 1 YeAr liMited WArrAntY reAd And sAve MAnuAl for future reference. Assemble your grill immediately. Missing or damaged parts claims must be submitted within 30 days of purchase date.
  • Page 2 H e A v Y A r t i c l e n e e d s 2 t o l i f t THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES To ORDER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.masterchefbbqs.com cAution...

  • Page 3: Tools Needed For Assembly

    HARDWARE PACK tools needed for AsseMBlY KeY # descriPtion PArt nuMBer QuAntitY 1/4” 13mm Screw 20120-13013-036 • #2 Phillips screwdriver (long and short) 1/4”-20UNC Nut 31220-13000-036 #8X3/8” Self Tapping Screw 24200-42008-136 • ¼” Slotted screwdriver (long and short) φ7 Fiber Washer G431-0018-9000 •...
  • Page 4 PARts List (PRoPAnE) foR 199-9556-2 (G55103) KeY # QuAntitY descriPtion PArt no. Top lid assembly G551-0100-01 Thermometer and bezel G432-000K-01 Lid handle brackets G352-0015-01 Top lid handle G551-0001-01 Lid bumpers-back G303-0038-01 Lid bumpers-front G430-00B8-01 Screws for lid G430-0024-02 Burner box assembly G551-0300-01 Burner G432-B600-01...
  • Page 5 EXPLoDED DiAGRAM (PRoPAnE) foR 199-9556-2 (G55103) SAFETy ASSEMBLy AND CARE MANUAL MANUAL HARDWARE PACK...
  • Page 6 PARts List (nAtuRAL GAs) foR 199-9557-0 (G55104) KeY # QuAntitY descriPtion PArt no. Top lid assembly G551-0100-01 Thermometer and bezel G432-000K-01 Lid handle brackets G352-0015-01 Top lid handle G551-0001-01 Lid bumpers-back G303-0038-01 Lid bumpers-front G430-00B8-01 Screws for lid G430-0024-02 Burner box assembly G551-0300-01 Burner G432-B600-01...
  • Page 7 EXPLoDED DiAGRAM (nAtuRAL GAs) foR 199-9557-0 (G55104) SAFETy ASSEMBLy AND CARE MANUAL MANUAL HARDWARE PACK...

  • Page 8: Assembly Instructions

    AssEMBLY instRuCtions Assemble the upper front panel (DD) and lower front panel (DE) to the the left and right cart side panels (DB and DA) as shown. yOU WILL NEED: Assemble the two back braces (DC) to the left and right cart side panels (DB and DA) as shown. yOU WILL NEED: Back View...
  • Page 9 AssEMBLY instRuCtions note: turn Cart assembly upside down. a. Place wheel (DG) and wheel spacer (#5) onto the wheel axle (DH). “Cone” side of wheel should be against cart side panel. Figure B. b. Insert wheel axle assembly (DH) through wheel axle hole in the front and rear of the left cart side panel (DB), as shown.
  • Page 10 AssEMBLY instRuCtions ProPAne Model onlY. Assemble the gas tank support (DK) to left cart side panel (DB). Back View Close up note: tWo PEoPLE required for this step. Ensure that the regulator hose (CC) (Propane models only) is hanging outside of cart. a.
  • Page 11 AssEMBLY instRuCtions riGHt side sHelf AsseMBlY a. Insert the right side shelf assembly (EA and EB) into the support brackets located on the right side of the burner box assembly (BA). Front, right side view b. Affix the right side shelf table (EA) to the burner box assembly (BA) as shown in figure B and C.
  • Page 12 AssEMBLY instRuCtions left side sHelf AsseMBlY a. Insert the left side shelf assembly (EC and ED) into the support brackets located on the right side of the burner box assembly (BA). Front, left side view b. Affix the left side shelf table (EC) to the burner box assembly (BA) as shown in figure B and C.
  • Page 13 AssEMBLY instRuCtions Place the flame tamer (BE) into the burner box assembly (BA). Close up, front Close up, back Place the cooking grates (BF) into the burner box assembly (BA).
  • Page 14 AssEMBLY instRuCtions To assemble the warming rack (BG), insert the stationary wire into the holes on the sides of the lid. Insert warming rack pivot legs into the holes on the inside of the burner box assembly, as Stationary Wire shown.
  • Page 15 BBQ until you have reviewed pages 4-8 of the Master Chef® safety & Care Manual. All safety and leak tests must be performed by the end user, prior to lighting this BBQ.
  • Page 16 AssEMBLY instRuCtions Electronic ignition battery not included. Unscrew the electronic ignition button (CF2) and insert one AA battery into the electronic ignition battery compartment (CF1), with the positive end facing outward.
  • Page 17 Visit www.masterchefbbqs.com to complete product registration Master Chef® Customer Service 1-855-453-2150 Trileaf Distributions Trifeuil Toronto, Ontario M4S 2B8...
