ICT COMM SERIES Instruction Manual

ICT COMM SERIES

SPECIFICATIONS

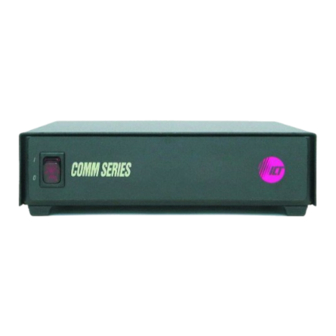

The ICT Comm Series switching power supplies deliver continuous
Available Configurations
trouble-free operation and incorporate extra filtering, providing a
virtually noise-free environment for a wide range of
A AG AX AM AR
communications equipment and 12V accessories.
ICT12012-4
These instructions should be read before using the product and it
ICT12012-6
should be saved for future reference.
ICT22012-4

SETUP

ICT22012-6

Plug the enclosed power cord into the input plug on the back
ICT22024-3
of the unit. Plug the other end into the AC outlet.
(1)(2)
ICT12012-8

Connect equipment to terminal block at the rear of the unit.
(1)(2)
ICT12012-10
Note: Keep the hook-up leads to the load as short as possible
to avoid excess radiated noise.
(1)(2)
ICT12012-11

To turn on power supply, press top of front panel switch. (1)(2)
ICT12012-12
(1)
ICT12024-5

WARNING

ICT12048-3

Do not block side or bottom vent slots.
(3)
ICT22012-8

Do not place unit on or near sources of heat/moisture.
(3)
ICT22012-10

Incorrect wiring may result in serious damage to both power
(3)
ICT22012-11
supply and equipment wired to power supply.
(3)
ICT22012-12

Unit service should be done by ICT.
ICT22024-5

NOTES

ICT22048-3
 The ICT Comm Series can be used in parallel or series (1)(2)
ICT12012-15
configurations. Please contact ICT for further information.
(1)(2)
ICT12012-20
 Most ICT Comm series products are available in various
(1)(2)
ICT12012-30
widths (A = 7.11", AG = 6.4", AX = 5.6") and can be
assembled with a wide variety of ICT base station covers.
(1)(2)
ICT12024-10
120/220 Volt or 220 Volt input models are available, as well as
(1)(2)
ICT12024-15 12, 24, and 48 V output models. Options available also include
an LCD meter for current and voltage display, and a 19"
ICT12048-5
rackmount configuration. Wallmount brackets are available for
permanent installation. (part #ICT-WMB)
(1)(3)
ICT22012-15
 The ICT Comm Series can also be used to charge a battery (1)(3)
ICT22012-20
while powering an accessory without any modification. Please
(1)(3)
ICT22012-30
contact ICT for design note (DN-101 Battery backup).
(3)
ICT22024-10
 The ICT Charger Series is also available, which offer a
complete microprocessor controlled battery backup system.
(3)
ICT22024-15
They feature fast and efficient 3 stage battery charging, as
(3)
ICT22048-5
well as full protection for both the battery and the charger.
A - Standard 7.1" Width AM - with LCD Meter
AG - 6.4" Width AR - mounted on 19" Rackmount
SIGNED OFF BY:
AX - 5.6" Width ARM - with LCD Meter and Rackmount

CONNECTIONS

Input Output Output Output
Voltage Voltage Current Current
ARM
Range (Cont.) (Peak)
90-130 VAC 13.8 VDC 3.0 Amps 4.0 Amps
+/- 300mV
90-130 VAC 13.8 VDC 4.5 Amps 6.0 Amps
+/- 300mV
105-250 VAC 13.8 VDC 3.0 Amps 4.0 Amps
+/- 300mV
105-250 VAC 13.8 VDC 4.5 Amps 6.0 Amps
+/- 300mV
105-250 VAC 27.6 VDC 2.5 Amps 3.0 Amps
+/- 400mV
90-130 VAC 13.8 VDC 6.5 Amps 8.0 Amps
+/- 150 mV
90-130 VAC 13.8 VDC 7.5 Amps 10.0 Amps
+/- 150 mV
90-130 VAC 13.8 VDC 9.0 Amps 11.0 Amps
+/- 150 mV
90-130 VAC 13.8 VDC 10.0 Amps 12.0 Amps
+/- 150 mV
90-130 VAC 27.6 VDC 4.0 Amps 5.0 Amps
+/- 150 mV
90-130 VAC 48.0 VDC 2.5 Amps 3.0 Amps
+/- 150 mV
105-130/ 13.8 VDC 6.5 Amps 8.0 Amps
180-265 VAC +/- 150 mV
105-130/ 13.8 VDC 7.5 Amps 10.0 Amps
180-265 VAC +/- 150 mV
105-130/ 13.8 VDC 9.0 Amps 11.0 Amps
180-265 VAC +/- 150 mV
105-130/ 13.8 VDC 10.0 Amps 12.0 Amps
180-265 VAC +/- 150 mV
180-265 VAC 27.6 VDC 4.0 Amps 5.0 Amps
+/- 150 mV
180-265 VAC 48.0 VDC 2.5 Amps 3.0 Amps
+/- 150 mV
90-130 VAC 13.8 VDC 13.0 Amps 15.0 Amps
+/- 150 mV
90-130 VAC 13.8 VDC 17.0 Amps 20.0 Amps
+/- 150 mV
90-130 VAC 13.8 VDC 25.0 Amps 30.0 Amps
+/- 150 mV
90-130 VAC 27.6 VDC 8.0 Amps 10.0 Amps
+/- 150 mV
90-130 VAC 27.6 VDC 13.0 Amps 15.0 Amps
+/- 150 mV
90-130 VAC 48.0 VDC 4.0 Amps 5.0 Amps
+/- 150 mV
90-130/ 13.8 VDC 13.0 Amps 15.0 Amps
180-265 VAC +/- 150 mV
90-130/ 13.8 VDC 17.0 Amps 20.0 Amps
180-265 VAC +/- 150 mV
90-130/ 13.8 VDC 25.0 Amps 30.0 Amps
180-265 VAC +/- 150 mV
90-130/ 27.6 VDC 8.0 Amps 10.0 Amps
180-265 VAC +/- 150 mV
90-130/ 27.6 VDC 13.0 Amps 15.0 Amps
180-265 VAC +/- 150 mV
90-130/ 48.0 VDC 4.0 Amps 5.0 Amps
180-265 VAC +/- 150 mV
Current Line Load Output
Limiting Regulation Regulation Ripple
(Max)
10 - 100 watts
4.5 Amps 0.50% 2.00% 20 mV RMS
6.5 Amps 0.50% 2.00% 20 mV RMS
4.5 Amps 0.50% 2.00% 25 mV RMS
6.5 Amps 0.50% 2.00% 25 mV RMS
4.0 Amps 1.00% 2.00% 35 mV RMS
100 - 200 watts
8.5 Amps 0.20% 0.50% 20 mV RMS
10.5 Amps 0.20% 0.75% 20 mV RMS
AX
11.5 Amps 0.20% 0.50% 20 mV RMS
12.5 Amps 0.20% 0.80% 20 mV RMS
5.5 Amps 0.20% 0.75% 20 mV RMS
AG 3.5 Amps 0.50% 1.00% 20 mV RMS
8.5 Amps 0.20% 0.50% 35 mV RMS
10.5 Amps 0.20% 0.75% 20 mV RMS
11.5 Amps 0.20% 0.50% 20 mV RMS
A
12.5 Amps 0.20% 0.80% 20 mV RMS
5.5 Amps 0.20% 0.50% 20 mV RMS
3.5 Amps 0.50% 1.00% 35 mV RMS
200 - 500 watts
15.5 Amps 0.20% 0.80% 20 mV RMS
20.5 Amps 0.20% 0.85% 20 mV RMS
AX
31.0 Amps 0.20% 0.85% 20 mV RMS
10.5 Amps 0.20% 0.75% 20 mV RMS
15.5 Amps 0.20% 0.75% 20 mV RMS
5.5 Amps 0.50% 1.00% 40 mV RMS
AG
15.5 Amps 0.20% 0.80% 20 mV RMS
20.5 Amps 0.20% 0.85% 20 mV RMS
31.0 Amps 0.20% 0.85% 25 mV RMS
10.5 Amps 0.20% 0.75% 20 mV RMS
A
15.5 Amps 0.20% 0.75% 20 mV RMS
5.5 Amps 0.50% 1.00% 40 mV RMS
(1)
CSA C22.2 No 107.1, UL 1012 Approved
(2)
FCC class B Compliant
(3)
Switchable between 120 & 220 VAC Input - Internal Jumper

LIMITED WARRANTY

ICT Ltd. warrants to the original consumer purchaser that this
Efficiency
product shall be in good working order, free from defects in
(Typical)
materials and workmanship, for a period of one (1) year from the
date of purchase. Should failure occur during the above stated time
75%
period, then ICT will, at its option, repair or replace this product at
no additional charge except as set forth below. All parts, whether
75%
ICT COMM SERIES
for repair or replacement, will be furnished on an exchange basis.
75%
All exchange pieces become the property of ICT. This limited
INSTRUCTION MANUAL
warranty shall not apply if the ICT product has been damaged by
75%
unreasonable use, accident, negligence, disaster, service, or
modification by anyone other than the ICT factory.
75%
85% Limited warranty service is obtained by delivering the product
during the above stated one (1) year warranty period to an
85%
authorized ICT dealer or ICT factory and providing proof of purchase
date. If this product is delivered by mail, you will insure the product
85%
or assume risk of loss or damage in transit, and prepay shipping
charges to the factory.
85%
85%
Every reasonable effort has been made to ensure that ICT product
manuals and promotional materials accurately describe ICT product
85%
specifications and capabilities at the time of publication. However,
because of ongoing improvements and updating of ICT products,
80%
ICT cannot guarantee the accuracy of printed materials after the
date of publication and disclaims liability for changes, errors or
85%
omissions.
85%
If this ICT product is not in good working order, as outlined in the
85%
above warranty, your sole remedy shall be repair or replacement as
provided above. In no event will ICT be liable for any damages
85%
resulting from the use of or the inability to use the ICT product,
80%
even if an ICT employee or an authorized ICT dealer has been
advised of the possibility of such damages, or for any claim by any
85%
other party.
85%
ICT reserves the right to make changes without further notice to
85% any products or documentation for improvement of reliability,
function, or design.
85%
ICT Ltd. does not recommend use of its products in life support
85%
applications wherein a failure or malfunction of the product may
directly or indirectly threaten life or cause injury. The user of ICT
80%
products, which are to be used in life support applications as
85%
described above, assumes all risks of such use and indemnifies ICT
against all damages.
85%
85% This device complies with Part 15 of the FCC Rules. Operation is
subject to the following 2 conditions:
85%
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
85%
any interference that may cause undesired operation.
80%
INNOVATIVE CIRCUIT TECHNOLOGY LTD.
INNOVATIVE CIRCUIT TECHNOLOGY LTD.
26921 GLOUCESTER WAY
855-040-004
T 604.856.6303
THEPOWEROFRELIABILITY
LANGLEY, BRITISH COLUMBIA, CANADA V4W 3Y3
F 604.856.6365 www.ict-power.com
