D4T/D4R

General Technical Description

D4T Transmitter
The transmitter can accept up to four inputs from digi-
tal or analog sources. The inputs can be configured as
follows:
• Four analog inputs using all four jacks
• Two digital inputs using jack 1 and two balanced
analog inputs using jacks 3 and 4
• Four digital channels using jacks 1 and 2
The input connectors are TA3 "mini XLR" types with
the same pin numbering as standard XLR connectors
for AES/EBU and balanced line level analog signals.
Input preamp circuits use a special balanced amplifier
with very high common mode rejection to minimize
hum and noise.
1
TA3M
INPUTS
2
3
4
4

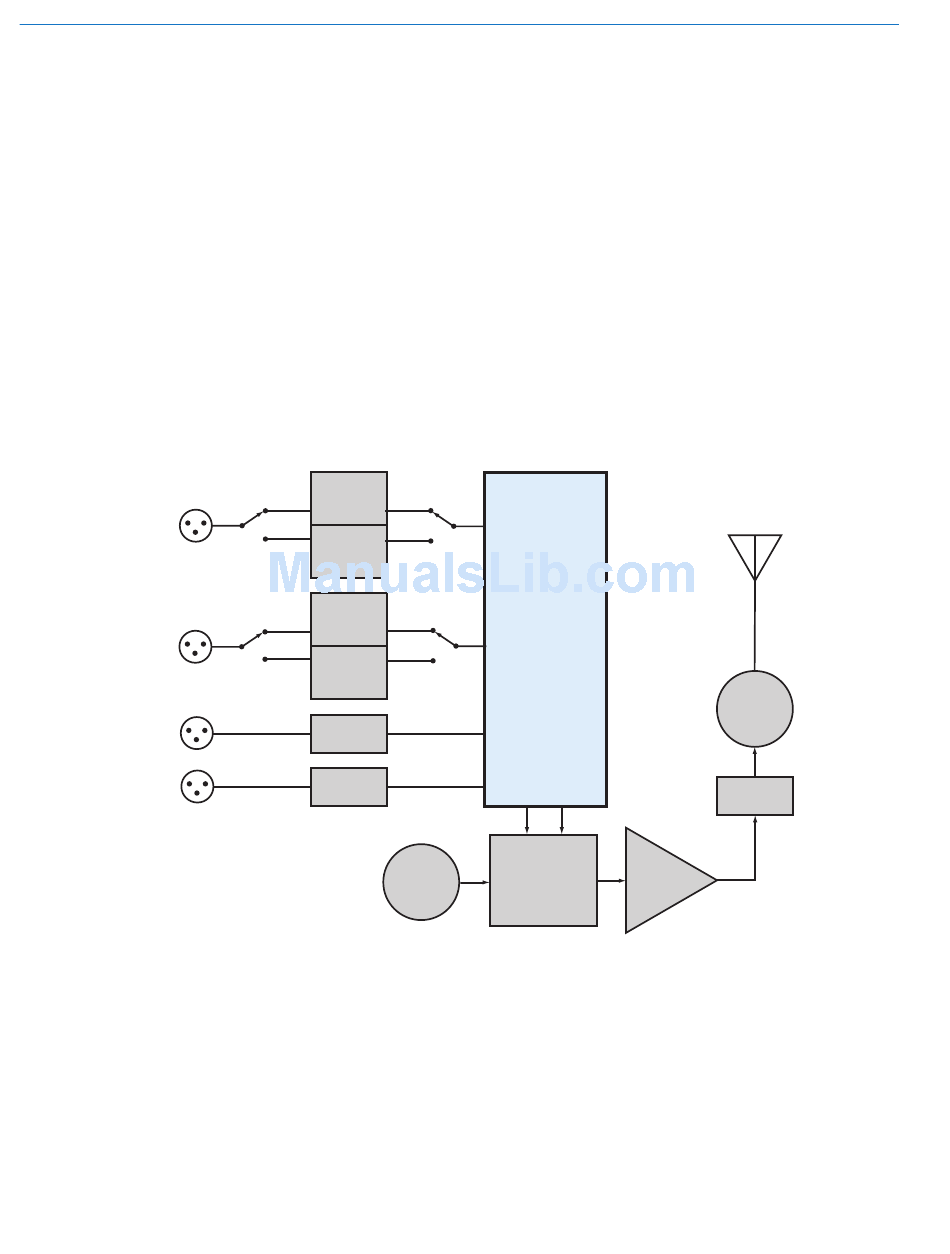

Either analog or AES/EBU digital input signals are
converted to an internal 24-bit digital format which is
then encoded, organized into packets, and passed to
an RF modulator using spread spectrum techniques
and error correction for robust reception. The modu-
lated RF signal is filtered before and after amplification
to suppress out-of-band noise and spurious signals,
and a circulator/isolator guards against intermodulation
interference (IM).
A USB port is provided for firmware updates.
24-bit D/A
(analog)
AES/EBU
OUT
(digital)
24-bit D/A
(analog)
AES/EBU
OUT
(digital)
24-bit D/A
(analog)
24-bit D/A
(analog)
OSC
900 MHz
DIGITAL
BASEBAND
ENCODER
RF
POWER
MOD
AMP
CIRCULATOR
ISOLATOR
FILTER
