D4T/D4R
Receiver
General Settings

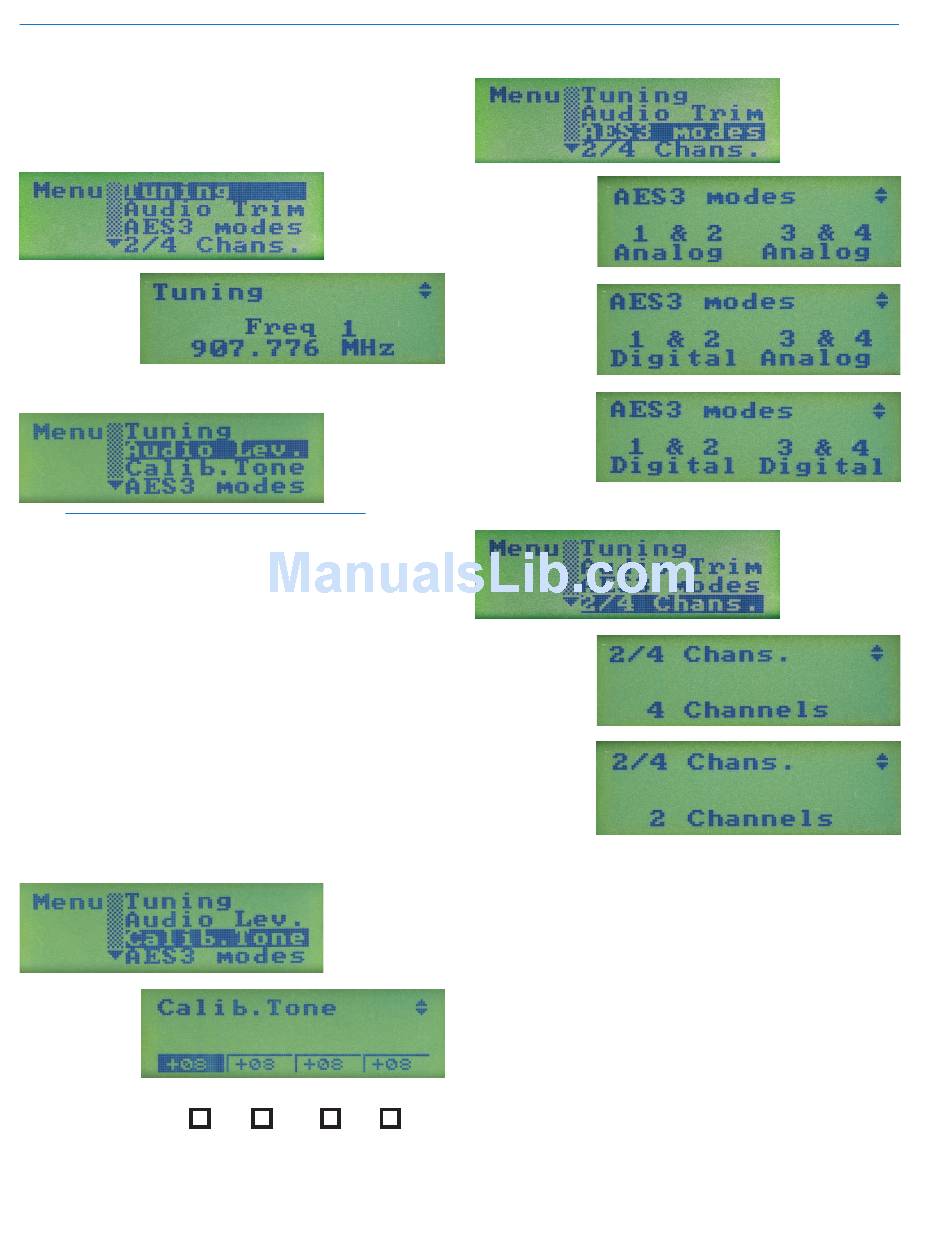

Tuning Selection
Use UP/DOWN
arrows to select
frequency, then
press FUNC to
return to menu
Audio Level
NOTE: The setup screens for audio level will
be different depending upon the AES3 Mode
selected. See the next page for details.
Calibration Tone
A steady tone at the maximum level before clipping
can be turned on at each output to allow accurate
input level adjustment of the attached mixer, recorder
or other connected equipment.
While the tone level is always the maximum before
clipping, the audio output level may be adjusted on any
analog output. Any adjustments made to the analog
output levels here are automatically applied to the
audio level setup screen as well.
The Calib. Tone menu item accesses a setup screen
which looks and operates the same way as the audio
level setup screen. The difference is that a 1 kHz tone
is produced at all outputs at the level shown.
1
Press the button under the analog channel
to be adjusted and then use the UP and
DOWN buttons to set the desired level.
10
Use UP/DOWN
arrows to select
menu item and
press FUNC to
enter setup
Use UP/DOWN
arrows to select
menu item and
press FUNC to
enter setup
Use UP/DOWN
arrows to select
menu item and
press FUNC to
enter setup
2 3 4
AES3 Modes
Use UP/DOWN
buttons to select
desired mode
2/4 Channel Modes
Use UP/DOWN
buttons to select
desired mode
Use UP/DOWN
arrows to select
menu item and
press FUNC to
enter setup
Use UP/DOWN
arrows to select
menu item and
press FUNC to
enter setup
