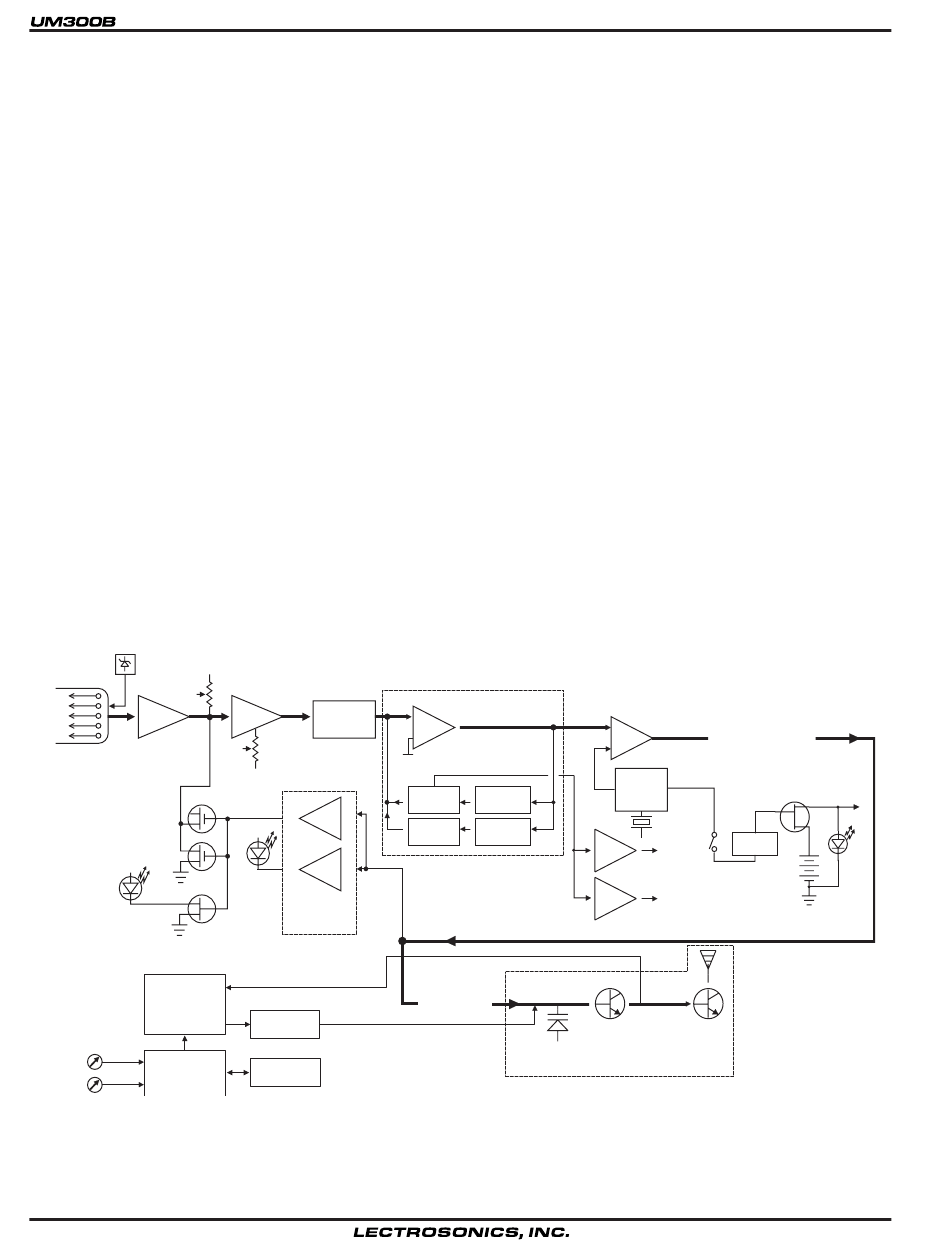

The UM300B transmitters are comprised of a number of functional sub-systems as shown in the block diagram
below.
GENERAL
The 300 system uses 50kHz wide deviation for an extremely high signal to noise ratio. The transmitter circuits are all
regulated to allow full output power from the beginning (9 Volts) to the end (6.5 Volts) of battery life. The input ampli­
fier uses a Motorola 33178 op amp for ultra low noise operation. It is gain controlled with a wide range input com­
pressor which cleanly limits input signal peaks over 30dB above full modulation.
DUAL BAND COMPANDOR
Traditionally, compandors have been a source of distortion in wireless microphone systems. The basic problem with
conventional systems is that the attack and decay times are always a compromise. If the time constants are fast,
high frequency transients will not be distorted, but this will cause low frequency distortion. If the time constants are
slower, low frequency audio distortion will be low, but high frequency transients will then be distorted. The 300
system introduces an entirely new approach to solving this basic problem, called "dual-band companding."
There are actually two separate compandors in the 300 system, one for high frequencies and one for low frequen­
cies. A crossover network separates the frequency bands at 1kHz with a 6dB per octave slope, followed by separate
high and low frequency compandors. The attack and release times in the high frequency compandor are fast enough
to keep high frequency transient distortion at a low level, and the low frequency compandor uses slower time con­
stants, reducing low frequency distortion to well below that of a conventional compandor.
+5V BIAS
SUPPLY
MIC
JACK
1
2
3
BUFFER
4
5
SHUNT
LIMITER
LIMIT
LED
SYNTHESIZER
FREQ
SWITCHES
uP
4

GENERAL TECHNICAL DESCRIPTION

LF
ROLL-OFF
LP
INPUT
AMP
FILTER
AUDIO
LEVEL
SET
LED
PEAK AUDIO
INDICATOR &
LIMITER
DRIVER
LOW PASS
FILTER
E PROM
2
UM300B Block Diagram
COMPANDOR
Vref
BASS
LP FILTER
TREBLE
HP FILTER
COMPANDED
AUDIO
COMPANDED AUDIO
TO XMTR
PILOT
TONE
OSC
PWR
DELAY
Vreg
+5VDC
Vreg
+3.6VDC
VOLTAGE
CONTROLLED
OSCILLATOR
TRANSMITTER
+9VDC
PWR
LED
