Locked/Unlocked Modes
The front panel controls can be locked to prevent
inadvertent changes to the selected settings. When
the panel is Locked, settings can be viewed but not
changed, with the exception of headphone selection
and monitoring level controls.
Use UP/DOWN
buttons to select
desired mode
Rio Rancho, NM, USA
Receiver
Audio Level Setup

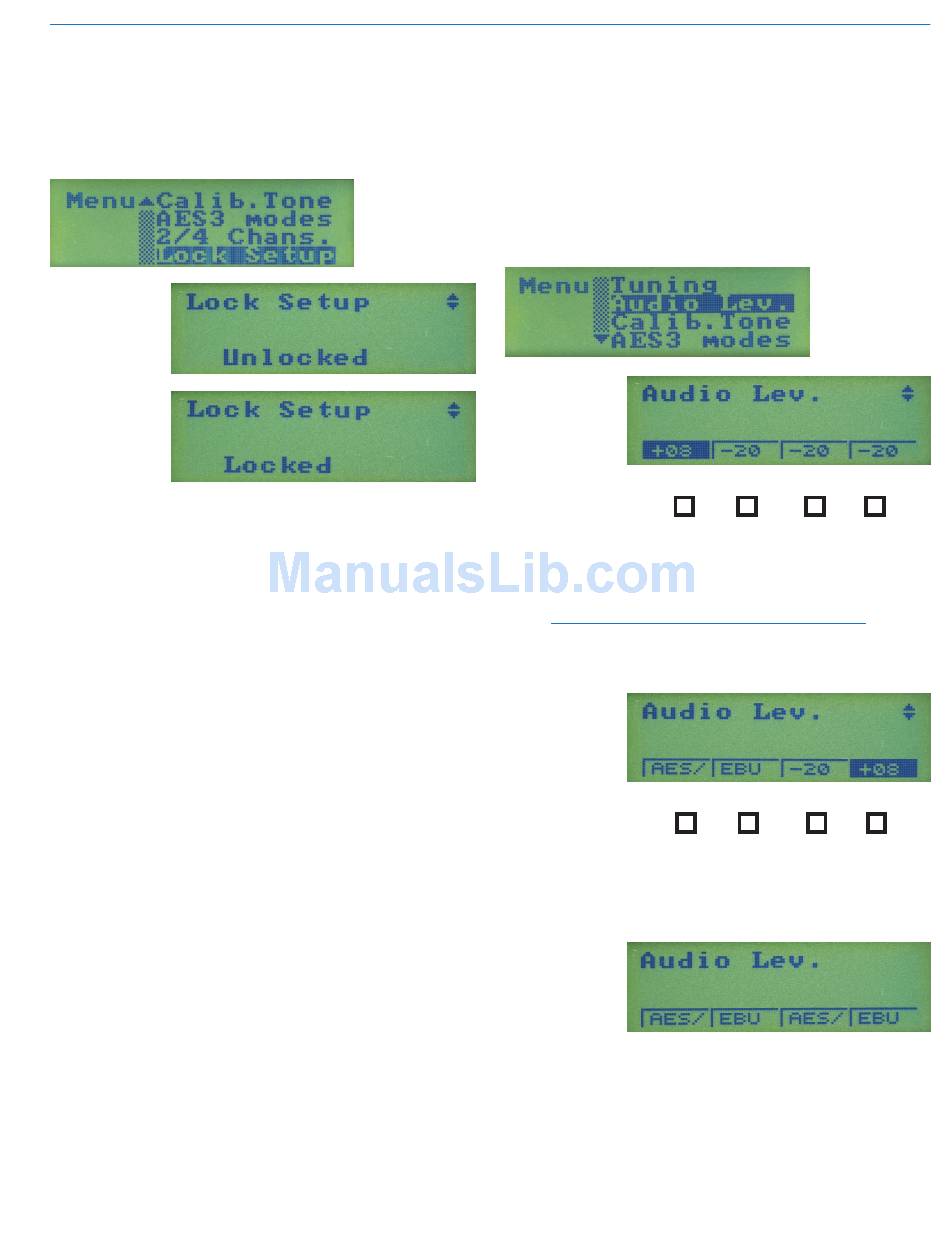

From the Main Window, press FUNC and then select
the menu item Audio Lev. and press FUNC again.
The setup screen will vary slightly depending upon
Use UP/DOWN
arrows to select which AES3 mode has been selected and whether
menu item and
the 2-channel or 4-channel mode is selected. In the
press FUNC to
2-channel mode, channels 3 and 4 will be blank.
enter setup
4-channel Digital Wireless System
1
When the receiver is configured for four
analog outputs, press the button under the
channel to be adjusted and then use the
UP and DOWN buttons to set the desired
level.
NOTE: The value shown in the setup screen is
the analog output level in dBu at the maximum
level before clipping.
1
When the receiver is configured for two
digital and two analog inputs, press the
button under the analog channel to be
adjusted and then use the UP and DOWN
buttons to set the desired level.
The audio level adjustment only applies
to analog outputs. When the receiver
is configured for four digital channels
using the two AES/EBU outputs, no level
adjustment is needed.
Use UP/DOWN
arrows to select
menu item and
press FUNC to
enter setup
2 3 4
2 3 4
