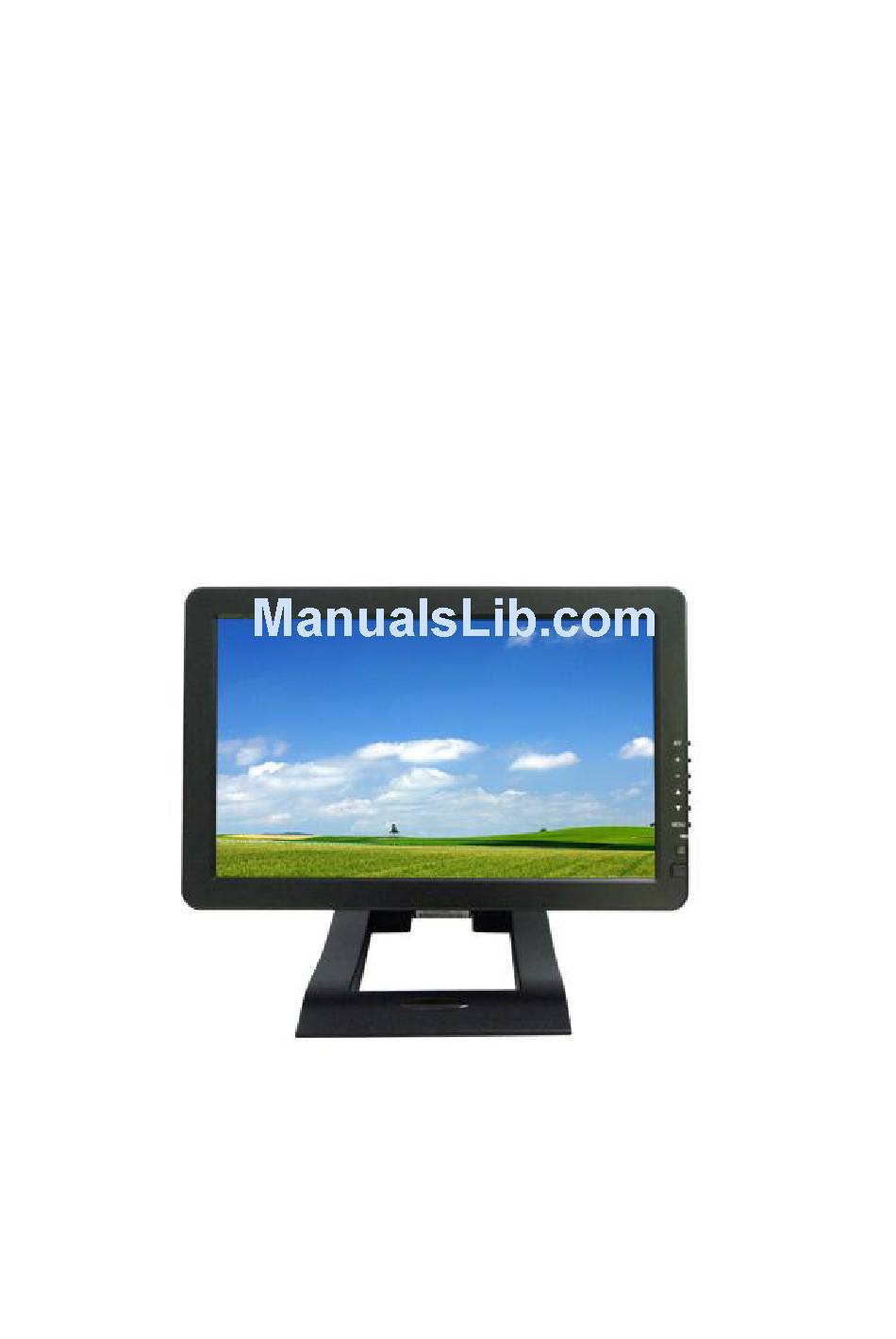

- Page 1 COLOR TFT LCD MONITOR Manual...
- Page 2 DEAR CUSTOMERS Thank you for purchasing the liquid crystal display monitor. This product employs new integrate circuits and high quality TFT LCD modules. It is putting out with its low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with.
-
Page 3: Table Of Contents
CONTENTS 1. PRODUCT DESCRIPTION --------------------- 2. REMOTE CONTROLLER----------------------- 3. MATCHED CABLES------------------------- 4. MENU OPERATION ---------------------------- IN AV MODE-------------------------------------- IN PC MODE-------------------------------------- IN DVI&HDMI MODE-------------------------- 5. RAIL SLOT------------------------------------ 6. ACCESSORIES ---------------------------------- 7. PARAMETER ------------------------------------ 8. TROUBLESHOOTING ------------------------- 9. REMARK--------------------------------------... -
Page 4: Product Description
1. PRODUCT DESCRIPTION... - Page 5 1．AV/PC：PC、DVI、VIDEO1、VIDEO2、HDMI switch 2．+：Volume up or to adjust the value of menu setting function 3．-：Volume down or to adjust the value of menu setting function 4．▲：To select function on OSD or to adjust the brightness directly under 6 classes 5．▼：to select item on the OSD or push the key in PC mode directly to adjust phase automatically 6．MENU: To activate OSD menu （...
-
Page 6: Remote Controller
12．Power input 13．DVI、HDMI input interface 14．14P SKS input interface 15. Mounting Process: Standard VESA Sockets (75mm) 2. REMOTE CONTROLLER 1. MUTE 2. Display switch: PC、DVI、VIDEO1、VIDEO2、HDMI switch : Left move，Volume down or to adjust the value of setting function : Down move, to select function on OSD 5. -
Page 7: Matched Cables
3. MATCHED CABLES Match cable SKS cable: 1. 14P SKS Input Jack: all kinds of AV signal input, note that put it correctly into the SKS input jack of the monitor 2. Black 9-pin VGA signal input jack 3. Yellow RCA: Video signal 1 input 4. -
Page 8: Menu Operation
HDMI to HDMI cable: 1. HDMI signal input end 2. HDMI signal input connect device with HDMI signal 3. USB port connect computer for touch function（Optional） 4. MENU OPERATION After connected correctly and then Power on, Press “MENU” on the unit or by remote control to show MENU. -
Page 9: In Pc Mode
LANGUAGE：There are 2 languages provided for choice, English and Chinese RESET: you can reset adjustment of the unit when click “YES” OSD H-POSITION ADJUSTMENT: to adjust the OSD move in horizontal direction OSD V-POSITION ADJUSTMENT: to adjust the OSD move in vertical direction OSD DURATION: to adjust the duration of OSD from5-100seconds Mode shift between 4:3 and 16:9... - Page 10 OSD H-POSITION: to adjust the picture position in horizontal direction OSD V-POSITION: to adjust the picture position in vertical direction RESET: you can reset adjustment of the unit when click “YES” COLOR TEMPERATURE： choose color and temperature at first, such as: 6500 K, 7500 K or 9300 Only if under “USER”...
-
Page 11: In Dvi&Hdmi Mode
IN DVI & HDMI MODE DVI MODE HDMI MODE Press “▲ / ▼”on the unit or “ ” on the remote control to select item, eg. and it will be highlighted; and then press “+ / -”on the unit or on the remote control to adjust the favorite values. - Page 12 OSD H-POSITION ADJUSTMENT: to adjust the OSD move in horizontal direction OSD V-POSITION ADJUSTMENT: to adjust the OSD move in vertical direction RESET: you can reset adjustment of the unit when click “YES” COLOR TEMPERATURE： choose color and temperature at first, such as: 6500 K, 7500 K or 9300 Only if under “USER”...
-
Page 13: Rail Slot
Mode shift between 4:3 and 16:9 EXIT OSD: select “YES” to exit 5. RAIL SLOT 6. ACCESSORIES 1．Remote control 1piece 2．Manual 1copy 3．Touch pen 1piece 4．Drive disk 1piece (touch driver, please choose and install correct touch driver as per your PC OS) 5．DC adapter 12V 1piece 6．14PIN SKS... -
Page 14: Parameter
≤9W Power Consumption ≤1.2W Audio Output Mounting Process Standard VESA Sockets (75mm) Feature 4 or 5-wire resistive touch panel (FA1011) Multi-touch function (Windows 7 OS only!) (FA1012) Dimension(LWD) 253.5× 162.5× 35/65.5mm (with bracket) Weight 1166g 8. TROUBLE SHOOTING 1. Only black-and-white image Check whether the level of color saturation and brightness is proper or not. -
Page 15: Remark
5. If any abnormal matters happened, pls enter “MENU” choose to reset 6. If it can’t be touch, pls check the USB connect exactly correct or not, or install the correct touch driver as per the PC OS ? 9. REMARK: If there are still any problems, you can connect with the related deals *If interruptive image occurs, it maybe that the VGA signal frequency isn’t matched with normal standard...
