2-2-2
⑧

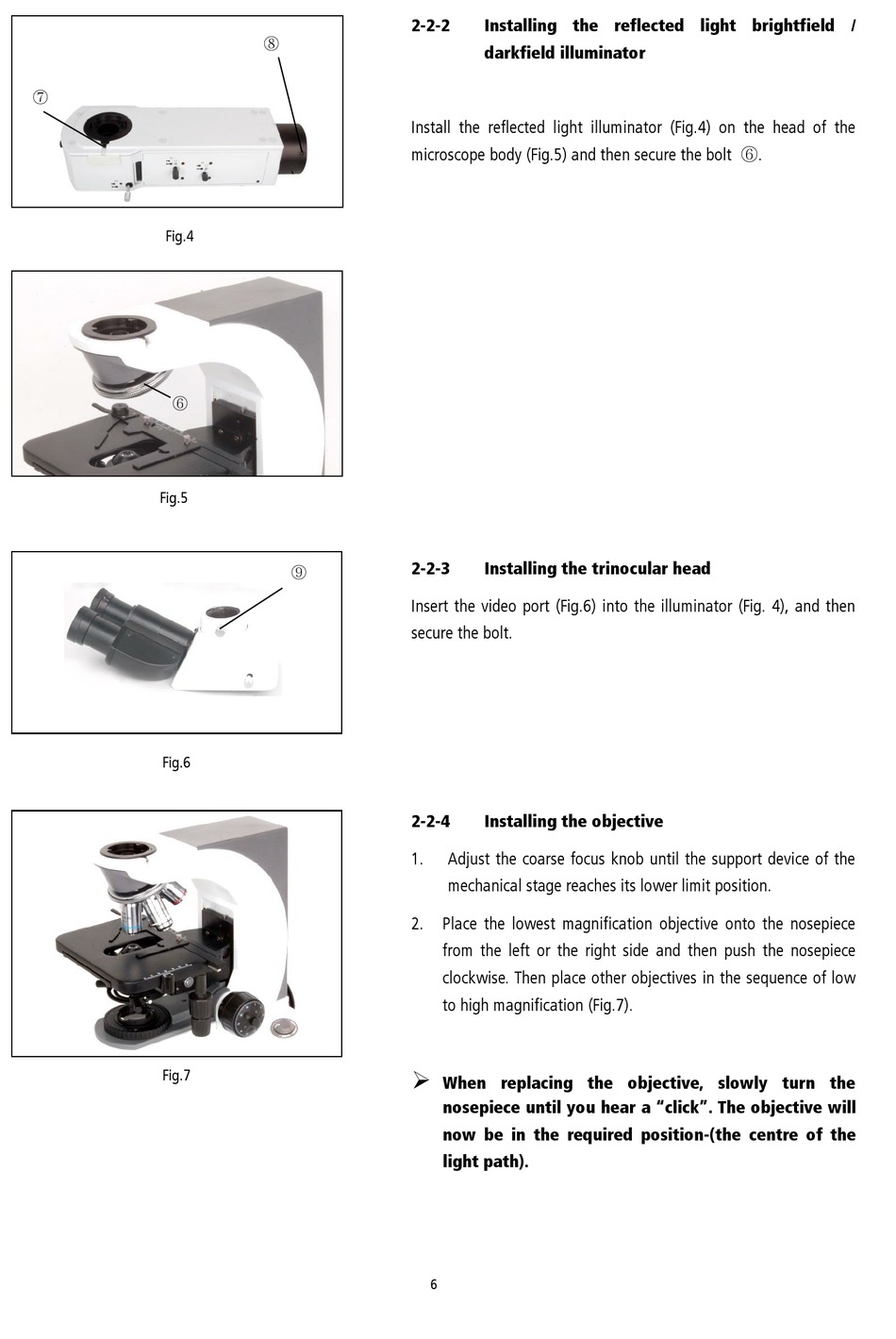

Install the reflected light illuminator (Fig.4) on the head of the
microscope body (Fig.5) and then secure the bolt ⑥.
2-2-3
⑨
Insert the video port (Fig.6) into the illuminator (Fig. 4), and then
secure the bolt.
2-2-4
1.
2.

Installing the reflected light brightfield /
darkfield illuminator
Installing the trinocular head
Installing the objective
Adjust the coarse focus knob until the support device of the
mechanical stage reaches its lower limit position.
Place the lowest magnification objective onto the nosepiece
from the left or the right side and then push the nosepiece
clockwise. Then place other objectives in the sequence of low
to high magnification (Fig.7).
When replacing the objective, slowly turn the
nosepiece until you hear a "click". The objective will
now be in the required position-(the centre of the
light path).
