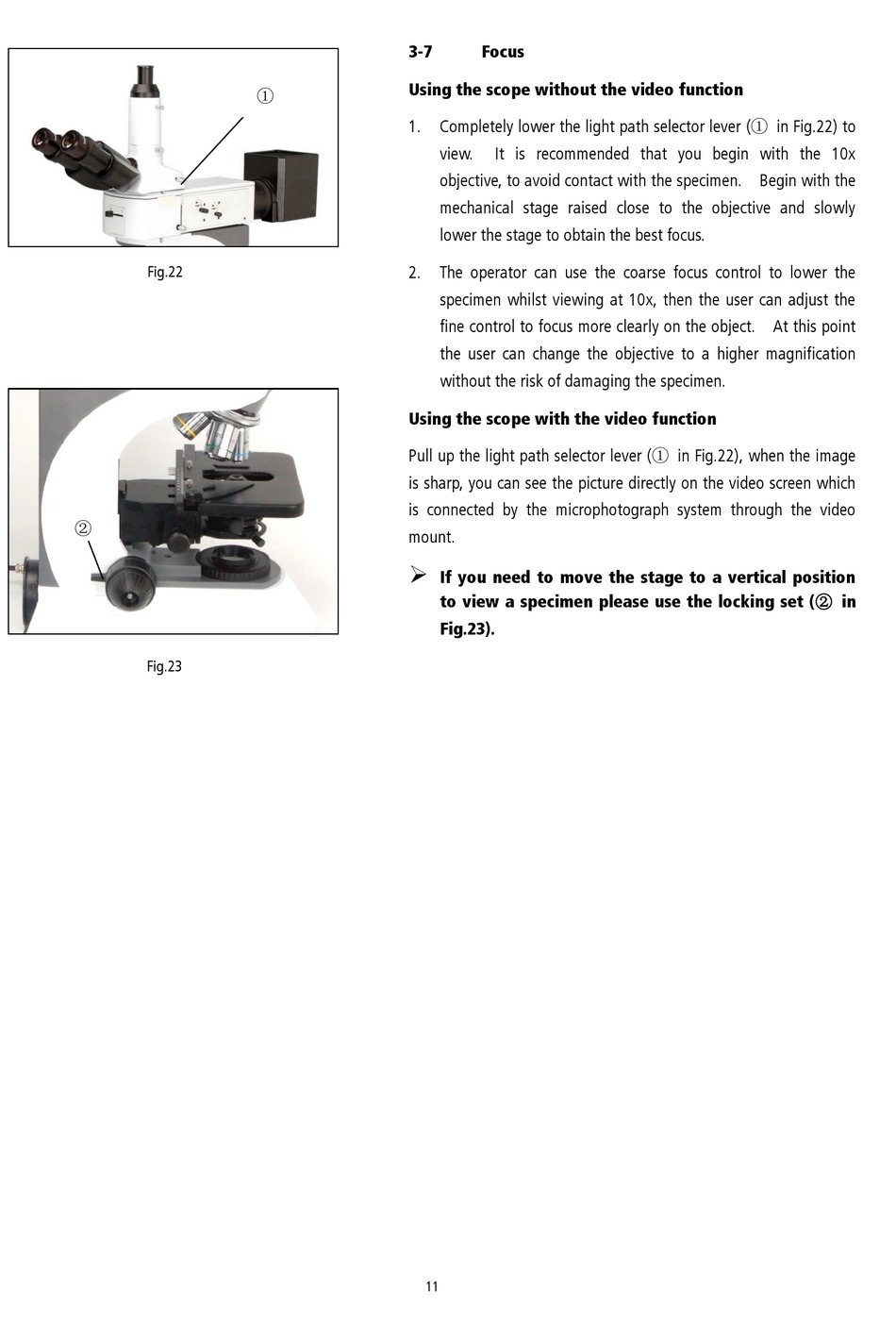

Vision Engineering TIM5 User Manual page 12

Fig.22
②
Fig.23
3-7
Using the scope without the video function
①
1.
2.
Using the scope with the video function
Pull up the light path selector lever (① in Fig.22), when the image
is sharp, you can see the picture directly on the video screen which
is connected by the microphotograph system through the video
mount.

Focus
Completely lower the light path selector lever (① in Fig.22) to
view. It is recommended that you begin with the 10x
objective, to avoid contact with the specimen. Begin with the
mechanical stage raised close to the objective and slowly
lower the stage to obtain the best focus.
The operator can use the coarse focus control to lower the
specimen whilst viewing at 10x, then the user can adjust the
fine control to focus more clearly on the object. At this point
the user can change the objective to a higher magnification
without the risk of damaging the specimen.
If you need to move the stage to a vertical position
to view a specimen please use the locking set (② in
Fig.23).
11
