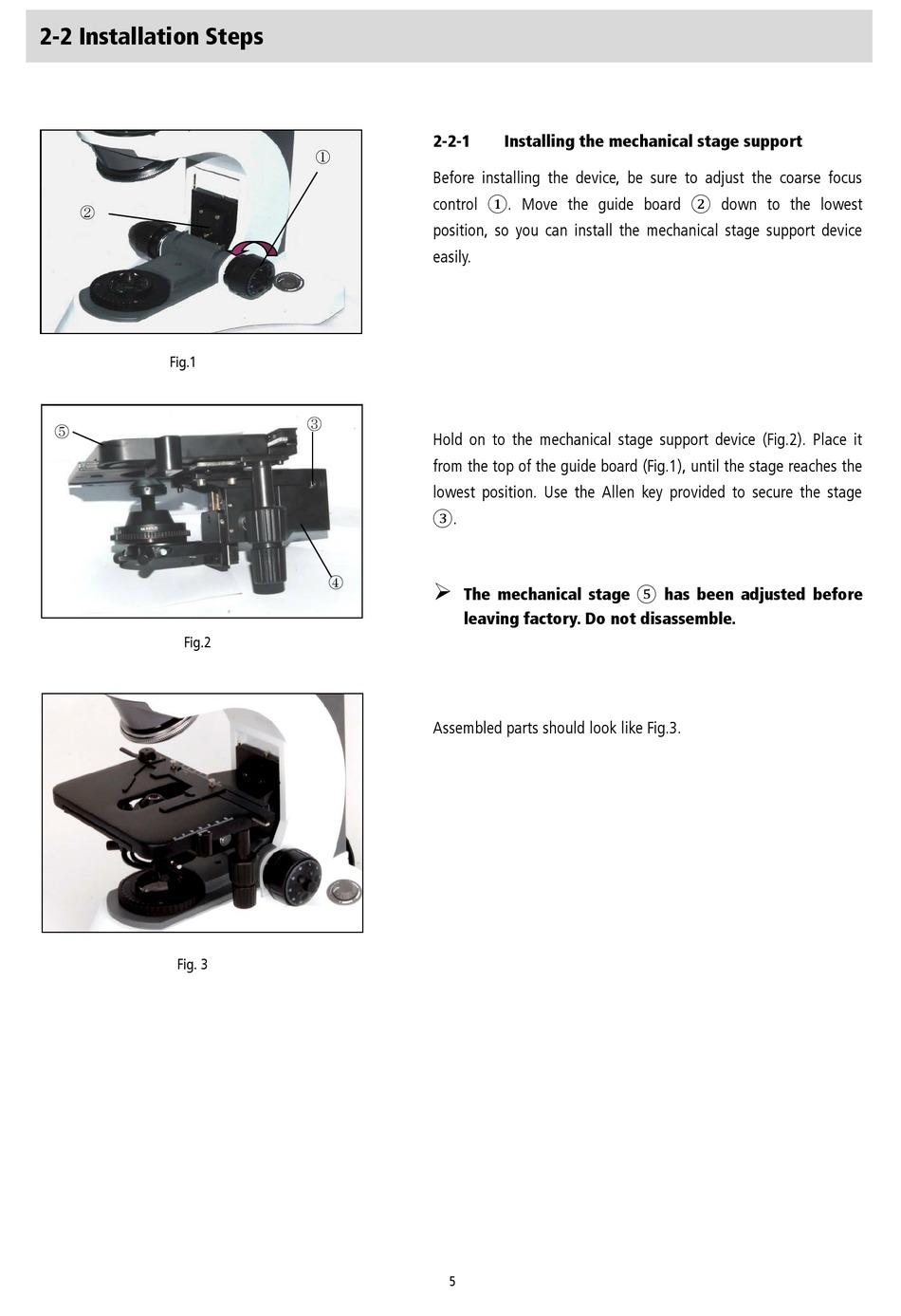

2-2 Installation Steps
②
Fig.1
⑤
Fig.2
Fig. 3
2-2-1
①
Before installing the device, be sure to adjust the coarse focus
control ①. Move the guide board ② down to the lowest
position, so you can install the mechanical stage support device
easily.
③
Hold on to the mechanical stage support device (Fig.2). Place it
from the top of the guide board (Fig.1), until the stage reaches the
lowest position. Use the Allen key provided to secure the stage
③.
④

The mechanical stage ⑤ has been adjusted before
leaving factory. Do not disassemble.
Assembled parts should look like Fig.3.
5
Installing the mechanical stage support
