Summary of Contents for Rifton Z110
-

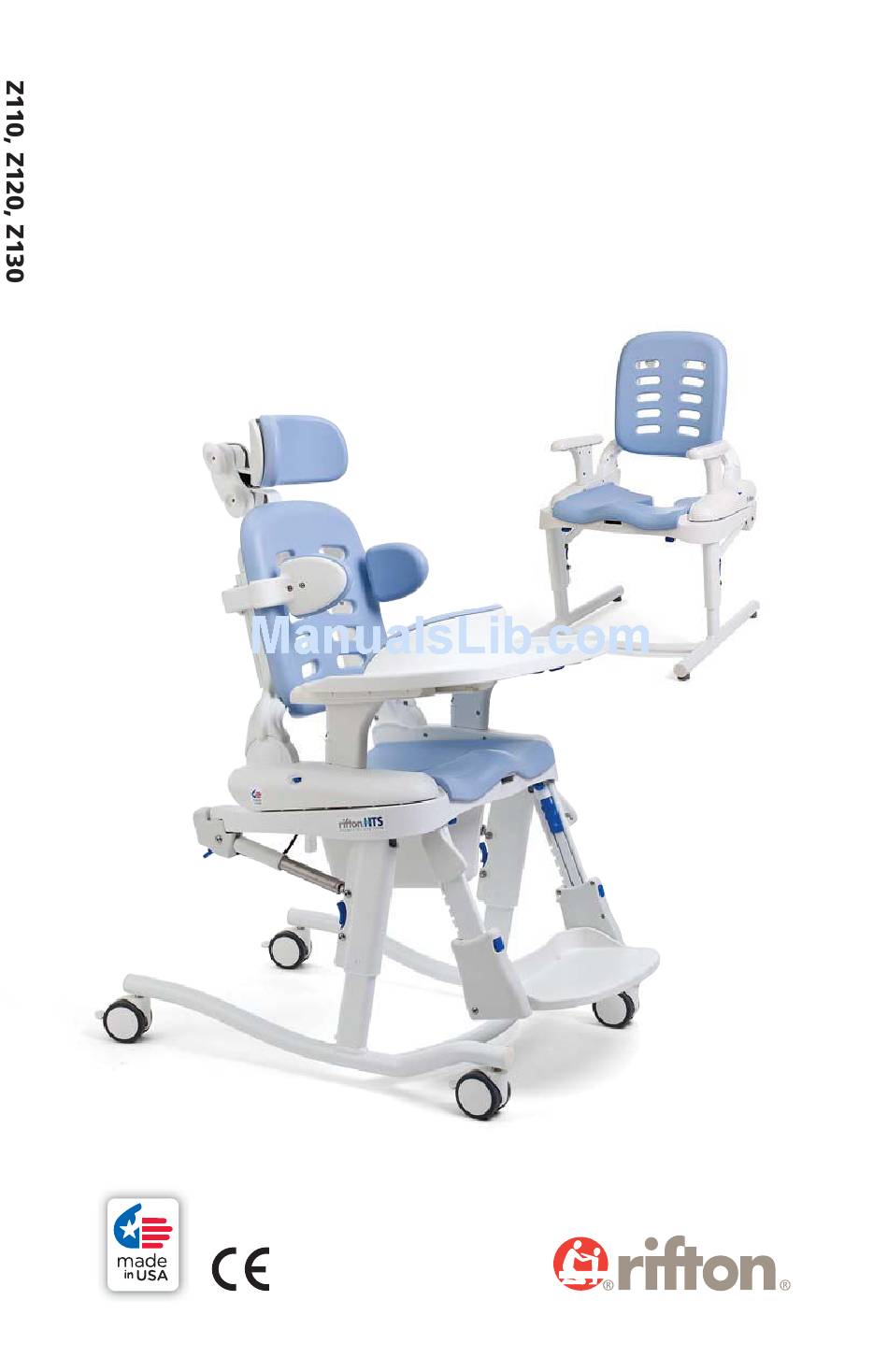

Page 1: Footboard For Mounting Bar, Tub Base
Rifton HTS Hygiene Toileting System Z110, Z120 & Z130 Product Manual ®... -
Page 2: Table Of Contents
Lateral supports, chest strap Hip guides, pan and bowl adapter Defl ectors and abductor Calfrest and ankle straps Footboard for mounting bar, tub base Portability base Operation Maintenance, cleaning and warranty Materials and user modifi cations © 2014 Rifton Equipment... -
Page 3: Safety Messages
○ Immediately remove this product from use when any condition develops that might make operation unsafe. ○ Do not use Rifton components or products for any purpose other than their intended use. ○ Replace or repair components or products that are damaged or appear to be unstable. -
Page 4: Recommended Use
Rifton products and parts. Recommended use The Rifton HTS is a Class 1 medical device. The intended use of the HTS is to compensate for disease, injury, or disability by allowing comfortable toileting and showering, and by providing modifi... -
Page 5: Item Dimensions
User and item dimensions User dimensions - inches (cm) Z110 small Z120 medium Z130 large Height 30-46 (76-117) 42-56 (106-142) 50-74 (127-188) Key user dimension: height The user’s overall height is a general guide to help you select the appropriate size of HTS. -
Page 6: Check Your Order
Check your order Your Rifton HTS has been shipped according to your specifi cations. It will require some tool-free assembly. Follow these instructions to ensure that your product is assembled and used correctly. This product manual is comprehensive, and may discuss features not included in your confi... - Page 7 Backrest installation Angle triggers or removal To install the backrest: Tip the backrest toward the front (see fi gure 7a). Insert the bottom end of the backrest between the Latch latch plates while raising the backrest angle plates triggers. Firmly press down on the backrest while rotating it back towards the fi...
-
Page 8: Bases
Armrests To attach the armrest, insert the bottom of the armrest into the oval slots in the side pieces and press down fi rmly until it latches into place (see fi gure 7c). To remove the armrest, squeeze the release button (A) and pull the armrest up. -
Page 9: Bases
Base height adjustment To prevent falls and WARNING injury, do not adjust height with user in the product. To lower the seat, squeeze both height latches on the frame uprights (see fi gure Height 9a) while supporting the weight of the latches seat. -
Page 10: Footboard
Footboard To prevent falls, CAUTION tipping or other injury: Height buttons • Do not exceed 150 pounds on the footboard. • Do not stand on footboard while it is angled forward. • Do not place maximum load at front edge of footboard. Figure 10a The footboard is included with mobile bases. -
Page 11: Mounting Bars
Mounting bars To prevent falls or WARNING injuries, ensure that the toilet is securely attached to the fl oor and that the seat bolts are in good Elongated condition before attaching the mounting bar. Inspect the toilet stability and seat bolts at regular intervals while the Standard mounting bar is in use. -
Page 12: Accessories
Accessories Seat and back pads The seat and back pads are removable for cleaning. They are made of Polyurethane with a durable integral skin. There are two styles of seat pad. One has Figure 12a a wider opening which opens to the rear facilitating hygiene care (see fi... -
Page 13: Butterfl Y Harness
Butterfl y harness To prevent falls, WARNING strangulation or other injuries: • Tighten the seatbelt portion of the butterfl y harness before tightening the upper straps. • Check fi t of harness after every adjustment. Figure 13a To attach the butterfl y harness, remove the center section of the seatbelt (A). -
Page 14: Anterior Support/Tray
Anterior support/tray To prevent falls, WARNING strangulation or other injuries, always use a seatbelt when the tray is in use. The anterior support has a padded surface for the user to lean against, which provides an excellent, forward-leaning, toileting position with trunk and arms supported by the tray (see fi... -
Page 15: Lateral Supports, Chest Strap
Lateral supports Lateral supports are available with or without a chest strap for secure upper trunk positioning. They may be adjusted separately, in height, angle and width using the knob (B) behind the backrest. To attach and/or adjust lateral support (A), loosen knob (B) and insert the key (C) into extrusion (D) at the rear of the backrest. -
Page 16: Hip Guides, Pan And Bowl Adapter
Hip guides The seat width may be adjusted with a pair of hip guides that attach onto the armrests. In the fi rst position they reduce the seat width by 2” (5 cm), and in the second position they reduce it by 4”(10 cm) (see fi... -
Page 17: Defl Ectors And Abductor
Defl ectors The standard defl ector inserts into the slot on the seat pad with the hollow cup of the defl ector toward the user (see fi gure 17a). Tip: Adding the abductor to the Ribs in seat pad standard defl ector provides stability to the defl... -
Page 18: Calfrest And Ankle Straps
Calfrest This option requires the use of a footboard. The calfrest attaches above the footboard (see fi gure 18a). It should be removed if the footboard is in the top positions. The calfrest attaches to the footboard uprights. With the webbing at the back, and rounded corners down, loop the Figure 18a webbing around the uprights and thread... - Page 19 Footboard for mounting bar attachment To prevent falls or WARNING other injury: • Ensure that the square metal tubing attaching the footboard to the seat rests on the front edge of the toilet. • Do not stand on footboard for Figure 19a mounting bar attachment.
-
Page 20: Portability Base
Portability base with carry-bag To prevent falls and WARNING injuries: • The portable base is intended for travel use only and should not be used as the primary base. Ensure adequate stability when using the portable base. • Check that the two pieces of the frame are fully engaged before attaching the seat. -
Page 21: Operation
Operation The Rifton HTS has two main functions; toileting and showering. the ideal position often toileting, incorporates forward-leaning of the trunk and a closed hip angle. This can be achieved with the HTS by angling the backrest slightly forward, adjusting the seat... -
Page 22: Maintenance, Cleaning And Warranty
The Polyurethane pads are easy to remove to allow cleaning and drying underneath. They can be wiped clean with soapy water or a mild disinfectant. Warranty Statement If a Rifton product breaks or fails in service during the fi rst year, we will replace it free of charge. -
Page 23: Materials And User Modifi Cations
• Plastic components are injection-molded from a variety of industrial resins. All materials are latex, lead and phthalates free. User modifi cations To prevent serious injury or death, do not modify or alter Rifton WARNING products or components, or use Rifton products or components in conjunction with products from other manufacturers.
