Rifton HTS Quick Reference Manual

Hygiene & toileting system
Hide thumbs Also See for HTS:
1
2
3
4
5

Advertisement

Table of Contents

HTS
(HYGIENE & TOILETING SYSTEM)
QUICK REFERENCE GUIDE
See HTS product manual for
more detailed instructions and
safety messages.
QUICK TIP:
All the adjustment triggers
and buttons are bright blue. All
adjustment knobs are white.
WF90 Rev.00 © 2024 Rifton Equipment

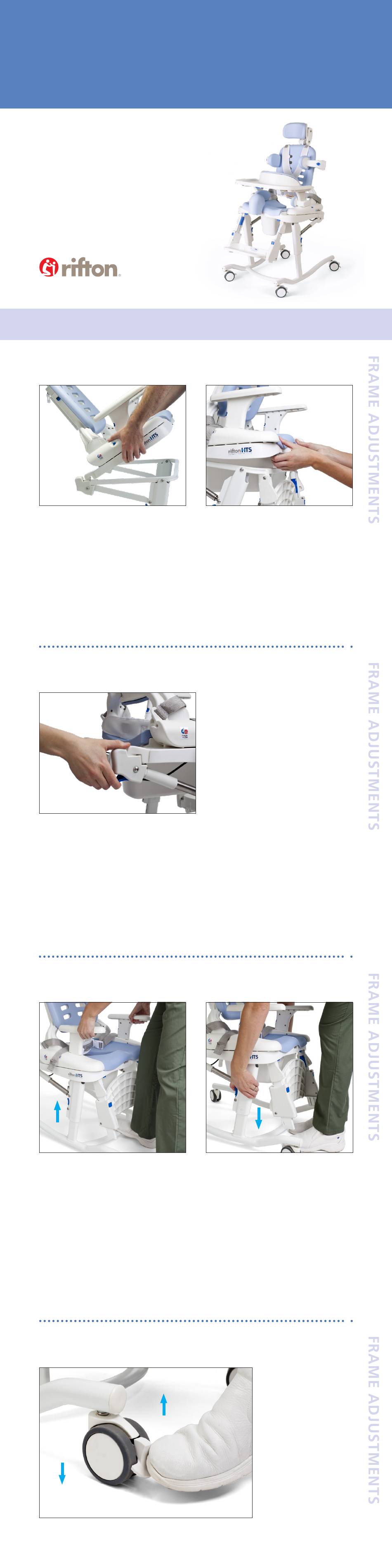

FRAME ADJUSTMENTS
Seat to base attachment / removal
To attach the seat to the base frame, align the white
hooks at back of the seat with slots at the back of the
base frame. Press firmly on the front of the seat to lock
the seat into place.
To remove the seat from the base frame, use the two
blue triggers under the front of the seat and lift up.
Tilt-in-space
Adjust the tilt-in-space by grasping the right back
extension of the seat and squeezing the blue trigger
firmly. Tilt to desired angle.
Note: The tilt-in-space function is available only on
select frames. The chair can be tilted with the client
seated in it.
Height adjustment
Note: Adjust chair height when empty.
To raise the seat to the desired height, pull up on the
seat while stabilizing the base crosspiece with a foot.
Lower the seat by grasping both upright support
columns of the HTS and squeezing the blue triggers
simultaneously. Release the levers to latch seat at the
desired height.
Locking / unlocking casters
LOCK
UNLOCK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rifton HTS

Summary of Contents for Rifton HTS

  • Page 1 To raise the seat to the desired height, pull up on the seat while stabilizing the base crosspiece with a foot. Lower the seat by grasping both upright support columns of the HTS and squeezing the blue triggers simultaneously. Release the levers to latch seat at the desired height.

  • Page 2: Backrest Angle Adjustment

    Then insert or remove backrest. Seat depth adjustment Note: The HTS has four seat depth adjustment options. Adjust the seat depth using the two blue triggers on both sides of the seat and slide the seat forward or backward.

  • Page 3: Butterfly Harness

    COMPONENTS Headrest Press the blue button at the back of the chair to insert and remove the headrest and adjust headrest height. Use the white knobs at the back of headrest to adjust angle and depth. Laterals The swing-away laterals slide into the groove at the back of the chair.

  • Page 4: Hip Guides

    COMPONENTS, cont. Hip guides Note: The hip guides come in right and left sides. Longer hip guides with thicker pads are available on select sizes. Thread the armrest through the correct hip guide. Use the two available slots on the hip guide to adjust for width.
  • Page 5 3. Then attach the backrest (see backrest attachment) and using the angle triggers, adjust to correct position. 4. Add the necessary components and position user in the chair. To remove, follow instructions above in reverse. See HTS product manual for more detailed instructions and safety messages. OVER...
