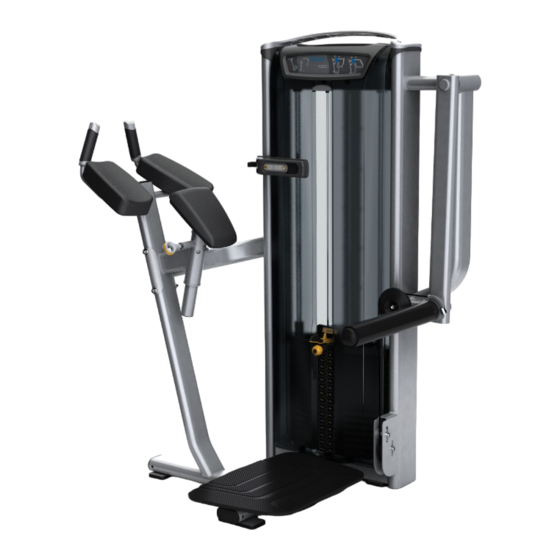

Matrix VS-S78 Glute Owner's Manual

Versa single-station strength
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNERS MANUAL
Versa Single-Station Strength
VS-S78 Glute

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-S78 Glute and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix VS-S78 Glute

Summary of Contents for Matrix VS-S78 Glute

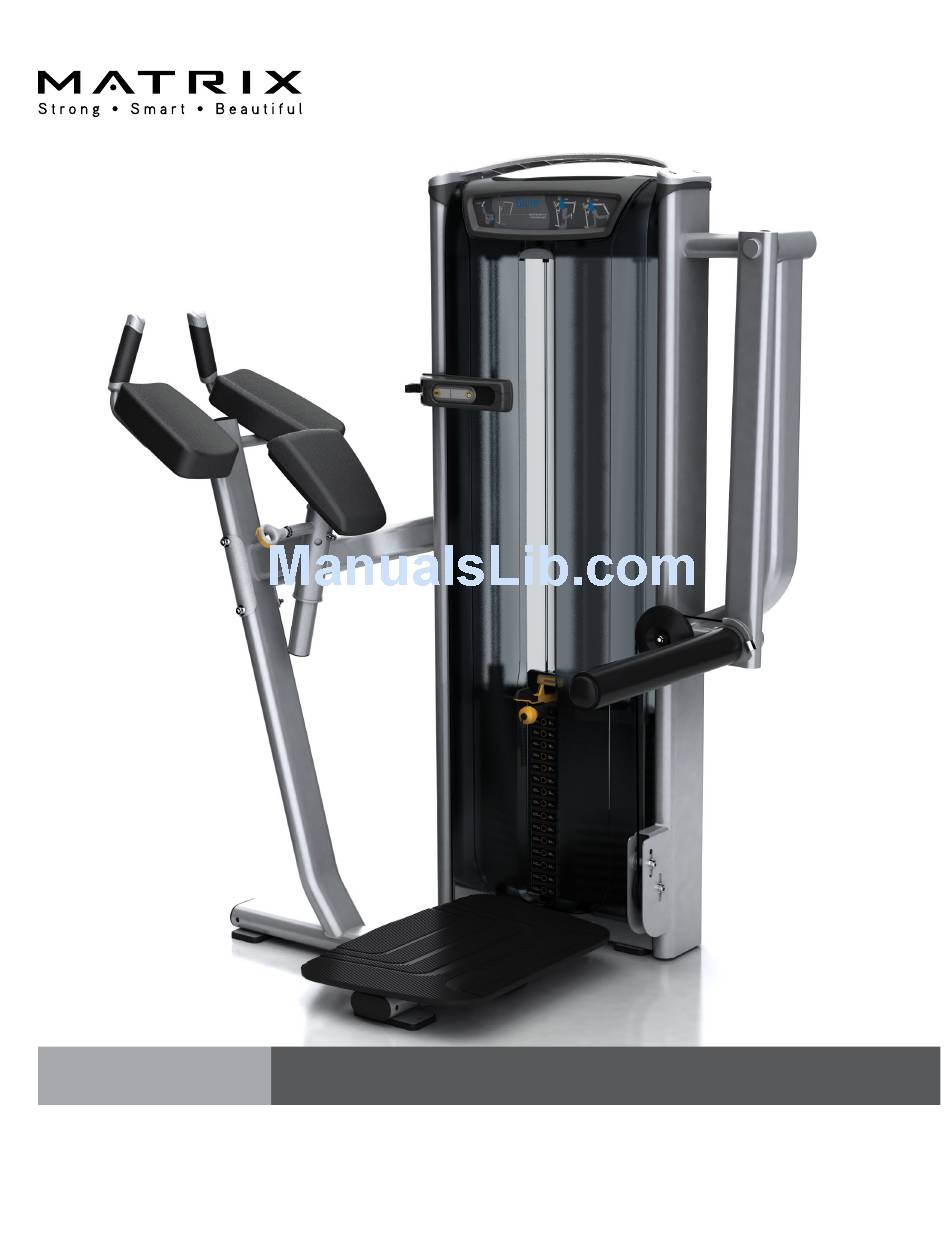

  • Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S78 Glute...

  • Page 2: Table Of Contents

    Table Of Contents Safety, General Care & Maintenence ..........3 Getting Started (Product Specifications) ........5 Assembly Information ..............6 Markings .....................7 Parts List ....................8 Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly ......9 Part 2 Cable Assembly ..............14 Part 3 Exercise Arm Assembly ..........15 Part 4 Pad Assembly ..............17 Part 5 Plastics Assembly ............19...

  • Page 3: Safety, General Care & Maintenence

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.

  • Page 5: Getting Started (Product Specifications)

    GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Overall dimensions 53”L X 40”W X 66”H Weight 450 lbs (205 kg) Shipping weight 300 lbs (137 kg) WARRANTY (Valid in USA only) Frame (not coatings) 10 years Structural parts 10 years...

  • Page 6: Assembly Information

    Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Matrix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.

  • Page 7: Markings

    MARKINGS WARNING LABEL LOCATIONS...

  • Page 8: Parts List

    Parts List DESCRIPTION M10 X 125L Socket Head Cap Screw M10 Flat Washer Wide Cupped Flange User Frame M10 Nylock Nut Upper Connecting Tube M10 X 20L Socket Head Cap Screw Outer Footpad Support Tube Inner Footpad Support Tube Weight Stack Frame M8 X 20L Flathead Countersunk Screw Foot Plate M8 Flat Washer...

  • Page 9: Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly

    Parts List DESCRIPTION Front Shroud Rear Shroud Large M8 Flat Washer (Ø20 mm) Top Cap Top Cap Cover PREMIUM KIT COMPONENTS Wing Rep Counter Towel Hook ASG Pull Grip Premium Pullpin...
  • Page 10 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 1 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 125L SHC M10 Flat Washer Wide Cupped Flange User Frame M10 Nylock Nut Upper Connecting Tube M10 X 20L SHC Outer Footpad Support Inner Footpad Support Weight Stack Frame Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 11 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 2 | FOOT PAD INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 20L FHSC Foot Plate M8 Flat Washer M8 Nylock Nut Tip machine back to access lower hardware (items 13 & 14) Torque M8 hardware to: 39 N-m/29 ft-lbs. Install the user frame hardware as shown.
  • Page 12 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 3 | RUBBER PAD INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Rubber Footpad Wrap the entire lip of pad around the metal foot plate as shown in detail view.
  • Page 13 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 4 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC M8 Flat Washer Rear Stack Support M10 Flat Washer (Small Dia.) M8 X 25L SHC Torque M10 Hardware to: 77 N-m/57 ft/lbs.

  • Page 14: Part 2 Cable Assembly

    ASSEMBLY PART 2: CABLE ASSEMBLY STEP 1 | PULLEY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 55L SHC Pulley Cover Pulley Cable Keeper Cable Install the pulley and pulley guard as shown. Tighten to 77 N-m/57 ft-lbs.

  • Page 15: Part 3 Exercise Arm Assembly

    ASSEMBLY PART 3: EXERCISE ARM ASSEMBLY STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Exercise Arm M10 Washer (Ø38 mm) Black Pivot Cover M10 X 25L SHC Torque to 77 N-m/57 ft-lbs.
  • Page 16 ASSEMBLY PART 3: EXERCISE ARM ASSEMBLY STEP 2 | EXERCISE ARM AND CABLE ASSEMBLY INSTRUCTIONS & NOTES View A Cable tension is adjusted by raising or lowering pulley as shown in View A. Note: Nuts for adjustable pulley must be on inside towards weight plates.

  • Page 17: Part 4 Pad Assembly

    ASSEMBLY PART 4: PAD ASSEMBLY STEP 1 | ARM PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 20L SHC Arm Pad Install the pad as shown. Tighten to 27 N-m/20 ft-lbs.
  • Page 18 ASSEMBLY PART 4: PAD ASSEMBLY STEP 2 | CHEST PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 25L SHC Chest Pad Chest Pad Adjustment Tube Install the pad as shown. Tighten to 27 N-m/20 ft-lbs. Remove limit pin before assembling pad assembly. Reinstall after installing pad assembly...

  • Page 19: Part 5 Plastics Assembly

    ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown.
  • Page 20 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs. Position top cap so that the instructional placard faces the user.
  • Page 21 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.

  • Page 22: Part 6 Premium Kit Assembly

    ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing Rep Counter Towel Hook ASG Pull Grip Premium Pullpin I M PO RTA NT NOTI CE PLEASE NOTE: Be sure to remove the insulating sheet when installing the Rep Counter.

  • Page 23: Weight Stack Frame

    ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame.

  • Page 24: Cable

    ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per machine chart shown below. Thread zip ties through holes to secure cables Route wires in groove...
  • Page 25 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using caution not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
  • Page 26 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit. Tighten to 39N-m (29 ft-lbs.).
  • Page 27 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES ASG Grips Remove the end caps using a 3 mm Allen wrench. 2. Cut off and discard the grips. 3. Remove inner collars with a 3 mm allen wrench. 4.
  • Page 28 ASSEMBLY PART 6: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Pull Pin Remove the pull pin using an adjustable wrench, and replace with the Premium pull pin (5P).
  • Page 32 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Glute Owners Guide Rev.1.2 Copyright© 2013 Matrix Fitness...
