Summary of Contents for Matrix VS-S331

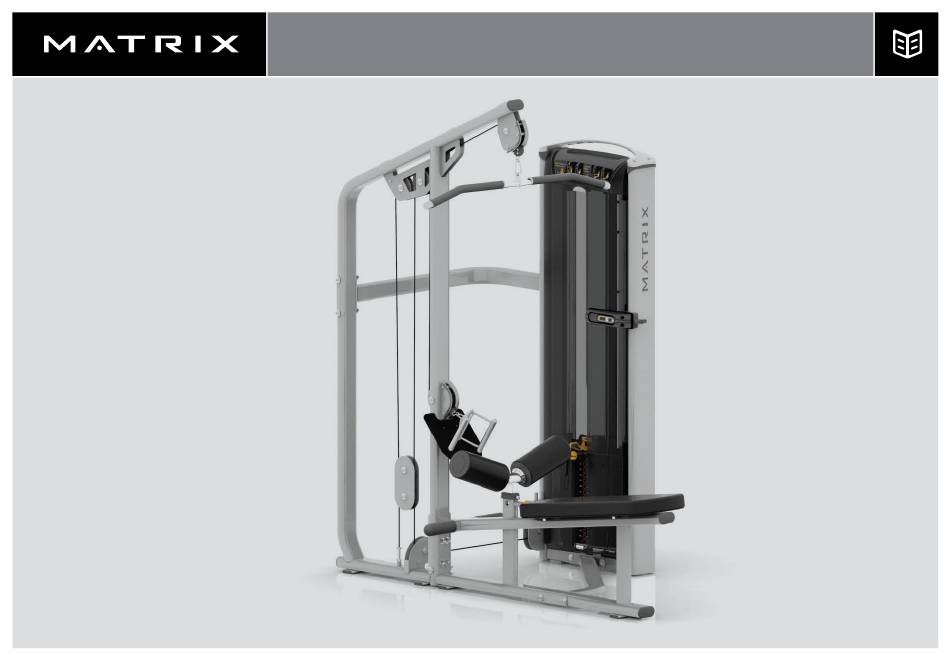

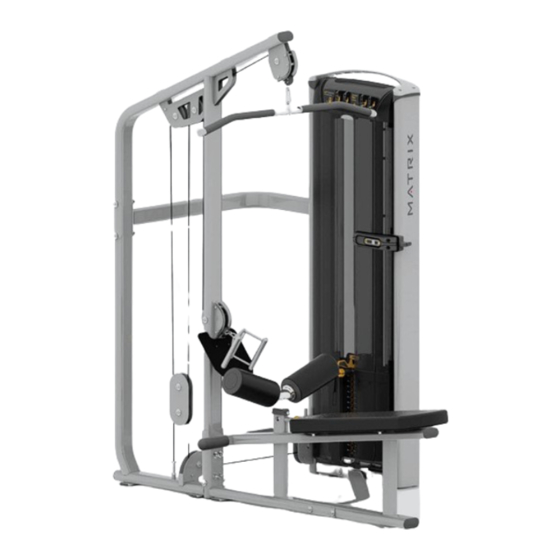

- Page 1 VERSA SERIES VS-S331...
- Page 3 ความช ่ ว ยเหล ื อ อ ื ่ น ๆ โปรดต ิ ด ต ่ อ ไปย ั ง ข ้ อ ม ู ล ต ิ ด ต ่ อ Matrix ท ี ่ ใ ห ้ ไ ว...
- Page 4 NETHERLANDS (BELGIUM, DENMARK, LUXEMBOURG) UNITED ARAB EMIRATES Johnson Health Tech Brasil Johnson Health Tech (HK) Limited Matrix Fitness / Johnson Health Tech. Netherlands Johnson Health Tech. UAE Estrada Municipal, 200 – mód 14 e 15 – gleba 3 Room 1501-1502, Aitken Vanson Centre,...
- Page 5 Seated Pulldown Place thigh pad on top of legs Raise thigh pad Stretch Stretch Pulldown Seated...
-
Page 6: Important Safety Information
It is recommended that all users of MATRIX exercise equipment be informed of the following information prior to its use. DEATH OR SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. -
Page 7: Proper Usage
* Ensure a minimum clearance width of 0.6 meters (24”) for access to and pas- sage around MATRIX strength equipment. Please note, 0.91 meters (36”) is the Cables should be inspected for cracks or frays and immediately replaced if present. - Page 8 VS-S331 TRAINING AREA UNPACKING Thank you for purchasing a MATRIX Fitness product. It is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack the unit from this box and dispose of the packing materials in accordance with your local laws.
- Page 9 Do not fully tighten frame connectors until Step 1 Hardware Step 2 Hardware assembly is complete. Vibra-Tite 135 Red Gel Description Description or equivalent must be used on all fasteners Bolt (M10x125L) Nut (M8) that are not assembled with Nylock Nuts. Arc Washer (Φ10.2) Nut (M10) Screw (M10x20L)
- Page 10 Use shims if base is not level.
- Page 11 Step 6 Hardware Description Bolt (M10x30L) Flat Washer (Φ10.2) Bolt (M8x25L) Bracket Sleeve Torque Values 10 Nm / 7 ft-lb 25 Nm / 18 ft-lb...
- Page 12 Step 9 Hardware Description Bolt (M8x25L) Flat Washer (Φ8.2) Torque Value 15 Nm / 11 ft-lb Torque Value 10 Nm / 7 ft-lb...
- Page 13 Premium Kit (optional) ASSEMBLY COMPLETE! Step 10 Hardware Description Bolt (M8x60L) Bolt (M8x35L) Torque Value 25 Nm / 18 ft-lb 15 Nm / 11 ft-lb For more info, see weight stack assembly manual. NOTE: This model uses collars to attach guide rods. Weight Stack Hardware Description Bolt (M8x16L)
- Page 16 VS-S331 Part # 1000371946 © 2016 Johnson Health Tech Rev 1.1 A...
