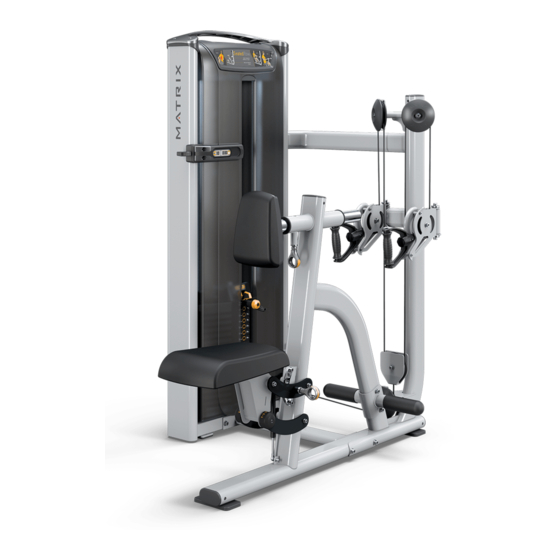

Matrix VS-S34 Seated Row Owner's Manual
  1. Manuals
  2. Brands
  3. Matrix Manuals
  4. Fitness Equipment
  5. VS-S34 Seated Row
  6. Owner's manual

Matrix VS-S34 Seated Row Owner's Manual

Versa single-station strength
Hide thumbs Also See for VS-S34 Seated Row:
Table of Contents

Advertisement

Quick Links

OWNERS MANUAL
Versa Single-Station Strength
VS-S34 Seated Row

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-S34 Seated Row and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix VS-S34 Seated Row

Summary of Contents for Matrix VS-S34 Seated Row

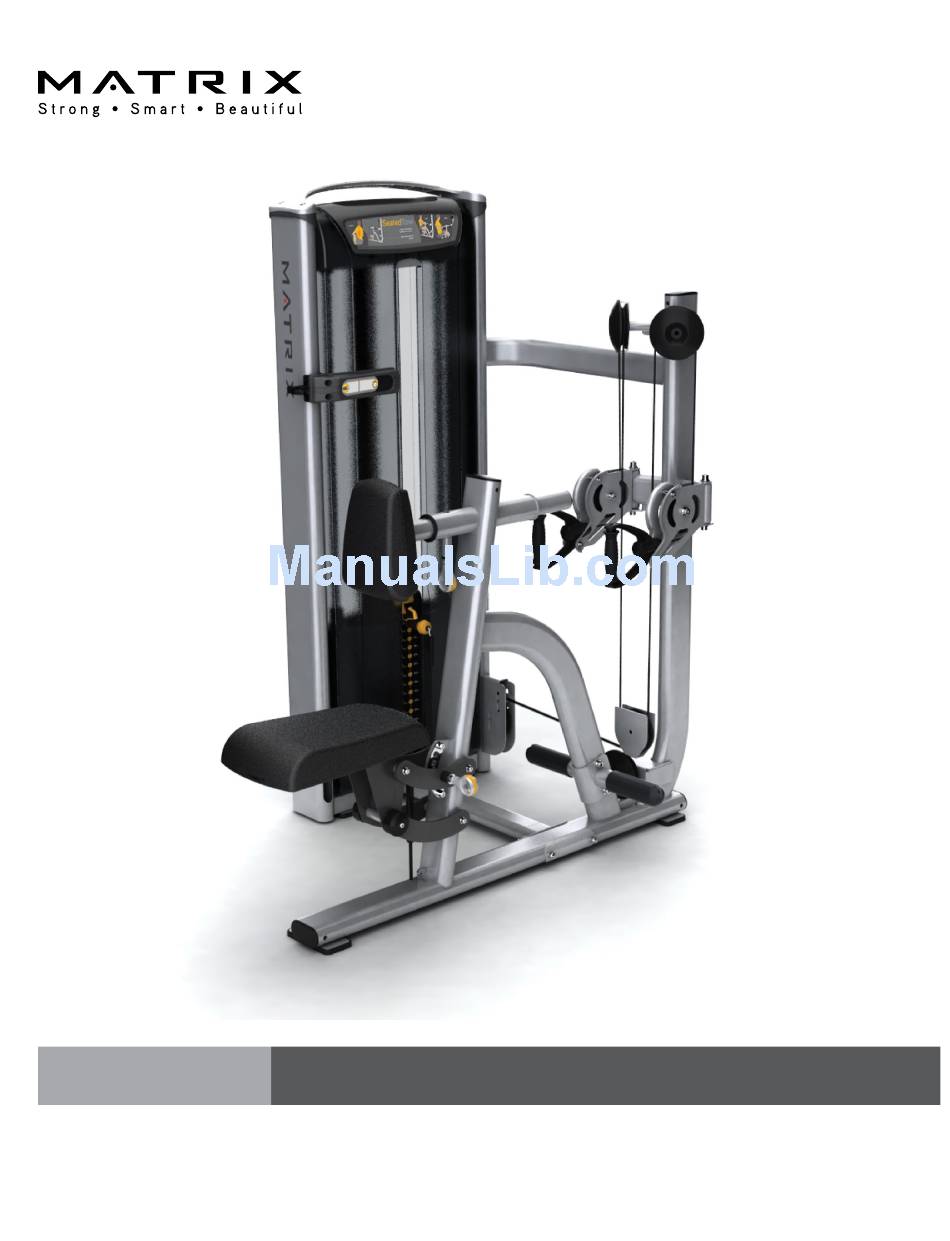

  • Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S34 Seated Row...

  • Page 2: Table Of Contents

    Table Of Contents Safety, General Care & Maintenence ..........3 Getting Started (Product Specifications) ......... 5 Assembly Information ................. 6 Markings ....................7 Parts List ....................8 Installation & Assembly: Value Line Part 1 Weight Stack to User Frame Assembly ......10 Part 2 Cable Assembly ..............

  • Page 3: Safety, General Care & Maintenence

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervis- ing personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of Califor- nia to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.

  • Page 5: Getting Started (Product Specifications)

    GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Overall dimensions 57”L X 40”W X 66 ”H Light Stack = 471 lbs (214 kg), Heavy Stack = 541 lbs (246 Weight Shipping weight 311 lbs (142 kg) WARRANTY (Valid in USA only) Frame (not coatings)

  • Page 6: Assembly Information

    UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.

  • Page 7: Markings

    MARKINGS WARNING LABEL LOCATIONS...

  • Page 8: Parts List

    Parts List DESCRIPTION M10 X 125L Socket Head Cap Screw M10 Flat Washer Wide Cupped Flange User Frame M10 Nylock Nut Lower Connecting Tube M10 X 20L Socket Head Cap Screw Upper Connecting Tube Weight Stack Frame Cable Keeper Pulley Pulley Cover M10 X 50L Socket Head Cap Screw Cable Retaining Clip...
  • Page 9 Parts List DESCRIPTION Bottom Pad M10 X 20L Hex Bolt Foot Rest M10 X 80L Socket Head Cap Screw Front Shroud Rear Shroud M8 X 25L SHC Large M8 Flat Washer (Ø20 mm) Top Cap Top Cap Cover PREMIUM KIT COMPONENTS Wing Rep Counter Towel Hook...

  • Page 10: Part 1 Weight Stack To User Frame Assembly

    ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 125L SHC M10 Flat Washer Wide Cupped Flange User Frame M10 Nylock Nut Lower Connecting Tube M10 X 20L SHC Upper Connecting Tube Weight Stack Frame Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .

  • Page 11: Part 2 Cable Assembly

    ASSEMBLY PART 2: CABLE ASSEMBLY STEP 1 | BOTTOM PULLEY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer Cable Keeper Pulley Pully Cover M10 X 50L SHC 10 11 Assemble the components as shown, making sure to orient the cable keeper as shown, as well as to sandwich the pulley cover between the two flat washers.
  • Page 12 ASSEMBLY PART 2: CABLE ASSEMBLY STEP 2 | FLOATING PULLEY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Cable Retaining Clip Floating Pulley Bracket Weight Stack Cable 1. Assemble the stack cable end fitting through floating pulley bracket opening. 2. Raise the cable up. 3.
  • Page 13 ASSEMBLY PART 2: CABLE ASSEMBLY STEP 3 | FLOATING PULLEY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut Pulley M10 X 50L SHC User Cable Assemble pulley as shown. Torque hardware to 77 N-m/74 ft-lbs.
  • Page 14 ASSEMBLY PART 2: CABLE ASSEMBLY STEP 4 | LEFT & RIGHT UPPER PULLEY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Washer Cable Keeper Pulley Pulley Cover M10 X 50L SHC Assemble the components as shown, making sure to orient the cable keeper as shown, as well as to sandwich the pulley cover between the two flat washers.
  • Page 15 ASSEMBLY PART 2: CABLE ASSEMBLY STEP 5 | LEFT & RIGHT SWIVELLING PULLEY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 20L SHC M10 Lock Washer Axle Swivel Pulley Assembly Assemble the components as shown, making sure to orient the flat features of the axle and pulley bracket to each other.
  • Page 16 ASSEMBLY PART 2: CABLE ASSEMBLY STEP 6 | USER CABLE ROUTING...
  • Page 17 ASSEMBLY PART 2: CABLE ASSEMBLY STEP 7 | HANDLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Hand Grip Cable Clevis Plastic Bullet Cover Insert pin into clevis as shown. Line up pin to notches in bullet cover as shown below...
  • Page 18 ASSEMBLY PART 2: CABLE ASSEMBLY STEP 7 | HANDLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M5 X 30L SHC M5 Nylock Nut Locate Nylock Nut into hex pocket in bullet cover as shown. Torque to: 10 N-m/84 in-lbs.

  • Page 19: Part 3 Pad Assembly

    ASSEMBLY PART 3: PAD ASSEMBLY STEP 1 | CHEST PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 20L SHC Chest Pad Chest Pad Back Cover Chest Pad Adjustment Tube Install the pad as shown. Tighten to 57 N-m/41 ft-lbs.
  • Page 20 ASSEMBLY PART 3: PAD ASSEMBLY STEP 2 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Bottom Pad M10 X 20L Hex Bolt Install the pad as shown. Tighten to 57 N-m/41 ft-lbs.

  • Page 21: Part 4 Foot Rest Assembly

    ASSEMBLY PART 4: FOOT REST ASSEMBLY STEP 1 | FOOT REST ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut Foot Rest M10 X 80L SHC Torque hardware to: 77 N-m/57 ft-lbs.

  • Page 22: Part 5 Plastics Assembly

    ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown.
  • Page 23 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs. Position top cap so that the instructional placard faces the user.
  • Page 24 ASSEMBLY PART 5: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.

  • Page 25: Part 6 Cable Adjustment

    ASSEMBLY PART 6: CABLE ADJUSTMENT STEP 1 | CABLE ADJUSTMENT INSTRUCTIONS & NOTES Cable tension is adjusted by raising or lowering pulley as shown. Note: Nuts for adjustable pulley must be on inside towards weight plates.

  • Page 26: Part 7 Premium Kit Assembly

    ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing Rep Counter Towel Hook Premium Grip Assembly Premium Pullpin Seat Assist Gas Shock M10 Nylock Nut (Not shown) I M PO RTA NT NOTI CE PLEASE NOTE: Be sure to remove the insulating sheet when installing the...

  • Page 27: Weight Stack Frame

    ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame.
  • Page 28 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per machine chart shown below.
  • Page 29 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using caution not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
  • Page 30 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown M8 hardware provided with the kit. Tighten to 39N-m (29 ft- lbs.).
  • Page 31 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Grips Pin headplate to create slack in the cable. 5. Slide premium grip over cable, insert cable onto 2. Unscrew M5 bolt to disassemble grip. clevis and assemble using existing M5 hardware.
  • Page 32 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Pull Pin Remove the two pull pins using an adjustable wrench, and replace with the Premium pull pins making sure that the pull pin lengths are correct for each location. (5P).
  • Page 33 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 7 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Gas Shock Raise the seat to the highest position before adding gas shock (6P) Shock must be positioned as shown with gas cylinder above piston rod Disassembly and assembly for both ends of shock (Only one end is shown)
  • Page 36 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Seated Row Owners Guide Rev.1.2 Copyright © 2013 Matrix Fitness...
