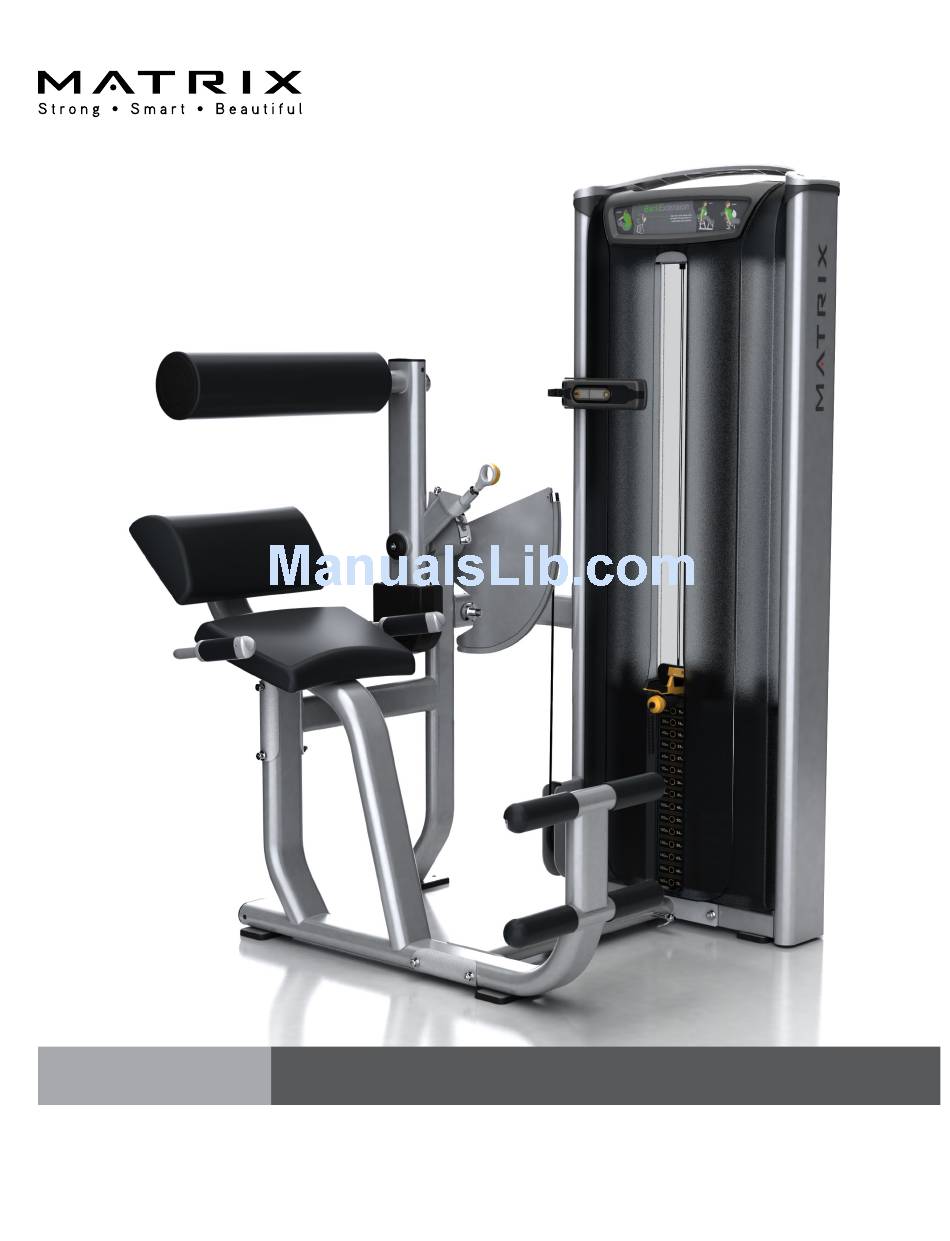

OWNERS MANUAL
Versa Single-Station Strength
VS-S52 Back Extension

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-S52 and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix VS-S52

Summary of Contents for Matrix VS-S52

  • Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S52 Back Extension...

  • Page 2: Table Of Contents

    Table Of Contents Safety, General Care & Maintenence ..........3 Getting Started (Product Specifications) ......... 5 Assembly Information ................. 6 Markings ....................7 Parts List ....................8 Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly ......9 Part 2 CAM Assembly ..............

  • Page 3: Safety, General Care & Maintenence

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.

  • Page 5: Getting Started (Product Specifications)

    GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Overall dimensions 45”L X 50”W X 66”H Light Stack = 500 lbs (227 kg), Heavy Stack = 570 lbs (259 Weight Shipping weight 340 lbs (155 kg) WARRANTY (Valid in USA only) Frame (not coatings) 10 years...

  • Page 6: Assembly Information

    UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.

  • Page 7: Markings

    MARKINGS WARNING LABEL LOCATIONS...

  • Page 8: Parts List

    Parts List DESCRIPTION M10 X 125L Socket Head Cap Screw M10 Flat Washer Wide Cupped Flange User Frame M10 Nylock Nut Upper Connecting Tube Lower Connecting Tube M10 X 20L Socket Head Cap Screw Weight Stack Rear Stack Support M10 Flat Washer (Small Diameter) M8 X 20L Socket Head Cap Screw M8 Flat Washer M10 X 15L Socket Head Cap Screw...

  • Page 9: Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly

    Parts List DESCRIPTION Bottom Pad Lumbar Pad Front Shroud Rear Shroud M8 X 25L Socket Head Cap Screw Large M8 Flat Washer (Ø20 mm) Top Cap Top Cap Cover PREMIUM KIT COMPONENTS Wing Rep Counter Towel Hook ASG Pull Grip Premium Pullpin OPTIONAL SHORT USER KIT Foot Rest...
  • Page 10 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 125L SHC M10 Flat Washer Wide Cupped Flange User Frame M10 Nylock Nut Upper Connecting Tube Lower Connecting Tube M10 X 20L SHC Weight Stack Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 11 ASSEMBLY PART 1: STACK & USER FRAME ASSEMBLY STEP 2 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC Rear Stack Support M10 Flat Washer (Small Dia.) M8 X 20L SHC M8 Flat Washer Install the user frame hardware as shown.

  • Page 12: Part 2 Cam Assembly

    ASSEMBLY PART 2: CAM ASSEMBLY STEP 1 | CAM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 15L SHC M10 Flat Washer (Ø38mm OD) Key (8 X 10 mm) Flat Washer (Ø45 mm OD/Ø30 mm ID) Wave (Spring) Washer Axle/ROM Assembly Install the user frame hardware as shown.

  • Page 13: Part 3 Cable Assembly

    ASSEMBLY PART 3: CABLE ASSEMBLY STEP 1 | WEIGHT STACK CABLE ASSEMBLY INSTRUCTIONS & NOTES View A Cable tension is adjusted by raising or lowering pulley as shown in View A. Note: Nuts for adjustable pulley must be on inside towards weight plates.

  • Page 14: Part 4 Exercise Arm Assembly

    ASSEMBLY PART 4: EXERCISE ARM ASSEMBLY STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 20L SHC M8 X 20L SHC M8 Flat Washer Ø M10 Flat Washer ( 38 mm) Orange Pivot Indicator Exercise Arm Counter Weight Torque item 8 to: 77 N-m/57 ft-lbs.

  • Page 15: Part 5 Pad Assembly

    ASSEMBLY PART 5: PAD ASSEMBLY STEP 1 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY End Cap M8 X 15L SHC Ø M8 Washer ( 60 mm) Back Pad Position collar as far to the left (inside) as possible and tighten set screws after the pad has been assembled.

  • Page 16: M10 Flat Washer

    ASSEMBLY PART 5: PAD ASSEMBLY STEP 2 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 20L SHC Bottom Pad Install the pad as shown. Tighten to 57 N-m/41 ft-lbs.
  • Page 17 ASSEMBLY PART 5: PAD ASSEMBLY STEP 3 | LUMBAR PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 20L SHC Lumbar Pad Install the pad as shown. Tighten to 57 N-m/41 ft-lbs.

  • Page 18: Part 6 Plastics Assembly

    ASSEMBLY PART 6: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown.

  • Page 19: M8 Flat Washer

    ASSEMBLY PART 6: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs. Position top cap so that the instructional placard faces the user.
  • Page 20 ASSEMBLY PART 6: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.

  • Page 21: Part 7 Premium Kit Assembly

    ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing Rep Counter Towel Hook Premium Pullpin ASG Pull Grip I M PO RTA NT NOTI CE PLEASE NOTE: Be sure to remove the insulating sheet when installing the Rep Counter.
  • Page 22 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers (Item 59) using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame.
  • Page 23 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per machine chart shown below. Thread zip ties through holes to secure cables Route wires in groove...
  • Page 24 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using caution not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
  • Page 25 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit. Tighten to 39N-m (29 ft-lbs.).
  • Page 26 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Pull Pin Remove the pull pin using an adjustable wrench, and replace with the Premium pull (4P).
  • Page 27 ASSEMBLY PART 7: PREMIUM KIT ASSEMBLY STEP 6 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES ASG Grips Remove the end caps using a 3 mm Allen wrench. 2. Cut off and discard the grips. 3. Remove inner collars with a 3 mm allen wrench. 4.

  • Page 28: Part 8 Short User Kit

    ASSEMBLY PART 8: SHORT USER KIT ASSEMBLY OPTIONAL SHORT USER KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Foot Rest M10 Nylock Nut Support Plate M10 Flat Washer M10 X 70L SHC M10 X 75L SHC 3SK 4SK Torque to: 77 N-m/57 ft-lbs.
  • Page 32 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Back Extension Owners Guide Rev.1.2 Copyright© 2013 Matrix Fitness...
