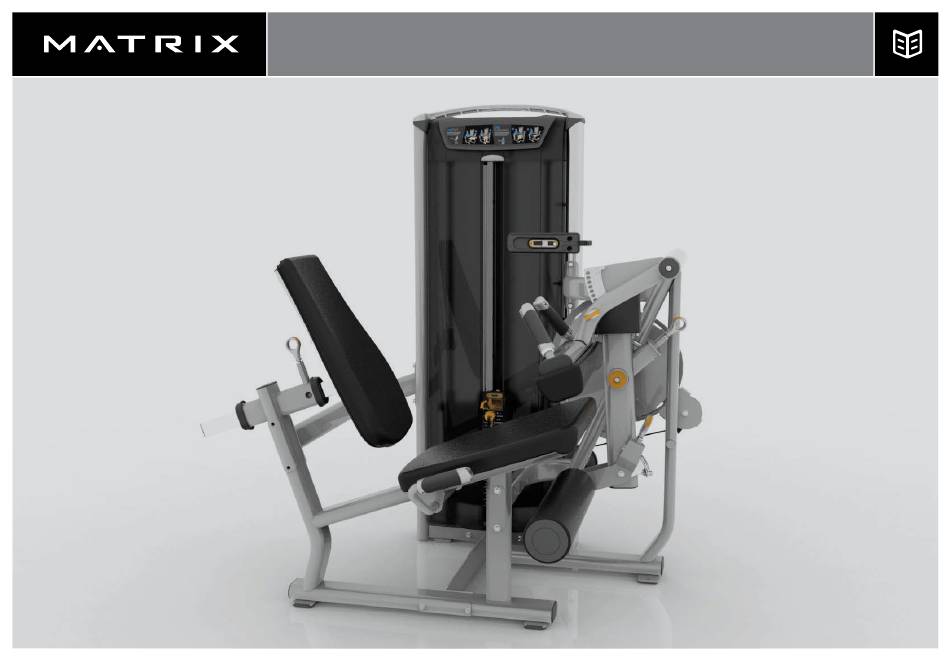

- Page 1 VERSA SERIES VS-S711...
- Page 3 ความช ่ ว ยเหล ื อ อ ื ่ น ๆ โปรดต ิ ด ต ่ อ ไปย ั ง ข ้ อ ม ู ล ต ิ ด ต ่ อ Matrix ท ี ่ ใ ห ้ ไ ว...
- Page 4 NETHERLANDS (BELGIUM, DENMARK, LUXEMBOURG) UNITED ARAB EMIRATES Johnson Health Tech Brasil Johnson Health Tech (HK) Limited Matrix Fitness / Johnson Health Tech. Netherlands Johnson Health Tech. UAE Estrada Municipal, 200 – mód 14 e 15 – gleba 3 Room 1501-1502, Aitken Vanson Centre,...
- Page 5 LegCurl Extension Adjust back pad to align knees with Adjust back pad to align knees with orange pivot. Adjust pad to thighs. orange pivot. Adjust pad to thighs. Position leg pad below ankles. Position leg pad above ankles. Stretch Stretch LegExtension LegCurl...
-
Page 6: Important Safety Information
It is recommended that all users of MATRIX exercise equipment be informed of the following information prior to its use. DEATH OR SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. -
Page 7: Proper Usage
* Ensure a minimum clearance width of 0.6 meters (24”) for access to and pas- sage around MATRIX strength equipment. Please note, 0.91 meters (36”) is the Cables should be inspected for cracks or frays and immediately replaced if present. - Page 8 VS-S711 TRAINING AREA UNPACKING Thank you for purchasing a MATRIX Fitness product. It is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack the unit from this box and dispose of the packing materials in accordance with your local laws.
- Page 9 Do not fully tighten frame connectors until Step 1 Hardware Step 2 Hardware assembly is complete. Vibra-Tite 135 Red Gel Description Description or equivalent must be used on all fasteners Bolt (M10x105L) Bolt (M10x65L) that are not assembled with Nylock Nuts. Arc Washer (Φ10.2) Flat Washer (Φ10.2) Nut (M10)
- Page 10 Step 3 Hardware Step 4 Hardware Description Description Bolt (M10x20L) Screw (ST4x20L) Flat Washer (Φ10.2) Torque Value 77 Nm / 57 ft-lb...
- Page 11 Step 5 Hardware Step 6 Hardware Description Description Bolt (M10x125L) Bolt (M8x15L) Arc Washer (Φ10.2) Flat Washer (Φ8.5xΦ60) Flat Washer (Φ10.2) Bolt (M10x20L) Nut (M10) Flat Washer (Φ10.2) Bolt (M10x20L) Axle (Φ25.0x88) Flat Washer (Φ41.8xΦ20.5) Torque Value Torque Values 77 Nm / 57 ft-lb 25 Nm / 18 ft-lb 100 Nm / 74 ft-lb...
- Page 12 Step 7 Hardware Step 8 Hardware Description Description Bolt (M10x30L) Bolt (M10x80L) Flat Washer (Φ10.2) Flat Washer (Φ10.2) Nut (M10) Bolt (M10x75L) Bolt (M10x25L) Limit Pin Torque Values Torque Value 77 Nm / 57 ft-lb 10 Nm / 7 ft-lb 10 Nm / 7 ft-lb...
- Page 13 Step 9 Hardware Step 10 Hardware Description Description Bolt (M8x25L) Axle Flat Washer (Φ8.4) Bolt (M10x20L) Bolt (M10x20L) Flat Washer (Φ10.5xΦ42) Plug Spring Washer (Φ35.5xΦ51.5) Torque Values Torque Values 10 Nm / 7 ft-lb 180 Nm / 133 ft-lb 25 Nm / 18 ft-lb 77 Nm / 57 ft-lb...
- Page 14 Step 12 Hardware Description Bolt (M8x25L) Flat Washer (Φ8.4) Torque Value 15 Nm / 11 ft-lb...
- Page 15 Premium Kit (optional) ASSEMBLY COMPLETE! Step 13 Hardware Description Bolt (M8x60L) Bolt (M8x35L) Torque Values 25 Nm / 18 ft-lb 15 Nm / 11 ft-lb For more info, see weight stack assembly manual.
- Page 16 VS-S711 Part # 1000372025 © 2016 Johnson Health Tech Rev 1.0 A...
