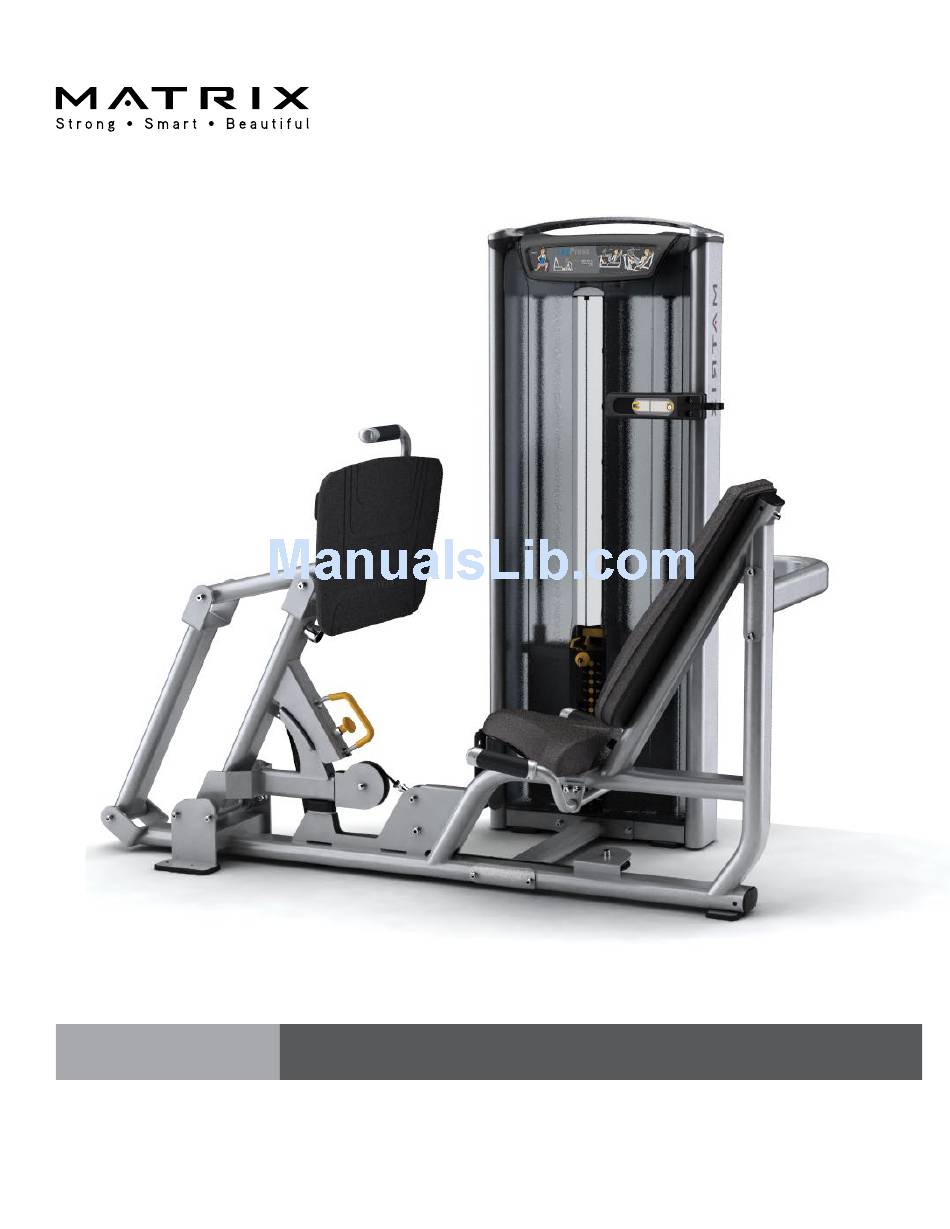

- Page 1 OWNERS MANUAL Versa Single-Station Strength VS-S70 Leg Press...
-
Page 2: Table Of Contents
Table Of Contents Safety, General Care & Maintenence ..........3 Getting Started (Product Specifications) ..........5 Assembly Information ................6 Markings ....................7 Parts List ....................8 Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly ......9 Part 2 Cable Assembly ..............10 Parrt 3 Handlebar Assembly ............ - Page 3 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.
-
Page 5: Getting Started (Product Specifications)
GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Overall dimensions 73”L X 41”W X 66”H Weight 795 lbs (361 kg) Shipping weight 380 lbs (172 kg) WARRANTY (Valid in USA only) Frame (not coatings) 10 years Structural parts 10 years... - Page 6 UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.
-
Page 7: Markings
MARKINGS WARNING LABEL LOCATIONS... -
Page 8: Parts List
Parts List DESCRIPTION M10 X 125L Socket Head Cap Screw M10 Flat Washer Wide Cupped Flange User Frame Lower Connecting Tube M10 X 20L Socket Head Cap Screw M10 Nylock Nut Weight Stack Frame Upper Connecting Tube Handlebar Assembly M10 Flat Washer (Ø18 mm) M10 X 30L Socket Head Cap Screw Bottom Pad Back Pad... - Page 9 ASSEMBLY PART 1: WEIGHT STACK TO USER FRAME ASSEMBLY STEP 1 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 X 125L SHC M10 Flat Washer Wide Cupped Flange User Frame Lower Connecting Tube M10 X 20L M10 Nylock Nut Weight Stack Frame Upper Connecting Tube...
-
Page 10: Part 2 Cable Assembly
ASSEMBLY PART 2: CABLE ASSEMBLY STEP 1 | CABLE ASSEMBLY INSTRUCTIONS & NOTES Route the cable as shown from the weight stack. Assemble cable end as shown. Fully tighten fitting. - Page 11 ASSEMBLY PART 3: HANDLEBAR ASSEMBLY STEP 1 | HANDLEBAR ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Nylock Nut Handlebar Assembly Ø M10 Flat Washer ( 18 mm) M10 X 30L SHC 11 12 Torque M10 hardware from pages 8-10 to: 77 N-m/57 ft-lbs.
-
Page 12: Part 4 Pad Assembly
ASSEMBLY PART 4: PAD ASSEMBLY STEP 1 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 X 20L SHC Install the pad as shown. Tighten to 27 N-m/20 ft-lbs. - Page 13 ASSEMBLY PART 4: PAD ASSEMBLY STEP 2 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer Back Pad M10 X 75L SHC Install the pad as shown. Tighten to 27 N-m/20 ft-lbs.
-
Page 14: Part 5 Exercise Arm Assembly
ASSEMBLY PART 5: EXERCISE ARM ASSEMBLY STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut Linkage M10 X 160L SHC Install the user frame hardware as shown. Fully Tighten to: 77 N-m/57 ft/lbs. - Page 15 ASSEMBLY PART 5: EXERCISE ARM ASSEMBLY STEP 2 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M10 Flat Washer M10 Nylock Nut M10 X 160L SHC Exercise Arm Install the user frame hardware as shown. Fully Tighten to: 77 N-m/57 ft/lbs.
-
Page 16: Part 6 Plastics Assembly
ASSEMBLY PART 6: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Front Shroud Rear Shroud (Not shown) Position hangers in their lowest position Install the weight stack shrouds as shown. - Page 17 ASSEMBLY PART 6: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY M8 X 25L SHC M8 Flat Washer (20 mm diameter) Top Cap Install the top cap onto the weight stack as shown. Torque to 17 N-m/147 in-lbs.
- Page 18 ASSEMBLY PART 6: PLASTICS ASSEMBLY STEP 3 | TOP CAP COVERS INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Top Cap Cover Install the top cap covers.
-
Page 19: Part 7 Cable Adjustment
ASSEMBLY PART 7: CABLE ADJUSTMENT Cable tension is adjusted by raising or lowering pulley as shown. Note: Nuts for adjustable pulley must be on inside towards weight plates. -
Page 20: Part 8 Premium Kit
ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANTITY Wing Rep Counter Towel Hook ASG Pull Grip I M PO RTA NT NOTI CE PLEASE NOTE: Be sure to remove the insulating sheet when installing the Rep Counter. -
Page 21: Weight Stack Frame
ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Magnet 1. Remove the (2) top cap covers using a flat blade screw driver. 2. Remove the (4) M8 bolts and 20 mm diameter washers that hold the top cap to the weight stack frame. - Page 22 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 2 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter - Sensors 1. Assemble Rep Counter sensor base using (4) screws included with the kit. 2. Assemble (3) sensors located per machine chart shown below. Thread zip ties through holes to secure cables Route wires in groove...
- Page 23 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 3 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Rep Counter 1. Remove and discard hole caps using caution not to scratch the paint. 2. Attach plug to Rep Counter. 3. Assemble Towel Hook (3P) and Rep Counter (2P) using the M8 X 35L SHC bolts provided.
- Page 24 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 4 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES Wing Assemble the wing (1P) as shown using the M8 hardware provided with the kit. Tighten to 39N-m (29 ft-lbs.).
- Page 25 ASSEMBLY PART 8: PREMIUM KIT ASSEMBLY STEP 5 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES ASG Grips Remove the end caps using a 3 mm Allen wrench. 2. Cut off and discard the grips. 3. Remove inner collars with a 3 mm allen wrench. 4.
- Page 28 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 Versa Seated Leg Press Owners Guide Rev.1.2 Copyright © 2013 Matrix Fitness...
