Rear Wheels

Removal
1. Switch off the main power switch on the control
panel.
2. Lift up and chock up the wheelchair chassis so
that the wheel to be removed is free of the
ground.
3. Remove the hub cap 1.
4. Remove the nut 2. Apply pressure to the screw
6 using an Allen key.
5. Remove the washer 3, wheel 4, axle 5 and
screw 6.
Fitting
1. Check that the axle and rim are not damaged.
If necessary, clean to remove dirt and rust.
Replace damaged parts.
2. Fit the wheel on the axle using just your
hands. Check that the wheel is fully located on
the axle.
3. Fit the screw 6 in the wheel fork.
4. Fit the axle 5, wheel 4, washer 3 and nut 2,
and tighten the wheel.
5. Fit the hub cap 1.
Tightening torque: 24 Nm.
NOTE
Screws and nuts must only be used once. Once removed,
screws and nuts must therefore never be refitted.
WARNING
No other type of screws, nuts and washers than those stated
here may be used.
WARNING
No other type of lock coating or lock liquid may be used.

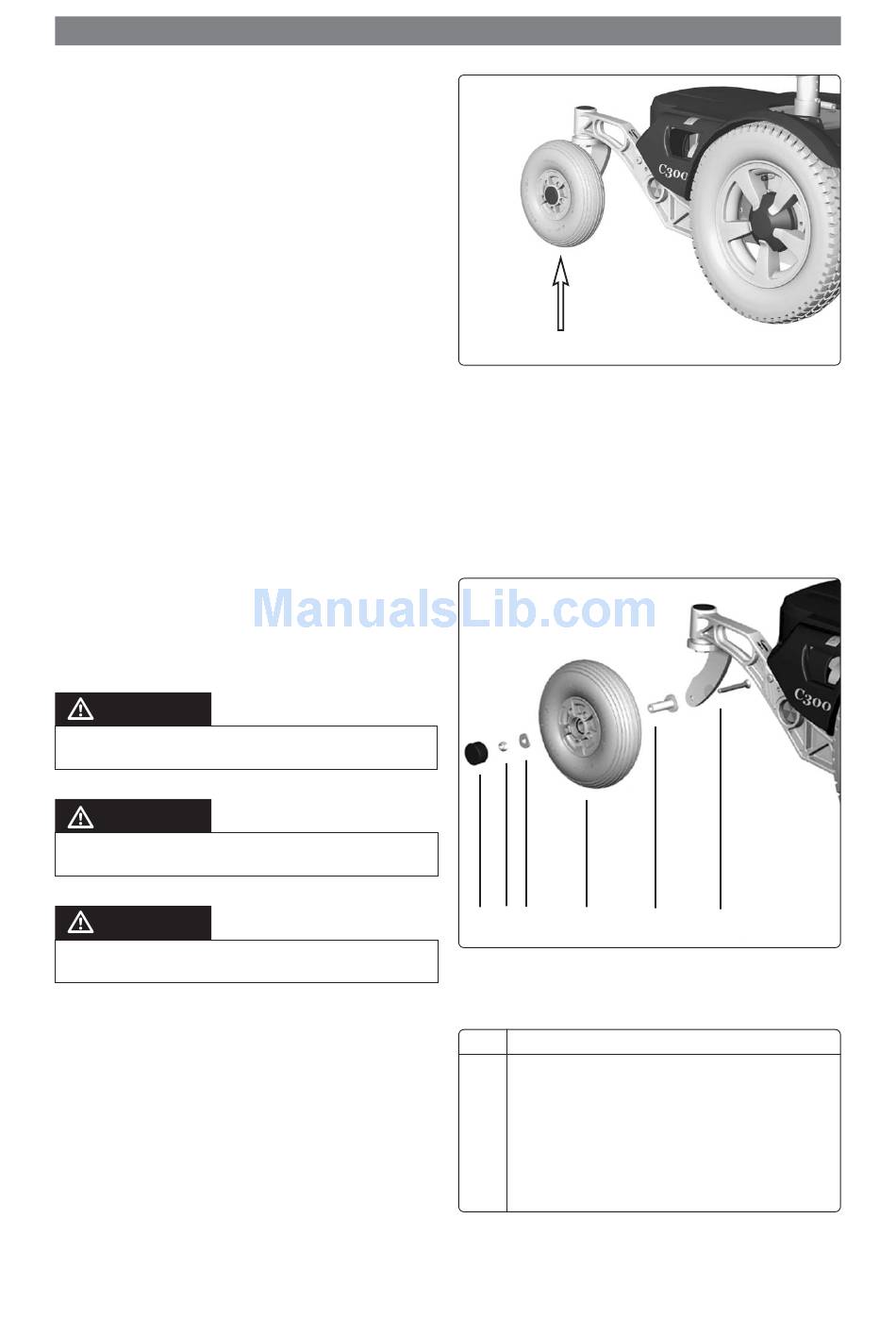

Rear Wheel.
1 2 3 4
Fitting of rim.
Pos.
1 Hubcap
2 Locking nut, ISO 7040 M6 8 Fe/Zn 5 Cl
3 Washer, ISO 2768-c, 8,5x23x3
4 Rear Wheel
5 Axel, ISO 2768-m Ø15
6 Bolt, ISO 10642, M8x70, 10.9 Fe/Zn 5 C1
13
Rear Wheels
5 6
Description
