Summary of Contents for Wireless Pacific X10DR

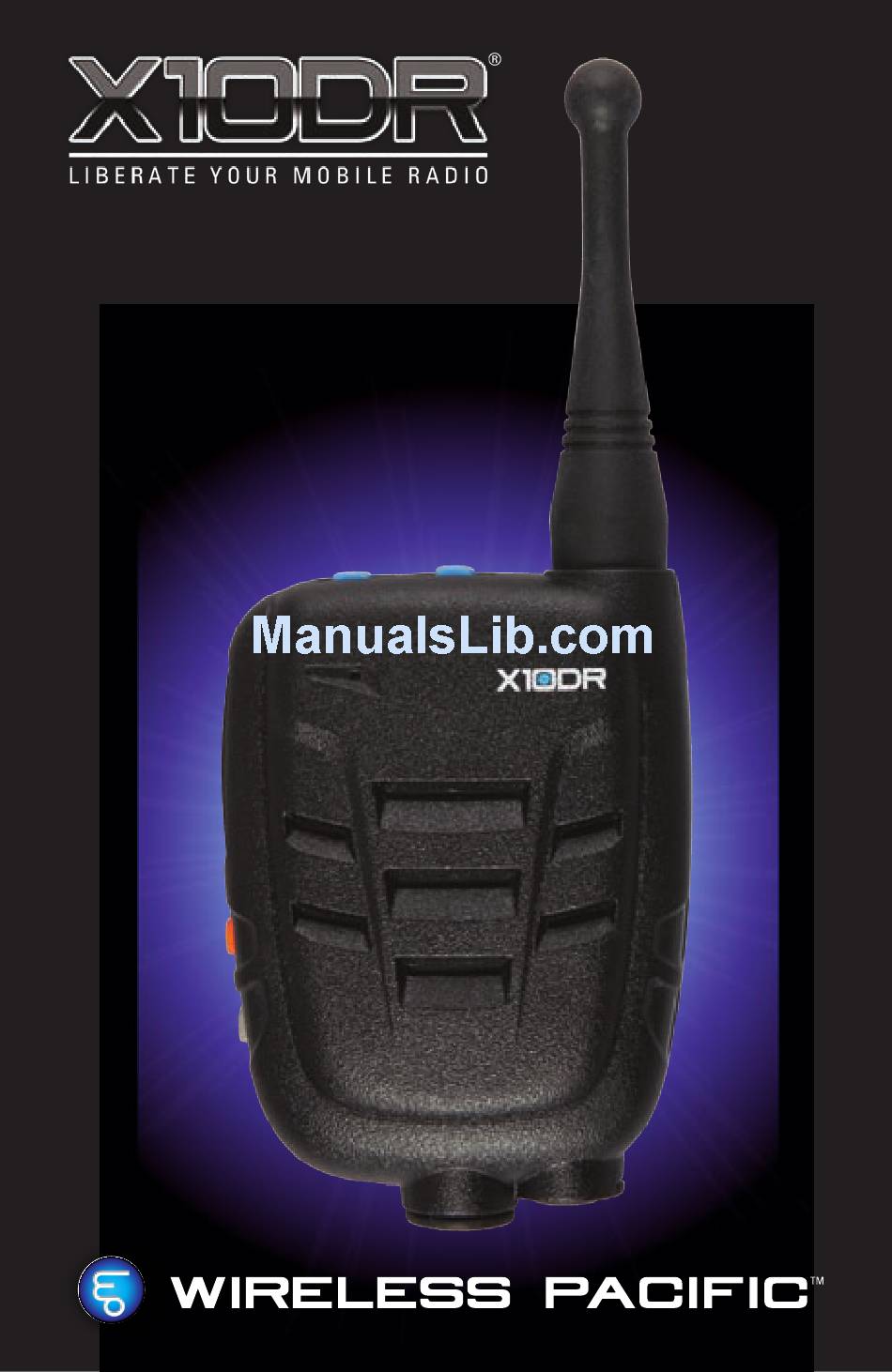

  • Page 1 User Manual...
  • Page 2 X10DR ® This product is designed to radiate low levels of radio energy in accordance with global government approved regula- tory standards. It features Adaptive Power Output. APO automatically adjusts the RF power output in accordance with signal required. This features limits and reduces extraneous radiated radio energy.
  • Page 3: Table Of Contents

    Table of Contents Parts & Functions ��������������������������������������������������� 4 Wearing the X10DR Secure Mic ��������������������������� 5 Operation Description ������������������������������������������ 6 Basic Operation ���������������������������������������������������� 8 • Power On & Off, Volume Control ....8 • Transmitting/Receiving, Emergency ....8 • Talk permit tone, Charging confirmation ..9 •...
  • Page 4: Parts & Functions

    X10DR ® Nomenclature = Secure Microphone = X-Ponder Mobile Charger X10DR_ _-X_1 Product Name = Standard Model = Advanced 128 Bit Model Parts and functions Charging contacts Secure Antenna Wireless Microphone Status light Microphone PTT: Press-To-Talk Loudspeaker Manual Antenna Off/On...
  • Page 5: Wearing The X10Dr Secure Mic

    Different types of carry clips are available including: Standard clip (default) Replacement part No: XSMC This is the traditional type allows the X10DR Secure Wireless Mi- crophone to be clipped to work vests, clothing, epaulettes, etc. For maximum performance 360º around your vehicle it is recom- mended that it be worn in a location that allows the antenna to protrude above you body.
  • Page 6: Operation Description

    X10DR cuts the cord and for the first time puts the mi- crophone and radio system access into the palm of the users hand when away from the vehicle, delivering true mobility without system compromise.
  • Page 7 How it works...
  • Page 8: Basic Operation

    Out of Range Indication X10DR provides the user with audible feedback should the user move out of range from their vehicle. Note: if you walk out of range the blue status LED will flash. If you then push the PTT an alert tone will sound to let you know your call is not getting though.
  • Page 9: Talk Permit Tone, Charging Confirmation

    If, the channel is busy, no channel grant or you are out of range, the user will hear the X10DR talk permit tones followed by the radio BUSY or Out of Range tone. (can be disabled by field pro-...
  • Page 10: Multiple Unit Operation

    >50cm (20”) apart to minimize the op- portunity for cross unit interference. Attention needs to be made when locating antennas so that each X10DR provide similar cov- erage patterns to ensure balanced unit to unit communications.
  • Page 11: Headset, Covert Operation

    N.B. See page 36 for safety warning regarding use of headsets. Covert Operation The small size of the X10DR unit may allow for its selective use in covert applications. The remote monitor PTT function means someone else can enable “listening” without the covert opera- tive having to touch anything.
  • Page 12: Technical Notes

    The microphone’s blue status light will indicate charging mode. Simply place into pocket. The X10DR will beep to show correct placement. NB: do not allow debris to fill the pocket as it may prevent the microphone from...
  • Page 13: Replacing The Battery Pack

    Replacing the battery pack When you notice the X10DR sounding a small chirp, it indicates the battery is nearly flat and should be re- charged. The unit will self power down after 30 minutes when voltage drops to that level. When you notice this occurring far more often than usual, it may mean it is time for the battery to be replaced.
  • Page 14: Re-Connection

    X10DR ® Re-connection Each X10DR Secure Wireless Microphone is uniquely connected to a specific X-Ponder mobile charger. This ensures that all communications between the two units are secure and cannot be compromised or interfered with by a third party. In the event of a Secure Wireless...
  • Page 15: Antennas

    Antennas As compared to the basic internal 1/4 wave stub an- tenna, the XMMA magnetic mount antenna provides enhanced coverage when placed on an unobstructed area of a vehicle’s roof and should be connected via its low loss coax cable to the RP-SMA-F output on the mobile charger.
  • Page 16: Typical Wiring Diagram

    X10DR ®...
  • Page 17: Installation & Connections

    Installation & Connections 1� Switched B+: Used to automatically turn on/off Se- cure Wireless Microphone if connected to host radio switched B+ output, if not, the user should supply man- ual on/off switch. Note: internal speaker microphone battery will still charge when the unit is turned off. 2�...
  • Page 18: Alternate Configurations

    X10DR ® Alternatively, it could be driven by the radio’s un- squelch command that factors in reception of required correct CTCSS tones, etc. An internal dip switch caters for active low or high inputs. 9� Ground: DC /Digital ground connection.
  • Page 19 Mobile Charger PCB layout Installation dip switch configuration: - For N/C emergency trigger: Sw1 On Sw2 Off (default ) - For N/O emergency trigger: Sw1 OFF Sw2 ON - For active low radio COR Sw3 OFF (default) - For active high radio COR Sw3 ON - For Vox enable Sw4 ON(default)
  • Page 20 14. After this the X10DR units are ready to be connected to the interface box. Next, talk on the 1st X10DR and listen to the sound coming from the 2nd X10DR. Then talk on the 2nd X10DR and compare sound coming from the 1st X10DR.
  • Page 21 XFB-MR, first connect the X10DR directly to the host radio and carefully adjust VR1 & VR2 trimpots as described on page 14. Now the X10DR can be connected to the XFB-LW. Next, talk on the X10DR and listen on another radio to the transmit and receive audio coming from the host radio.
  • Page 22 ALIGNMENT: First preset the XFB-TA DIP switches (see Pg 26). Next, connect each X10DR, one at a time, directly to the host radio and adjust carefully VR1 & VR2 trimpots as described on page 14. After this the X10DRs are ready to be connected to the XFB-TA.
  • Page 23 Connection to the vehicle’s public address system is via a XMC-GEN cable connected to the RADIO 2 port. The installer should connect the PA enable to Pin 6 of the X10DR interface and the PA mic input should connect to Pin 2.
  • Page 24 *Emergency function triggered by holding buttons for 1 second. XFB-TA DIP SWITCH SETTINGS 1 UP X10DR PTT triggers PTT on Radio 1 & Radio 2. 1 DN X10DR PTT triggers PTT on Radio 1 only. 2 UP X10DR orange button triggers emerg. function* (selectable by options below).
  • Page 25 *Emergency function triggered by holding buttons for 1 second. XFB-MR DIP SWITCH SETTINGS 1 UP X10DR PTT triggers PTT on Radio 1 & Radio 2. 1 DN X10DR PTT triggers PTT on Radio 1 only. 2 UP X10DR orange button triggers emerg. function* (selectable by options below).
  • Page 26 X10DR ® WPEB/TL WPEH/TL WPLWH-X10 WPiTRQ-X10 WPTEP/TL X10DRDC Desktop Charger WPSHC-NEX WPSHD WPSHC-HIR WPWLP-HIR XMC-* Series XIB-CK...
  • Page 27 Audio & General Accessories The following antenna accessories are available from your X10DR Secure Wireless Microphone supplier: X10DRDC-* - Desktop 3-4 hour charger includes AC/DC plug pack for X10DR Secure Microphone. *specify AC plug: US(2P), UK, EU(2P), AU. WPLWH-X10 - Lightweight headset, noise cancelling type with in-line PTT &...
  • Page 28: Replacement Parts & Accessories

    X10DR ® Replacement Parts & Installation Accessories Includes labels magnet & screw Includes labels Velcro hook (sow on) magnet & screw XSMC-RK XVMC-RK Standard Mic Clip Velcro® Mic Clip Retrofit kit Retrofit kit XRBC Belt Clip Replacement part Includes labels &...
  • Page 29 XSMC-RF - Spring clip back cover retrofit kit. XVMC-RF - Velcro mount back cover retrofit kit. XRMC-RF - Removable clip back cover retrofit kit. XRBC - Spare removable belt clip for XRMC. XSMA - Antenna for Secure Mic or XMMA. XMCA - Internal antenna for X-Ponder charger.
  • Page 30: Approvals, Warranty & Warnings

    X10DR ® Type Acceptance RADIO AND TELEVISION INTERFERENCE The equipment described in this manual generates, uses, and radiates radio- frequency energy. If it is not installed and used correctly—it may cause inter- ference with radio and television reception. CE DECLARATION...
  • Page 31 If an X10DR has been submerged in water, punctured, or subjected to a severe fall, do not use it until you take it to an WCL Authorized Service Provider.
  • Page 32: Important Safety And Handling

    X10DR off when staff or posted signs instruct you to do so. vii/Blasting Areas and Posted Facilities: To avoid interfering with blasting opera- tions, turn off the X10DR when in a “blasting area” or in areas posted “Turn off two-way radio.” Obey all signs and instructions.
  • Page 33 Potentially Explosive Atmospheres: Turn off X10DR when in any area with a potentially explosive atmosphere. Do not charge X10DR, and obey all signs and instructions. Sparks in such areas could cause an explosion or fire, resulting in serious injury or even death.
  • Page 34 États-Unis, le Canada, l’Union europée- nne et le Japon, les émetteurs sans fil et les circuits électriques dans le X10DR peut provoquer des interférences avec d’autres équipements électroniques.
  • Page 35 Charging your X10DR: To charge X10DR, use only the WCL mobile or desktop charger. When you use the WCL desktop charger to charge X10DR, make sure that the power adapter is fully assembled before you plug it into a power outlet. Then insert the WCL AC/DC plug pack firmly into the power outlet.
  • Page 36 Air Bag Equipped Vehicles: An air bag inflates with great force. Do not store X10DR or any of its accessories in the area over the air bag or in the air bag deployment area. Carrying and handling X10DR: X10DR contains sensitive components.
  • Page 37: Specifications

    X10DR ® Specifications Subject to change or improvement without notice The equipment has been designed to meet the following global specifications: Dimensions: 88x28x63mm 80x80x60 (spk mic) (chgr) 3.46x1.1x2.48” (spk mic) 3.15x3.15x2.36”(chgr) Weight: 149 grams 125 grams (spk mic) (chgr) Frequency: 2.40-2.48GHz FH Spread Spectrum...
  • Page 38 X10DR ®...
  • Page 39 *NOTE: X10DR is designed to best perform when worn with the antenna protuding above your shoulder. Range is always dependent on the local terrain and communications environment. For longer distances an external antenna should always be fitted to the vehicle.
  • Page 40 X10DR ® All rights reserved Wireless Corporation Limited ©2014 Wireless Pacific, X10DR and their logos are trademarks or registered trademarks of Wireless Corporation Limited Manual revision 12...
