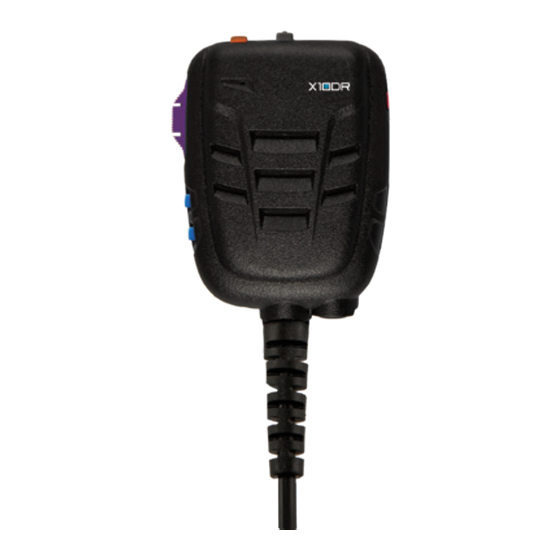

Wireless Pacific X10DR User Manual

Power On/Off
Control
Emergency
Status Light
Microphone
PTT
Loudspeaker
Volume Up
Volume Down
Mounting bracket XDIA

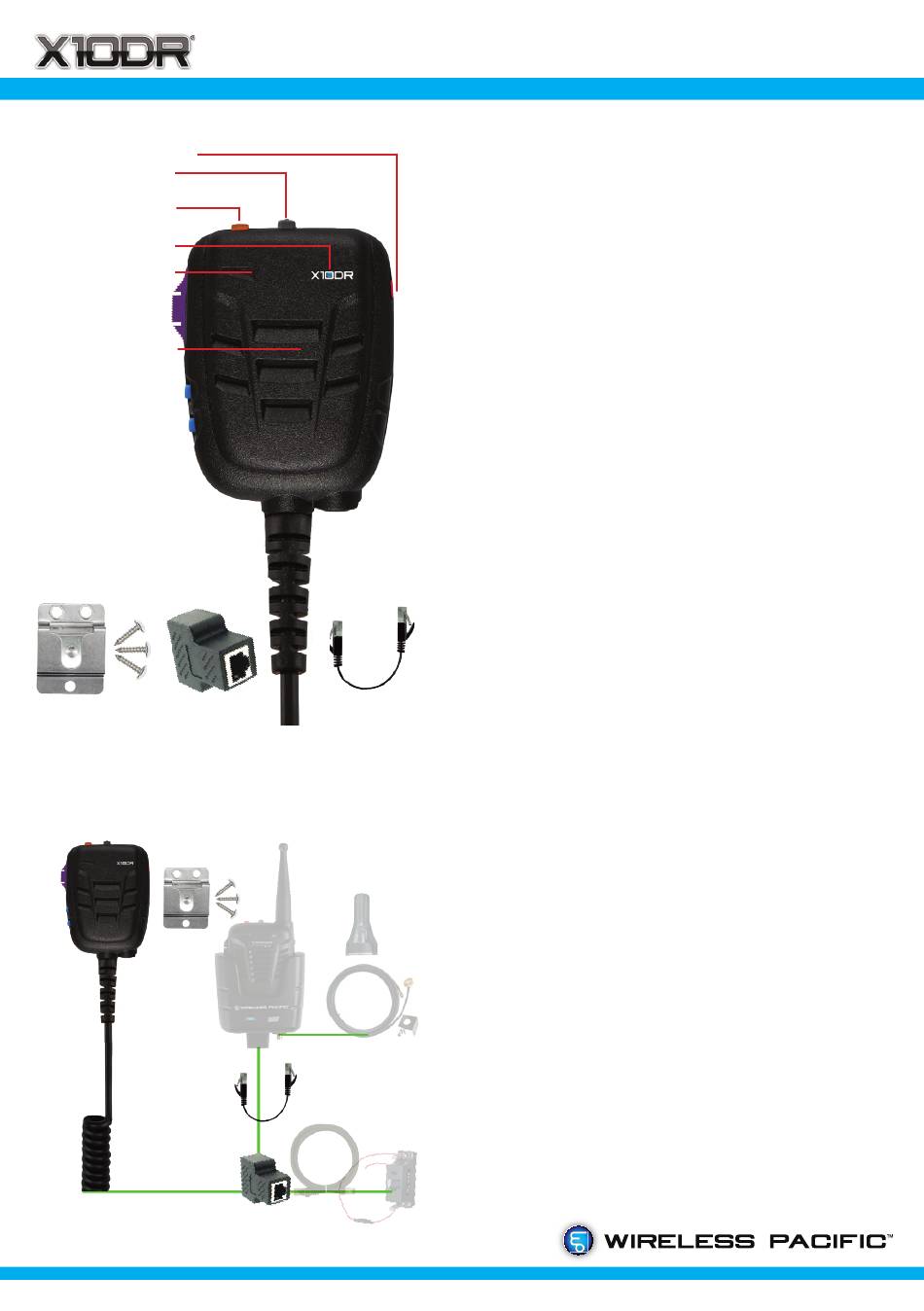

Basic installation
XIC-0.15 0.15m
interface cable
XDIA
adaptor
Power Off/On: Hold for about 2
seconds to turn on or off. The Power
Mic will sound escalating or de-
escalating tones to advise status.
The device does a self check and
the status light then glows. (see
Control)
Emergency: Pressing the Orange
emergency button triggers the
host radio's emergency input
and causes the status light to
glow Red. Additionally, it will glow
Red while any of the connected
X10DR Handset users presses their
Emergency button.
Status light: Glows Green when
set to transmit to X10DR handsets
or Blue when transmitting over the
XIC-0.15
host mobile radio (see Control).
Changes to Red when Emergency
is being activated.
Microphone: Talk in a normal
strength voice about 1 to 3cm
(<1") from the microphone port.
PTT: Press to talk, release to listen.
Default assignment is to talk to
wireless X10DR handsets.
Volume Up/Down: Adjusts the
speaker audio louder/softer and
sounds a beep when pressed.
Control: Can be configured*:
*See over for re-configuration instructions
XTBM Talk Back Mic User Guide
(see Control)
