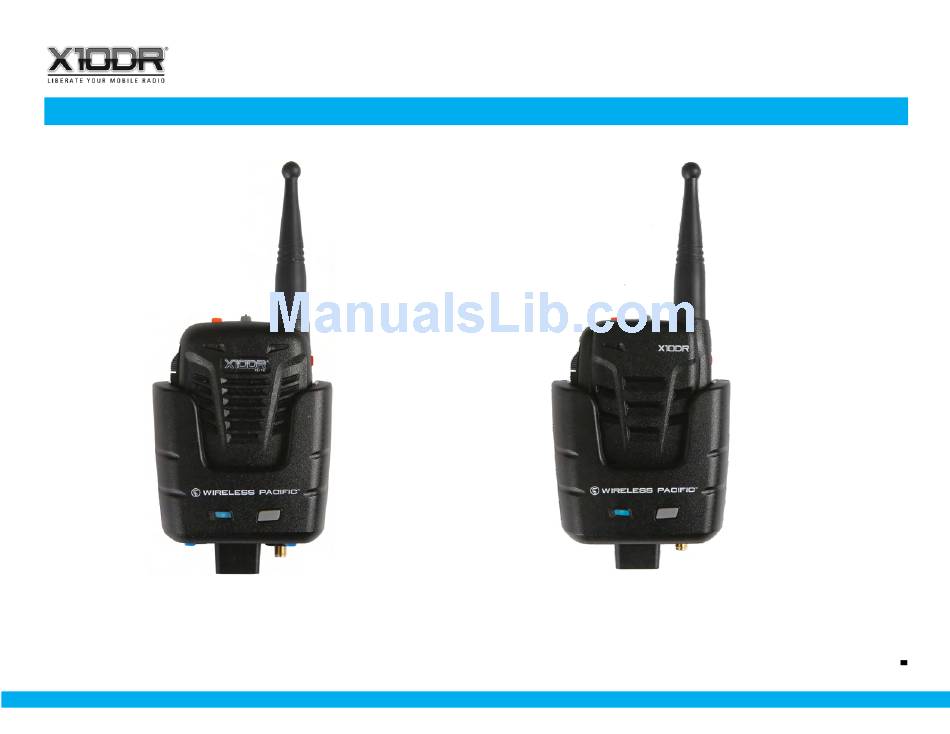

- Page 1 Secure Wireless Microphone ELITE Programming Parameter Guide rev:1 WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 2 Exit Press to exit program. Load File Press to load a previously saved programming parameters Restart (important) to device from its saved PC location. Press to restart programmed device before removing programming cable WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 3 Handset Parameters Top 2 Top 1 Status Microphone light Right 1 Left 1 Left 2 ELITE WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 4 Sets the interval that the low battery alert tones are sounded in the handset. with XHFO handsfree option. Default - OFF Default 5 minutes Minimum volume is O WIRELESS PACIFIC Allows user to turn the speaker audio off instead of level 1. Default - OFF ...WHEN IT MATTERS...
- Page 5 Sets the value of the “Fixed Alert Tone”when enabled that a user will hear from their Remote PTT Gain Boost handset. Default 5 Increases sensitivity of internal microphone when remote/handlebar PTT is pressed. Default 3 WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 6 Causes an audible emergency warble tone to be transmitted over the host mobile radio channel when emergency is activated. Default Off Emergency repeat cycles Sets the number of “Live Mic”, Tx and Rx cycles when Advanced Emergency is triggered. Default - 1 WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 7 Sets Hirose pin 2 to be either BAT+ (~3.8VDC) to power external accessories or bridged output speaker audio when pin 2 is set for speaker negative. Default - Speaker VE- Long Press Duration Sets time button must be pressed to detect a Long Press. Default - 1000mSec WIRELESS PACIFIC ...WHEN IT MATTERS...
-
Page 8: Gateway Parameters
Gateway Parameters ELITE Status light Function Button - Manual Off/On - Master Reset - Find Me WIRELESS PACIFIC ...WHEN IT MATTERS... - Page 9 Multi Operational Mics - Elite Models Only Sets the gateway’s audio detect sensitivity for VOX derived COR. Default - 70 Allows two or three Elite Mics to be simultaneously operational through the one Elite gateway unit. Default - ON WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 10 Defines the length of time an input must be activated before the function is triggered or alternatively how long an output is activated when the assigned function has been triggered. A value of zero means an input triggers instantly. WIRELESS PACIFIC ...WHEN IT MATTERS...
