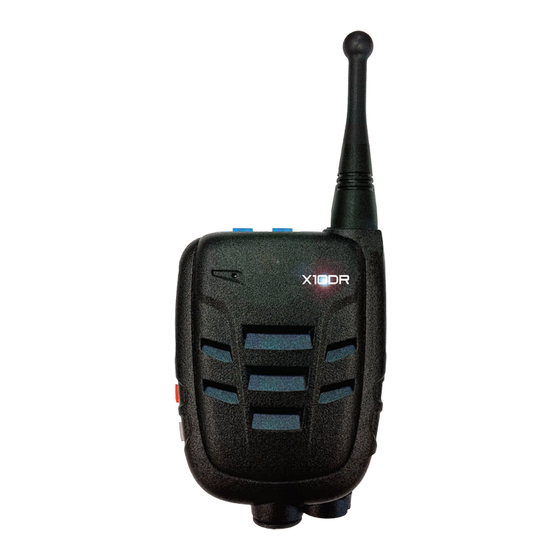

Summary of Contents for Wireless Pacific X10DR

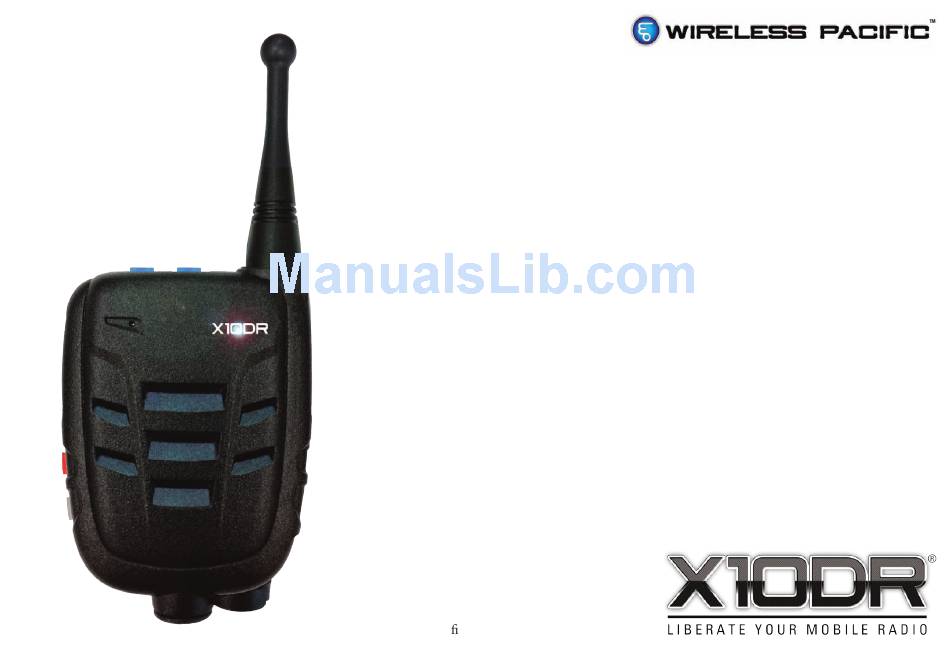

  • Page 1 Installation Set-up Interface cables Revision 18 Company Con dential Proprietary...
  • Page 2 DC voltages or grounds applied to them otherwise the device may be damaged or may cause incorrect operation. Pin 1. Switched B+ In: Used to automatically turn on/off X10DR by sensing the host radio’s status. Normally, this pin connects to a host radio’s switched B+ output, if available (no current required), if not, the installer should supply a manual on/off switch for user activa-...
  • Page 3 When a headset is connected to a secure wireless microphone’s Hirose® audio port the microphone sensitivity is normal. However, if a headset is NOT attached to the Hirose audio port, then grounding pin 13 causes the X10DR to transmit audio with sub- stantially increased mic sensivity.
  • Page 4 Internal Jumpering (Original models) der “blob jumpers” are provided to allow compatibility with different mobile radio types. SMD type hand soldering.) ternal PCB. Take extreme care when handling the PCB to prevent damage by electrostatic discharge (ESD) or to internal wiring. Re-assemble carefully making sure to not damage wiring.
  • Page 5 Internal dip switch setting ( Post Apr 2014) These dip switch settings are provided to allow compatibility with different mobile radio types. ternal PCB. Take extreme care when handling the PCB to prevent damage by electrostatic discharge (ESD) or to internal wiring. Re-assemble carefully making sure to not damage wiring.
  • Page 6 PTT, COR (channel busy), emergency trigger and audio level settings to be accessible on the radios rear interface connector. Incorrect radio settings may cause distortion or noisy audio, the unit to not function or may damage either the X10DR or host radio Adjusting Levels - VERY IMPORTANT Installation of the X10DR requires setting of audio levels between the X10DR and the host radio.
  • Page 7 Mobile charger DB15 connector Typical wiring diagram (New Generic cable color scheme shown) DB15 connector Radio User supplied manual off/on connector (if desired/required) connects to D shell Shield Switched B+ sense from radio or manual off/on switch Ext Mic audio to radio - default* 80mV) Mic Lo to radio Received audio input from radio - default >400mV)** Power ( nominal +12V)
  • Page 8 XMC-GEN Interface cable - Original generic cable version. Note: different wiring colour scheme. : for any mobile 1A FB fuse Battery DB15 F Drain connects to shell Fuseholder NOT supplied Switched B+ from radio Ext Mic Hi BLK-WH Mic Lo to radio Received audio from radio BRN-WH Ext PTT to radio...
  • Page 9 XMC-GEN Interface cable - Current version for any mobile 1A FB fuse Battery RED 22AWG with fuseholder DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi Mic Lo to radio Received audio from radio DRK GRN Ext PTT to radio Emergency out to radio COR/ Audio unmute from radio...
  • Page 10 XMC-XTL Interface cable : for Motorola APX/XTL series 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi Mic Lo to radio Received audio from radio Ext PTT to radio Emergency out to radio (N/C) Emergency operation on COR/ Channel activity from radio...
  • Page 11 XMC-MCS Interface cable 1A FB fuse Battery RED 22AWG with fuseholder DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi DB25 -M Connector Mic Lo to radio Received audio from radio Notes: Ext PTT to radio Radio programming Emergency out to radio Program Pin 21 for PTT...
  • Page 12 16 pin connector on a wide variety of models.You should check the 150cm radio programming and or jumpering to ensure correct operation of the X10DR unit. ***Pin 8 : may be programmable for WG*15C +ADB COR depending on particular model.
  • Page 13 X10DR user manual. 1A FB fuse **PM1500 does not provide a COR output. Ext PTT to radio so default operation of X10DR will be using Emergency out to radio Rx voice detect. (may cause some small voice clipping) COR/ Audio unmute from radio/TOR...
  • Page 14 XMC-M26T Interface cable : for Motorola Tetra MTM5400 series ( If you use XMC-M26 cable, you must move Mic Hi and Mic Lo 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Drain/shield Switched B+ from radio Ext Mic Hi Mic Lo to radio Received audio from radio...
  • Page 15 XMC-M26 Interface cable : for Motorola Trbo XPR and DM3600 etc series 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi Mic Lo to radio Received audio from radio Ext PTT to radio Emergency out to radio COR/ Audio unmute from radio...
  • Page 16 XPR/DM3600 Programming info Company Con dential Proprietary...
  • Page 17 XMC-K25 Interface cable 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell DB25 -M Connector Switched B+ from radio Ext Mic Hi 8.2k Notes: Mic Lo to radio Radio pins 4, 8, & 24 need Received audio from radio programming on NX700 models and some other...
  • Page 18 NX700/800 Programming info Company Con dential Proprietary...
  • Page 19 XMC-K15 Interface cable : for Kenwood 15 Pin radios/ KCT-19 cable 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell SHIELD/DRAIN Switched B+ from radio Ext Mic Hi Mic Lo to radio Program Radio FNCs tied to Molex Received audio from radio pins Pins 8: PTT...
  • Page 20 150cm Move chip jumber R797 to R799 TK8360 Requires VOX to be disabled on X10DR cradle : SJ4 out. WG*15C +ADB A short burst of noise will sound some- times when pressing PTT. This is because the Rx audio from the TK radio is not...
  • Page 21 Additionally, you must move two wires in connector CN3 of Kenwood’s KCT-39 cable. (see insert) Note: X10DR must be set for 200mV mic audio out (pin2) - may require use of XPK programmer. Note: TK7160 is only capable of providing carrier squelched Rx audio which means if others are sharing the RED 22AWG with fuseholder channel on di erent CTCSS codes will be heard unless VOX is disabled in X-ponder unit (see page 4).
  • Page 22 Plug 3.5 plug from XMC into one 3.5 jack Plug radio external spk into other 3.5 jack. WG*15C +ADB Set Radio volume control for normal listening desired listening level from X10DR Spk Mic. BLK/WH unstripped unstripped Y adaptor sourcing: http://www.amazon.com/Headphone-Splitter-...
  • Page 23 XMC-T15 Interface cable : for Tait TM/7000/8000/9000 Series 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Program Radio connector Ext Mic Hi 12- GPIO1 PTT in Mic Lo to radio 10- GPIO Busy out Received audio from radio 5 - GPIO Emerg in...
  • Page 24 TM9000 Programming info Company Con dential Proprietary...

  • Page 25: D-Sub Connector

    XMC-i15 Interface cable : for Icom OPC-1939 adaptor cable 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Program Radio connector Ext Mic Hi 4 - I/O COR out Mic Lo to radio 7 - AF Audio out Received audio from radio 11- I/O Emerg In...
  • Page 26 XMC-i25 Interface cable : for Icom IC-F5061/9511 etc 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi Program Radio connector Mic Lo to radio pin 15: Emergency Input Received audio from radio if available.
  • Page 27 XMC-HXG Interface cable : for Harris XG100 High tier mobiles 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi Mic Lo to radio Received audio from radio Ext PTT to radio DRK GRN 18 (Needs program for PTT) Emergency out to radio...
  • Page 28 XMC-V25 Interface cable : for Vertex VX5500 etc High tier mobiles 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi Mic Lo to radio Received audio from radio Ext PTT to radio Emergency out to radio COR/ Audio unmute from radio/TOR...
  • Page 29 XMC-V15 Interface cable : for Vertex 15 pin lower tier mobiles 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi Mic Lo to radio Received audio from radio Ext PTT to radio Emergency out to radio COR/ Audio unmute from radio/TOR...
  • Page 30 XMC-C26 Interface cable : for Cassidian TMR880/i mobiles DB15 F Drain connects to shell *programmable Switched B+ from radio radio pins Ext Mic Hi 1:No action 5V 2/:Emerg In Mic Lo to radio 3/Rx Activity Received audio from radio 4/Call incoming Ext PTT to radio Emergency out to radio COR/ Audio unmute from radio/TOR...
  • Page 31 XMC-SDM Interface cable: for Simoco DMR mobile DB15 Rev 3 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Radio Programming: Ext Mic Hi to radio Pin 3 Sw B+ Pin 5 Call knockdown* Mic Lo to radio Pin 6 PTT Received audio from radio...
  • Page 32 XMC-SRM Interface cable for Simoco SRM 9000 series mobiles (adds X10DR Interface cable to an existing SRM power cable) DB15 F Drain connects to shell Drain connects to shell Switched B+ from radio Audio out to radio Ext Mic Hi...
  • Page 33 SRM9000 Programming info Company Con dential Proprietary...
  • Page 34 XMC-SRG Interface cable for Sepura SRG TETRA series mobiles (add X10DR to an existing SRG power cable) DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi DB15-HD-M BLK-WH Mic Lo to radio D-SUB 6,8 &SH BRN*...
  • Page 35 SRG3900 Programming info Company Con dential Proprietary...
  • Page 36 XMC-ORI Interface cable - Harris orion Draft 1A FB fuse Battery RED 22AWG with fuseholder DB15 F or equivalent or other connectors Drain connects to shell i.e. whatever is accessible/practical. Switched B+ from radio Ext Mic Hi Mic Lo to radio Received audio from radio Ext PTT to radio 21 ( program for Ext PTT?)
  • Page 37 XMC-H26 Interface cable : for Hytera MD68x Tetra & 78x DMR mobiles V1 - 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi *programmable Mic Lo to radio radio pins Received audio from radio 16: PTT : Active Lo...
  • Page 38 XMC-T26 Interface cable : for Teltronic MDT400 mobiles (Draft) RED 22AWG with fuseholder 1A FB fuse Battery DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi Mic Lo to radio *Requires pressing (phonebook) + (9) + (7) then setting audio acces- Received audio from radio sory to Handsfree kit **Requires programming input 2...
  • Page 39 XMC-G25 Interface cable 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell DB25 -Female Switched B+ from radio Connector Ext Mic Hi Mic Lo to radio Notes: Received audio from radio * Radio pin 11 need pro- gramming for Emergency Ext PTT to radio input where available...
  • Page 40 XMC-R15 Interface cable : for RELM BENDIX KING GMH/DMH mobiles 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Switched B+ from radio Program Radio connector Ext Mic Hi ? emergency input Mic Lo to radio Received audio from radio Ext PTT to radio Emergency out to radio...
  • Page 41 XMC-R25 Interface cable 1A FB fuse Battery RED 22AWG with fuseholder DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi 6.8k DB25 -M Connector Mic Lo to radio Received audio from radio Notes: Ext PTT to radio Programradio Pin 23 for “cor”.
  • Page 42 XMC SERIES CABLES - ALTERNATE WIRING COLORS DB15 F Drain connects to shell Switched B+ from radio Ext Mic Hi BLK-WH Mic Lo to radio BRN* Received audio from radio BRN-WH** Ext PTT to radio RED-WH CURRENT Emergency out to radio COR/ Audio unmute from radio DC/ Digital Ground Remote/ footswitch/Handle bar PTT...
  • Page 43 Mic Hi and Mic Lo and Spk Hi and Spk Lo to the correct Hirose pins as per the fol- lowing wiring charts. CAUTION: To ensure maximum range the bike rider should attach the X10DR to their shoulder area and then make sure cable lengths do not interfere with the riders movements on the bike.
  • Page 44 Hirose HR10A-7P-6P Note: some motorcycle helmets have very low level mic audio out and may require you to set the X10DR to high external mic sensitivity. To do this power up to use the XPK programming kit to increase the gain setting for “external microphone standard volume” setting to your required level.

  • Page 45: Troubleshooting

    External Mic input for analog audio, etc. (note do not confuse heatshrinked shield/drain wire with black wire connected to X10DR Pin 1 with the radio’s external mic input to reduce the audio level sent from the X10DR otherwise noise will exist and audio will distort badly.
  • Page 46 trademarks of Wireless Corporation Limited. Rev 18 Company Con dential Proprietary...
