Summary of Contents for Wireless Pacific X10DR Classic

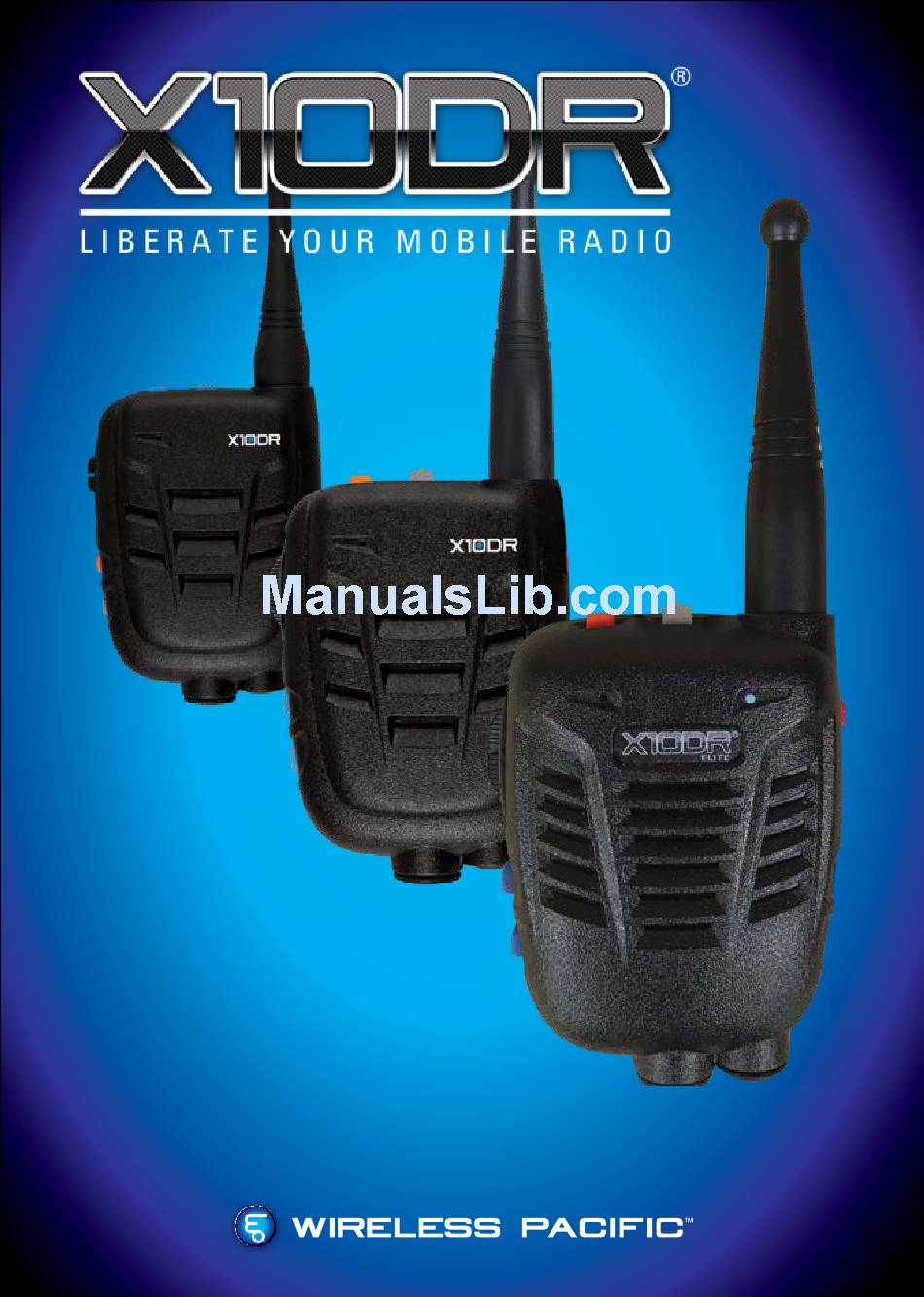

- Page 1 User Manual...
-
Page 2: Radiation Information
Low Radiation Levels This product is designed to radiate low levels of radio energy in accordance with global government approved regulatory standards. It features Adaptive Power Output. APO automatically adjusts the RF power output in accordance with signal required. This features limits and reduces extraneous radiated radio energy. -
Page 3: Table Of Contents
Table of Contents Radiation information ��������������������������������������������������������������������������������������2 Nomenclature ��������������������������������������������������������������������������������������������������3 Parts & Functions ����������������������������������������������������������������������������������������������4 How it works ������������������������������������������������������������������������������������������������������6 Wearing the X10DR Secure Mic ����������������������������������������������������������������������7 Basic Operation �����������������������������������������������������������������������������������������������8 • Power On & Off, Volume Control ..............8 • Transmitting/Receiving, Talkaround, Handsfree ..........8 • Talk permit tone, Emergency, Secondary PTT ..........9 •... -
Page 4: Parts & Functions
Parts and functions Secure Wireless Microphone Elite Antenna Classic Control Emergency Status Microphone light Volume Off/On Down Up Volume Down Emergency DC charging Off/On Earphone Headset jack connector Gateway Charging contacts Mobile Charger Elite model shown Pro model Status light In Car monitor/PA volume control Function... - Page 5 Description Volume up: adjusts speaker audio louder. Volume down: adjusts speaker audio softer - minimum setting. Microphone: talk in a normal strength voice about 1 to 2cm (<1”) from microphone port- always talk in a normal level voice. PTT: press to talk - May be programmed for 3 quick beeps when pressed*. - When out of range the unit will sound a slow beeping tone alert.
-
Page 6: How It Works
Introduction hankyou for choosing the revolutionary X10DR (“ex-ten-der”) Secure Wireless Microphone. This remarkably compact, lightweight personal accessory extends the power of the mobile radio to the palm of your hand, whether in or out of the vehicle. X10DR stands ready to re-define mobile network design by increasing user functionality and mobility whilst dramatically improving the effectiveness of your infrastructure investment. -
Page 7: Wearing The X10Dr Secure Mic
Wearing the X10DR Secure Mic Note: Your X10DR will perform best when worn with the antenna protruding above your shoulder. Different types of carry clips are available. Rare earth magnets lock secure microphones into the gateway mobile charging cradle. XLMC Long mount clip (default) Replacement part No: XLMC-RK This general purpose type features a strong large spring belt clip which allows... -
Page 8: Basic Operation
Up to 500 meters and more Basic Operation Power On & Off The X10DR will power off & on in synch with the host mobile radio or by a manual switch fitted by your installation mechanic. You can manually turn off the gateway mobile charger by pressing the front grey button for 5 seconds and the blue LED will extinguish. -
Page 9: Talk Permit Tone, Emergency, Secondary Ptt
Talkaround Your X10DR can be configured so that up to eight X10DR devices can be connected to the one mobile radio. Use Talkaround to talk to other users sharing your mobile radio without the audio being transmitted over the radio channel whilst continuing to be able to monitor all communications over the radio system. -
Page 10: Find Me™ Operation
Emergency The emergency button can be used to trigger and reset the emergency function in your suitably equipped mobile radio. It can be configured so that the time you hold the button is the time your mobile radio registers the emergency command. So if your radio requires you to hold the front panel emergency button for 2 secs, then you should hold the Wireless Microphone emergency button for 2 seconds. -
Page 11: Stealth, Remote Monitor, Mic Boost Operation
Stealth Mode For special applications the Secure Mic’s Blue LED on the front of the Secure Mic can be temporarily disabled along with all audible alert tones. This is achieved by holding down the VOLUME UP/DOWN (both) while powering up the unit. To turn the LED back on, simply power down and power back up. -
Page 12: Multiple Unit, Motorcycle, Covert, Headset Operation
Multiple Unit Operation Multiple X10DR Secure Wireless Microphones may be connected to one radio device by use of the optional XJB/XJB-DCI junction box accessory. Operation is identical to single user operation with the added benefit that, each party also hears each other talk when they transmit. This functionality is ideal for police: where two officers are assigned to a patrol van, or ambulance: where 3 paramedics can communicate at a scene as well as with their control room. - Page 13 Motorcycle Operation The X10DR Secure Wireless Microphone is especially suitable for motorcycle use. Models fitted with a 6 pin Hirose industrial connector allow easy connection to a helmet microphone and dual earpiece fit out. Making use of the handlebar PTT input, a bike can be configured so that, when the rider is on the bike and presses the handle bar PTT, their headset microphone audio is sent out over the radio.
-
Page 14: Battery Charging
Battery - Charging The X10DR Secure Wireless Microphone should be charged overnight before initial use. Thereafter it may be left in the charger unit between calls, or may be worn all day and placed back at the end of the work day. -
Page 15: Audio Adjustment, Device Pairing
See the Service Section for use of the field programmer. Typically the X10DR’s default audio levels settings are suitable for a variety of today’s professional mobile radios, when used with the Wireless Pacific model specific XCA series X10DR cable Adaptors. However we would... -
Page 16: Coverage Info
blue LED on both units will glow solid to indicate completion. Repeat procedure if you require other secure mics paired to the one gateway. Up to five mics may be paired to the same gateway but only one can be operational at any one time*. If multiple secure mics are powered on and paired, should the currently operational mic be turned off or go out of range for longer than 30 seconds then the gateway will then try and automatically connect with the next stored powered paired... -
Page 17: Antennas
Vehicle Antennas The X-Ponder gateway output has a reverse polarity SMA female antenna connector designed for connection of a variety of approved Wireless Pacific 2.4GHz external antennas. The XMPA multi-polarity antenna provides improved coverage in multipath - non line of sight - situations. It should be mounted onto an unobstructed area on or above the vehicle’s roof line and should always be connected via the supplied low loss coax cable to the X10DR cradle connector. -
Page 18: Installation & Connections
Installation & Connections Talkaround audio - Remote/Handle bar PTT Ext PTT to radio COR/ Audio unmute from radio Mic Lo Ext Mic Hi Output/Radio On detect Radio Receive audio Emergency output to radio Power nominal +12VDC Shielded RJ45 shield/drain DC Ground 1�... - Page 19 6� COR/audio unmute: Input designed to monitor the receive status of the host mobile radio. Ideally, it is driven by an “audio unmute” switched ground command in the host mobile. i.e. when the radio’s speaker unmutes to pass audio then the COR input should toggle in sync. Alternatively, it could be driven by the radio’s unsquelch command that factors in reception of required correct CTCSS tones, etc.
-
Page 20: Accessories And Parts
Audio & General Accessories WPTEP-TL WPTEH-TL WPEH-TL WPCEH-TL WPBEH-TL WPEB-TL WPiTRQ-X10 WPPTT-X10 WPSHD WPLWH-X10 WPMAD-X10 WPSHC-X10 WPSHC-NEX XIPB WPWLP-X10 WPTEP WPTEH WPEH WPCEH WPBEH WPEB XMCH-C XMCH-O WP3WS-X10... - Page 21 Audio Accessories: WPiTRQ-X10 Advanced ear mic (requires TL earpiece). WPEH-TL Large black “across ear” earpiece for iTRQ. WPTEH-TL Acoustic tube earhook “quick disconnect” for iTRQ. WPTEP-TL Acoustic tube “quick disconnect” for iTRQ. WPEB-TL Black earbud “in ear style” earpiece for iTRQ. WPBEH-TL Black earhook - small earpiece for iTRQ.
- Page 22 Model Options: (replaces/modfies standard item-factory ordered) XSMC Alternate short clip back cover (suits electrical utilities) XVMC Alternate velcro® mount back cover & sew-on patch. XCFC Alternate color spk mic front cover & logo (MOQ 500) XHFO Handsfree operation capability (Elite Models only) Elite Model Accessories: (order options as required) XEX2...
- Page 23 Retrofit X10DR Short mic clip back cover kit. XVMC-RK Retrofit X10DR Velcro® mic clip back cover kit. XSMA2 Spare X10DR Elite & Pro Mic/local gateway antenna. XSMA Spare X10DR Classic Mic antenna. XSMB-C14 Spare X10DR 1450mA battery. ** model specific...
- Page 24 XDTC Desktop Charger Elite & Pro models X6WC 6 Way Charger Elite & Pro models X10DRMC Mobile Charger X10DRDC Elite & Pro models Desktop Charger Classic &1st Gen X10DR...
-
Page 25: Service Support
Service Support While your X10DR has been designed to the highest engineering practices and meticulously manufactured to mission critical standards, like all electronic devices, failures can and will occur. To provide you with a seamless level of support, each X10DR is supported throughout the product’s life by a changeover replacement pool. - Page 26 Replacing the battery pack The process is simple and should only take your radio service supplier less than 5 minutes to replace and WIRELESS PACIFIC XSMB-C14 3.7V Li-Po 1450mAh ® test. Replacement of the battery should be ONLY WARNING Li-Polymer undertaken by a qualified service technician so as to Please re-cycle or dispose of properly.
- Page 27 Field Programmer The XFPK programmer allows you to adjust a number of parameters on both the X10DR Secure mic and gateway. The kit includes a Mic programming cable that plugs between your PC’s USB port and the Secure Mic’s Hirose connector port.
-
Page 28: Regulatory, Warranty
WCL or our nominated local service supplier in shipping containers which are adequate to prevent loss or damage in shipment. WCL will pay the return carriage costs for Wireless Pacific products. -
Page 29: Important Safety And Handling
Important Safety and Handling Information WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to X10DR or other property. Read all safety instructions for any products and accessories before using with X10DR. WCL is not responsible for the operation of, or any damage caused by, third-party accessories or their compliance with safety and regulatory standards. - Page 30 Informations importantes de sécurité et de manutention AVERTISSEMENT: Le non-respect de ces consignes de sécurité peut provoquer un incendie, de choc électrique ou d’autres blessures ou de dommages à X10DR ou d’autres biens. Lisez toutes les in- structions de sécurité pour tous les produits et accessoires avant d’utiliser avec X10DR. CMT n’est pas responsable de l’exploitation, ou tout dommage causé...
-
Page 31: Type Approvals, Specifications
5/ You want to clean the adapter. Cleaning your X10DR: Clean X10DR immediately if it comes into contact with any contaminants that may cause possible malfunctions—for example, ink, dyes, makeup, dirt, food, oils, and lotions. To clean X10DR, unplug all cables and turn off X10DR (press and hold the manual On/Off button). - Page 32 All rights reserved Wireless Corporation Limited ©2017 Wireless Pacific™, X10DR®, Liberate your mobile™ Find Me™ and their logos are trademarks or registered trademarks of Wireless Corporation Limited : Manual revision 1...
