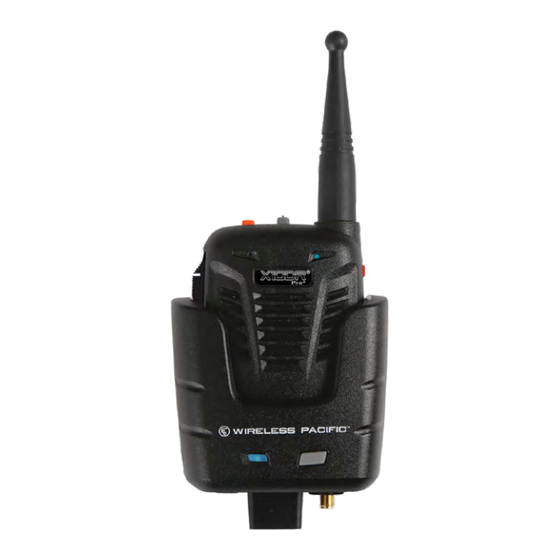

Wireless Pacific X10DR Programming Parameter Manual
Secure wireless microphone
Hide thumbs
Also See for X10DR:
- Installation & setup instructions manual (69 pages) ,
- Installation and setup manual (46 pages) ,
- User manual (40 pages)
Related Manuals for Wireless Pacific X10DR
Summary of Contents for Wireless Pacific X10DR

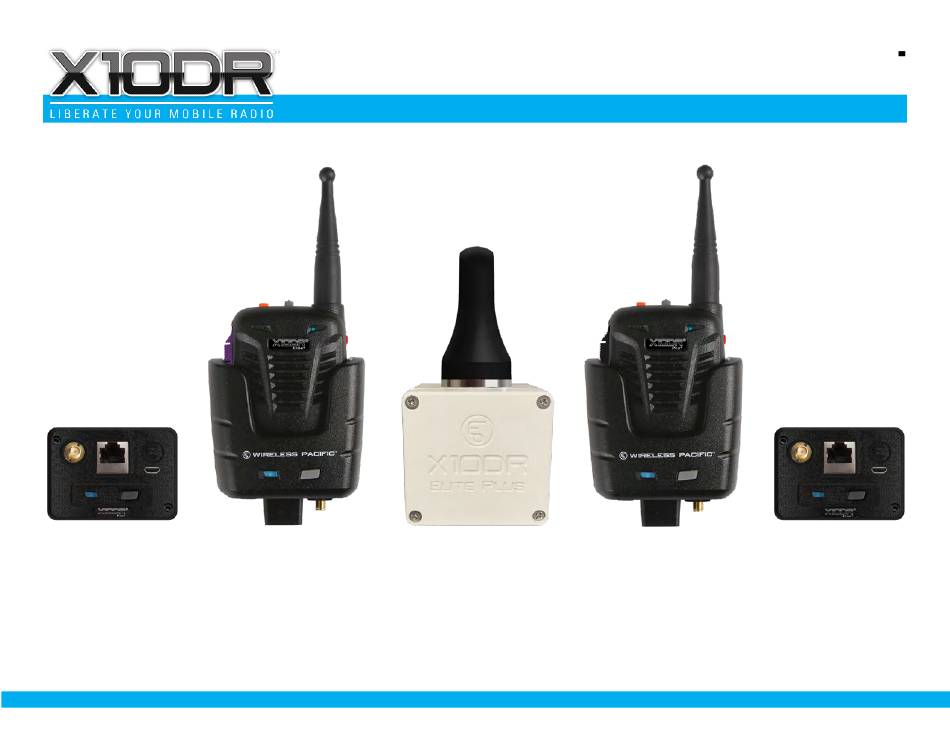

- Page 1 WIRELESS PACIFIC ...WHEN IT MATTERS Secure Wireless Microphone Programming Parameter Guide Rev1.1...
- Page 2 Runs On PC or Mac running Windows 7/10 NOTE: Requires USB 2.1 Port. The programmer will not work with USB 3 - if your PC only has USB3 ports suggest you attach X10DR device via a usb patch block most are 2.1)
- Page 3 Press to lock your desired parameter configuration before undertaking batch fleet programming. This will prevent you errantly changing a parameter unknowingly during reprogramming. Load File Press to load a previously saved programming parameters to device from WIRELESS PACIFIC its saved PC location..WHEN IT MATTERS...
- Page 4 Handset Parameters Top 2 Top 1 Status Microphone light Right 1 Left 1 Left 2 WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 5 Sets the remaining battery voltage that will cause the low battery alert tones to be generated. (for longer Default - Command Relay shift life you may set voltage lower but you may get less warning before device automatically shuts off. Default - 3.5V WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 6 Audio Levels - Handset Note: Use the Gateway Audio Level Adjustment - XGALA software tool can be downloaded at www.x10dr.com for setting audio in and out of gateway to host mobile radio. The following handset adjustments are designed to cater for different audio accessories and/or user applications requiring alternate audio sensitivities to suit different operating conditions.
- Page 7 (assuming mobile sources “Live Mic” from its external mic input). Default - 0 - Applicable when handset is configured for short/long press emergency Transmit Time Sets the time duration that X10DR “Live Mic” handset Tx audio is active when Advanced Emergency activated. Default - 0 Receive Time Sets the time duration that X10DR “Live Mic”...
- Page 8 Sets the function of right side button. Re-assigning requires hardware modifications. Default - short press Search / long press Power off/on Long Press Duration Sets time button must be pressed to detect a Long Press. Default - 2000mSec WIRELESS PACIFIC ...WHEN IT MATTERS...
-
Page 9: Gateway Parameters
Gateway Parameters PRO Series ELITE Series Elite Series- X10W XRTG Elite Plus Status light Function Button - Manual Off/On - Touchless Pairing - Master Reset - Find Me XIVG Gateway WIRELESS PACIFIC ...WHEN IT MATTERS... - Page 10 Monitor Emergency Input Alert Tone Causes Emergency warble alert tone to sound in all cross connected X10DR handsets whenever emergency input is triggered. (Maybe triggered from another gateway or externally supplied ground input).
- Page 11 Defines the length of time an input must be activated before the function is triggered or alternatively how long an output is activated when the assigned function has been triggered. A value of zero means an input triggers instantly. WIRELESS PACIFIC ...WHEN IT MATTERS...
- Page 12 Pro Plus Default settings: Handset - Gateway WIRELESS PACIFIC ...WHEN IT MATTERS...
