Wireless Pacific X10DR Installation & Setup Instructions Manual

Hide thumbs Also See for X10DR:

Advertisement

Quick Links

Download this manual See also: Programming Manual, User Manual
Installation
Set-up
Instructions
Revision 44

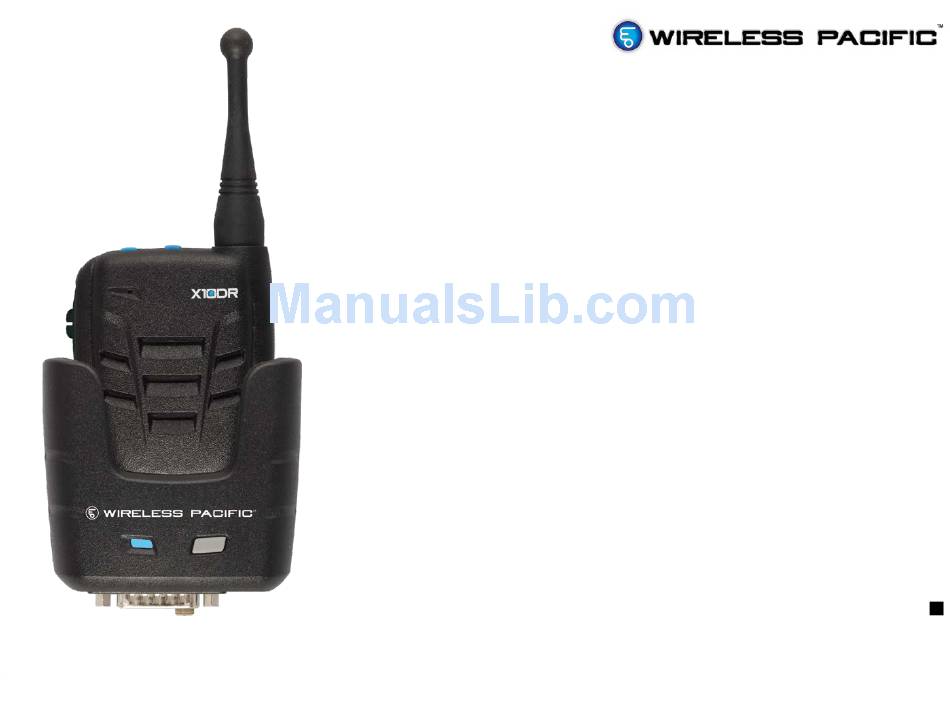

X10DR
®
X10DR
®
Company Confidential Proprietary

Advertisement

loading
Need help?

Need help?

Do you have a question about the X10DR and is the answer not in the manual?

Questions and answers

Related Manuals for Wireless Pacific X10DR

Summary of Contents for Wireless Pacific X10DR

  • Page 1 Installation Set-up Instructions Revision 44 X10DR ® X10DR ® Company Confidential Proprietary...
  • Page 2 Before you start! X10DR has been designed to allow simple connectivity to most radio models from those dating back from the 90’s to the most current digital models from most professional radio manufacturers. Understanding the basic connectivity will allow you to successfully connect to just about any wireless radio device, or to allied wired radio control consoles. The following describes the pin out connectivity of the X10DR mobile charger’s 15 pin DB15 connector.
  • Page 3 On some radio devices a COR output is not available without modifying the host mobile. While this would be desirable, the X10DR features smart VOX circuitry to adapt its operation in these cases where a radio COR is not available. In some mo- biles there is a DC shift on the radio’s speaker output terminal whenever the radio unmutes, which can be used as a COR...
  • Page 4 This option is generally recommended only when the host radio has no internal or external speaker. Removing J3, may cause the re-charge time to increase on a very busy radio channel. X10DR ® Company Confidential Proprietary...
  • Page 5 (Ex factory - Post Apr 2014) Rev 1 From April 2014 the X10DR cradle now features a dip switch array in place of the J3 and solder jumpers. Some alternate interface configurations are available by modifying the internal dip switch settings of the mobile charger unit.
  • Page 6 Radio Programming - VERY IMPORTANT For correct X10DR operation, the host mobile radio on some occasions will require reprogramming (via its associated FPP/ CPS etc) to enable correct functionality. Read carefully this instruction document to get a complete understanding of the interfacing requirements.
  • Page 7 To align the XIB-TA you will need a second radio on the same users with either host radio emergency function or talk channel so that you can talk to and monitor the X10DR system around function, while XFB-TA allows for both.
  • Page 8 The XFB-TA allows up to 3 X10DRs to be connected to a host radio. Normal PTT will transmit over the host radio, and to the other X10DR users. Pressing the or- ange button will transmit in talk around mode ONLY to the other X10DR users (ie...
  • Page 9 X10DR system performance. Set the receive audio volume on the X10DR to level 4 by pressing the volume up button 5 times and then press the volume down button once. Talk on the second radio and adjust trimpot E to set the receive volume in the X10DR.
  • Page 10 A maximum of nine X10DRs can be connected via three XIB-TA devices connected to a XFB-MR function box. Talkaround is not normally available in this configuration. The XFB-MR device dip switches define the user function of the X10DR orange butons. The XIB-TA units should be left with their default settings.
  • Page 11 Received audio from radio BRN-WH Power nominal +12VDC Ext PTT to radio RED-WH Emergency out to radio COR/ Audio unmute from radio DC/ Digital Ground Remote/ footswitch/Handle bar PTT 150cm 24AWG*15C +ADB "J1" FEMALE, 15-CONTACT D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 12 DC/ Digital Ground Remote/ footswitch/Handle bar PTT NB: If not sure use ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB Drain unstripped unstripped WH(new) 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 13 N/C Emergency Ext PTT to radio operation you should RED-WH Emergency out to radio swap SJ1 and SJ2 on X10DR charger cradle COR/ Channel activity from radio unit DC/ Digital Ground Remote/ footswitch/Handle bar PTT NB: If not sure use...
  • Page 14 Power nominal +12VDC with N/C Emergency Ext PTT to radio operation you need to re-configure the Emergency out to radio 28AWG X10DR charger cradle COR/ Channel activity from radio 28AWG unit DC/ Digital Ground 28AWG 22AWG Remote/ footswitch/Handle bar PTT...
  • Page 15 Program Pin 21 for PTT 150cm Program Pin 8 for “car radio mute”. (F4, F3, F2, F9 from main menu) 24AWG*15C +ADB unstripped unstripped DB25 -F Connector 24AWG "J1" 50cm FEMALE, 15-CONTACT D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 16 16 pin connector on a wide variety of models.You should check the radio program- 150cm ming and or jumpering to ensure correct operation of the X10DR unit. ***Pin 8 : may be programmable for COR depending on particular 24AWG*15C +ADB model.
  • Page 17 DC/ Digital Ground Remote/ footswitch/Handle bar PTT NB: If not sure use ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB Drain unstripped unstripped 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 18 NB: If not sure use ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB Drain unstripped unstripped 24AWG Ground * or Purple In-line fuseholder "J1" 50cm o t i ** or Purple /White 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 19 Remote/ footswitch/Handle bar PTT NB: If not sure use ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB Drain unstripped unstripped Ground 24AWG Ground In-line fuseholder "J1" o t i 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 20 XMC-M26 Mototrbo Set-up P 1/4 Conventional & Connect Plus Mototrbo mobiles Accessory  Mototrbo mobiles Accessory  Mototrbo mobiles  Connector Description ‐1/2 Connector Description ‐1/2 Accessory  Connector  View from rear Description ‐2/2 s  X10DR ® Company Confidential Proprietary...
  • Page 21 See Un‐checked items  Now go to General Settings: VOX Sensitivity: Level 2 Make sure you are in “EXPERT” -Set Vox Sensitivity to : Level 2 Hot Mic Source: Rear Accessory mode for the CPS. -Set Hot Mic Source to: Rear Connector Make sure to select the Expert View Mode  for the CPS X10DR ® Company Confidential Proprietary...
  • Page 22 - Set Pin#17 to Ext Mic PTT* -Set RX Audio type to : Filtered Squelch -Active level Low (NOT APPLICABLE FOR CONNECT PLUS) -Set Pin #21 to PL/Talkgroup Detect* -Active level : Low * not applicable to Connect Plus X10DR ® Company Confidential Proprietary...
  • Page 23 Pin #17 select “Generic Input 1” Connect Plus CPS: Generic Input #1 select “External PTT” Pin 17: “Generic Input 1” Connect Plus: In Option Board CPS: (in Accessories) Mototrbo CPS Connect Plus Option Board CPS In “Accessories”:Generic Input 1: External PTT under “Accessories” under “Accessories” Connect Plus: In Option Board CPS: In “General Settings”:Leave Hot Mic Source Front  Accessory X10DR ® Company Confidential Proprietary...
  • Page 24 DC/ Digital Ground Refer Kenwood TK690 service manual. Remote/ footswitch/Handle bar PTT TK-*90 Radio Control Unit PCB 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR DB25 -M Connector X10DR ® Company Confidential Proprietary...
  • Page 25 DC/ Digital Ground Remote/ footswitch/Handle bar PTT NB: If not sure use ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR DB25 -M Connector X10DR ® Company Confidential Proprietary...
  • Page 26 DB24 Pin 4: I/O = Input, Function = Ext PTT (voice) Active = Low, Debounce=Yes DB24 Pin 8: I/O = Input, Function = Emergency Active = Low, Debounce=Yes DB24 Pin 24: I/O = Output, Function = TOR, Active = Low X10DR ® Company Confidential Proprietary...
  • Page 27 With QT/DQT=Yes, With STE=Yes Ext PTT Mic Line = Disconnect, Mi2 = Connect, DI Line =Disconnect , With QT/DQT=Yes, With STE=Yes On Extended Function/Mobile Function window set : DI level = -1 DEO level = +4 X10DR ® Company Confidential Proprietary...
  • Page 28 It is recommended to set the mic sensitivity on the MI2 line to Low (-10dB) when radio firmware release allows. Adjust VR1 trimpot (carefully) on base of Charger cradle so audio from X10DR microhone is the same as when you talk into the radios wired fist mic.
  • Page 29 Remote/ footswitch/Handle bar PTT NB: If not sure use ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB Drain unstripped 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR view from rear (wire insert side) X10DR ® Company Confidential Proprietary...
  • Page 30 In this configuration the setting of the radio’s speaker volume control also effects the loudness of the speaker audio from the X10DR. This configuration requires the TK8360 radio to be modified so the pin 4 of its rear db15 connector is disconnected from “detector output” (remove L707) and is instead jumpered to the pin 1 (spk output) of IC706.
  • Page 31 Additionally, you must move two wires in connector CN3 of Kenwood’s KCT-39 cable. (see insert) Note: X10DR must be set for 200mV mic audio out (pin2) - may require use of XPK programmer. Note: TK7/8160 is only capable of providing carrier squelched Rx audio which means if others are sharing the RED 22AWG with fuseholder channel on different CTCSS codes will be heard unless VOX is disabled in Charger cradle unit (see page 4).
  • Page 32 Plug radio external spk into other 3.5 jack. Set Radio volume control for 24AWG*15C +ADB normal listening level, then adjust VR2 on Charger cradle cradle for desired listening level from X10DR Spk Mic. unstripped unstripped 24AWG Y adaptor sourcing: http://www.amazon.com/ "J1"...
  • Page 33 XMC-RJ2 Interface cable for Kenwood low end radios : using radio’s RJ45 microphone socket Requires use of an external speaker. Radio speaker volume setting effects X10DR speaker loudness. 1A FB fuse Battery RED 22AWG with fuseholder DB15 F 8,7..1 Drain connects to shell...
  • Page 34 Remote/ footswitch/Handle bar PTT T8000 models NB: If not sure use Ignition sense ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB unstripped 24AWG In-line fuseholder "J1" 50cm 1A FB fuse DB15-M FEMALE, 15-CONTACT D-SUB CONNECTOR D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 35 TM9000 Programming info P 1/2 Select Programmable I/O window and select “Digital” then program as follows: Select Programmable I/O window and select “Audio”then program as follows: X10DR ® Company Confidential Proprietary...
  • Page 36 TM9000 Programming info P 2/2 Select PTT set-up window and select “External PTT (1)” then program as follows: X10DR ® Company Confidential Proprietary...
  • Page 37 7 - AF Audio out 11- I/O Emerg In 14 - Ext PTT 150cm 24AWG*15C +ADB unstripped unstripped 24AWG HDB 15P (VGA style) In-line fuseholder "J1" 50cm 1A FB fuse D-SUB CONNECTOR FEMALE, 15-CONTACT D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 38 25cm - Emergency input not available - Auto receive detect (Vox) only operation 22AWG 1,2....8 22AWG 1,2..8 22AWG Un-stripped 22AWG Spk Mk plug Docking station 1A FB fuse numbering scheme socket numbering X10DR scheme ® Company Confidential Proprietary...
  • Page 39 XMC-i25 Interface cable for Icom IC-F9511/9521/ 5061/5062 etc (Note: ALL signals received on the channel will be passed to X10DR) Rev 3 1A FB fuse RED 22AWG with fuseholder Battery DB15 F Drain connects to shell Version 1 Version 2...
  • Page 40 Pin 21: Analog audible remove coffee bean F and fit coffee bean D. 150cm 24AWG*15C +ADB unstripped unstripped Drain 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR DB25 -M D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 41 Remote/ footswitch/Handle bar PTT NB: If not sure use ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR DB44 -M D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 42 Remote/ footswitch/Handle bar PTT NB: If not sure use ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR DB37 -M D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 43 Remote/ footswitch/Handle bar PTT NB: If not sure use ohm-meter to check connector pinout! 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR DB25 -M D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 44 Pin 13 COR/Spk unmute connector pinout! Pin 14 Emerg Input 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" HDB 15P (VGA style) 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 45 PTT Out (+10V= PTT active) connector pinout! to Pin 14 Systems Connector MOSFET P 150cm 24AWG*15C +ADB unstripped unstripped 24AWG * or Purple ** or Purple /White "J1" 50cm FEMALE, 15-CONTACT DB26 -HDM D-SUB CONNECTOR D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 46 MOSFET P Emergency out to radio COR/ Audio unmute from radio DC/ Digital Ground Remote/ footswitch/Handle bar PTT 150cm 24AWG*15C +ADB unstripped unstripped 24AWG "J1" 50cm FEMALE, 15-CONTACT D-SUB CONNECTOR DB26 -HD- Female D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 47 XMC-SRM Interface cable for Simoco SRM 9000 series mobiles (adds X10DR Interface cable to an existing SRM power cable) Rev 4 DB15 F Drain connects to shell Switched B+ from radio 4,5,11,12 Audio out to radio Ext Mic Hi Mic Lo to radio...
  • Page 48 Active = Low, Dbnce = 20 Set DB15 -8 - Output, Function = Valid signal Active = Low 40mVRMS ext input On User Interface select “audio levels” Set Transmit input/External Input = 0 Set Transmit input/External Input (fine) = 0.0 X10DR ® Company Confidential Proprietary...
  • Page 49 SRM9000 Programming info P 2/2 On User Interface choose “Audio” Set Volume/Minimum speech = 18 Set Volume/Maximum speech = 31 Set Volume/Minimum alert = 18 Set Volume/Maximum alert = 31 X10DR ® Company Confidential Proprietary...
  • Page 50 OFF control wire. Remote/ footswitch/Handle bar PTT input Call Clear /knock down (requires XFB-DP) 24AWG 150cm 24AWG*15C +ADB unstripped 24AWG In-line fuseholder "J1" DB15 -M 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 51 Set MF4 - Output, Function = Valid Signal, Active = Low, Debounce = 0 Under Settings / Mobile window select “Audio I/Os” Set External PTT Input = DB15 Audio in pin, Gain = 0dB Set Auxilary Audio Out = DB15 Audio out pin, level = -8dB X10DR ® Company Confidential Proprietary...
  • Page 52 XMC-SRG Interface cable for Sepura SRG TETRA series mobiles (add X10DR to an existing SRG power cable) Rev 1 DB15-HD-M DB15 F D-SUB Drain connects to shell Switched B+ from radio Ext Mic Hi BLK-WH Mic Lo to radio 6,8 &SH...
  • Page 53 SRG3900 Programming info P 1/3 In Radio Manager create template “X10DR” and set audio presentation as follows: X10DR ® Company Confidential Proprietary...
  • Page 54 SRG3900 Programming info P 2/3 In Radio Manager template “X10DR” external digital inputs as follows: X10DR ® Company Confidential Proprietary...
  • Page 55 SRG3900 Programming info P 3/3 In Radio Manager create template “X10Dr” and set External digital outputs as follows: X10DR ® Company Confidential Proprietary...
  • Page 56 16: Ext PTT : Active Low connector pinout! 3: Spkr Open detect: Active Low 150cm 24AWG*15C +ADB unstripped unstripped 24AWG "J1" In-line fuseholder 50cm 1A FB fuse FEMALE, 15-CONTACT DB26 -HDM D-SUB CONNECTOR D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 57 Hytera MD68/78 Programming info P 1/1 In CPS under “Accessories” set as follows: Pin 3 select : Speaker Unmute detect Pin 16 select : Ext. Mic PTT Set for : Low Set for : Low X10DR ® Company Confidential Proprietary...
  • Page 58 + (7) then setting audio accessory to ohm-meter to check Handsfree kit connector pinout! **Requires programming input 2 ***Requires programming 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" 1A FB fuse 50cm FEMALE, 15-CONTACT DB26 -HDM D-SUB CONNECTOR D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 59 COR/ Audio unmute from radio DC/ Digital Ground Remote/ footswitch/Handle bar PTT 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" 50cm 1A FB fuse FEMALE, 15-CONTACT D-SUB CONNECTOR DB25 -M D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 60 - to provide COR to pin10, first jumper Pin E10 on the radio’sSwitch Board ribbon cable assembly to Pin 14, J15 on the Accessory Board (control head section) NOTE: if you do not fit that jumper, the X10DR will still function using its VOX function but may have minor audio clipping occassionally.
  • Page 61 Program radio Pin 23 for “cor”.(radio speaker unmute) Radio Emergency input is open circuit trigger (active high) so set dip switches SW1 ON & SW2 OFF in Charger cradle accordingly. 150cm unstripped unstripped "J1" 50cm FEMALE, 15-CONTACT D-SUB CONNECTOR DB25 -M connector X10DR ® Company Confidential Proprietary...
  • Page 62 - requires charger cradle to be configured for active hi COR. 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" DB15 -M * or Purple 50cm 1A FB fuse FEMALE, 15-CONTACT ** or Purple /White D-SUB CONNECTOR D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 63 DC/ Digital Ground Remote/ footswitch/Handle bar PTT input 150cm 24AWG*15C +ADB unstripped unstripped 24AWG In-line fuseholder "J1" DB15 -M * or Purple 50cm 1A FB fuse FEMALE, 15-CONTACT ** or Purple /White D-SUB CONNECTOR D-SUB CONNECTOR X10DR ® Company Confidential Proprietary...
  • Page 64 Mic Lo to radio Received audio from radio Power nominal +12VDC LATER VERSIONS Ext PTT to radio Emergency out to radio COR/ Audio unmute from radio DC/ Digital Ground Remote/ footswitch/Handle bar PTT (or Blk-Wh) X10DR ® Company Confidential Proprietary...
  • Page 65 Nexus TP120 plugs. CAUTION: To ensure maximum range when dismounted from the bike, the rider should attach the X10DR to their shoulder area and then make sure cable lengths do not interfere with the riders movements on the bike.
  • Page 66 Hirose accessories) Note: some motorcycle helmets have very low level mic audio out which may require you to set the X10DR to high external mic sensitivity. To do this power up the Secure mic holding the blue top right Volume UP button shield / GRD until the unit finishes sounding its escalating start tones.
  • Page 67 X10DR Headset Accessories XMCH-C Interface cable - Closed face - Electret Directional electret 4mm curly cable Mic Lo X10DR Programming: Mic Hi Spk Hi Set External Mic Std = 9 Set External Mic Hi = 11 Spk Lo Hirose HR10A-7P-6P...

  • Page 68: Troubleshooting

    Some radios such as Kenwood models have a 5 mV input sensitivity. In such cases, you should fit a 8-10K resistor in series with the radio’s external mic input to reduce the audio level sent from the X10DR otherwise noise will exist and audio will distort badly.
  • Page 69 All rights reserved Wireless Corporation Limited © 2015 Wireless Pacific, X10DR and their logos are trademarks or registered trademarks of Wireless Corporation Limited. Rev 44 X10DR ® Company Confidential Proprietary...
