Wireless Pacific X10DR User Manual

Talk Back Microphone User Guide

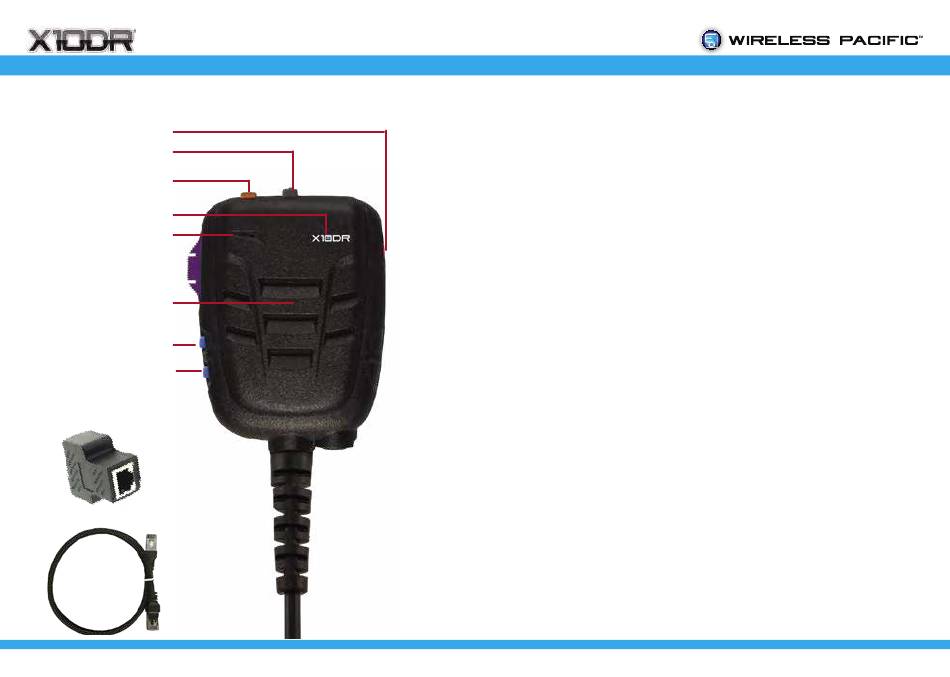

Parts and functions

Power On/Off

Control

Emergency

Status Light

Microphone

PTT: Press-To-Talk

Loudspeaker
Volume Up
Volume Down
XDIA
XIC-0.5
Products not shown to size- for illustrative purposes only
Description
Power Off/On: Hold for about 2 seconds to turn on or off. The Power
Mic will sound escalating or de-escalating tones to advise status.
The device does a self check and the status light then glows. (see
Control)
Emergency: Pressing the Orange emergency button triggers the
host radio's emergency input and causes the status light to glow
Red. Additionally, it will glow Red while any of the connected X10DR
Handset users presses their Emergency button.
Status light: Glows Green when set to transmit to X10DR handsets
or Blue when transmitting over the host mobile radio (see Control).
Changes to Red when Emergency is being activated.
Microphone: Talk in a normal strength voice about 1 to 3cm (~1")
from the microphone port.
PTT: Press to talk, release to listen. Default assignment is to talk over
the gateway to wireless X10DR handsets. (see Control)
Control: The Control button can be configured so:
A/ It allows the user to toggle the function of side PTT button between
Radio PTT and Talkaround. LED glows Blue when assigned to Radio,
and Green when Talkaround.(default)
B/ It is the Talkaround button and the side PTT button is Radio.
C/ It is the Radio PTT button and the side PTT button is Talkaround.
(See over for re-configuration)
Volume Up/Down: Adjusts the speaker audio louder/softer and
sounds a beep when pressed.
Download current User Manual & User Card:
www.x10dr.com
