Vmax I&O Manual

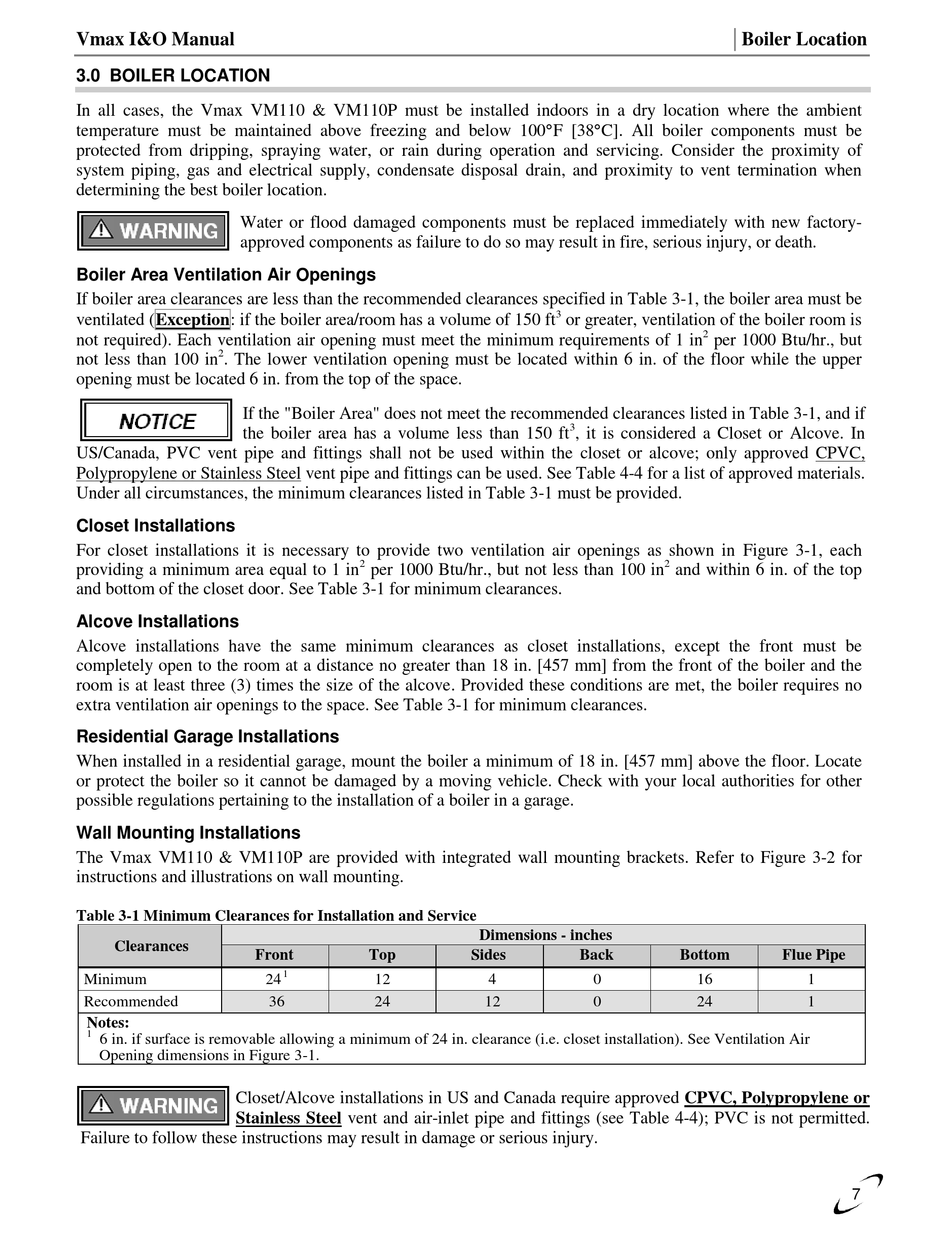

3.0 BOILER LOCATION

In all cases, the Vmax VM110 & VM110P must be installed indoors in a dry location where the ambient
temperature must be maintained above freezing and below 100F [38C]. All boiler components must be
protected from dripping, spraying water, or rain during operation and servicing. Consider the proximity of
system piping, gas and electrical supply, condensate disposal drain, and proximity to vent termination when
determining the best boiler location.
Water or flood damaged components must be replaced immediately with new factory-
approved components as failure to do so may result in fire, serious injury, or death.

Boiler Area Ventilation Air Openings

If boiler area clearances are less than the recommended clearances specified in Table 3-1, the boiler area must be
ventilated (Exception: if the boiler area/room has a volume of 150 ft
not required). Each ventilation air opening must meet the minimum requirements of 1 in
2
not less than 100 in . The lower ventilation opening must be located within 6 in. of the floor while the upper
opening must be located 6 in. from the top of the space.
If the "Boiler Area" does not meet the recommended clearances listed in Table 3-1, and if
the boiler area has a volume less than 150 ft
US/Canada, PVC vent pipe and fittings shall not be used within the closet or alcove; only approved CPVC,
Polypropylene or Stainless Steel vent pipe and fittings can be used. See Table 4-4 for a list of approved materials.
Under all circumstances, the minimum clearances listed in Table 3-1 must be provided.

Closet Installations

For closet installations it is necessary to provide two ventilation air openings as shown in Figure 3-1, each
providing a minimum area equal to 1 in
and bottom of the closet door. See Table 3-1 for minimum clearances.

Alcove Installations

Alcove installations have the same minimum clearances as closet installations, except the front must be
completely open to the room at a distance no greater than 18 in. [457 mm] from the front of the boiler and the
room is at least three (3) times the size of the alcove. Provided these conditions are met, the boiler requires no
extra ventilation air openings to the space. See Table 3-1 for minimum clearances.
Residential Garage Installations
When installed in a residential garage, mount the boiler a minimum of 18 in. [457 mm] above the floor. Locate
or protect the boiler so it cannot be damaged by a moving vehicle. Check with your local authorities for other
possible regulations pertaining to the installation of a boiler in a garage.
Wall Mounting Installations
The Vmax VM110 & VM110P are provided with integrated wall mounting brackets. Refer to Figure 3-2 for
instructions and illustrations on wall mounting.
Table 3-1 Minimum Clearances for Installation and Service
Clearances
Minimum
Recommended
Notes:
1
6 in. if surface is removable allowing a minimum of 24 in. clearance (i.e. closet installation). See Ventilation Air
Opening dimensions in Figure 3-1.
Closet/Alcove installations in US and Canada require approved CPVC, Polypropylene or
Stainless Steel vent and air-inlet pipe and fittings (see Table 4-4); PVC is not permitted.
Failure to follow these instructions may result in damage or serious injury.
2
per 1000 Btu/hr., but not less than 100 in
Front Top
1
24 12
36 24
3
or greater, ventilation of the boiler room is
3
, it is considered a Closet or Alcove. In
Dimensions - inches
Sides Back
4 0
12 0
│Boiler Location
2
per 1000 Btu/hr., but
2
and within 6 in. of the top
Bottom Flue Pipe
16 1
24 1
7
