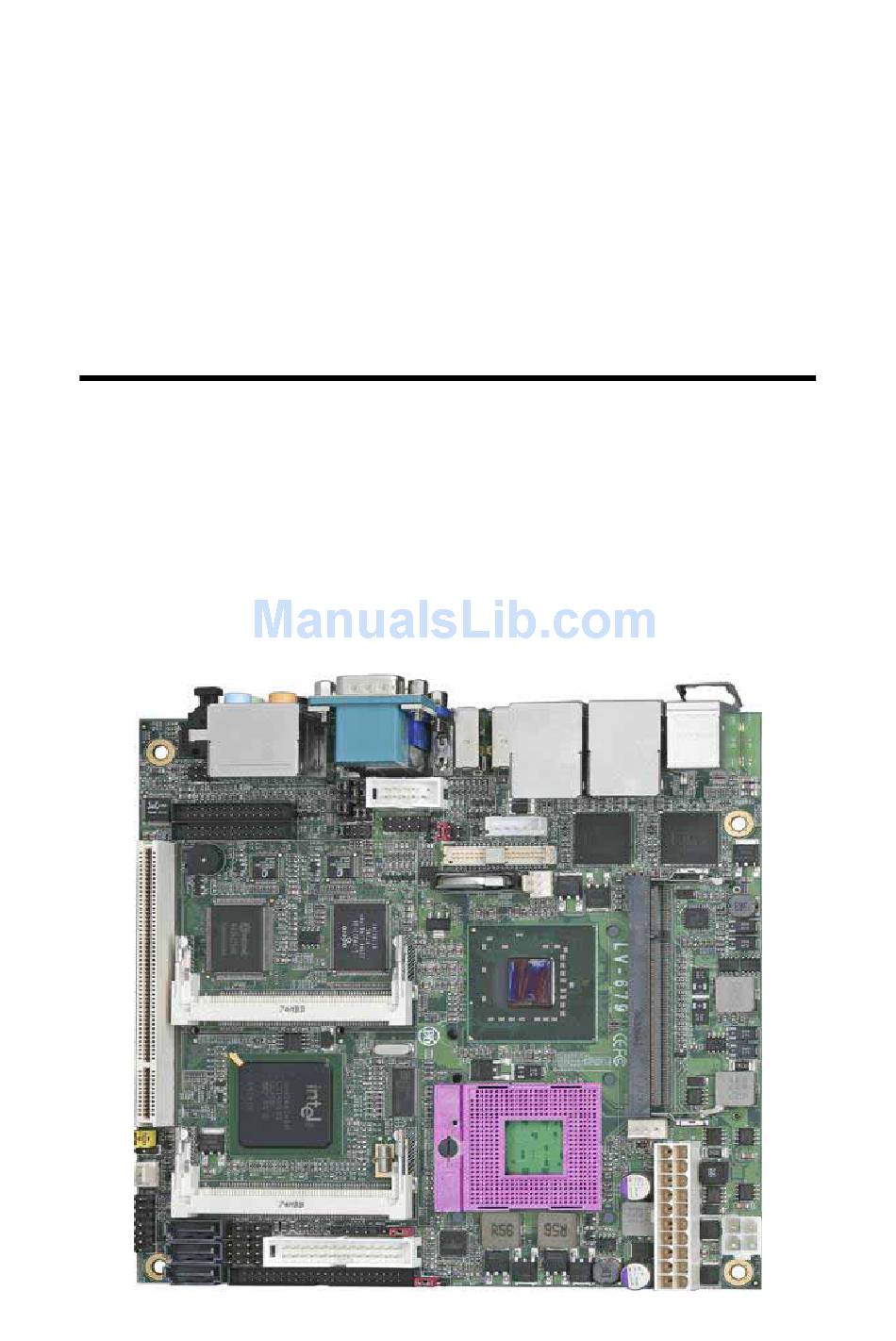

- Page 1 LV-679 Mini-ITX Motherboard User’s Manual Edition 1.04 2008/09/09...
- Page 2 LV-679 User’s Manual Copyright Copyright 2007, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LV-679 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: LV-679D or LV-679D2C Mini ITX Motherboard x 1 Cable Kit: Floppy Cable x 1 SATA Cable x 2 ATA33 IDE Cable x1 COM & Printer Port Cable x 1... - Page 4 LV-679 User’s Manual DC Power Cable x 1 USB Cable x 1 CPU Cooler x 1 Printed Matters: Driver CD (Including User’s Manual) x 1...
- Page 5 LV-679 User’s Manual Index Chapter 1 <Introduction>............... 8 1.1 <Product Overview>............8 1.2 <Product Specification> ........... 9 1.3 <Mechanical Drawing> ..........11 1.4 <Block Diagram> ............12 Chapter 2 <Hardware Setup> .............. 13 2.1 <Connector Location> ............ 13 2.2 <Jumper Location & Reference>........14 2.3 <Connector Reference>...
- Page 6 LV-679 User’s Manual Chapter 3 <System Setup>..............36 3.1 <Audio Configuration> ..........36 3.2 <Video Memory Setup> ..........37 3.3 <Display Properties Setting>.......... 39 Chapter 4 <BIOS Setup>..............41 Appendix A <I/O Port Pin Assignment> ..........43 A.1 <IDE Port>..............43 A.2 <Serial ATA Port>...
- Page 7 LV-679 User’s Manual (This page is left for blank)
-
Page 8: Chapter 1

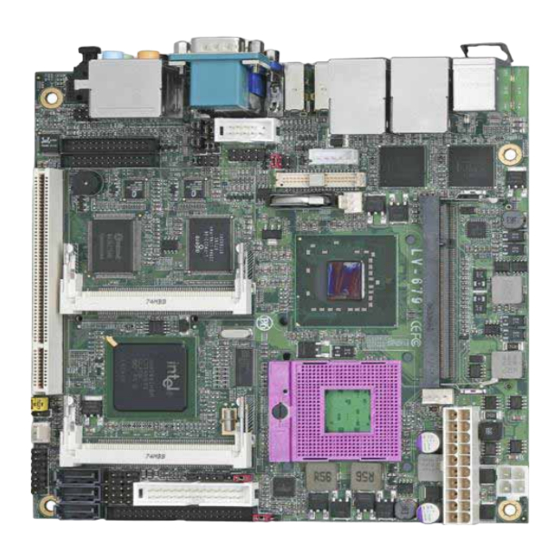

Chapter 1 <Introduction> 1.1 <Product Overview> LV-679 is the new generation of the Mini-ITX motherboard, with supporting Intel Core 2 Duo / Celeron M socket-P processors for 533/667/800MHz front side bus, Intel GM(E)965 and ICH8-M chipset, integrated GMA X3100 graphics, DDR2 memory, REALTEK High Definition Audio, Serial ATA and two Intel Gigabit LAN. -
Page 9: Product Specification
LV-679 User’s Manual 1.2 <Product Specification> General Specification Form Factor Mini-ITX motherboard Support Intel Core 2 Duo / Celeron M Mobile Processor (Socket-P) Package type: Micro-FCPGA478 Front side bus: 533/667/800 MHz Memory Two DDRII 533/667MHz DIMM up to 3GB with dual channel... - Page 10 LV-679 User’s Manual Ordering Code LV-679D Onboard CRT, LVDS, HDTV, Intel Gigabit LAN, USB2.0, PCI, Mini-PCI, GPIO Port, 1394, IrDA, Slim FDD, Parallel Port, RS232/422/485, SATA,HD Audio, 1 x DVI LV-679D2C Onboard CRT, LVDS, HDTV, Intel Gigabit LAN, USB2.0, PCI,...
-
Page 11: Mechanical Drawing
LV-679 User’s Manual 1.3 <Mechanical Drawing> ‘ ‘ ‘ ‘ ‘ ‘ ‘ ‘ ‘ ‘... -
Page 12: Block Diagram
LV-679 User’s Manual 1.4 <Block Diagram> Intel Mobil Core 2 Duo / Celeron M Processor Intel GMA X3100 LVDS 2 x 200-pin DDR2 SO-DIMM GME96 533/667MHz up to 2 x DVI Compact Flash 3 x Serial ATA PCI Express 1X... -
Page 13: Chapter 2
LV-679 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> CN_USB1/2 SATA1/2/3 DC-IN JFRNT SYSFAN Mini-PCI1/2 CPUFAN SO-DIMM2 CN_DIO CN_IR NBFAN CN_LVDS CN_INV CN_DVI1/2 CN_Audio CD_IN CN_HDTV CN_COM2 PS/2 USB & LAN1/2 1394 1/2 CRT&COM Audio SPDIF CD_IN... -
Page 14: Jumper Location & Reference
LV-679 User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JCFSEL CF with IDE mode selection JVLCD Panel Voltage Setting JVSSD DOM 3.3V / 5V Power selection COM1 signal mode switch (For Pin-1 & Pin-9) COM2 signal mode switch (For Pin-1 & Pin-9) - Page 15 LV-679 User’s Manual Jumper: JAT Type: onboard 3-pin header Power Mode AT Mode ATX Mode Default setting: ATX Mode Jumper: JP1 (COM 1) Type: onboard 6-pin header Power Mode Pin1 with 5V signal 1-3,4-6 1-2,3-5 Pin9 with 12V signal Default setting: 3-5, 4-6...
-
Page 16: Connector Reference
LV-679 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket 478 for socket-P CPU SO-DIMM 1/2 200-pin DDR2 SO-DIMM slot 44-pin IDE connector Slim 26-pin slim type floppy connector Slim 26-pin LPT port connector SATA1/2/3 7-pin Serial ATA connector... -
Page 17: Cpu And Memory Setup
LV-679 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> socket-P The board comes with the socket478 for Intel Core 2 Duo / Celeron M processor 533/667/800MHz of front side bus and 4MB L2 cache. Please follow the instruction to install the CPU properly. -
Page 18: Memory Setup
LV-679 User’s Manual 2.4.2 <Memory Setup> The board provides two 200-pin DDR2 SO-DIMM to support 533/667MHz memory modules up to 3GB of capacity. Non-ECC, unbuffered memory is supported only. While applying two same modules, dual channel technology is enabled automatically for higher performance. -
Page 19: Cmos Setup
LV-679 User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to it’s default values. -
Page 20: Enhanced Ide Interface
LV-679 User’s Manual 2.6 <Enhanced IDE Interface> The board has one UltraDMA33 IDE interface to support up to 2 ATAPI devices, or one ATAPI device and Compact Flash Type II socket on the solder side, with jumper JCFSEL for IDE master/slave mode selection. And provide JVSSD jumper to support +3.3V or +5V DOM selection. -
Page 21: Serial Ata Interface
LV-679 User’s Manual 2.7 <Serial ATA Interface> Based on Intel ICH8-M, the board provides three Serial ATAII interfaces with up to 300MB/s of transfer rate. SATA Port 1/2/3... -
Page 22: Floppy Port
LV-679 User’s Manual 2.8 <Floppy Port> The board provides one slim type floppy port. Lift up the brown plastic bar Slot the cable in (Blue paste for brown bar side) Press back the plastic bar Floppy rear Lift up this plastic bar... -
Page 23: Ethernet Interface
LV-679 User’s Manual 2.9 <Ethernet Interface> The board integrates with one Intel PCI Express Gigabit Ethernet controllers, as the PCI Express 1x can speed up to 250MB/s of transfer rate instead of late PCI bus with 133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 24: Onboard Display Interface
LV-679 User’s Manual 2.10 <Onboard Display Interface> Based on Intel GM(E)965 chipset with built-in GMA (Graphic Media Accelerator) X3100 graphics, the board provides one DB15 connector on real external I/O port, and one 40-pin LVDS interface with 5-pin LCD backlight inverter connector. The board provides dual display function with clone mode and extended desktop mode for CRT, LCD, TV-out and two DVI. -
Page 25: Digital Display
LV-679 User’s Manual 2.10.2 <Digital Display> The board provides one 40-pin LVDS connector for 18/24-bit single/dual channel panels, supports up to 1600 x 1200 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_LVDS... - Page 26 LV-679 User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) LCDVCC (5V) LCDVCC (12V) Default setting: 1-2 ENABKL Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V...
- Page 27 LCD Installation Guide: Preparing the LV-679, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 28 LV-679 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:2.1) 18-bit Single channel 24-bit Dual channel Output format...
-
Page 29: Hdtv Interface
LV-679 User’s Manual 2.10.3 <HDTV Interface> The board provides an HDTV interface with Intel GM(E) 965, supports Composite, S-Video and Component with PAL and NTSC of TV system, and display (clone or extended desktop) function with CRT,LVDS,DVI. Connector: CN_HDTV Connector type: 10-pin header HDTV connector (pitch = 2.54mm) -
Page 30: Integrated Audio Interface
LV-679 User’s Manual 2.11 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC888 codec, with Intel next generation of audio standard as High Definition Audio, it offers more sound and other advantages than former HD audio compliance. - Page 31 LV-679 User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) 2.54mm-pitch header Assignment Assignment MIC_L Ground MIC_R Reserve Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Assignment CD – Left Ground Ground CD – Right...
-
Page 32: Gpio Interface
LV-679 User’s Manual 2.12 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) 2.00mm-pitch header Assignment... -
Page 33: Power Supply
LV-679 User’s Manual 2.13 <Power Supply> 2.13.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 8V to 24V, or onboard 20-pin ATX2.0, for the input current, please take a reference of the power consumption report on appendix. -
Page 34: Power Output
LV-679 User’s Manual 2.13.2 <Power Output> The board provides one 20-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time ! -
Page 35: Switch And Indicator
LV-679 User’s Manual 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch header... -
Page 36: Chapter 3
LV-679 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® ICH8DO with REALTEK® ALC888 codec. It can support 2-channel or 7.1 channel sound under system configuration. Please follow the steps below to setup your sound system. -
Page 37: Video Memory Setup
LV-679 User’s Manual 3.2 <Video Memory Setup> Based on Intel® GM(E)965 chipset with GMA (Graphic Media Accelerator) X3100, the board supports Intel® DVMT (Dynamic Video Memory Technology) 4.0, which would allow the video memory to be allocated up to 384MB. - Page 38 LV-679 User’s Manual Fixed + DVMT Memory Size: You can select the fixed amount and the DVMT amount at the same time for a guaranteed video memory and additional dynamic video memory, please check the table below for available setting.
-
Page 39: Display Properties Setting
LV-679 User’s Manual 3.3 <Display Properties Setting> Based on Intel GM(E)965 GMCH with GMA X3100 (Graphic Media Accelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 40 LV-679 User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Colors, Resolution and Refresh Rate Click Intel® Dual Display Clone setup dual display mode as same screen...
-
Page 41: Chapter 4
LV-679 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 42 LV-679 User’s Manual (This page is left for blank)
-
Page 43: Appendix A
LV-679User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: IDE1 Type: 44-pin (22 x 2) box header Assignment Assignment Reset Ground Ground Ground -IOW Ground -IOR Ground IORDY Ground DACK Ground IDEIRQ 66DET -CS1 -CS3 -HD LED1 Ground By JVSSD Jumper By JVSSD Jumper... -
Page 44: A.2
LV-679User’s Manual A.2 <Serial ATA Port> Connector: SATA1/2/3 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.3 <Floppy Port> Connector: FDD Type: 26-pin connector Assignment Assignment INDEX DSKCHG MTR0 DRVDE0 STEP Ground WRITE DATA Ground WRITE GATE Ground TRAK 0 WRPTO... -
Page 45: A.5
LV-679 User’s Manual A.5 <Serial Port 1> Connector: COM1 Type: 9-pin D-sub male connector on bracket Assignment Assignment DCD- SIN- DTR- Ground A.6 <Serial Port 2> Connector: CN_COM2 Type: 9-pin box header connector on bracket Assignment Assignment DCD- /485- SIN- /485+... -
Page 46: A.8
LV-679 User’s Manual A.8 <VGA Port> Connector: CRT Type: 15-pin D-sub female connector on bracket Assignment Assignment Assignment Ground GREEN Ground DDCDA BLUE Ground HSYNC VSYNC Ground Ground DDCCLK A.9 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on bracket... -
Page 47: A.11
LV-679 User’s Manual A.11 <DVI Port> Connector: CN_DVI1 / 2 Type: onboard 26-pin connector for DVI connector Assignment Assignment TDC1+ TDC1- TLC+ TLC- TDC2+ TDC2- TDC0+ TDC0- HPD1 DVI_DA DVI_SL... -
Page 48: Appendix B
LV-679 User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “awdflash.exe”, it’s the utility that can write the data into... -
Page 49: Appendix C
LV-679 User’s Manual Appendix C <System Resources> C1. <I/O Port Address Map>... - Page 50 LV-679 User’s Manual...
- Page 51 LV-679 User’s Manual C2. <Memory Address Map>...
- Page 52 LV-679 User’s Manual C3. <System IRQ & DMA Resources> DMA: IRQ:...
-
Page 53: Appendix D
LV-679 User’s Manual Appendix D <Programming GPIO> The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ; Enter configuration... -
Page 54: Appendix E
LV-679 User’s Manual Appendix E <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... - Page 55 LV-679 User’s Manual Appendix F <Setting RS-422 & RS-485> Setting RS-232 & RS-422 & RS-485 for CN_COM2. Function JCSEL1 JCSEL2 RS-422 RS-485 RS-232 JCSEL1 JCSEL2...
-
Page 56: Contact Information
Taiwan Commate Computer Inc. Address 8F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website http://www.commell.com.tw E-Mail info@commell.com.tw (General Information) tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate Computer Inc.
