LV-67O
Mini-ITX Motherboard
User's Manual
Edition 1.64
2015/07/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LV-67O and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commell LV-67O

Summary of Contents for Commell LV-67O

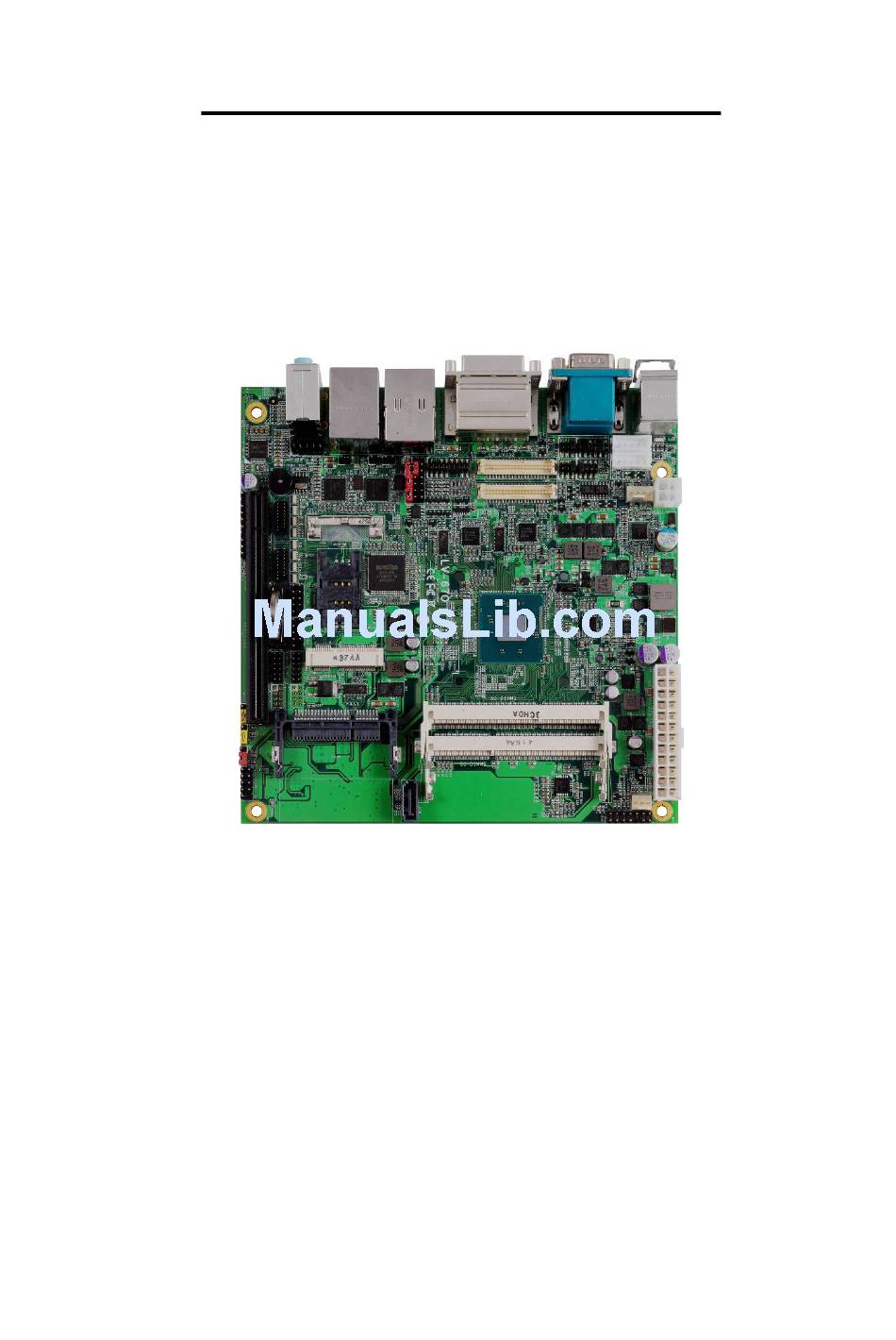

  • Page 1 LV-67O Mini-ITX Motherboard User’s Manual Edition 1.64 2015/07/14...

  • Page 2: Packing List

    Any questions please visit our website at h ttp://www.commell.com.tw Packing List: Please check the package content before you starting using the board. Hardware: LV-67O Mini-ITX Motherborad x 1 Cable Kit: SATA Cable x 2 OALSATA3-L / (1040529) Dual COM PORT Cable x 1...
  • Page 3 LV-67O User’s Manual I/O Shield x 1 Power Cable x 1 OALATX-P3S2 / (1040058) OPLATE-MCDLA / (1270055) DC Power Cable x 1 OALDC-A / (1040433) Printed Matters: Driver CD (Including User’s Manual) x 1 Cooler: Heat Sink: (OHS-P-M-7) / (2181010002)
  • Page 4 LV-67O User’s Manual Index Chapter 1 <Introduction> ................5 1.1 <Product Overview>..................5 1.2 <Product Specification>................6 1.3 <Mechanical Drawing>................. 8 1.4 <Block Diagram>..................9 Chapter 2 <Hardware Setup>................9 2.1 <Connector Location> .................. 9 2.2 <Jumper Location & Reference>..............10 2.3 <Connector Reference> ................11 2.3.1 <Internal Connectors>...
  • Page 5 Contact Information..................41 Chapter 1 <Introduction> 1.1 <Product Overview> LV-67O is the system-on-chip (SoC) designed for intelligent systems, delivering outstanding compute, graphical, and media performance while operating in an extended range of thermal conditions. These SoCs are based on the Silvermont microarchitecture, utilizing Intel’s industry-leading 22nm process technology with 3-D Tri-Gate transistors,...

  • Page 6: Product Specification

    LV-67O User’s Manual Outstanding integration of I/O interfaces Supports display interfaces with graphics processing, camera interfaces with image processing, audio with digital signal processing, multiple storage types, and legacy embedded I/O. Provides interface expansion capabilities through industry-standard high-bandwidth interfaces such as PCI Express* Gen 2.0, Hi-speed USB 2.0, and USB 3.0 connectivity.
  • Page 7 LV-67O User’s Manual LAN Interface 2 x Intel® I210 Gigabit LAN GPIO interface Onboard programmable 8-bit Digital I/O interface Extended Interface One PCIE X16 slot(Only support 1 Lane), 1 x PCIE Mini card or mSATA, 1 x SIM socket (CFast and mSATA can’t be enabled simultaneously)

  • Page 8: Mechanical Drawing

    LV-67O User’s Manual 1.3 <Mechanical Drawing>...

  • Page 9: Block Diagram

    LV-67O User’s Manual 1.4 <Block Diagram> Chapter 2 <Hardware Setup> 2.1 <Connector Location>...

  • Page 10: Jumper Location & Reference

    LV-67O User’s Manual 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD1 Panel1 Voltage Setting JVLCD2 Panel2 Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) JCSEL1 COM2 RS-232 RS422 RS485 Setting...

  • Page 11: Connector Reference

    LV-67O User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark FCBGA1170 CPU SO-DIMM 1/2 204 -pin DDR3L SO-DIMM socket SATAII 1/2 7-pin Serial ATAII connector DC_IN DC 6~27V input connector 24-pin power supply connector CN_AUDIO 5 x 2-pin audio connector...

  • Page 12: Memory And Cfast Setup

    2.4 < Memory and CFAST Setup> 2.4.1 <Memory Setup> LV-67O has two 204-pin DDR3L DIMM support up to 8GB of memory capacity and 1.35 Voltage. The memory frequency supports 1066/1333 MHz. Only Non-ECC memory is If you install only one DDR3L memory module, please plug it into the supported.

  • Page 13: Cmos & Atx Setup

    LV-67O User’s Manual Installing the CFAST in the back of the board. Note that the slot direction and fool-proofing design. Installation is complete 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.

  • Page 14: Ethernet Interface

    LV-67O User’s Manual 2.6 <Ethernet Interface> The board integrates with two Intel I210 Gigabit Ethernet, as the PCI Express bus. The Intel I210 supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. 2.7 <Onboard Display Interface> Based on Intel processor with built-in HD Graphic, the board provides one DVI connector &...

  • Page 15: Display

    LV-67O User’s Manual 2.7.1 <Display> Please connect your DVI & Display port or LCD monitor with male connector to the onboard female connector on rear I/O port . 2.7.2 <LVDS> The board provides two 40-pin LVDS connector for 18/24-bit single/dual channel...
  • Page 16 LV-67O User’s Manual Effective patterns of connection: 1-2 / 3-4 / 5-6 Warning: others cause damage Connector: CN_INV Type: 5-pin LVDS Power Header Description +12V ENABKL Connector: JVLCD Type: 6-pin Power select Header Description (3.3V) LCDVCC (5V) LCDVCC (12V) LCDVCC...
  • Page 17 LCD Installation Guide: Preparing the LV-67O, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.

  • Page 18: Vga Interface

    LV-67O User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...

  • Page 19: Integrated Audio Interface

    LV-67O User’s Manual 2.8 <Integrated Audio Interface> The board integrates onboard audio interface with REALTEK ALC262 code, with Intel next generation of audio standard as High Definition Audio, it offers more vivid sound and other advantages than former HD audio compliance.

  • Page 20: Usb Interface

    MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect 2.9 <USB Interface> LV-67O integrates 1 x USB3.0 and 5 x USB2.0 , The specifications of USB3.0 are listed below: Interface USB3.0 Transfer Rate Up to 5Gb/s Voltage The USB3.0 port need to Install USB 3.0 eXtensible Host Controller Driver...
  • Page 21 LV-67O User’s Manual Step3. enable “xHCI Mode” and push “F10” to save configuration. Restart your computer. Step4. If you enable xHCI Mode , USB 2.0 and USB 3.0 ports can’t use without drive. We recommend that you connect PS/2 mouse / keyboard installing USB 3.0 driver.
  • Page 22 LV-67O User’s Manual Step6. Lastly, the “Setup Complete” screen appears so click “Finish” to restart your computer. The specifications of USB2.0 are list: Interface USB2.0 Transfer Rate Up to 480Mb/s Voltage...
  • Page 23 LV-67O User’s Manual Connector: CN_USB1 Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description (5V_SB/ 5V) (5V_SB/ 5V) Data0- Data1- Data0+ Data1+ Ground Ground Ground enable xHCI Mode. CN_USB1 need to Connector: JVUSB Type: 6-pin Power select jumper Description 1-3 &...

  • Page 24: Serial Port

    LV-67O User’s Manual 2.10 <Serial Port> The board supports Three RS232 serial port and one jumper selectable RS232/422/485 serial ports. The jumper JCSEL1 & JCSEL2 can let you configure the communicating modes for COM2. Connector: COM1 Type: 9-pin D-sub male connector on bracket for COM1...
  • Page 25 LV-67O User’s Manual RTS2 CTS2 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Function JCSEL1 JCSEL2 RS-422 RS-485 RS-232 (Default)

  • Page 26: Pcie Mini Card And Sim Interface

    LV-67O User’s Manual Jumper: JP1/JP2 (COM1/2) Type: onboard 6-pin header Power Mode JP1/2 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port Default setting 2.11 <PCIE Mini Card and SIM Interface> The board provides a PCIE mini card sockets and a SIM socket.
  • Page 27 LV-67O User’s Manual Type: onboard 3-pin header MINI_CARD Mode JMSATA Supply mSATA MINI_CARD Default setting: 2-3 2.11.1 <SIM Setup> Step1. SIM card holder is marked by circle. Slide the cap toward OPEN direction. Step 2. Make sure that the cap is now at the OPEN position.

  • Page 28: Gpio And Smbus Interface

    LV-67O User’s Manual Step 4. Insert a SIM card as shown in the photo. Be sure that the corner cut is on top and the golden pads are up. Step 5. Now, flip down the cap as shown in the photo.
  • Page 29 LV-67O User’s Manual 5V TTL-level Input Pin Parameter Unit Conditions Input Low Voltage Input High Voltage μA Input High Leakage = 3.3V μA Input Low Leakage = 0V Open-drain output pin with 12-mA sink capability Output Low Voltage = 12 mA Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm)

  • Page 30: Power Supply And Fan Interface

    LV-67O User’s Manual 2.13 <Power Supply and Fan Interface > 2.13.1 <Power Input> The board requires onboard 4-pin DC-input connector voltage range is from 6V to 27V, or onboard 24-pin ATX2.0. Connector: DC_IN Type: 4-pin standard Pentium 4 additional +12V power connector...

  • Page 31: Power Output

    LV-67O User’s Manual 2.13.2 <Power Output> The board provides one 24-pin ATX connector for +5V/+12V output for powering your HDD, CDROM or other devices. Attention: When DC-IN had power supplied, the ATX become output ! Avoid DC-IN and ATX power supply input at the same time !

  • Page 32: Switch And Indicator

    LV-67O User’s Manual Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V Fan Speed Detection Fan Control Connector: SYSFAN Type: 4-pin fan wafer connector Description Description Ground +12V Fan Speed Detection Fan Control 2.14 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc.

  • Page 33: Chapter 3

    LV-67O User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates REALTEK® ALC262 code. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. Lunch the control panel and Sound Effect Manager.

  • Page 34: Display Properties Setting

    LV-67O User’s Manual 3.2 <Display Properties Setting> Based on Intel J1900/N2930/E3845 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices.
  • Page 35 LV-67O User’s Manual Click Graphics Properties... for advanced setup 3. This setup options can let you define each device settings.

  • Page 36: Sata Configuration

    LV-67O User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE or AHCI. Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers.

  • Page 37: Appendix A

    LV-67O User’s Manual Figure 4-1 CMOS Setup Utility Main Screen Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on bracket...

  • Page 38: Appendix B

    LV-67O User’s Manual SERIRQ Ground 3.3V Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online from below link http://www.commell.com/Support/Product%20Technical%20Support/LV-67O.

  • Page 39: Appendix C

    LV-67O User’s Manual then input the “fs0:” command to switch to the root of the USB flash drive. 4. Type the ” fpt64.efi -y -f xxx.bin” command to start flash BIOS processes. ( xxx.bin means the BIOS file that you want to update) 5.

  • Page 40: Appendix D

    LV-67O User’s Manual Optional : -o 4E F2 -o 4F xx ; Data inversion register ; ‘1’ inverts the current valus of the bits ,’0’ leaves them as they are -o 4E 30 -o 4F 01 ; active GPIO’s For further information, please refer to NCT6106D datasheet.

  • Page 41: Contact Information

    19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw i nfo@commell.com.tw (General Information) E-Mail t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan commate computer Inc.
