Charging Procedure

1. Plug the charger end of the power supply cord into the power receptacle
located at the back of the charger.
2. Plug the wall receptacle end of the power supply cord into the
appropriate AC outlet. A successful power-up sequence is indicated by a
SINGLE GREEN BLINK on the charger indicator.
3. Insert a battery, or a radio with battery (radio turned off), into the
charger's pocket by:
a. Aligning the groove on each side of the battery with the corresponding
raised rail on each side of the charger pocket.
b. Pressing the battery toward the rear of the pocket.
c. Sliding the battery into the charger pocket, ensuring complete contact
between the charger and battery contacts.
4. When the battery is properly seated in the pocket, the charger indicator
will illuminate STEADY RED to indicate that the battery is charging
rapidly. When the battery is tapering off (typically charged approximately
90% or greater), the charger indicator changes to BLINKING GREEN.
When the battery is nearly or fully charged, the charger indicator
changes to STEADY GREEN.
5. Use two hands to remove a radio or battery from the charger pocket.
One hand to support the charger and the other hand to remove the radio
or battery.
Raised rail
Charging
contacts
Charging
indicator
Charging
pocket

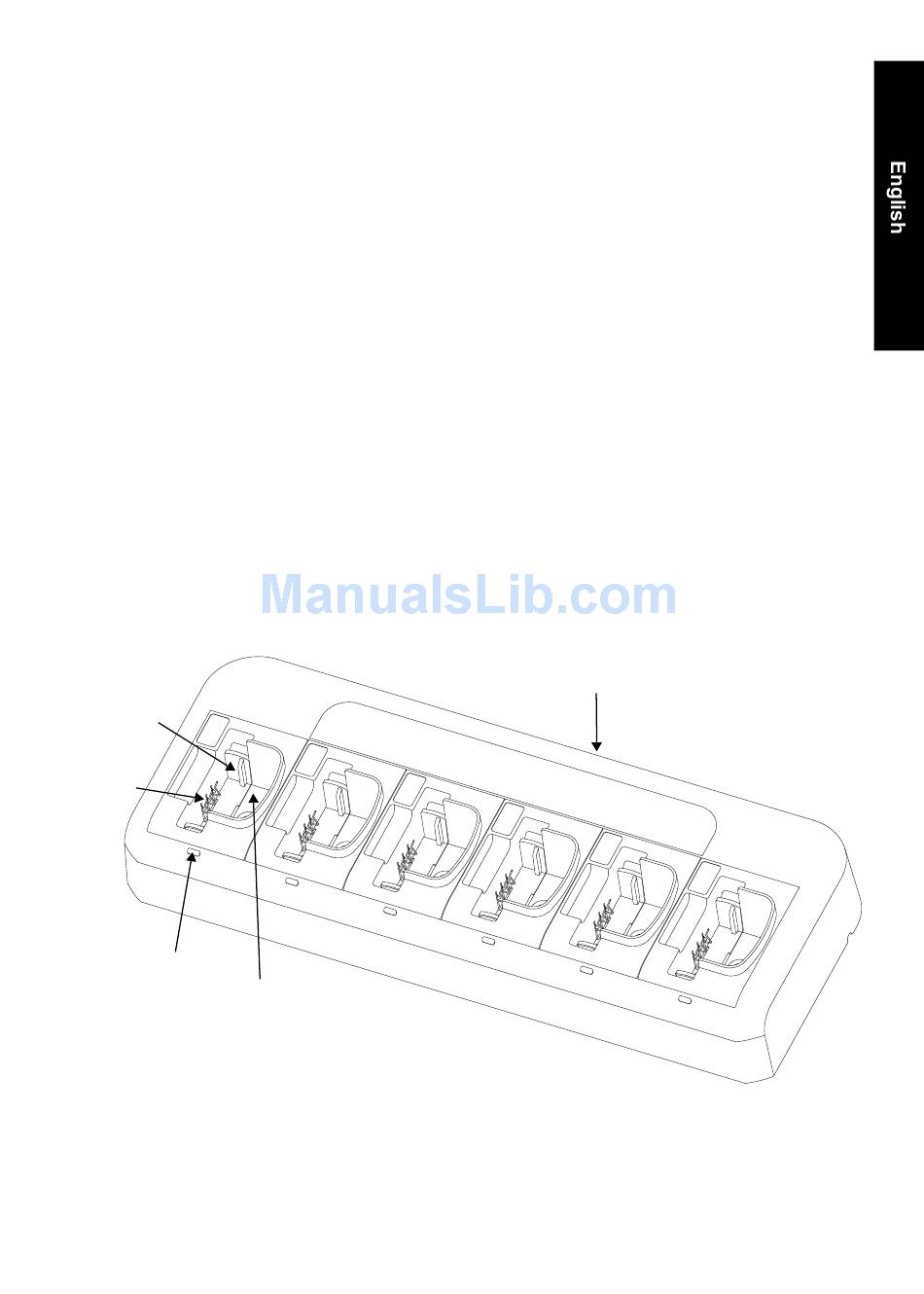

Figure 1: Multi-Unit Charger
5
Power receptacle
(located here)
