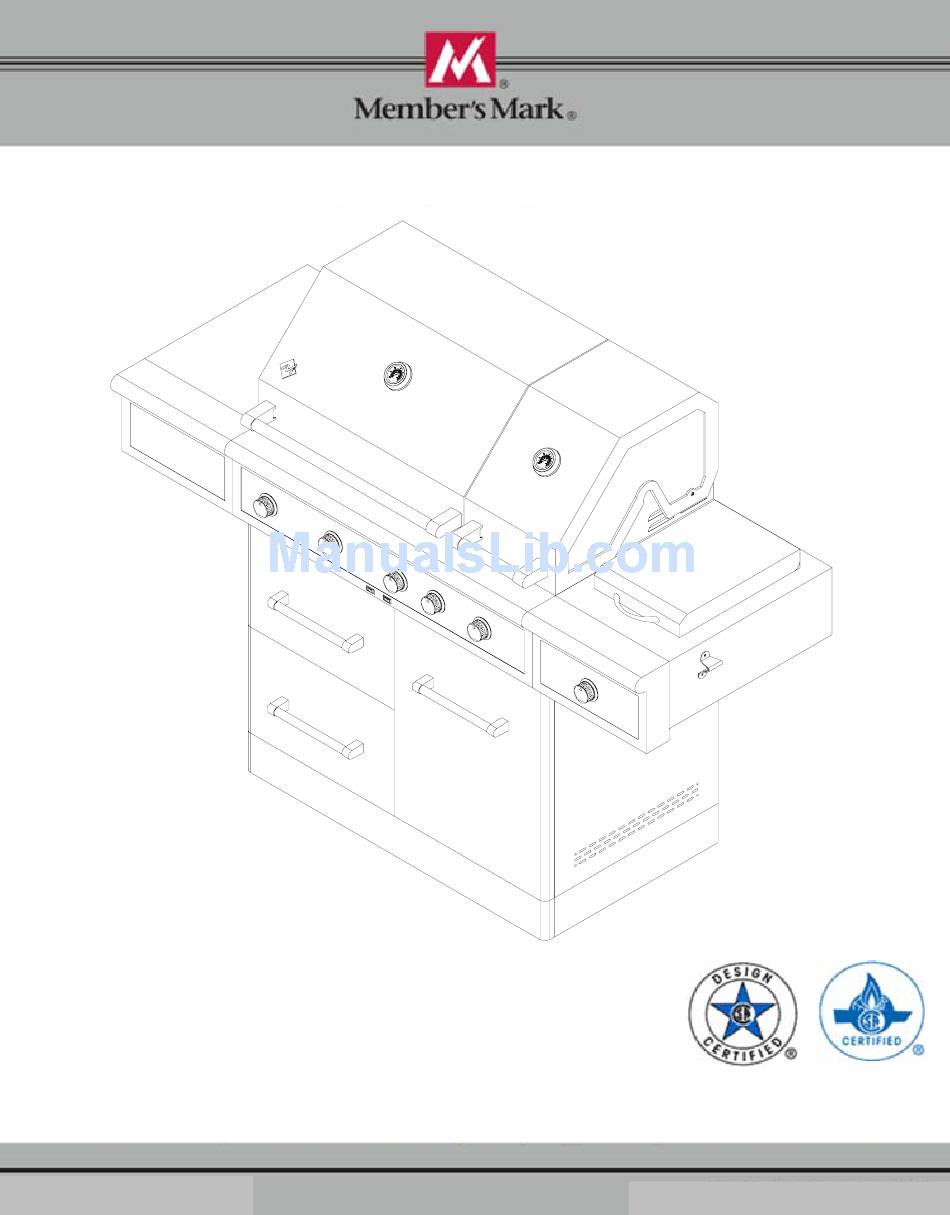

Member's Mark 720-0584A Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

US Item#:
634660719
Canada Item#:
FOR PROPANE GAS USE ONLY
This instructions manual contains important information necessary for the proper assembly and safe use of the appliance. Read
and follow as warnings and instructions before assembling and using the appliance. Keep this manual for future reference.
720-0584A
Model: 720-0584A
Assembly & Operating Instructions
620338859
For Outdoor Use Only
1

Advertisement

Table of Contents
loading

Related Manuals for Member's Mark 720-0584A

Summary of Contents for Member's Mark 720-0584A

  • Page 1 This instructions manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow as warnings and instructions before assembling and using the appliance. Keep this manual for future reference. 720-0584A Model: 720-0584A For Outdoor Use Only...

  • Page 2: Table Of Contents

    Table of Contents Safety Instruction ..... Trouble Shooting ..... 25-26 Parts check list…………………………...

  • Page 3: Safety Instruction

    Safety Instruction continued WARNING ELECTRICAL GROUNDING INSTRUCTIONS This appliance (light & rotisserie motor) is equipped with a plug and should be plugged directly into a properly grounded receptacle. When installed, must be electrically grounded in accordance with local codes or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1 DO NOT cut or remove the grounding prong from this plug.
  • Page 4 Safety Instruction continued PROPER PLACEMENT AND CLEARANCE OF GRILL LP-Gas Supply System •Never use your gas grill in a garage, porch, shed, If the information is not followed exactly, a fire resulting in breezeway or any other enclosed area. Your gas grill is to death or serious injury could occur.
  • Page 5 Safety Instruction continued SAFETY PRACTICES TO AVOID PERSONAL INJURY When using the grill, do not touch the grill rack, burner grate or immediate surroundings as these areas become extremely hot and could cause burns. Use When properly cared for, your grill will provide safe, only dry potholders.

  • Page 6: Parts Check List

    Parts check list Body Assembly 1pc Side Shelf 1pc Side Self Front Panel 1pc. Side Burner Front Panel 1pc Side Burner 1pc. Control knob 1pc. Bottle Opener 1pc. Warming Rack 1pc Small Main Burner Warming Rack Hook 3 pcs Rotisserie Motor Bracket 1pc. Rotisserie Motor 1pc..

  • Page 7: Assembly Instruction

    Assembly Instruction REQUIRED TOOLS & INSTALLATION EXAMPLES (screws have been attached on side burner , side panel or corresponding parts) Tighten all screws on the grill as some screws may have loosened during transit Side Burner and Side Shelf A. Lay side shelf upside down. Remove the top two screws on the side shelf front panel.
  • Page 8 Assembly Instruction continued Remove the 3 screws along the top edge of the side burner. Loosen the bottom 2 screws without removing them completely. Remove the bottom screw from the side of the main control panel.
  • Page 9 Assembly Instruction continued Align the bottom key holes on side burner with 2 loosened screws in side panel. Attach the side burner to the cart with the two loosened screws on the side panel. Hook the side burner shelf onto the two screws. Tip: This step is meant to help with the installation but do not depend solely on the two screws to hold the weight of the side burner shelf.
  • Page 10 Assembly Instruction continued To assemble the side burner valve to side burner front panel: Loosen the "C" bracket on the burner tube by removing the screw holding it in place. Turn the "C" bracket so the opening of the side burner tube is exposed.
  • Page 11 Assembly Instruction continued Igniter wire Knob Locate the small opening on the underside of the knob, behind the rubber grip. Peel the rubber grip back carefully Insert the Allen wrench into the hole and into the set screw, positioned for tightening. Insert valve stem into knob and tighten the set screw.
  • Page 12 Assembly Instruction continued Bottle opener Side burner grease box...
  • Page 13 Assembly Instruction continued Battery Motor, rotisserie kit and warming rack...
  • Page 14 Assembly Instruction continued Flame tamer Hooks Before using your grill, please visually check to make sure each flame tamer is in the correct position. They should be sitting in between the two grooves for each burner. Gas tank tray...
  • Page 15 Liquid Propane gas supply to Natural Gas supply. Conversion kits may be purchased through www.membersmark.com For grill model#720-0584A, the NG conversion kit Secure the tank with the tightening the bolt is mode# 710-0586A. after the tank has been placed in the tray.

  • Page 16: Gas Hook -Up

    Gas Hook - Up NEVER CONNECT AN UNREGULATED GAS 3.Make sure all burner valves are in the off position. SUPPLY LINE TO THE APPLIANCE. USE THE 4.Inspect valve connections, port, and regulator assembly. REGULATOR/HOSE ASSEMBLY SUPPLIED. Look for any damage or debris. Remove any debris. This is a liquid propane configured grill.

  • Page 17: Installer Final Check List

    Installer Final Check List Specified clearance maintained 24”(61cm) from USER, PLEASE RETAIN THIS MANUAL FOR FUTURE combustibles. REFERENCE. All internal packaging removed. PROPANE CYLINDER CAUTIONS Knobs turn freely. a) Do Not store a spare LP-gas cylinder under or near Burners are tight and sitting properly on orifices. this appliance.

  • Page 18: Leak Testing

    Leak Testing continued CAUTIONS Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

  • Page 19: Grill Lighting Instruction

    Operating Instruction WARNING: IMPORTANT! USING ROTISSERIE BURNER USING THE SIDE BURNER Your grill is capable of performing back burner rotisserie Inspect the gas supply hose prior to turning the gas cooking. Light the rear burner as described in the lighting “ON”.

  • Page 20: Lighting Illustration

    Grill Lighting Instruction continued FLAME CHARACTERISTICS Check for proper burner flame characteristics. Burner flames should be blue and stable with no yellow tips, excessive noise, or lifting. If any of these conditions exist call our customer service line. If the flame is yellow, it indicates insufficient air. If the flame is noisy and tends to lift away from the burner, it indicates to much air Each burner is adjusted prior to shipment;...

  • Page 21: To Match The Light Grill

    Lighting Illustration Push and slowly turn the U-Shape Burner knob to IGNITE/HI position IGNITE / HI Keep pushing the knob until the burner is lit. If the burner is not lit, turn the knob to OFF position and repeat the lighting procedure. Push and slowly turn the Searing/Rear Burner knob to IGNITE/ON position.

  • Page 22: Motor Instruction

    Motor Instruction • TO USE MOTOR SAFELY, PLEASE READ WARNING PRIOR TO USE WARNING ROTISSERIE DRIVE MOTOR ELECTRICAL GROUNDING INSTRUCTIONS This USE ONLY FOR OUTDOORS. DO NOT EXPOSE appliance (rotisserie motor) is equipped with a plug TO RAIN. and should be plugged directly into a properly grounded receptacle.

  • Page 23: Grill Light

    Grill Light 2. Use a screwdriver to loosen the screw securing the light cover and remove it. (NOTE: While loosening the fourth screws of light cover, use another hand to hold the cover to avoid it falls down. Then remove the light cover.) 3.

  • Page 24: Care And Maintenance

    Care and Maintenance STAINLESS STEEL 4.Clear clogged port with a straightened paper clip. Never use a wooden toothpick as it may break off There are many different stainless steel cleaners and clog the port available. Always use the mildest cleaning procedure 5.

  • Page 25: Trouble Shooting

    Trouble Shooting SPIDER AND INSECT WARNING Checking and cleaning burner/ venturi tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill. Spiders and small insects occasionally spin webs or make nests in the grill burner tubes during transit and warehousing.
  • Page 26 Trouble Shooting continued PROBLEM SOLUTION When attempting to light my • Make sure you have a spark while you are trying to light the burner (if no spark) grill, it will not light • Ensure that the wire is connected to the electrode assembly. immediately.

  • Page 27: Exploded View

    explode view...

  • Page 28: Part List

    LP Part List Warranty Warranty Part (Description) Part (Description) coverage coverage Main lid Light switch Main lid screw A Cart frame Main lid screw B Door magnet Electronic igniter module Main lid hinge spacer cover Temperature Gauge heat Electronic igniter module insulating spacer Temperature Gauge Drawer heat shield...

  • Page 29: Part List

    LP Part List Continues Warranty Warranty Part (Description) Part (Description) coverage coverage Transformer Rotisserie Burner pilot cover Assembled power cord Rear baffle Transformer supporting box Rotisserie burner Lamp wire Small Main Burner Igniter Wire Back panel, top Small Main Burner Igniter wire cover Main burner igniter wire A Side burner temper glass,...

  • Page 30: Ordering Parts

    Ordering Parts HOW TO ORDER REPLACEMENT PARTS IMPORTANT To make sure you obtain the correct replacement part(s) Use only factory authorized parts. The use of any part that for your gas grill, please refer to the parts list on page is not factory authorized can be dangerous.
  • Page 31 Grill Cooking Chart WEIGHT OR HEAT APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS SETTING TIME AND TIPS Place in aluminum foil pan. French fries Medium 15 to 30 minutes Grill, stirring occasionally Grill, turning once when juices rise to the surfaces. MEATS BEEF Medium Do not leave hamburgers unattended since a flare- Hamburgers...

  • Page 32: Grill Recipe Suggestion

    Grill Recipe Suggestion BBQ SALMON butter and sprinkled with chopped parsley Combine first 4 ingredients, add and a crisp lettuce salad. onion and marinade flank steak with 2 large salmon steaks In medium bowl, combine shrimp and it. Refrigerate at least 4 hours or 2 tbs.

  • Page 33: Grill Recipe Suggestion

    Grill Recipe Suggestion continued Bring marinade to boil on the side burner in a Marinade ribs for 3 hours. Use FAJITAS saucepan. Add remaining 1/3 c. water and marinade for basting by adding beer 1-1/2 lb. flank steak or boned chicken peanut butter.

  • Page 34: Limited Warranty

    Limited Warranty Member’s Markl warrants to the original consumer-purchaser only that this product (Model #720-0584A) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. The manufacturer reserves the right to require photographic evidence of damage, or that defective parts be returned, postage and or freight pre-paid by the consumer, for review and examination.
