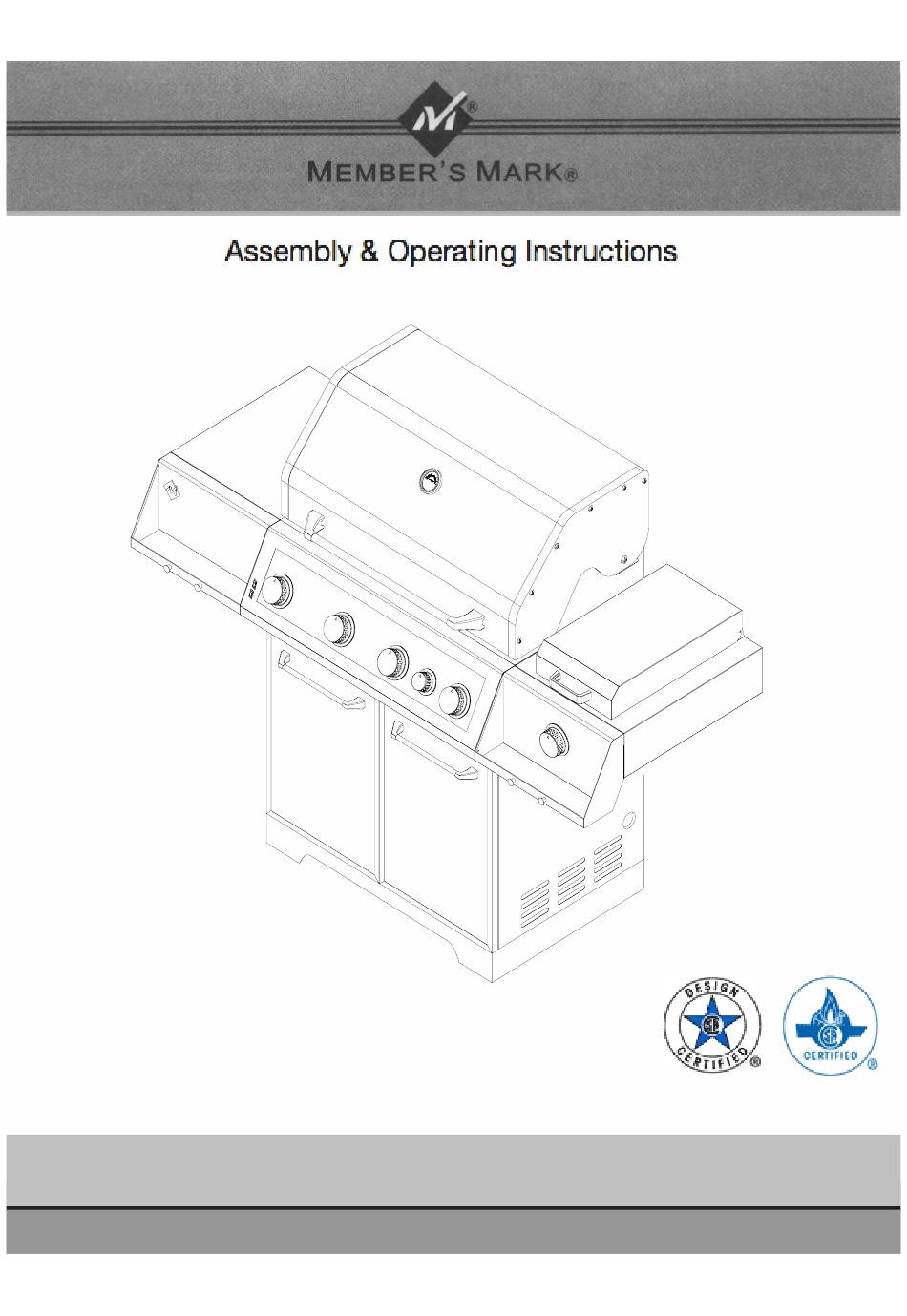

19000367A1

This instructions manual contains important information necessary for the proper assembly and safe use of the

appliance. Read and follow all warnings and instructions before assembling and using the appliance. Keep this manual

for future reference.

Model No: 720/730-0778A

FOR OUTDOOR USE ONLY

Table of Contents

Need help?

Do you have a question about the 720-0778A and is the answer not in the manual?

Questions and answers

Summary of Contents for Member's Mark 720-0778A

Page 1 19000367A1 This instructions manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow all warnings and instructions before assembling and using the appliance. Keep this manual for future reference. Model No: 720/730-0778A FOR OUTDOOR USE ONLY...
Page 2: Table Of Contents
Table of Contents Safety Instruction ..... Grill Light ......23-24 Parts Check list.
Page 3: Safety Instruction
Safety Instruction WARNING ELECTRICAL GROUNDING INSTRUCTIONS This appliance (light and transformer) is equipped with a plug and should be plugged directly into a properly grounded receptacle. When installed, must be electrically grounded in accordance with local codes or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1 DO NOT cut or remove the grounding prong from this plug.
Page 4 Safety Instruction continued • The gas must be turned off at the supply cylinder when the LP-Gas Supply System outdoor cooking gas appliance is not in use. • LP gas tank must be stored outdoors in a well-ventilated area and out of reach of children. Disconnected LP gas tanks must not be stored in a building, garage or any other enclosed area.
Page 5 Safety Instruction continued INSECT WARNING Use a covered hand when opening the grill lid. Never lean over an open grill. Spiders and insects can nest in the burners of this and any other grill, and cause the gas to flow improperly. This is a When lighting a burner, pay close attention to what you are very dangerous condition, which can cause a fire to occur doing.
Page 6: Parts Check List
Parts Check List Screws used to attach the parts are already pre-placed on the parts or grill body. Loosen the screws before you install the part. Grill Body 1 pc Side Burner Bowl 1 pc Side Shelf 1 pc Warming Rack 1 pc Control Knob 1pc Cooking grid 3 pcs Bezel 1pc...
Page 7: Exploded View
NG Package View Natural gas conversion kit sold separately...
Page 8: Part List
Part List Warra Warranty Part (Description) Part (Description) cover coverage1 Main Lid Side shelf, left Main Lid screw Side shelf control panel Temperature gauge Logo Hood buffer A Hook Main lid handle seat, left Tank tray Main Lid handle Tank tray bracket A Electronic wire waterproof box Tank tray slide Transformer stator bracket...
Page 9 Part List Warranty Warranty Part (Description) Part (Description) coverage coverage1 Side burner cooking grid Powder cord fix bracket Sear burner Cable Strainer Side burner igniter wire Rubber grommet Side Burner Lid Support Electronic igniter module Bracket Side burner bowl assembly Side panel, right Side burner gas valve Caster...
Page 10: Assembly Instruction
Assembly Instruction Tighten all screws on the grill as some screws may have loosened during transit Step 1: Side Burner Bowl Assembly Fig.1 1a). Loosen the bottom 2 screws that are located on the right side panel of the grill. Do not remove completely.
Page 11 Assembly Instruction continued Fig.3 1d). Align the bottom key holes on side burner bowl with 2 loosened screws on right side panel. Attach the side burner bowel to the cart with the two loosened screws on the side panel. See Fig.3 Tip: This step is meant to help with the installation but do not depend solely on the two screws to hold the weight of the side burner shelf.
Page 12 Assembly Instruction continued Fig.5 Step 2: Side Shelf Assembly 2a). Loosen the bottom 2 screws that are located on the left side panel of the grill. Do not remove completely. See fig.5 2b). Remove the bottom screw that is located on the left side of control panel. See fig.5 Fig.6 2c).
Page 13 Assembly Instruction continued Fig.7 2d). Align the bottom key holes on side shelf with 2 loosened screws on side panel. Attach the side shelf to the cart with the two loosened screws on the side panel. Hook the side shelf into the two screws.
Page 14 Assembly Instruction continued Fig.9 Step 3: Side Burner Valve Assembly 3a). Loosen the "C" bracket on the burner tube located on the underside of the side shelf bowl by removing the screw holding it in place. Turn the "C" bracket so the opening of the side burner tube is exposed.
Page 15 Assembly Instruction continued Fig. 12 Step 5: Side Burner Knob Assembly 5a). Locate the small opening on the underside of the knob, behind the rubber grip and peel the rubber grip back carefully. 5b). Insert the Allen wrench into the hole and into the set screw, positioned for tightening.
Page 16 Assembly Instruction continued Fig. 14 Step 7: Grease Box Assembly Install the grease box from the rear of the grill. See Fig. 14 Fig. 15 Step 8: Flame Tamer, Cooking Grid, and Warming Rack Assembly Place the flame tamer between 2 brackets inside the firebox, place the cooking grids over the flame tamers, then place the warming rack into the firebox side baffles.
Page 17 Liquid Propane gas supply to Natural Gas supply. Conversion kits may be purchased through www.samsclub.com For grill model #720-0778A, the NG conversion kit is model # 710-0778A. Please purchase the conversion kits appropriate for your gas grill model, and...
Page 18: Gas Hook -Up
Gas Hook - Up NEVER CONNECT AN UNREGULATED GAS SUPPLY LINE TO THE APPLIANCE. USE THE REGULATOR/HOSE ASSEMBLY SUPPLIED. This is a liquid propane configured grill. Do not attempt to use a natural gas supply unless the grill has been reconfigured for natural gas use.
Page 19: Installer Final Check List
Installer Final Check List Minimum clearance from sides and back of unit USER, PLEASE RETAIN THIS MANUAL FOR to combustible construction, 24 inches (61cm) FUTURE REFERENCE from sides and 24 inches (61cm) from back PROPANE CYLINDER CAUTIONS Knobs turn freely a) Do Not store a spare LP-gas cylinder under or Burners are tight and sitting properly on orifices near this appliance...
Page 20 Leak Testing continued CAUTIONS Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.
