19000396A0

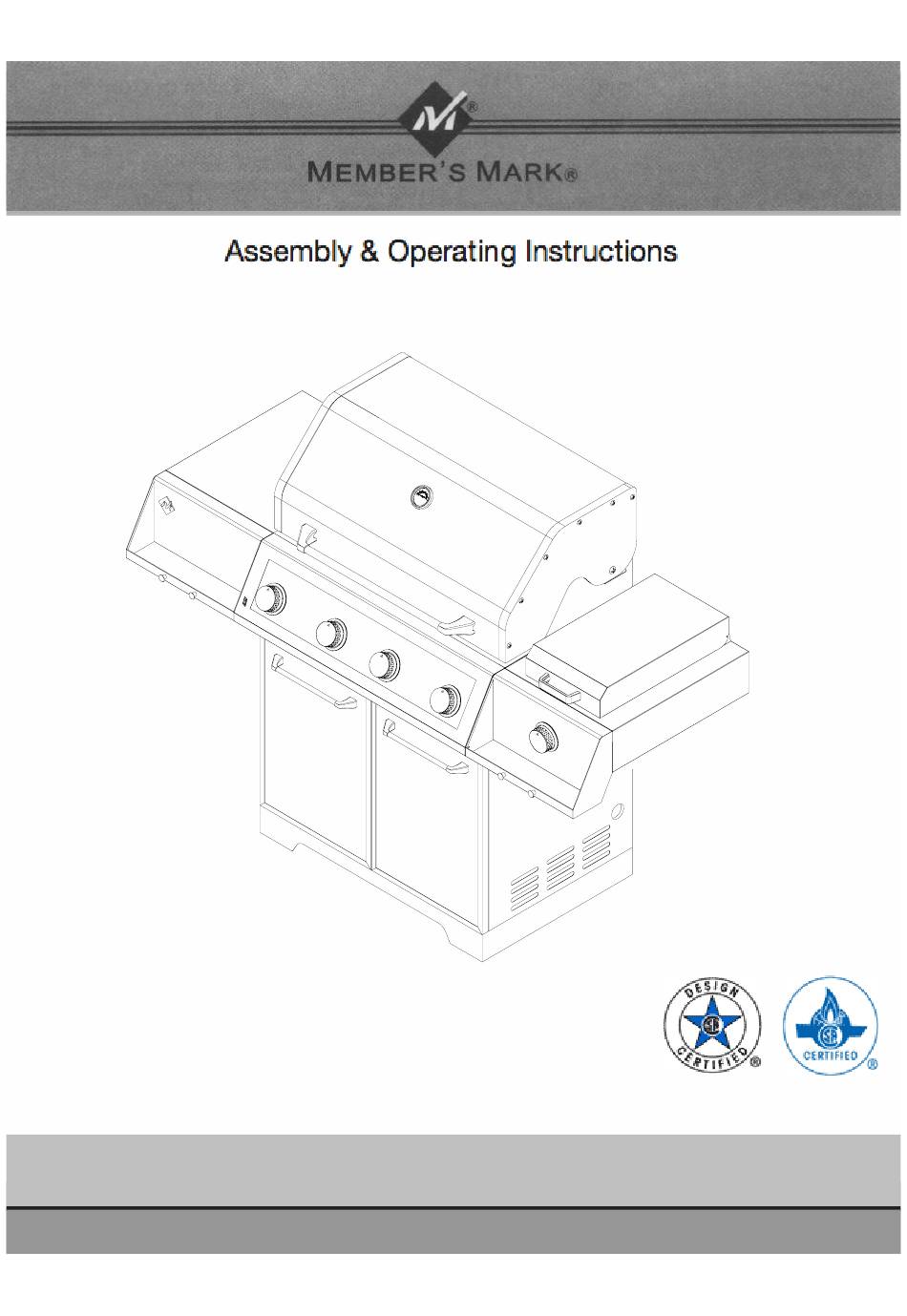

This instructions manual contains important information necessary for the proper assembly and safe use of the
appliance. Read and follow all warnings and instructions before assembling and using the appliance. Keep this manual
for future reference.
Model No: 720/730-0778C
FOR OUTDOOR USE ONLY
Advertisement
Related Manuals for Member's Mark 720-0778C
Summary of Contents for Member's Mark 720-0778C
- Page 1 19000396A0 This instructions manual contains important information necessary for the proper assembly and safe use of the appliance. Read and follow all warnings and instructions before assembling and using the appliance. Keep this manual for future reference. Model No: 720/730-0778C FOR OUTDOOR USE ONLY...
-
Page 2: Table Of Contents
Table of Contents Care and Maintenance ....Safety Instruction ..... Trouble Shooting . -
Page 3: Safety Instruction
Safety Instruction CAUTION: Beware of Flashback WARNING Do not try lighting this appliance without reading the “LIGHTING INSTRUCTIONS” section of this manual. CAUTION: Spiders and small insects occasionally spin webs or make nest in the grill burner tubes during transit and TESTED IN ACCORDANCE WITH ANS Z21.58a CSA warehousing. - Page 4 Safety Instruction continued • The gas must be turned off at the supply cylinder when the LP-Gas Supply System outdoor cooking gas appliance is not in use. • LP gas tank must be stored outdoors in a well-ventilated area and out of reach of children. Disconnected LP gas tanks must not be stored in a building, garage or any other enclosed area.
- Page 5 Safety Instruction continued INSECT WARNING Use a covered hand when opening the grill lid. Never lean over an open grill. Spiders and insects can nest in the burners of this and any other grill, and cause the gas to flow improperly. This is a When lighting a burner, pay close attention to what you are very dangerous condition, which can cause a fire to occur doing.
-
Page 6: Parts Check List
Parts Check List Screws used to attach the parts are already pre-placed on the parts or grill body. Loosen the screws before you install the part. A. Grill Body 1pc B. Side Burner Bowl 1pc C. Side Shelf 1pc D. Warming Rack 1 pc E. -
Page 7: Exploded View
Exploded View NG conversion kit Natural gas conversion kit sold separately... -
Page 8: Part List
Part List Warranty Warranty Part (Description) Part (Description) coverage coverage Main Lid Hook Main Lid screw Tank tray Temperature gauge Tank tray bracket, A Hood buffer A Tank tray slide Main lid handle seat, left Gas tank tray bracket Main Lid handle Tank tray bolt Main lid handle seat, right Tank tray bracket, B... - Page 9 Part List Warranty Warranty Part (Description) Part (Description) coverage coverage Swivel caster Triangle bracket B L shape bracket Bottle opener Cart frame Burner pin sold Door magnet NG conversion kit separately as sold NG Regulator Door handle seat separately as assembly set with #80 NG Gas Hose with...
-
Page 10: Assembly Instruction
Assembly Instruction Tighten all screws on the grill as some screws may have loosened during transit Step 1: Side Burner Bowl Assembly Fig.1 1a) Loosen but do not remove 2 screws that are located on the right side panel of the grill. See fig.1. - Page 11 Assembly Instruction continued 1d) Align the bottom key holes on side burner bowl (B) with 2 loosened screws on right side panel. Hang the side burner bowel (B) to the cart with the Fig.3 two loosened screws on the side panel. See Fig.3 Tip: This step is meant to help with the installation but do not depend solely on the two screws to hold the weight of the side burner shelf.
- Page 12 Assembly Instruction continued Fig.5 Step 2: Side Shelf Assembly 2a) Loosen but do not remove the bottom 2 screws that are preassembly on the left side panel of the grill. See Fig.5 2b) Remove the bottom screw that is located on the left side of control panel.
- Page 13 Assembly Instruction continued 2d) Align the bottom key holes on side shelf Fig.7 with 2 loosened screws on side panel. Hang the side shelf (C) to the cart on the two loosened screws on the side panel. Hook the side shelf into the two screws. See Fig.7. Tip: This step is meant to help with the installation but do not depend solely on the two screws to hold the weight of the side shelf.
- Page 14 Assembly Instruction continued Step 3: Side Burner Valve Assembly Fig.9 3a) Slightly loosen the screws without removing the screws on the valve. 3b) Insert the valve stem into the side burner tube and then insert the valve into the large hole on the bezel. See Fig. 9. 3c) Slide the screws down to the smaller hole and tighten the screws to secure.
- Page 15 Assembly Instruction continued Step 5: Side Burner Knob Assembly Fig. 12 5a) Loosen but do not remove screws on side burner valve, insert valve stem into side burner bezel gourd holes, the bezel are preassemble on the side shelf front panel. Slide these 2 screws into gourd hole error part, then tighten.
- Page 16 Assembly Instruction continued Step 7: Grease Box and Grease tray Assembly Fig. 14 7a) Install the grease box (H) from the rear of the grill. See Fig.14. 7b) Install the grease tray (G) from the rear of the grill. See Fig.14. Step 8: Flame Tamer, Cooking Grid, and Warming Rack Assembly Fig.
- Page 17 Liquid Propane gas supply to Natural Gas supply. Conversion kits may be purchased through www.samsclub.com. For grill model #720-0778C, the NG conversion kit is model # 710-0778A. Please purchase the conversion kits appropriate for your gas grill model, and...
-
Page 18: Gas Hook -Up
Gas Hook - Up NEVER CONNECT AN UNREGULATED GAS SUPPLY LINE TO THE APPLIANCE. USE THE REGULATOR/HOSE ASSEMBLY SUPPLIED. This is a liquid propane configured grill. Do not attempt to use a natural gas supply unless the grill has been reconfigured for natural gas use. -
Page 19: Installer Final Check List
Installer Final Check List Minimum clearance from sides and back of unit USER, PLEASE RETAIN THIS MANUAL FOR to combustible construction, 24 inches (61cm) FUTURE REFERENCE from sides and 24 inches (61cm) from back PROPANE CYLINDER CAUTIONS Knobs turn freely a) Do Not store a spare LP-gas cylinder under or Burners are tight and sitting properly on orifices near this appliance... - Page 20 Leak Testing continued CAUTIONS Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.
