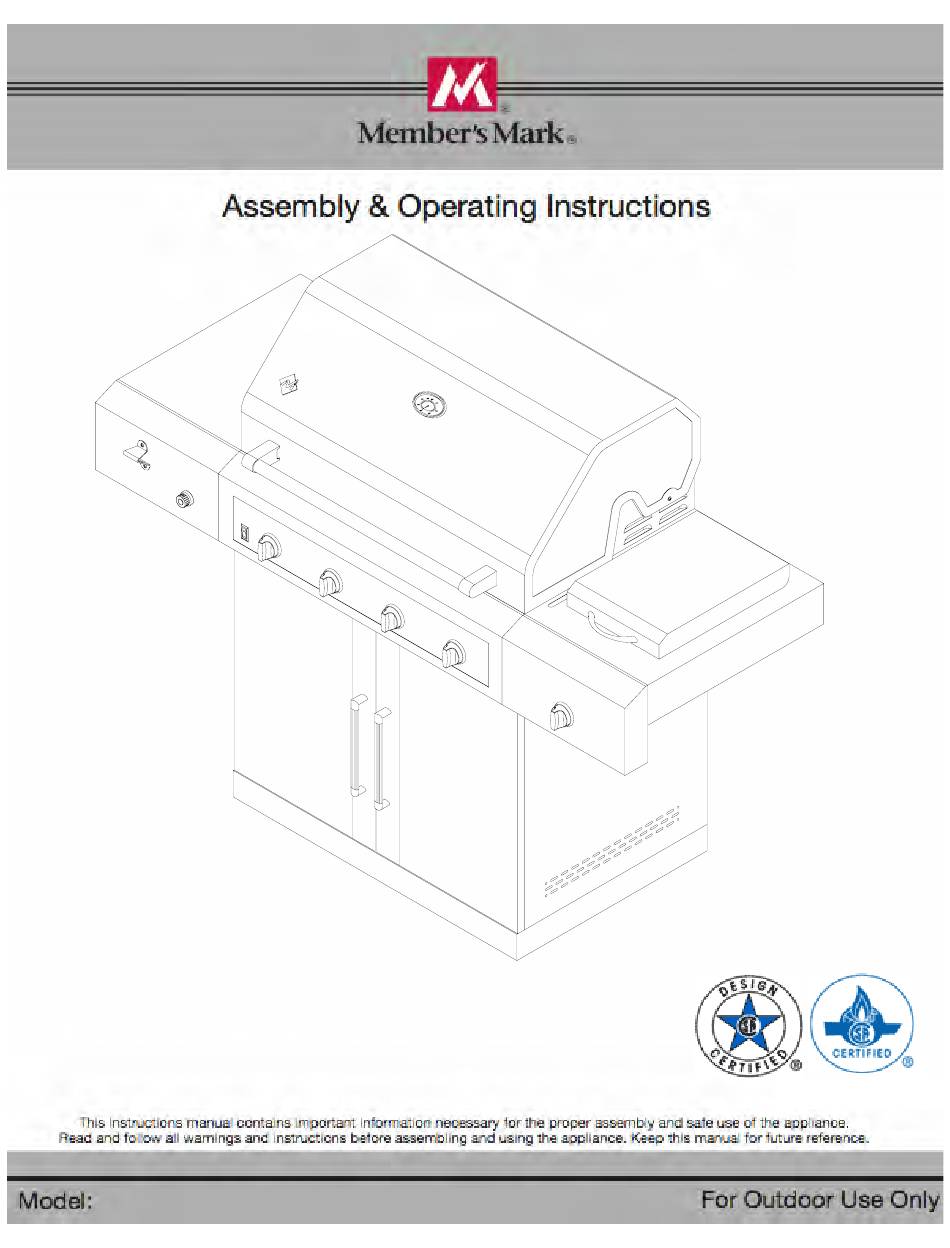

  • Page 1 US Item#: Canada Item#: FOR PROPANE GAS USE ONLY J14Y08P-1 720-0582B...

  • Page 2: Table Of Contents

    Table of Contents Safety Instruction ..... Trouble Shooting ..... 20-21 Parts Check list.

  • Page 3: Safety Instruction

    Safety Instruction WARNING ELECTRICAL GROUNDING INSTRUCTIONS This appliance (light and rotisserie motor) is equipped with a plug and should be plugged directly into a properly grounded receptacle. When installed, must be electrically grounded in accordance with local codes or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1 DO NOT cut or remove the grounding prong from this plug.
  • Page 4 Safety Instruction continued •Do Not obstruct the flow of ventilation air around the gas grill LP-Gas Supply System housing. Only use the regulator and the hose assembly supplied with your gas grill. Replacement regulators and hose assemblies must be those specified in this manual. •...
  • Page 5 Safety Instruction continued Use a covered hand when opening the grill lid. INSECT WARNING Never lean over an open grill. Spiders and insects can nest in the burners of this and any other grill, and cause the gas to flow improperly. This is a When lighting a burner, pay close attention to what you are very dangerous condition, which can cause a fire to occur doing.

  • Page 6: Parts Check List

    Parts Check List Screws used to attach the parts are already pre-placed on the parts or grill body. Loosen the screws before you install the part. Grill Body 1 pc Side Burner Bowl 1 pc Right Side Shelf 1 pc Warming Rack 1 pc Control Knob 1pc Grease Box 1 pc...

  • Page 7: Assembly Instruction

    Assembly Instruction Side Burner & Side Shelf A: 2x A: 2x Loosen the bottom 2 screws without removing them completely. B: 1x B: 1x Remove the bottom screw from the side of the control panel. C: 3x Remove the 3 screws along the top edge of the side burner.
  • Page 8 Assembly Instruction Align the bottom key holes on side burner with 2 loosened screws in side panel. Attach the side burner to the cart with the two loosened screws on the side panel. Hook the side burner shelf onto the two screws. Tip: This step is meant to help with the installation but do not depend solely on the two screws to hold the weight of the side burner shelf.
  • Page 9 Assembly Instruction To assemble the side burner valve to side burner front panel: Loosen the "C" bracket on the burner tube by removing the screw holding it in place. Turn the "C" bracket so the opening of the side burner tube is exposed.
  • Page 10 Assembly Instruction Igniter wire Knob Locate the small opening on the underside of the knob, behind the rubber grip. Peel the rubber grip back carefully. Insert the Allen wrench into the hole and into the set screw, positioned for tightening. Insert valve stem into knob and tighten the set screw.
  • Page 11 Assembly Instruction Hook Flame tamer Before using your grill, please visually check to make sure each flame tamer is in the correct position. They should be sitting in between the two grooves for each burner. Gas tank To release the tank tray glides, slide the Secure the tank with the tightening the bracket up 90 degrees.

  • Page 12: Gas Hook -Up

    Gas Hook - Up NEVER CONNECT AN UNREGULATED GAS SUPPLY LINE TO THE APPLIANCE. USE THE REGULATOR/HOSE ASSEMBLY SUPPLIED. This is a liquid propane configured grill. Do not attempt to use a natural gas supply unless the grill has been reconfigured for natural gas use.

  • Page 13: Installer Final Check List

    Installer Final Check List USER, PLEASE RETAIN THIS MANUAL FOR FUTURE Minimum clearance from sides and back of unit to REFERENCE. combustible construction, 24 inches (61cm) from sides and 24 inches (61cm) from back PROPANE CYLINDER CAUTIONS All internal packaging removed. a) Do Not store a spare LP-gas cylinder under or near Knobs turn freely.

  • Page 14: Leak Testing

    This grill is equipped with dual fuel valves and can be converted from Liquid Propane gas supply to Natural Gas supply. Conversion kits may be purchased through www.membersmark.com For grill model#720-0582B, the NG conversion kit is mode# 710-0586A. Please purchase the conversion kits appropriate for your gas grill model.

  • Page 15: Operating Instruction

    Operating Instructions NOTE: The hot grill sears the food, sealing in the juices. The GENERAL USE OF THE GRILL AND ROTISSERIE more thoroughly the grill is preheated, the faster the meat Each main burner is rated at 12,000 Btu/hr. The main grill browns and the darker the grill marks.

  • Page 16: Lighting Instruction

    Grill Lighting Instructions continued TO MATCH LIGHT THE SIDE BURNER Hold a lit extended match near the side burner ports, turn the control knob counterclockwise to “IGNITE/HI”. Move your hand immediately once the burner is lit. Rotate the control knob to the desired setting.
  • Page 17 Lighting Instructions continued Push and slowly turn the Searing Burner knob to IGNITE/ON position Keep pushing the knob until the burner is lit. Once it is IGNITE / ON lit,continue to press and hold for another 15 seconds to ensure the burner stay lit.

  • Page 18: Grill Light

    Grill Light Light Operation Instruction Make sure light’s power switch on the control panel is in the “OFF” position. Connect power plug to properly grounded outlet. Turn the light’s power switch to “ON”. WARNING Keep any electrical supply cord away from any heated surface. Bulb Replacement 1.

  • Page 19: Care And Maintenance

    Care and Maintenance STAINLESS STEEL HOW TO REPLACE MAIN BURNER There are many different stainless steel cleaners available. Always use the mildest cleaning procedure first, scrubbing in Step 1. Insert the burner onto the orifice. As show below, the direction of the grain. Specks of grease can gather on the make sure burner hole aim at orifice .

  • Page 20: Trouble Shooting

    Trouble Shooting SPIDER AND INSECT WARNING Checking and cleaning burner/ venturi tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill. Spiders and small insects occasionally spin webs or make nests in the grill burner tubes during transit and warehousing. These webs can lead to gas flow obstruction which could result in a fire in and around burner tubes.
  • Page 21 Trouble Shooting continued PROBLEM SOLUTION When attempting to light my grill, it will not Make sure you have a spark while you are trying to light the burner (if no spark) light immediately. Ensure that the wire is connected to the electrode assembly. Clean wire (s) and / or electrode with rubbing alcohol and a clean swab.

  • Page 22: Exploded View

    720-0582B Exploded View 2008.10.10 A0...

  • Page 23: Part List

    720-0582B Part List Warranty Warranty Part (Description) Part (Description) coverage coverage1 Main Lid Caster Main Lid screw Bottom panel Temperature Gauge Heat Cart Frame, Front Insulating spacer Left door hinge bracket, Temperature gauge Right door hinge Logo bracket, top Hood buffer...
  • Page 24 720-0582B Part List Continues Warranty Warranty Part (Description) Part (Description) coverage coverage Side burner greasy tray Lamp Side burner lid bracket Lamp case Main burner igniter wire Side burner cooking grid Main burner igniter wire Side burner lid Main burner igniter wire...

  • Page 25: Ordering Parts

    Ordering Parts HOW TO ORDER REPLACEMENT PARTS IMPORTANT To make sure you obtain the correct replacement part(s) for Use only factory authorized parts. The use of any part that your gas grill, please refer to the parts list on pages 32-33. The is not factory authorized can be dangerous.
  • Page 26 Grill Cooking Chart WEIGHT OR HEAT APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS SETTING TIME AND TIPS Place in aluminum foil pan. French fries Medium 15 to 30 minutes Grill, stirring occasionally Grill, turning once when juices rise to the surfaces. MEATS BEEF Medium Do not leave hamburgers unattended since a Hamburgers...

  • Page 27: Grill Recipe Suggestion

    Grill Recipe Suggestion Combine first 4 ingredients, add onion BBQ SALMON butter and sprinkled with chopped and marinade flank steak with it. parsley and a crisp lettuce salad. 2 large salmon steaks Refrigerate at least 4 hours or overnight. In medium bowl, combine shrimp and Remove steak and grill on your 2 tbs.
  • Page 28 Grill Recipe Suggestion continued Bring marinade to boil on the side burner in a Marinade ribs for 3 hours. Use marinade FAJITAS saucepan. Add remaining 1/3 c. water and for basting by adding beer to it. Place pan 1-1/2 lb. flank steak or boned chicken peanut butter.

  • Page 29: Limited Warranty

    Limited Warranty Member’s Markl warrants to the original consumer-purchaser only that this product (Model #720-0582B) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. The manufacturer reserves the right to require photographic evidence of damage, or that defective parts be returned, postage and or freight pre-paid by the consumer, for review and examination.
