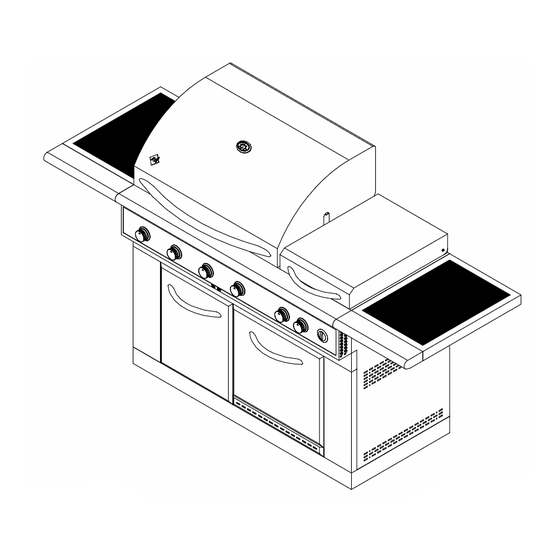

PR Item#:
US Item#:
Canada Item#:
FOR PROPANE GAS USE ONLY
J14Y08P-1
1
720-0586A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 720-0586A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Member's Mark 720-0586A

Summary of Contents for Member's Mark 720-0586A

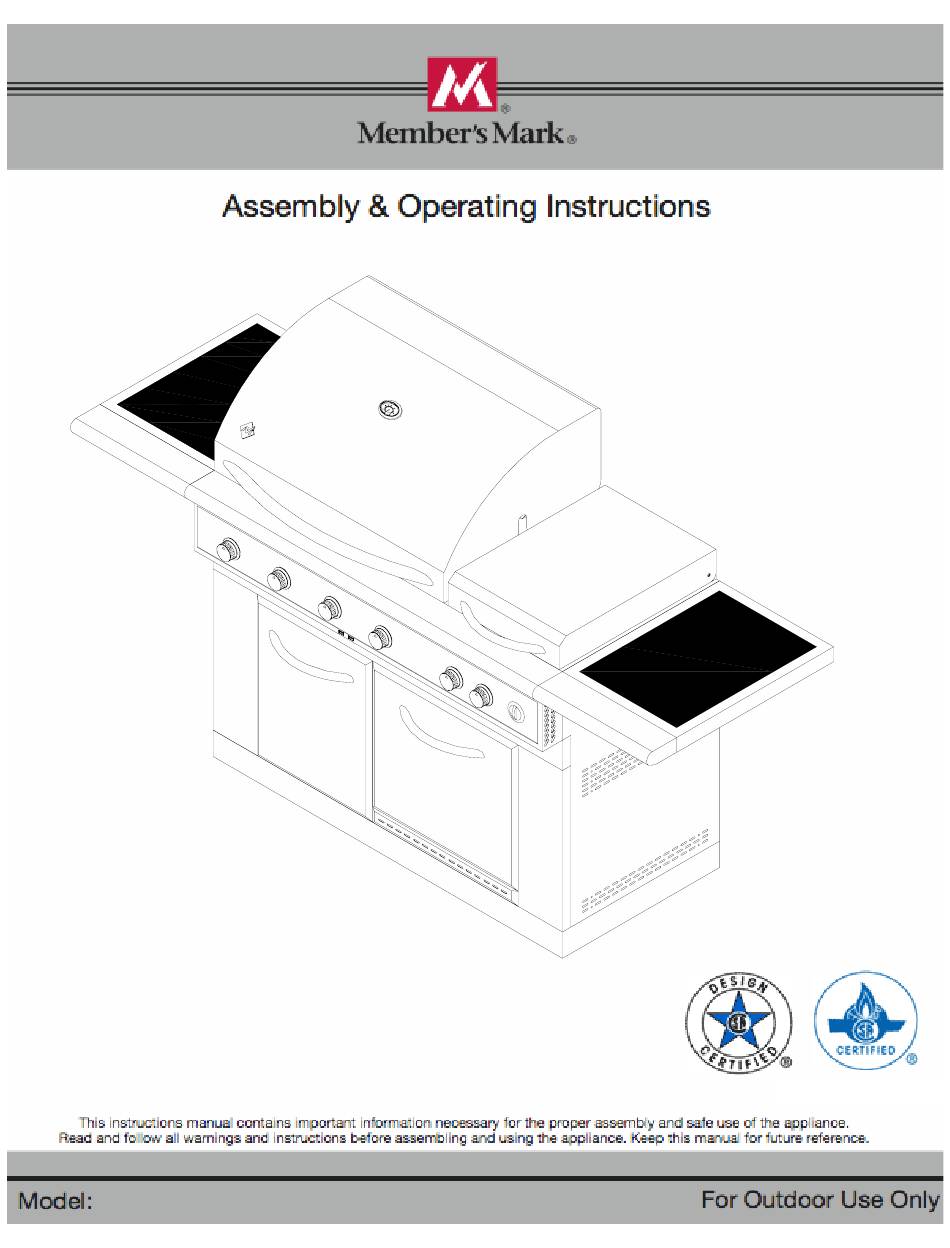

  • Page 1 PR Item#: US Item#: Canada Item#: FOR PROPANE GAS USE ONLY J14Y08P-1 720-0586A...

  • Page 2: Table Of Contents

    Table of Contents Safety Instruction ..... Trouble Shooting ..……………… 23-24 Part Check list………………………………...

  • Page 3: Safety Instruction

    Safety Instruction continued WARNING ELECTRICAL GROUNDING INSTRUCTIONS This appliance (light & rotisserie motor) is equipped with a plug and should be plugged directly into a properly grounded receptacle. When installed, must be electrically grounded in accordance with local codes or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1 DO NOT cut or remove the grounding prong from this plug.
  • Page 4 Safety Instruction continued Pressure regulator and hose assembly supplied with the LP-Gas Supply System outdoor cooking gas appliance must be used. Never substitute other types of regulator. Contact customer service for manufacturer specified replacement parts. If the information is not followed exactly, a fire resulting in death or •This outdoor cooking gas appliance is equipped with a serious injury could occur.
  • Page 5 Safety Instruction continued When using the grill, do not touch the grill rack, burner DO NOT USE ALUMINUM FOIL TO LINE THE GRILL grate or immediate surroundings as these areas RACKS OR GRILL BOTTOM. become extremely hot and could cause burns. Use only This can severely upset combustion airflow or trap dry potholders.

  • Page 6: Part Check List

    Parts Check List Please check all the parts before assembling the grill to make sure every parts is ready. A. Body Assembly-------- 1pc. B. Right Side Shelf----------1pc. C. Left Side Shelf------------1pc. D.Rotisserie Motor Bracket------ E. Rotisserie Motor----------1pc. F. Rotisserie Kit ------------1set. 1pc.
  • Page 7 Assembly Instruction continued Side shelf, left and right (Screws has been attached on side shelf or side panel.) Remove the 3 screws along the top edge of the side shelf. Loosen the bottom 2 screws without removing them completely. Align the bottom key holes on side shelf with 2 loosened screws in side panel.
  • Page 8 Assembly Instruction continued The top 3 screws insert from inside the fire box. Left side shelf assembly step is same as right side shelf. Hooks Flame Tamers Before using your grill, please visually check to make sure each flame tamer is in the correct position. They should be sitting in between the two grooves for each burner.
  • Page 9 Assembly Instruction continued Rotisserie motor and kit , warming rack: (Screws for assembly are attached on motor bracket)
  • Page 10 Assembly Instruction continued Battery Gas tank To release the tank tray glides, slide the bracket up 90 degrees. To lock tank tray glides, slide the bracket to the left 90 degrees. Secure the tank with the tightening the bolt after the tank has been placed in the tray.

  • Page 11: Gas Hook -Up

    Natural Gas supply. Conversion kits may be purchased through www.membersmark.com For grill model#720-0586A, the NG conversion kit is model# 710-0586A. Please purchase the conversion kits appropriate for your gas grill model. Gas Hook - Up NEVER CONNECT AN UNREGULATED GAS SUPPLY L.P.

  • Page 12: Installer Final Check List

    Gas Hook – Up continued 6. Open the tank valve fully (counterclockwise). Apply the 8. Also apply soapy solution to the tank seams. See soap solution with a clean brush to all gas connections. below. If growing bubbles appear, shut tank OFF See below.

  • Page 13: Leak Testing

    Leak Testing Flames should be blue and stable with no yellow tips, excessive noise or lifting. If any of these conditions exist, check to see if the air shutter or burner ports are blocked by dirt, debris, spider webs, etc. If you have any questions regarding flame stability, please call customer service 1-800-790-1299.

  • Page 14: Operating Instruction

    Operating Instruction GENERAL USE OF THE GRILL AND ROTISSERIE DO NOT LEAVE THE GRILL UNATTENDED WHILE Each main burner is rated at 13,000 Btu/hr. The main grill COOKING. burners encompass the entire cooking area and are side ported to minimize blockage from falling grease and WARNING: IMPORTANT! debris.

  • Page 15: Lighting Illustration

    Grill Lighting Instruction continued If you’ve just attempted to light the burner with the igniter, FLAME CHARACTERISTICS allow 5 minutes for any accumulated gas to Check for proper burner flame characteristics. dissipate. Keep your face and hands as far away from the grill as possible.

  • Page 16: Motor Instruction

    Lighting Illustration Push and turn Main Burner knob slowly to IGNITE/HI Keep pushing the knob until the burner is lit. IGNITE / HI If burner does not light up, turn the knob to OFF and repeat the lighting procedure. Push and slowly turn the Searing/Rear Burner knob to IGNITE/ON position.

  • Page 17: Grill Light

    Motor Instruction WARNING ELECTRICAL GROUNDING INSTRUCTIONS This appliance (rotisserie motor) is equipped with a plug and should be plugged directly into a properly grounded receptacle. DO NOT cut or remove the grounding prong from this plug. Keep the rotisserie motor electric cord away from the heated surfaces of the grill. When not in use remove and store the motor in a dry location.

  • Page 18: Care And Maintenance

    Grill light 3. Take out the light 4.Remove the glass cover from the light compartment. 5. Use a flathead screwdriver to loosen the 2screws locking the bulb in place. (Loosen but not remove the nether two screws under the light first. ) 6.
  • Page 19 Care and Maintenance HOW TO REPLACE MAIN BURNER GRILL RACK The easiest way to clean the grill is immediately after cooking is completed and after Step 1. Insert the burner onto the orifice. turning off the flame. Wear a barbeque mitt to protect your hand from the heat and steam.

  • Page 20: Refrigerator

    Care and Maintenance continued REFRIGERATOR CAUTION: Failure to unplug the unit could result in electrical Operating Your Unit shock or personal injury. Your unit has only one control for regulating the temperature in the compartment. The Power Failure temperature control is located on top side of the Most power failures are corrected within a few compartment.
  • Page 21 Refrigerator Safe Guide IMPORTANT: READ THE FOLLOWING PRIOR TO CONNECTING POWER AND USE To reduce the risk of fire, electrical shock or injury when using this unit, follow basic precaution, including the following. Remove all packages before using this unit. WARNING Use two or more people to move and install this unit.
  • Page 22 Refrigerator Installation Instruction Food Storage Locate the unit away from direct sunlight. Direct Use plastic warp to keep food and place evenly on sunlight may affect the acrylic coating, and heat wire rack or drawer. sources may increase electrical consumption. Keep hot food cool down before put into this Extremely cold ambient temperature may also refrigerator for energy saving.

  • Page 23: Trouble Shooting

    Trouble Shooting SPIDER AND INSECT WARNING Checking and cleaning burner/ venturi tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill. Spiders and small insects occasionally spin webs or make nests in the grill burner tubes during transit and warehousing.
  • Page 24 Trouble Shooting continued PROBLEM SOLUTION When attempting to light my grill, it will not Make sure you have a spark while you are trying to light the burner (if no spark) light immediately. Ensure that the wire is connected to the electrode assembly. Clean wire (s) and / or electrode with rubbing alcohol and a clean swab.

  • Page 25: Exploded View

    720-0586A Exploded View 2008.10.08 A0...

  • Page 26: Part List

    720-0586A Part List Warranty Warranty Part (Description) Part (Description) coverage coverage Main lid screw Light switch Temperature Gauge heat Timer insulating spacer Temperature Gauge Electronic igniter module Temperature Gauge Cart frame, front Housing Logo Bottle opener Main lid Greasy tray...
  • Page 27 720-0586A Part List continued Warranty Warranty Part (Description) Part (Description) coverage coverage Rotisserie burner ignition Back panel wire Rotisserie Burner Flex Power cord Gas line Rotisserie orifice w/brass Transformer elbow Cable strainer Rotisserie Heat shield Power cord fix bracket Rotisserie burner...

  • Page 28: Ordering Parts

    Ordering Parts HOW TO ORDER REPLACEMENT PARTS IMPORTANT To make sure you obtain the correct replacement part(s) Use only factory authorized parts. The use of any part that for your gas grill, please refer to the parts list on page is not factory authorized can be dangerous.
  • Page 29 Grill Cooking Chart WEIGHT OR HEAT APPROXIMATE SPECIAL INSTRUCTIONS FOOD THICKNESS SETTING TIME AND TIPS Place in aluminum foil pan. French fries Medium 15 to 30 minutes Grill, stirring occasionally Grill, turning once when juices rise to the surfaces. MEATS BEEF Medium Do not leave hamburgers unattended since a flare- Hamburgers...

  • Page 30: Grill Recipe Suggestion

    Grill Recipe Suggestion continued Combine first 4 ingredients, add onion butter and sprinkled with chopped BBQ SALMON and marinade flank steak with it. parsley and a crisp lettuce salad. 2 large salmon steaks Refrigerate at least 4 hours or overnight. In medium bowl, combine shrimp Remove steak and grill on your 2 tbs.
  • Page 31 Grill Recipe Suggestion continued Bring marinade to boil on the side burner in a Marinade ribs for 3 hours. Use marinade FAJITAS saucepan. Add remaining 1/3 c. water and for basting by adding beer to it. Place pan 1-1/2 lb. flank steak or boned chicken peanut butter.

  • Page 32: Limited Warranty

    Limited Warranty Member’s Markl warrants to the original consumer-purchaser only that this product (Model #720-0586A) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. The manufacturer reserves the right to require photographic evidence of damage, or that defective parts be returned, postage and or freight pre-paid by the consumer, for review and examination.
