9000

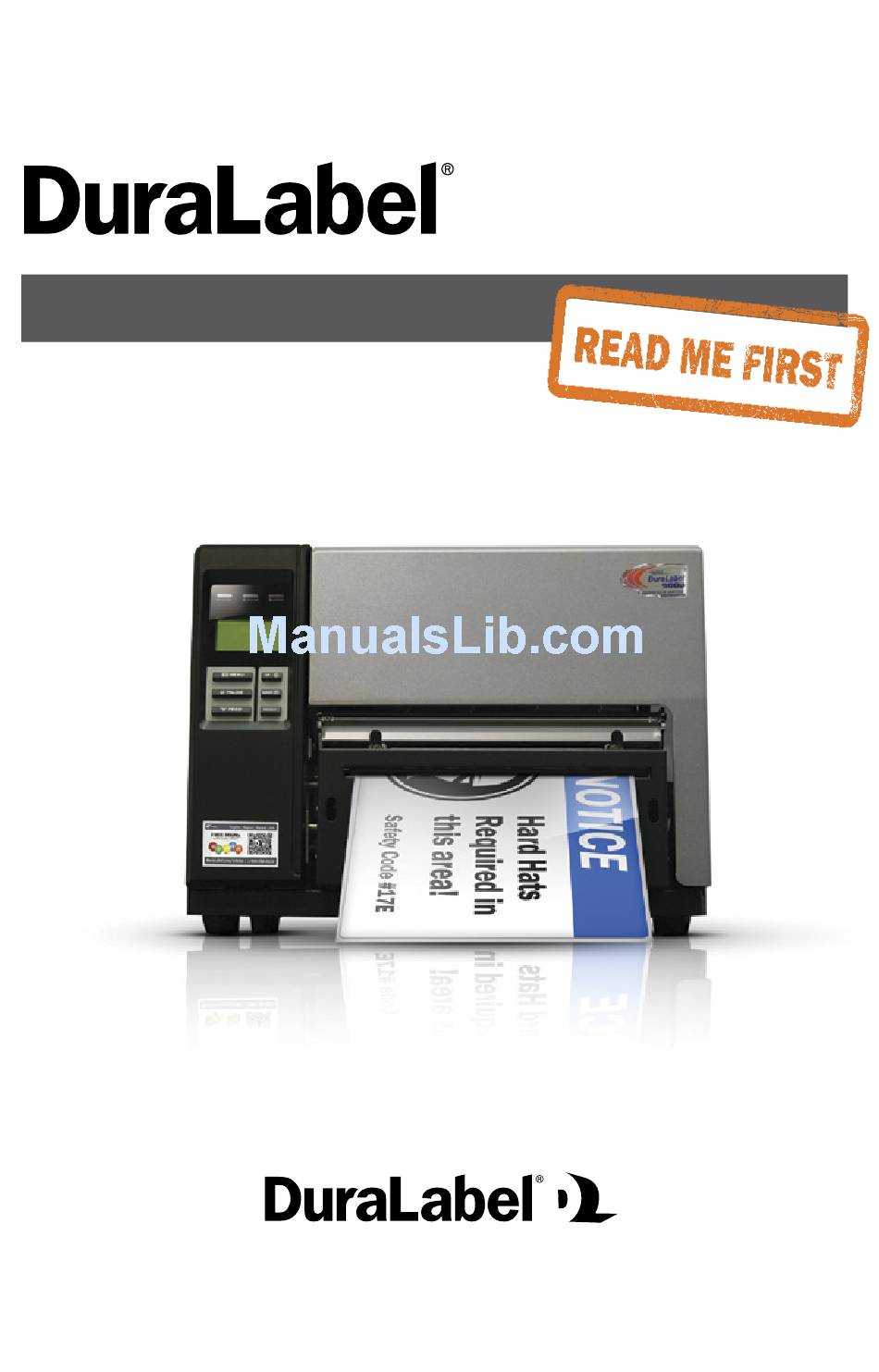

QUICKSTART GUIDE
Graphic Products, Inc. | 800.788.5572
DuraLabel.com
|
GraphicProducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DuraLabel 9000

Summary of Contents for DuraLabel 9000

  • Page 1 9000 QUICKSTART GUIDE Graphic Products, Inc. | 800.788.5572 DuraLabel.com GraphicProducts.com...

  • Page 2: Minimum System Requirements

    Minimum System Requirements Operating System: Windows 2000 SP , XP SP , Vista, 7 Memory: 128 MB RAM Hard Drive: 100 MB Additional Requirements: IT Administrator privileges © 2008–2013 Graphic Products, Inc. All Rights Reserved...

  • Page 3: Table Of Contents

    4.1 Upgrading a Driver ..........9 4.2. Installing DuraLabel 9000 Software Using a USB Cable ....9 4.3.

  • Page 4: Introduction

    You’ll be printing arc flash, NFPA, right-to-know, GHS and custom labels in no time! Call us at 800.788.5572 if you have any questions about your new DuraLabel 9000 Printer. We’re here to help! *Refer to the DuraSuite User’s Guide for complete information.

  • Page 5: Equipment Checklist

    2. Equipment Checklist PACKAGE CONTENTS  DuraLabel 9000 Printer  DuraLabel 9000 Installation CD  DuraSuite Labeling Software Installation CD  DuraLabel 9000 QuickStart Guide and User’s Guide  Power Cord  USB Cable  Supply Guides (2)  Ribbon Supply Core ...

  • Page 6: Loading The Printer

    LOADING THE PRINTER 3. Loading the Printer DuraLabel ribbon and vinyl supplies have been optimized for compatibility and print quality. Only authorized DuraLabel supplies from Graphic Products will print correctly with the DuraLabel 9000 Printer. 3.1 Loading Vinyl Supply Always turn the power OFF when loading supplies. Always wait at least 5 seconds before turning power back ON.
  • Page 7 F. Fit the supply guide onto the label bar, FIGURE 3 The inside supply guide is set for 6" against the vinyl supply but with enough vinyl supply/media. room for the supply to rotate easily. Supply Guides Supply Bar Vinyl Supply/Media FIGURE 4 DuraLabel.com 800.788.5572...
  • Page 8 NOTE: Make sure the label supply threads under the green media sensor, located under the print head. I. Move the adjustable media guides to fit the width of the vinyl supply, securing the vinyl in place. Adjustable Label Guides Media Sensor Printed Label Opening FIGURE 6 DuraLabel.com 800.788.5572...

  • Page 9: Loading Ribbon

    D. Pull the ribbon supply back, then down and thread it underneath the print head mechanism and above the ribbon sensor (black bar above the green media sensor). Media Sensor Ribbon Sensor Ribbon Rewind Spindle (front) Ribbon Spindle (back) FIGURE 3 Print Head Mechanism DuraLabel.com 800.788.5572...

  • Page 10: Connecting The Printer

    4. Connecting the Printer A. Connect the power supply. B. Connect the DuraLabel 9000 to your PC using a USB or parallel cable. C. Turn on the DuraLabel 9000. D. If using a USB cable, follow instructions in Section 4.2, Using a USB Cable.

  • Page 11: Upgrading A Driver

    You may need IT administrator privileges to perform this installation. If Found New Hardware announcement appears, select No, not at this time. A. Insert the DuraLabel 9000 Installation CD in your computer’s disk drive. A DuraLabel 9000 startup screen appears. DuraLabel.com...

  • Page 12: Installing Duralabel 9000 Software Using A Parallel Cable

    4.3 Installing DuraLabel 9000 Software Using a Parallel Cable NOTE: Skip this step if using a USB cable. You may need IT administrator privileges to perform this installation. A. Insert the DuraLabel 9000 Installation CD in your computer’s disk drive. A DuraLabel 9000 startup screen appears. DuraLabel.com 800.788.5572...
  • Page 13 C. Click I Agree on the Windows Printer Driver License Agreement window that appears. D. Select DuraLabel 9000 and click Next on the DuraLabel Driver Selection window that appears. E. Choose the install location and click Install on the Choose Install Location window that appears.

  • Page 14: Configuring Printer Drivers

    D. If your label size is not shown in the Stock Name drop-down menu, click Edit and set the size to match your label size. NOTE: Your DuraLabel 9000 printer drivers are preset to several print values. Please be aware that changing a preset value is not fully supported by all software programs.

  • Page 15: B Mark Label Printing Instructions

    G. The printer will begin to feed supply as it calibrates. H. To change driver settings, follow directions in Section 6.2.2, Driver Settings, in the DuraLabel 9000 User’s Guide. 5.3 B Mark Label Printing Instructions Label supply must be calibrated to print B Mark labels. Using the menu on the left side of the front of your printer: A.
  • Page 16 Graphic Products, Inc. | 800.788.5572 DuraLabel.com | GraphicProducts.com © 2008–2013 Graphic Products, Inc. All Rights Reserved v. 2.0 - 01/23/13...
