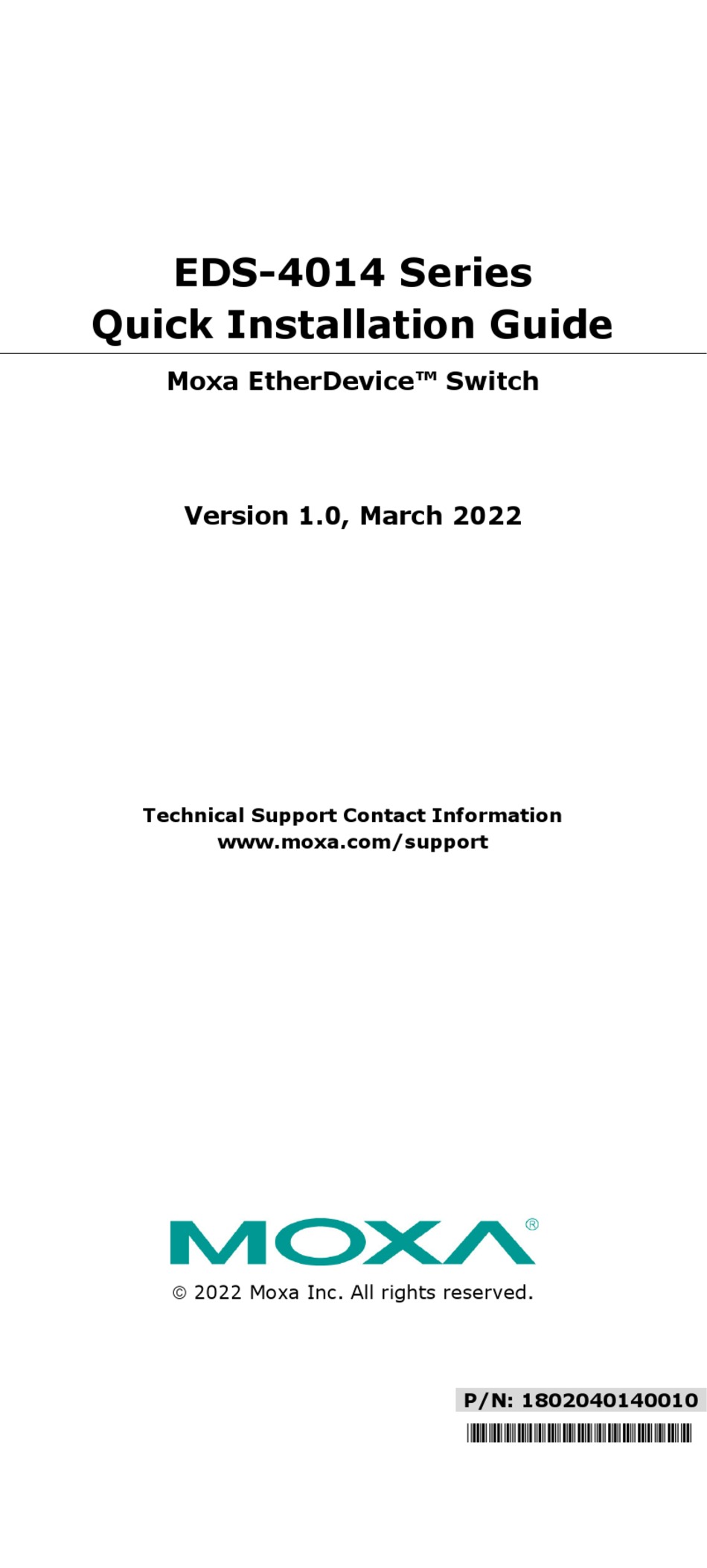

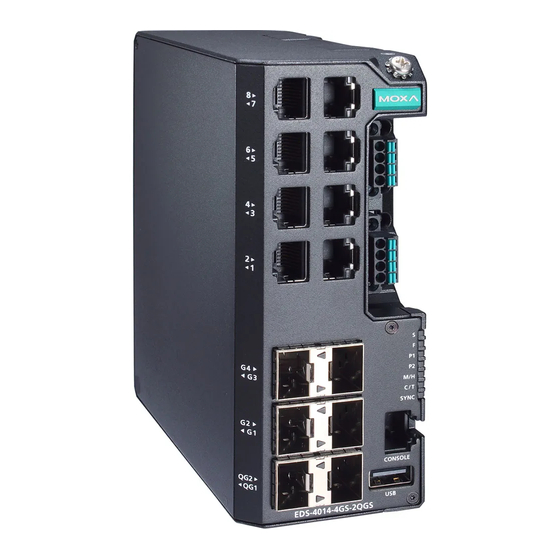

- Page 1 EDS-4014 Series Quick Installation Guide Moxa EtherDevice™ Switch Version 1.0, March 2022 Technical Support Contact Information www.moxa.com/support 2022 Moxa Inc. All rights reserved. P/N: 1802040140010 *1802040140010*...
-
Page 2: Package Checklist
Package Checklist The EDS-4014 Series industrial DIN-rail EtherDevice Switch (EDS) is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 EDS-4014 Ethernet switch • Quick installation guide (printed) •... -
Page 3: Mounting Dimensions
Bottom Panel View 1. microSD card slot (currently disabled) 2. Reset button 3. DIP switches for Turbo Ring, Ring Master, and Ring Coupler Mounting Dimensions - 3 -... -
Page 4: Din Rail Mounting
DIN-rail Mounting The DIN-rail mounting kit is fixed to the back panel of the EDS device when you take it out of the box. Mount the EDS device on corrosion- free mounting rails that meet the EN 60715 standard. Installation STEP 1—Insert the upper lip of the DIN rail into the DIN-rail mounting kit. -
Page 5: Wall Mounting (Optional)
Wall Mounting (Optional) For some applications, you will find it convenient to mount the Moxa EDS device on a wall, as shown in the following illustrations: STEP 1—Remove the DIN rail attachment plate from the rear panel of the EDS device, as illustrated in the diagram on the right. -
Page 6: Wiring Requirements
Wiring Requirements ATTENTION Safety First! External metal parts are hot. Take the necessary precautions if you are required to handle the device. ATTENTION In order to ensure reliable operations, please make sure the operating temperature of the environment does not exceed the specifications. -
Page 7: Wiring The Relay Contact
Grounding the Moxa EDS Series Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. -
Page 8: Wiring The Redundant Power Inputs
Relay: The two contacts of the 4-pin terminal block connector are used to detect user-configured events. The two wires attached to the fault contacts form an open circuit when a user-configured event is triggered or there is no power supply to the switch. If a user- configured event does not occur, the fault circuit remains closed. -
Page 9: Wiring The Digital Inputs
Wiring the Digital Inputs The EDS device has one set of digital input (DI). The DI consists of two contacts of the 4-pin terminal block connector on the EDS's right-side panel. Refer to the instructions and diagram below on how to connect the wires to the terminal block connector on the receptor. -
Page 10: Communication Connections
Communication Connections Each EDS-4014 Series switch has various types of communication ports: • RJ45 console port (RS-232 interface) • USB storage port (type A connector, currently disabled) • 10/100BaseT(X) Ethernet ports • 100/1000BaseSFP ports • 1000/2500BaseSFP slots • microSD card slot (currently disabled) -
Page 11: Fiber Port
RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-over Cable Wiring 100/1000BaseSFP and 1000/2500BaseSFP (mini-GBIC) Fiber Port The Gigabit Ethernet fiber ports on the switch are 100/1000BaseSFP and 1000/2500BaseSFP fiber ports, which must use 100M,1G, 2.5G mini-GBIC fiber transceivers to work properly. -
Page 12: Reset Button
ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the Laser Beam. Reset Button There are two functions available on the Reset Button. One is to reset the Ethernet switch to factory default settings by pressing and holding the Reset button for 5 seconds. -
Page 13: Device Led Indicators
Ring Master, these switches will auto-negotiate to determine which one will be the Ring Master. LED Indicators The front panel of the Moxa EDS-4014 Series contains several LED indicators. The function of each LED is described in the following table: Device LED Indicators... - Page 14 Color State Description 1. The relay contact has been triggered 2. The ingress rate limit has been exceeded and the port has entered shut down mode FAULT 3. Invalid Ring port connection When the system boots up and runs correctly or a user- configured event is not triggered.
- Page 15 Color State Description System Green + The switch is being Blinking Amber + discovered/located by the locator (Except (2 times/sec) function. PWR) System The switch is Green + Rotate importing/exporting a file via Amber + On -> Off (Except ABC-02-USB or SD card Sequentially PWR) (currently disabled).
-
Page 16: Specifications
Pre-installed Power -LV/-LV-T models: PWR-100–LV Module -HV/-HV-T models: PWR-105-HV-I Note The EDS-4014 Series supports modular power supplies. The model names and power parameters are determined by the installed power module. For example: EDS-4014-T + PWR-100-LV = EDS-4014-LV-T EDS-4014-T + PWR-105-HV-I = EDS-4014-HV-T If you install a different power module, refer to the specifications of the corresponding model. - Page 17 Installation DIN-rail mounting, wall mounting (with optional kit) Environmental Limits Operating -10 to 60°C (14 to 140°F) for standard models Temperature -40 to 75°C (-40 to 167°F) for -T models Storage -40 to 85°C (-40 to 185°F) Temperature Ambient Relative 5 to 95% (non-condensing) Humidity Altitude...
