2 Fan and electricity
Samsung Electronics
Procedure

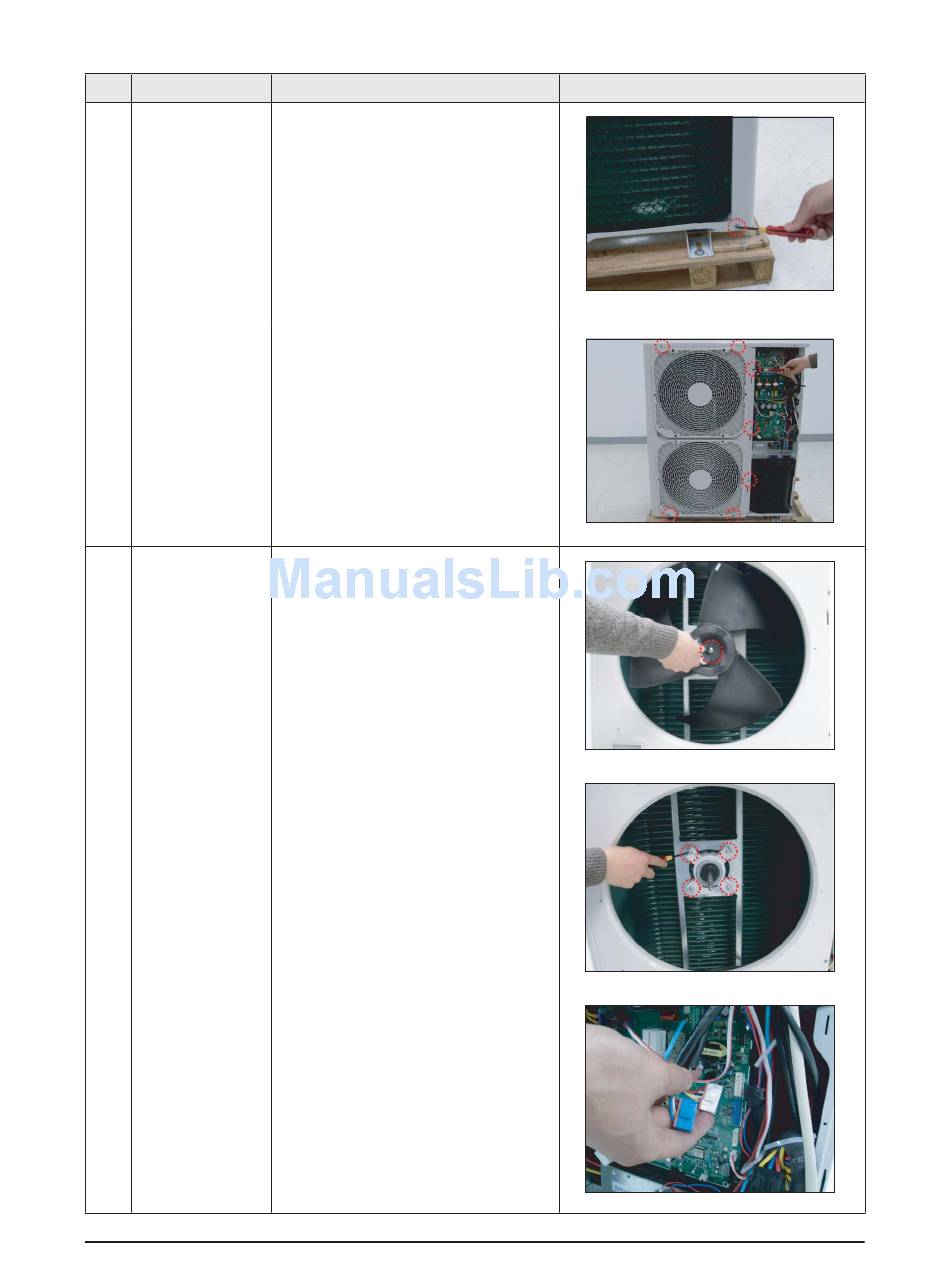

6) Unfasten the two bolts and disassemble the
column. (Use +Screw Driver)
7) Unfasten the eleven bolts and disassemble
the front board. (Use +Screw Driver)
1) Unfasten the flange nut to remove the fan.
(Refer to the right figure.)
(Use Monkey Spanner.)
2) Unfasten the four fixing bolts and remove
the electrical machinery.
(Use Monkey Spanner.)
3) Disassemble the electrical cable. The white
plug is for the upper part. The blue plug is
for the lower part.
