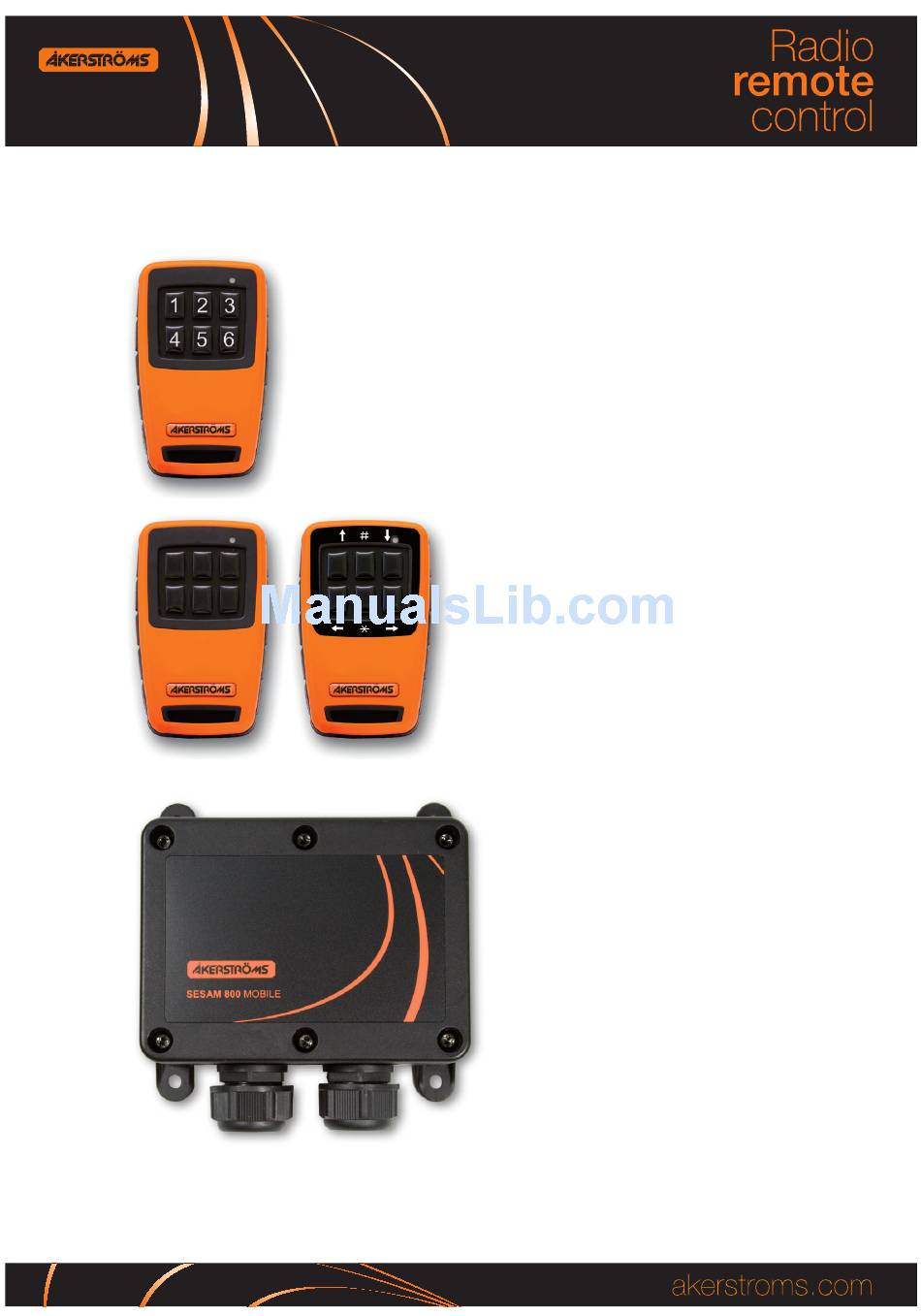

  • Page 1 OPERATING MANUAL SESAM 800 CONFIGURABLE 947422-000 -A0...

  • Page 2: Table Of Contents

    Table of Contents Introduction __________________________________ 3 Scope _______________________________________ 3 Technical Specifications ________________________ 4 Short Description of the System _________________ 5 Receiver __________________________________________________ 5 Transmitters _______________________________________________ 5 Description of the Receiver______________________ 6 Indications on the Receiver ___________________________________ 7 Installation of the Receiver ______________________ 8 Mounting Steps ____________________________________________ 8 Description of the Transmitter __________________ 11 Indications on the Transmitter ________________________________ 11...

  • Page 3: Introduction

    The following guide must be used when installing Åkerströms Sesam remote control system to ensure secure, safe operation. The installation must be carried out by a certified electrician. = This symbol highlights extremely important information. Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 4: Technical Specifications

    120 x120 x 50 mm Weight: 350g Transmitter Specifications S800M6 IP- class: IP67 Dimensions: 100 x 60 x 25 mm Weight: 130g Battery type: 2*AA/LR06 Alkaline Table 1. Technical Specifications, Sesam 800 Configurable Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 5: Short Description Of The System

    1..6. For the unit with no print there is a default or custom made label frame. The transmitters are very rugged and waterproof (IP67). Sesam 800 Configurable Document-ID: 947422-000 Version: A0...

  • Page 6: Description Of The Receiver

    7. LED 7 be placed in left 8. Jumper J1 position in order to 9. Learn/Erase button configure output 10. LED indicators for outputs functions. 11. Output connectors 1..6 Note! Only during configuration. Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 7: Indications On The Receiver

    LED 6 is the top one. An activated output is indicated by a LED in ON state. Output 6 Output 5 Output 4 Output 3 Output 2 Output 1 Figure 2. Output LED numbering and relationship with output terminals Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 8: Installation Of The Receiver

    Step 2 Drill 4 holes (for measures see fig. 9). Mount the receiver. Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 9: Figure 3. Configuring Internal Supply Of Output Power

    Output Power Input (SW) and Positive (+) 12-24 V DC using a 0,75 mm cable (see fig. 3). 941551 PB-Free Figure 3. Configuring internal supply of output power Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 10: Figure 4. Numbering Of Outputs

    By pressing the buttons on the transmitter, verify that all functions work correctly as described in table 3. Note that some of the but- tons may be set as remaining (see chap. 11). Sesam 800 Configurable Document-ID: 947422-000 Version: A0...

  • Page 11: Description Of The Transmitter

    Continuous GREEN LED = Output activated in the receiver (feedback information from receiver). Battery warning Continuous RED after activating a command = Low battery. 3 long RED LED flashes = Battery depleted, transmitter can not send commands. Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 12: Operation

    4. Close the cover by first inserting the rear of the cover into the trans- mitter, and the pushing the top back down. 5. Tighten the 6 screws (torque 1,0 Nm). Figure 6. Battery cover and the screws holding the cover Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 13: Figure 7. Batteries Inserted In The Transmitter

    Mount the caps over the screws. To delete a transmitter from the receiver, push the “Learn/Erase” button until LED 7 is ON. Continue by pressing the “Learn/Erase” button once more until LED 7 is OFF. Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 14: Pairing Receiver And Transmitter

    (latched). Output LED lit indicates remaining mode active. To store the configuration press the learn button for 1 second. Suc- cessful store is indicated with 3 flashes on LED 7. Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...

  • Page 15: Receiver Drill Measures

    10. Reinstall the Jumper J1 in its delivery setting. 11. Start the receiver. Receiver Drill Measures 120 mm 102 mm Figure 9. The receiver shall be attached with 4 mm screws that are suitable for the surrounding environment Sesam 800 Configurable Document-ID: 947422-000 Version: A0 Author: SH...
  • Page 16 Åkerströms Björbo AB Box 7, SE-785 21 Gagnef, Sweden street Björbovägen 143 SE-785 45 Björbo, Sweden Phone +46 241 250 00 Fax +46 241 232 99 E-mail sales@akerstroms.com www.akerstroms.com © Åkerströms Björbo AB, 2012...
