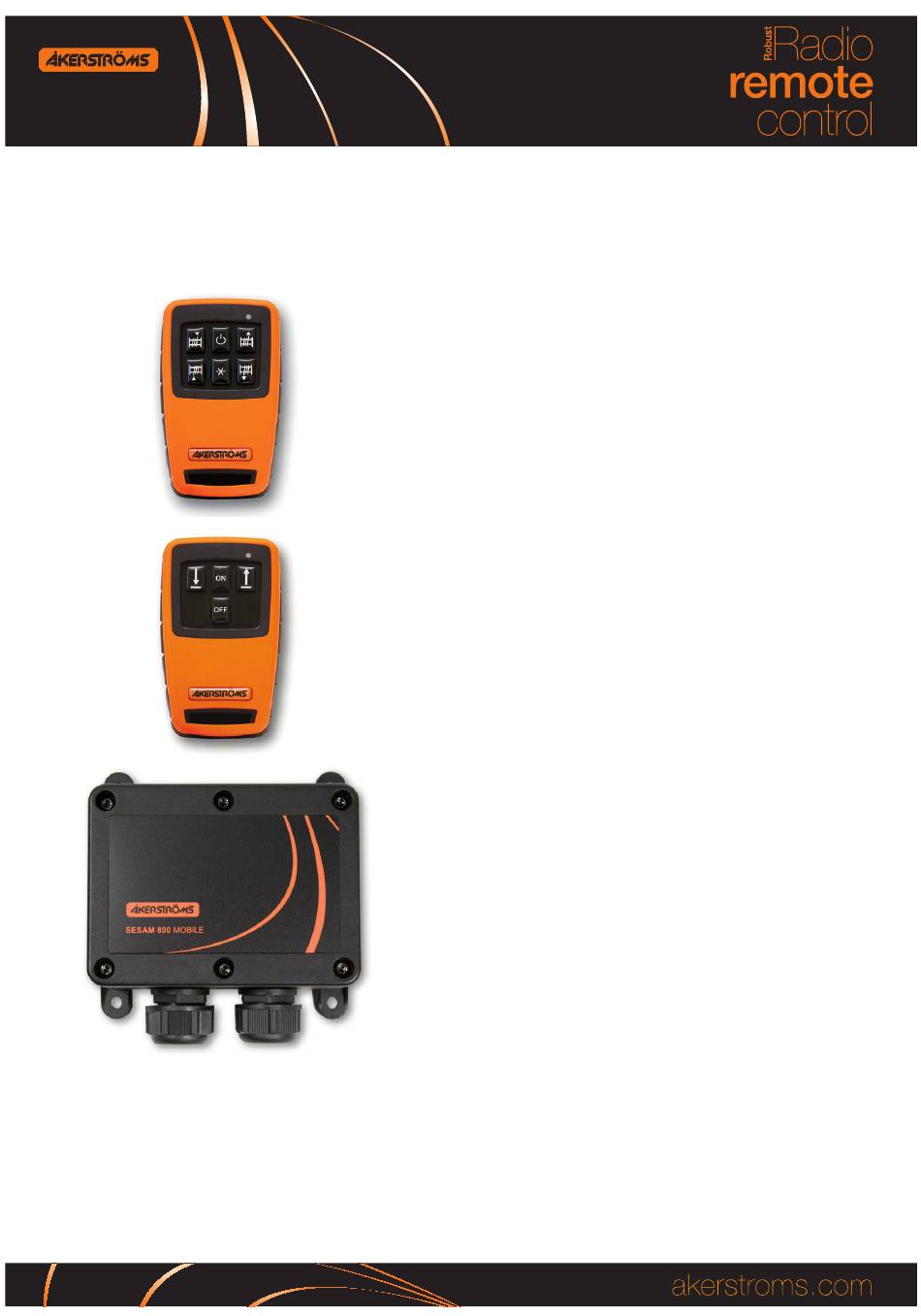

OPERATING MANUAL
SESAM 800 Mobile
WINCH
943549-000 EN -F1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SESAM 800 Mobile and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akerstroms SESAM 800 Mobile

Summary of Contents for Akerstroms SESAM 800 Mobile

  • Page 1 OPERATING MANUAL SESAM 800 Mobile WINCH 943549-000 EN -F1...

  • Page 2: Table Of Contents

    14.1 Activating the Transmitter ������������������������������������ 24 14.2 Deactivating the Transmitter���������������������������������� 25 14.3 Controlling the Device �������������������������������������� 25 Receiver Drill Measures �����������������������������26 Replacing Batteries in Sesam 800 M6 & M4 �������������27 Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...
  • Page 3 Figure 12. Backside of the cover inserted in its position ������������������������� 27 List of tables Table 1. Technical Specification, Sesam 800 Mobile ��������������������������� 5 Table 2. Connection Cables with contact art.no: 942867-000 �������������������� 9 Table 3. Connection Cables without contact art.no: 942867-001 ����������������� 9 Table 4.

  • Page 4: Introduction

    The way the set of outputs is used for controlling the outputs depends on the specific installation and is out of the scope of the Sesam 800 Mobile system.

  • Page 5: Technical Specifications

    Screw size (enclosure): TX20 Transmitter specifications Sesam 800 M6 & M4 IP- class: IP67 Dimensions: 100 x 60 x 25 mm Weight: 130g Battery type: 2*AA/LR06 Alkaline Screw size (enclosure): Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 6: Short Description Of The System

    Type label position Screw Sizes Receiver: Torx TX 20, torque 2.0 Nm. Transmitter M6 & M4: Phillips Screw PH 2, torque 1.0 Nm. Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 7: Description Of The Receivers

    • With assembled cable without plug (IP67) • Without cable (not guaranteed IP67) Receivers to Forestry winch • With assembled cable (IP67) • Without cable (not guaranteed IP67) Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 8: Description Of The Receivers To Atv Winch

    4. Internal supply to the outputs (see section 8.1) 5-7. Status LEDs 8. Learn/Erase button 9. Jumper J1 10. Output LEDs 11. LEDs for cable control. 12. Output connections 1-6 Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 9: Installation Of The Assembled Connection Cable

    Winch 1 out Winch 2 in Winch 2 out Ext winch 1 in Ext winch 1 out Ext winch 2 in Ext winch 2 out Remaining Spare Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 10: Installation Of Non-Assembled Cables

    Fuse with 3A blade fuse near the battery 3. Internal supply to the outputs (see section 8.1) 4. Outputs external card for cable control 5. Output connections 1-6 Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...
  • Page 11 • Output/Connection 3 - Winch 2 In. • Output/Connection 4 - Winch 2 Out. • Output/Connection 5 - Spare. • Output/Connection 6 - Remaining function ex. lamp. Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...
  • Page 12 • External Pin 3 - Winch 1 Out. • External Pin 4 - Winch 2 In. • External Pin 5 - Winch 2 Out. • External Pin 6 - Ground, 0 V (-). Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 13: Cable Control

    • To enable cable management place Jumper J1 in the left position. • To disable the cable control place Jumper J1 in the lower position. The recipient must be restarted for Jumper location to be updated. Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1...

  • Page 14: Description Of The Receivers To Forestry Winch

    Fuse with 3A blade fuse near the battery 4. Internal supply to the outputs (see section 8.1) 5-7. Status LEDs 8. Learn/Erase button 9. Jumper J1 10. Output LEDs 11. Output connections 1-6 Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 15: Installation Of The Assembled Connection Cable

    The voltage cable is fused with a 3A blade fuse near the battery. Table 4. Color on cable Function Color Text on cable +12V line Brown Ground (-) ,0V Blue Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 16: Installation Of Non-Assembled Cables To Forestry Winch

    1. Ground, 0V (-) 2. 12/24 V DC power. Fuse with 3A blade fuse near the battery 3. Internal supply to the outputs (see section 8.1) 4. Output connections 1-6 Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...
  • Page 17 NOTE - fuse with 3A blade fuse near the battery. • Ground, 0V (-) (see in Figure 5). Outputs/functions • Output/Connection 1 - Winch 1 In • Output/Connection 2 - Winch 1 Out Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 18: Indicators On The Receiver

    LED 6 Status ( Indicates that information from a transmitter paired with the receiver has been received. LED 7 Learn ( Indicates if the transmitter is in “Learn” Mode. Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 19: Table 5. Output Leds Connected To The Functions

    2 In 1 Out 1 In 10.1.3 LED’s for Forestry Winch Table 7. Output LEDs connected to the functions Output LED Function Winch Winch 1 In 1 Out Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 20: Installation Of The Receiver

    Output Power Input (see in Figure 1) and Positive (+) 12/24 V DC using a 0,75 mm cable (see Figure 6). Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 21: Figure 6. Configuring Internal Supply Of Output Power

    The relationship between buttons and outputs are described in table 8. Table 8. Relationship between buttons and outputs Output Button M6 6 Button 5, output 6: is an alternating function that fits the control of lights, etc. Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...
  • Page 22 ) on the transmitter until the green indica- tor lights. The transmitter is now active. 2. By pressing the transmitter button, verify that the winch in and out functions work. Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 23: Description Of The Transmitter

    Sesam 800 M3, 3 button transmitter 1. Status LED 2. Button 1-3 Figure 8. Sesam 800 M4 transmitter indication and buttons. 1. Status LED 2. Button 1-4 Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 24: Indications On The Transmitter

    The transmitter indicator will flash GREEN quickly during startup and then flashing GREEN slowly when contact with the receiver is enabled. The transmitter is now enable to control the winch. Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1...

  • Page 25: Deactivating The Transmitter

    • Button 4 ( ), Winch 2 in. • Button 5 ( ), M6:Remaining function ex. lamp. M4:OFF (3sec.). • Button 6 ( ), Winch 2 out. Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 26: Receiver Drill Measures

    Receiver Drill Measures 120 mm 102 mm Figure 9. Receiver Drill Measures The receiver shall be attached with 4 mm screws that are suitable for the surrounding environment Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...

  • Page 27: Replacing Batteries In Sesam 800 M6 & M4

    Figure 10. Figure 11. Batteries Figure 12. Backside of the Battery cover and inserted in the cover inserted in the screws holding transmitter. its position the cover Sesam 800 Mobile Winch (original instructions) Document-ID: 943549-000 EN Version: F1 Author: SH...
  • Page 28 Åkerströms Björbo AB Box 7, SE-780 21 Gagnef, Sweden street Björbovägen 143 SE-786 97 Björbo, Sweden Phone +46 241 250 00 Fax +46 241 232 99 E-mail sales@akerstroms.com www.akerstroms.com © Åkerströms Björbo AB, 2012...
