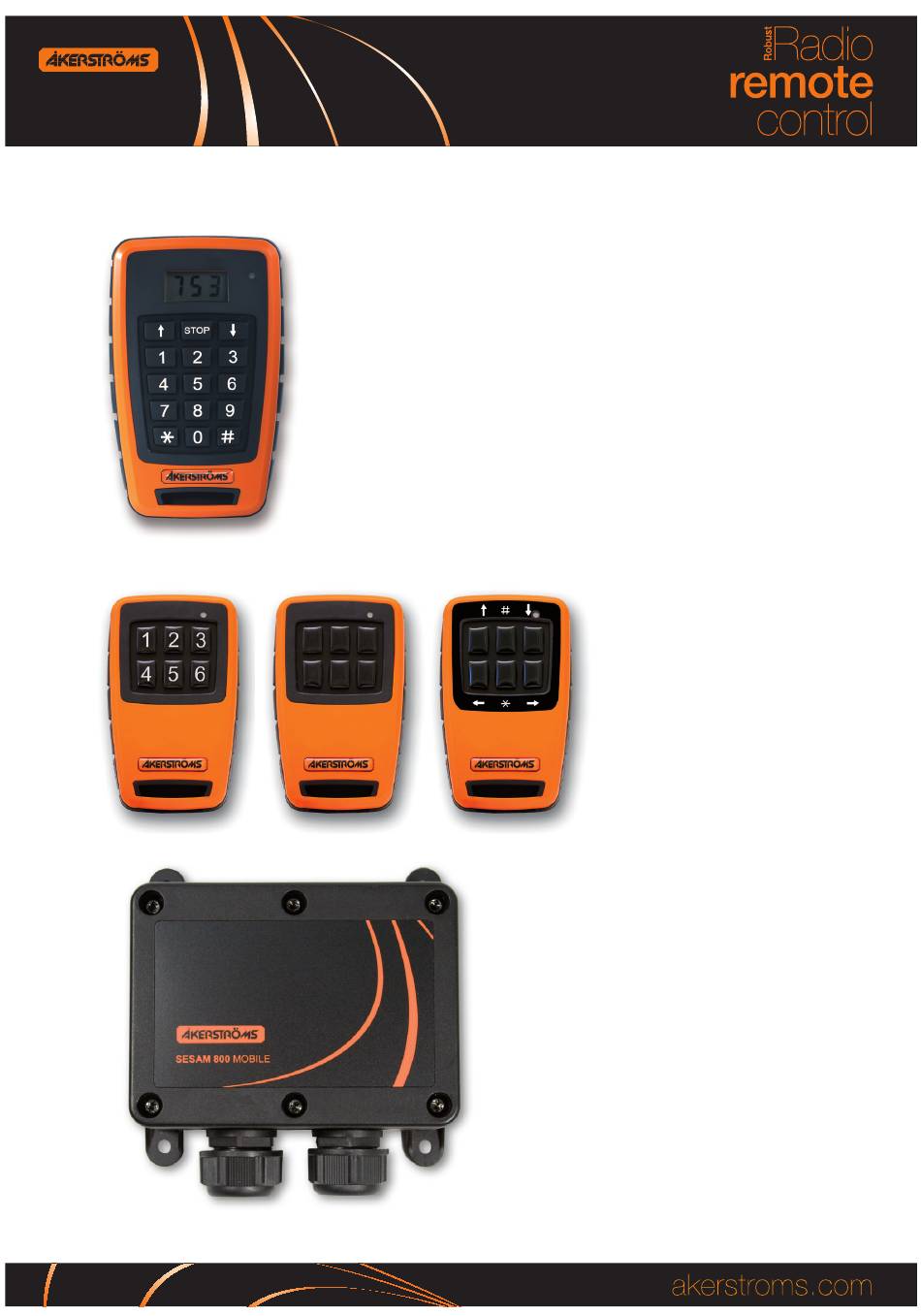

OPERATING MANUAL
SESAM 800
CONFIGURABLE OEM
955839-000 EN -B1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SESAM 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akerstroms SESAM 800

Summary of Contents for Akerstroms SESAM 800

  • Page 1 OPERATING MANUAL SESAM 800 CONFIGURABLE OEM 955839-000 EN -B1...

  • Page 2: Table Of Contents

    14.1 4 Channel digital input module (optional) ________________________ 16 14.2 RS232 Serial output module (optional) _________________________ 18 Receiver Drill Measures ____________________________________ 19 List of figures Figure 1. Sesam 800 RXM model indicators, connections and jumper ____________ 6 Figure 2. Output LED numbering and relationship with output terminals ___________ 7 Figure 3. Configuring internal supply of output power _________________________ 9 Figure 4.

  • Page 3: Introduction

    Introduction 3 (20) Introduction This manual only covers the installation of the Sesam radio remote system. The Sesam system is not a complete remote control system; it provides only the set of outputs that are driven according to the actions performed by the operator of the transmitter.

  • Page 4: Technical Specifications

    Technical Specifications 4 (20) Technical Specifications System Specifications Operating frequency band: 869.7-870.0 MHz, 12 channels auto-select Channel separation: 25 kHz Power output: ≤ 5 mW Functional sensitivity: Better than -107 dBm BER 10 Transmission principle: GMSK, TDMA Operating Temperature: -25°C - +55°C Storage Temperature: -40°C - +85°C Receiver specifications...

  • Page 5: Short Description Of The System

    Short Description of the System 5 (20) Short Description of the System Receiver Main features: 6 solid state outputs. Outputs and input logic are pre-programmed for custom applications. Waterproof (IP67). Transmitters M6 is a medium size 6- button transmitter. The transmitter comes in 2 different models, one with no button print and one with the button print 1...6.

  • Page 6: Description Of The Receiver

    Description of the Receiver 6 (20) Description of the Receiver Figure 1. Sesam 800 RXM model indicators, connections and jumper 1. Power LED 2. Ground 3. Positive (+) 12-24 V DC connector 4. Output power input 5. LED 5 6. LED 6 7. LED 7 8. Jumper 9. Learn/Erase button 10. LED indicators for outputs 11.

  • Page 7: Indications On The Receiver

    Description of the Receiver 7 (20) Indications on the Receiver The Sesam 800 RXM model has LED indicators that indicate different param- eters (see Figure 1 for positions of the LEDs). The indications on the LEDs are as follows: Power LED Indicates whether the receiver is powered on or not.

  • Page 8: Installation Of The Receiver

    Installation of the Receiver 8 (20) Installation of the Receiver The permanent installation of the receiver must include fuses that protect the equipment and wiring from over current and short-circuit. The power supply to the receiver must be fused with 4A as close to the battery as possible. The cable must be of outer diameter 6-12 mm and each the power conductor at least 0.75mm .

  • Page 9: Figure 3. Configuring Internal Supply Of Output Power

    Installation of the Receiver 9 (20) If the outputs are to be pow ered by the same 12-24 V DC supply as the receiver place a jumper between the Output Power Input (SW) and Positive (+) 12- 24 V DC using a 0.75 mm2 cable (see Figure 3). 941551 PB-Free Figure 3.

  • Page 10: Description Of The Transmitter

    Description of the Transmitter  1 2 3 4 5 6 1. Indicator LED 2. Display 3. Control buttons Sesam 800 M6 Sesam 800 L99 Mobile Figure 5. The transmitter indicator and buttons Control buttons L99 Mobile Button Description Button Description...

  • Page 11: Indicator Led Indications On The Transmitter

    Pairing Receiver and Transmitter 11 (20) Indicator LED Indications on the Transmitter Normal operation Quick flashing RED LED = Sending message but no feedback available from the receiver. Continuous GREEN LED = Output activated in the receiver (feedback information from receiver). Battery warning Continuous RED after activating a command = Low battery.

  • Page 12: L99 Transmitter Configuration

    L99 Transmitter Configuration 11.1 Group ID All Sesam 800 transmitters have a factory pre-programmed unique identity (ID). This is a number between 1000000 and 16777214. In addition to the pre-programmed unique ID, the Sesam L99 has support for Group ID. A group ID consists of a six digit number that the user can configure on the transmitter.

  • Page 13: Configuration Of The Display Window Illumination

    Operation 13 (20) The transmitter can be restored to factory settings by entering “000000” as ID. For security reasons, only group ID’s less than 100000 can be viewed using this configuration method. 11.2 Configuration of the Display Window Illumination The display on the Sesam L99 has built in automatic illumination that can be ON or OFF.

  • Page 14: Replacing Batteries In The Transmitter

    Replacing Batteries in the Transmitter 14 (20) Replacing Batteries in the Transmitter 13.1 Replacing Batteries in the M6 Transmitter If the status indicator on the transmitter indicates low battery, replace the batter- ies promptly. Before changing the batteries note that changing of batteries must take place in a clean environment free from static electricity.

  • Page 15: Replacing Batteries In The L99 Transmitter

    Replacing Batteries in the Transmitter 15 (20) 13.2 Replacing Batteries in the L99 Transmitter If the display on the transmitter indicates “L O b A T”, replace the batteries promptly. Before changing the batteries note that changing of batteries must take place in a clean environment free from static electricity.

  • Page 16: Output Configuration

    Output Configuration 16 (20) Output Configuration The logic of the outputs are pre-programmed by the OEM distributor. See logic table supplied by the OEM distributor. 14.1 4 Channel digital input module (optional) The logic of the inputs are pre-programmed by the OEM distributor. See logic table supplied by the OEM distributor.

  • Page 17: Figure 16. External Digital Input Card

    Output Configuration 17 (20) Note that the cable is connected and crimped in accordance with IPC-A-620. Pin 6 - GND is not internally connected to system ground. - External Pin 6 – Digital input signal ground - External Pin 5 – Digital input 4 (X4) - External Pin 4 – Digital input 3 (X3) - External Pin 3 – Digital input 2 (X2) Pin 6 - GND Pin 5 - DI 4(X4) - External Pin 2 – Digital input 1 (X1) Pin 4 - DI 3(X3) - External Pin 1 - not used...

  • Page 18: Rs232 Serial Output Module (Optional)

    The serial input module is equipped with one RS232 serial channel. When enabled, the current transmitter unique ID, button status and display value (Sesam 800 L99 only) will be output on the serial interface each time any button status changes. This expansion card can be used to connect to external equipment such as a PLC or PC for further processing of the user input from the transmitter.

  • Page 19: Receiver Drill Measures

    Receiver Drill Measures 19 (20) Receiver Drill Measures 120 mm 102 mm Figure 19. Receiver drill measure The receiver shall be attached with 4 mm screws that are suitable for the sur- rounding environment. OPERATING MANUAL S800 CONFIG OEM Document-ID: 955839-000 EN Version: B1 Author: SH...
  • Page 20 Åkerströms Björbo AB Box 7, SE-785 21 Gagnef, Sweden street Björbovägen 143 SE-786 97 Björbo, Sweden Phone +46 241 250 00 Fax +46 241 232 99 E-mail sales@akerstroms.com www.akerstroms.com © Åkerströms Björbo AB, 2018...
