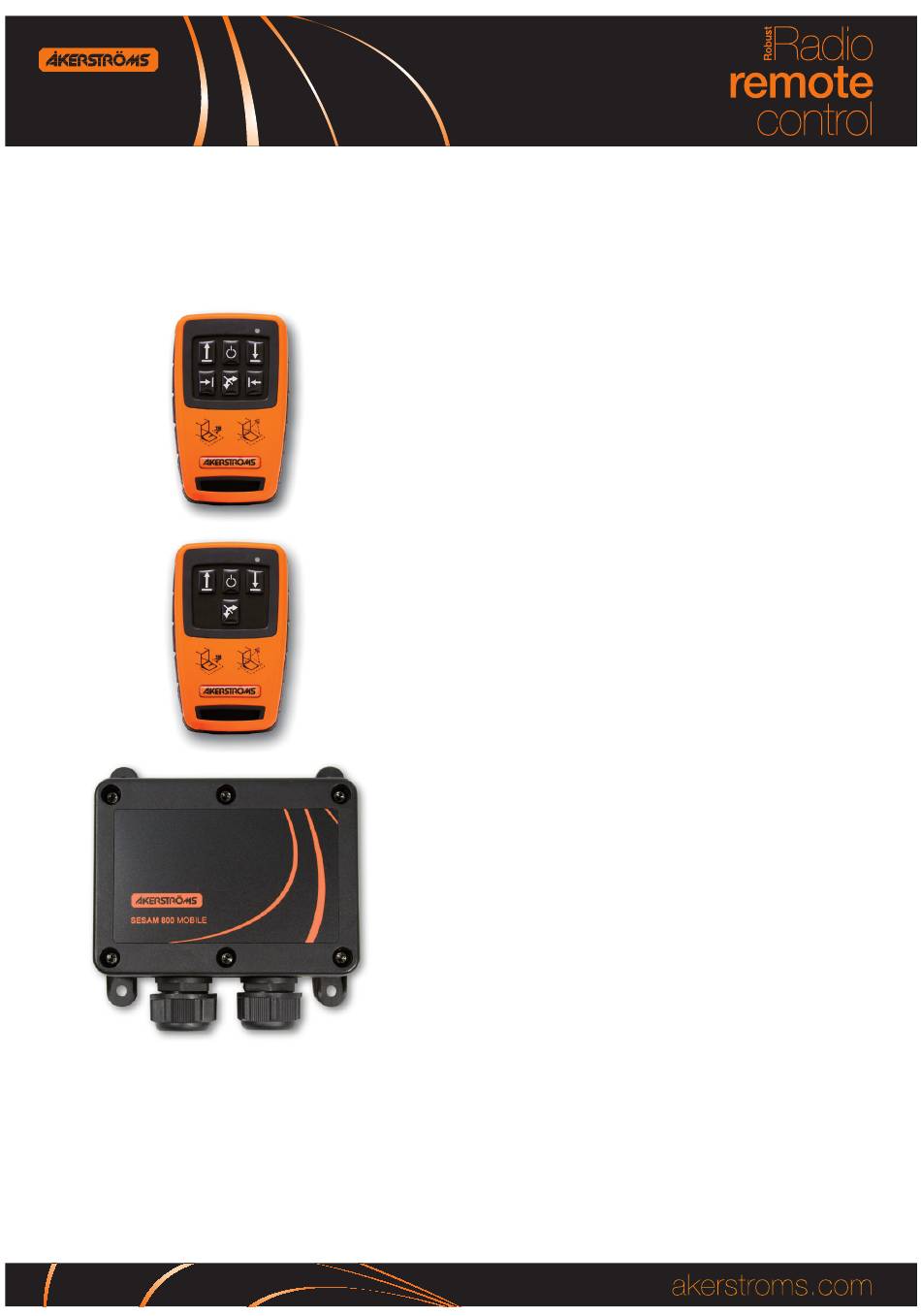

- Page 1 OPERATING MANUAL SESAM 800 MOBILE TAIL LIFT 942913-000 EN -D1...
-
Page 2: Table Of Contents
Operation ___________________________________ 13 12.1 Activate and Deactivate Transmitter____________________________ 13 12.2 Controlling the Device ______________________________________ 13 Replacing Batteries in the Transmitter ___________ 14 Receiver Drill Measures________________________ 15 Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -
Page 3: Introduction
= This symbol highlights extremely important information Service Contact your Åkerströms Björbo AB dealer for service or support. War- ranty work must be performed by Åkerströms or authorized service center. Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -
Page 4: Maintenance
Total load on all outputs: Max 2A/24 V DC (not exceeding 1A on any single output) Dimensions: 120 x120 x 50 mm Weight: 350g Screw size (enclosure): TX20 Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -

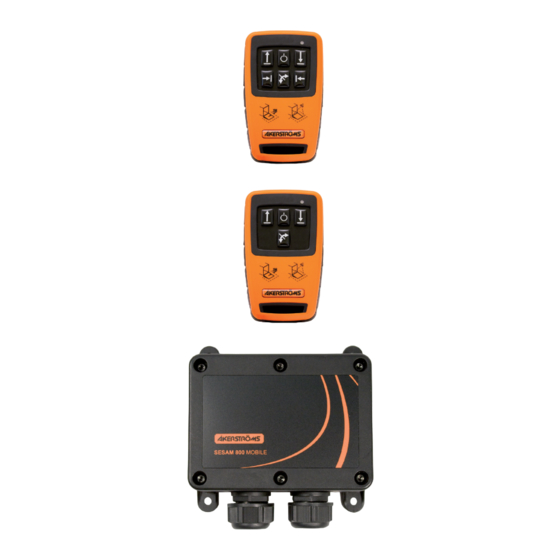

Page 5: Short Description Of The System
UP, DOWN, and TILT Medium M6 a medium size 6- button transmitter capable of controlling UP, DOWN, TILT and SLIDE IN/OUT. Type label position Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -
Page 6: Description Of The Receiver
5. LED 5 delivery 6. LED 6 setting. 7. LED 7 8. Jumper J1 9. Learn/Erase button 10. LED indicators for outputs 11. Output connectors 1..6 Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -
Page 7: Indications On The Receiver
LED 6 is the top- one. An activated output is indicated by a LED in ON state. Output LED Function Lift /Tilt TILT Lift/Tilt Slide Slide DOWN Table 2. Output LED functions Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -
Page 8: Installation Of The Receiver
If the cabinet is unsuitable for mounting, select a well protected position on the vehicles frame. Step 2 Drill 4 holes (for measures see Figure 8) Mount the receiver. Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... - Page 9 Output Power Input and Positive (+) 12/24 V DC using a 0,75 mm cable (see Figure 2). 941551 PB-Free Figure 2. Configuring internal supply of output power Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH...
- Page 10 3. By pressing the buttons on the transmitter, verify that all functions work correctly as described in Table 3. Button 5 must be combined with Button 1 or 3 in order to activate the function. Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH...
-
Page 11: Description Of The Transmitters
(feedback information from receiver). Battery warning Continuous RED after activating a command = Low battery. 3 long RED LED flashes = Battery depleted, transmitter can not send commands. Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -
Page 12: Pairing Receiver And Transmitter
To delete a transmitter from the receiver: 1. Push the Learn/Erase button until LED 7 is ON. 2. Continue by pressing the Learn/Erase button once more until LED 7 is OFF. Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -
Page 13: Operation
) Tilt down • Button 4 ( ) Slide IN, only on the M6 transmitter. • Button 6 ( ) Slide OUT, only on the M6 transmitter. Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -
Page 14: Replacing Batteries In The Transmitter
Figure 5. Figure 6. Batteries Figure 7. Backside of the Battery cover and inserted in the cover inserted in the screws holding transmitter. its position the cover Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... -
Page 15: Receiver Drill Measures
Receiver Drill Measures 120 mm 102 mm Figure 8. Receiver Drill Measures The receiver shall be attached with 4 mm screws that are suitable for the surrounding environment Sesam 800 Mobile Tail lift (original instructions) Document-ID: 942913-000 EN Version: D1 Author: SH... - Page 16 Åkerströms Björbo AB Box 7, SE-785 21 Gagnef, Sweden street Björbovägen 143 SE-786 97 Björbo, Sweden Phone +46 241 250 00 Fax +46 241 232 99 E-mail sales@akerstroms.com www.akerstroms.com © Åkerströms Björbo AB, 2012...
