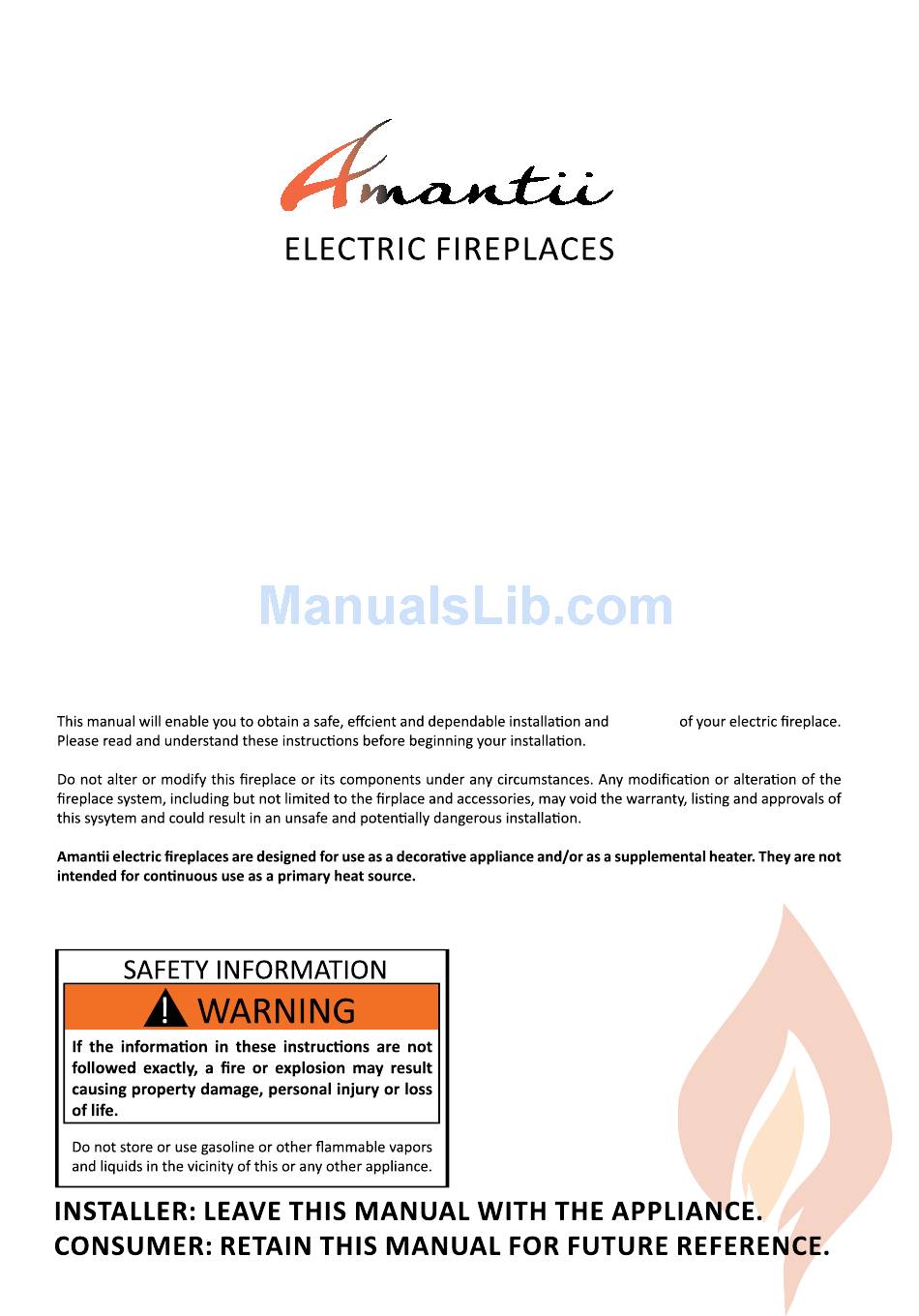

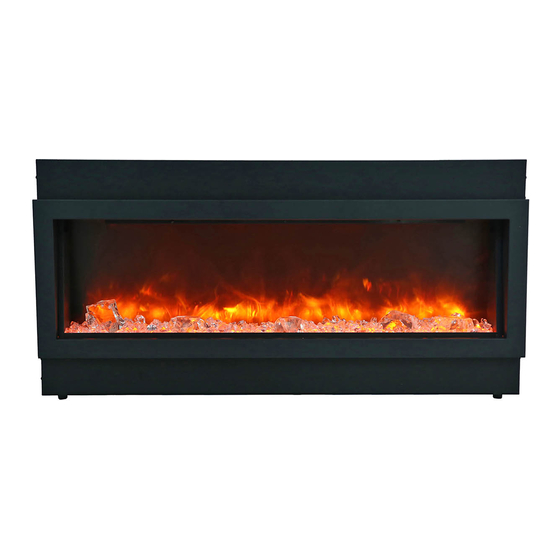

- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR BUILT- IN UNITS BI-40-DEEP BI-50-DEEP BI-60-DEEP BI-72-DEEP BI-88-DEEP operation 09 13-01...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CONGRATULATIONS! In selecting this Amantii Wall Mount OR Built-in electric fireplace, you have chosen the finest and most dependable fireplace on the market today. A beautiful and functional addition to the finest homes. Welcome to the family of satisfied Amantii electric fireplace owners. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS WARNING! 5. Do not use outdoors. grounded Cover Of Grounded Outlet Box Metal Screws Grounding Pin Adapter Grounding Means Grounding Fig. 1 SAVE THESE INSTRUCTIONS... -
Page 4: Bi-40-Deep
BI-40-DEEP This appliance has been tested in accor- Model Number BI-40-DEEP dance with the UL Standand 2021 for Built-In Appliance Voltage 120V AC,60Hz appliances in the United States and Cana- da. If you need assistance during installa- Amps 1500W HIGH... -
Page 5: Bi-52-Deep
BI-50-DEEP This appliance has been tested in accor- Model Number BI-50-DEEP dance with the UL Standand 2021 for Built-In Appliance Voltage 120V AC,60Hz appliances in the United States and Cana- da. If you need assistance during installa- Amps 1500W HIGH 1500W HEATER 750W... -
Page 6: Bi-60-Deep
BI-60-DEEP This appliance has been tested in accor- Model Number BI-60-DEEP dance with the UL Standand 2021 for Built-In Appliance Voltage 120V AC,60Hz appliances in the United States and Cana- da. If you need assistance during installa- Amps 1500W HIGH 1500W HEATER 750W... -
Page 7: Bi-72-Deep
BI-72-DEEP This appliance has been tested in accor- Model Number BI-72-DEEP dance with the UL Standand 2021 for Built-In Appliance Voltage 120V AC,60Hz appliances in the United States and Cana- da. If you need assistance during installa- Amps 1500W HIGH 1500W HEATER 750W... -
Page 8: Bi-88-Deep
BI-88-DEEP This appliance has been tested in accor- Model Number BI-88-DEEP dance with the UL Standand 2021 for Built-In Appliance Voltage 120V AC,60Hz appliances in the United States and Cana- da. If you need assistance during installa- Amps 1500W HIGH 1500W HEATER 750W... -
Page 9: Installation Overview
INSTALLATION OVERVIEW NOTE: BEFORE YOU INSTALL SITE SELECTION wall. rapes, pillow Review and consider all of the following condi- re etc. wo (2) wall ht and away fr overhead light- ing. electric et for ease of electric and all hardware fr ox and r ove all Power supply Wire Gage... -
Page 10: Package Contents
PACKAGE CONTENTS Part Trim Glass Decorative Media CONTENTS Description Quantity Picture Part Screw 0.16 in. x 1.0 in. Wall Plug 0.3 in. x 1.5 in. Wood Screw 0.16 in. x 0.6 in. -
Page 11: Built-In Installation
NOTE: The optional trim can be pull out directly from the unit. It will need two person to do it. The rough wall opening size of the fireplace. W(") D(") H(") BI-40-DEEP BI-50-DEEP BI-60-DEEP BI-72-DEEP BI-88-DEEP 1. Take out the unit from the box.Pull out the optional trim from the unit as show right. - Page 12 BI-50/72-DEEP INSTALLATION- BUILT IN 3. Turn around the framing plates and fixing. 4. Bent up the framing plates. 5. Insert the fireplace into the wall opening. 6. Drive the mounting screws into the framing plates on the units and the wall studs.
-
Page 13: Media Options
Media op ons Glass nuggets, clear and blue diamond shaped media The BI-50-DEEP is shipped with 3 large glass nuggets, clear and blue diamond shaped media and 6 piece log set. The BI-72-DEEP is shipped with 6 large glass nuggets, clear and blue diamond shaped media and 6 piece log set. -
Page 14: Operating The Unit
The button located at the top position of the remote control is ON/OFF. Press it, the flame and ember will be on. The heater will be off. Press again, the fireplace will turn off. “DISPLAY ON/OFF”: Switching the fireplace flame and tray light ON/OFF. It has functions of setting memory. - Page 15 1. Heat control button 2. Flame control button Plug the heater into a suitable outlet. 1) “Heat control button” Press the HEAT button repeatedly to set the heater to the desired heat setting. The Heater will work on as shown below. HIGH / 1500W LOW / 750W AUTO MODE...
-
Page 16: Replacing The Remote Control Battery
REPLACING THE REMOTE CONTROL BATTERY When the remote control stops operating or its range seems reduced, it is time to replace the batteries with new ones. Remove the batteries if the remote control won’t be used for a long period of time. 1. -
Page 17: Care And Maintenance
CARE AND MAINTENANCE CLEARANCE TO COMBUSTIBLES Keep electrical cords, drapery, furniture and other combustibles at least 3 ft. from the front of the heater and away from the sides. CLEANING TRIM Clean the metal trim using a soft cloth, slightly dampened with a citrus oil-based product and buff with a clean soft cloth. -
Page 18: Fireplace Maintenance
FIREPLACE MAINTENANCE WARNING: Disconnect power before performing any maintenance or cleaning to reduce the risk of LED LIGHT BULB REPLACEMENT LED light bulbs are to be replaced by the manufacturer, it’s service agent or similar quali- WARNING: UNIT DISPOSAL Do not dispose with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the... -
Page 19: Trouble Shooting
TROUBLE SHOOTING WARNING Disconnect power before performing any maintenance and allow to cool before servic- SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION Fireplace doesn’t work. Fireplace inner temperature over Reset switch by turning main power switch off and waiting five heatng or home circuit breaker mimutes, then turning it back on. -
Page 20: Parts List
DEEP SERIES PART LIST REF NO. PART NO. DESCRIPTION REMAKR 1 602030C BLOWER AND HEATER ASSEMBLY FRT60420 2 601089E CIRCUIT BOARD LRC9-05 3 301506 REMOTE RECEIVER 4 601140 LED STRIP FOR FLAME AND EMBER LED-H20-1 5 601141 LED STRIP FOR FLAME AND EMBER LED-H30-1 10105048 REMOTE 7 10101201C... -
Page 21: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Dealer service technician Date service Performed special Concerns Name Name NOTES:... -
Page 22: Warranty
Products covered by this limited warranty have been tested and inspected prior to shipment and, subject to the provisions of this war- ranty, Amantii warrants such products to be free from defects in material and workmanship for a period of one (1) year from the date of the first purchase of such products. - Page 23 ELECTRIC FIREPLACES...
