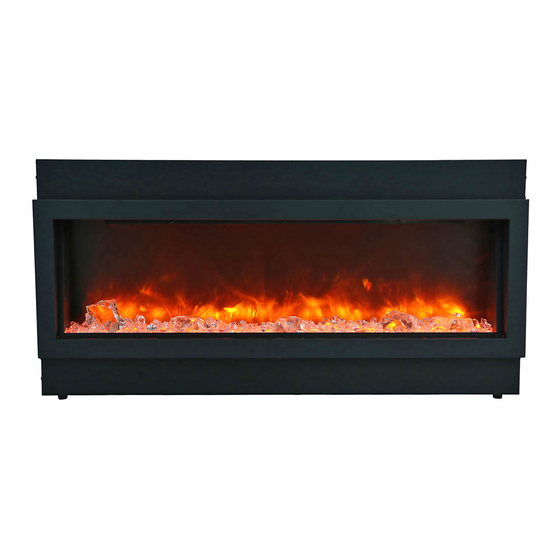

INSTALLATION AND OPERATION INSTRUCTIONS FOR
BI-DEEP UNITS
RATED FOR INDOOR OR OUTDOOR USE
BI-40-DEEP
BI-50-DEEP
BI-60-DEEP
BI-72-DEEP
BI-88-DEEP
SAFETY INFORMATION
WARNING
If the information in these
instructions are not followed exactly,
a fire or explosion may result causing
property damage, personal injury or
loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BI-40-DEEP and is the answer not in the manual?

Questions and answers

Related Manuals for Amantii BI-40-DEEP

Summary of Contents for Amantii BI-40-DEEP

  • Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR BI-DEEP UNITS RATED FOR INDOOR OR OUTDOOR USE BI-40-DEEP BI-50-DEEP BI-60-DEEP BI-72-DEEP BI-88-DEEP SAFETY INFORMATION WARNING If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
