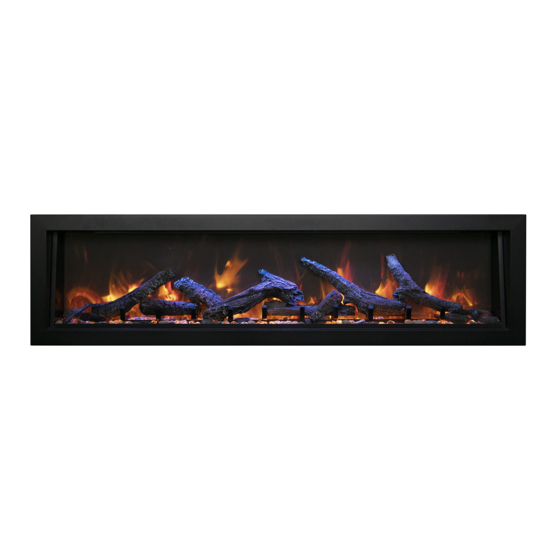

INSTALLATION AND OPERATION INSTRUCTIONS FOR
BI-DEEP UNITS
BI-40-DEEP
BI-50-DEEP
BI-60-DEEP
BI-72-DEEP
BI-88-DEEP
SAFETY INFORMATION
WARNING
If the information in these
instructions are not followed exactly,
a fire or explosion may result causing
property damage, personal injury or
loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
